Canon CanoScan FB 1200S User manual

read this first

Canon Color Image Scanner

CanoScan FB1200S

Getting

Started

Inspect the package contents

▼

Setting Up the scanner

▼

Installing the software

▼

Test scanning operation

Guide to

the software

how to use the scanning software

Windows

ScanGear CS-S

ScanGear Toolbox CS

Adobe Photoshop 5.0 LE

Caere OmniPage Limited Edition

Macintosh

Plug-in Module CS-S

CanoScan Toolbox CS

Adobe Photoshop 5.0 LE

read this first

Describes operating procedure from set up

and software installation to scanning and

confirmation of operation. Please read before

using the scanner for the first time.

Printed Manual

CanoScan FB1200S

Getting Started

Detailed information on how to use

Plug-in Module CS-S.

Plug-in Module CS-S

User's Guide

Electronic Manual

MacintoshWindows

Explains in detail how to use the

scanner, CD-ROM and optional ADF

CanoScan FB1200S

Product Guide

Electronic Manual

This Guide

Electronic Manual

Detailed information on how to use

ScanGear CS-S and ScanGear Toolbox CS.

ScanGear CS-S

User's Guide

Tells you how to use Adobe Photoshop 5.0 LE

and Caere OmniPage Limited Edition.

Electronic Manuals

Manual for Each

Application Software

When you open the box

Learn advanced techniques for

scanning after reading this

guide and setting up the

scanner.

Learn more about

operating the

scanner, CD-ROM

and ADF.

Proceed to these after

thoroughly mastering

ScanGear CS-S and ScanGear

Toolbox CS.

Read these before using the

bundled application

programs.

Proceed to these after

thoroughly mastering Plug-in

Module CS-S and

CanoScan Toolbox CS.

Detailed information on how to use

CanoScan Toolbox CS.

CanoScan Toolbox CS

User's Guide

Electronic Manual

How to Make Best Use of the Manuals

Thank you for purchasing the CanoScan FB1200S color image scanner.

This Getting Started guide explains the necessary steps to connect the scanner to

your computer and begin scanning. We recommend that you carefully read this

entire guide to learn the proper procedures to avoid malfunctions.

Organization of the Guide

The guide is divided into two main sections.

• Setting Up the Scanner

This section provides a step-by-step explanation of how to set up the

scanner for first-time users. Make sure to read this section carefully

and follow the procedures exactly.

• Guide to the Software

This section offers a brief explanation of the features and applications

of the software bundled with the scanner. Read this section as

required.

•References to Windows®in this guide are to Windows®95, Windows®98 and

Windows NT®4.0.

How to Use this Guide

Conventions Used in the Guide

Important information in the guide is indicated by the following symbols.

This symbol indicates precautions that must be taken

when operating the equipment. Ensure that you read

all warnings.

This symbol indicates supplementary operating

procedures and other useful information.

WARNING

•

NOTE

•

Table of Contents

CHAPTER 1

Setting Up the Scanner

Before using this scanner for the first time, follow the

procedures in this section to connect to the computer and

install the software.

Inspecting the Package Contents....................................................... 5

Setting Up the Scanner...................................................................... 6

Installing the SCSI Card ..................................................................... 7

Connecting to the Computer .......................................................... 16

Installing the Software ..................................................................... 20

Windows

Windows Platform: Installing the Scanner Software ...... 22

Trying Out the Scanner................... 28

Macintosh

Macintosh Platform: Installing the Scanner Software ...... 34

Trying Out the Scanner................... 40

CHAPTER 2

Guide to the Software

How to Use the Software ................................................................ 46

Windows

Windows Platform

Using ScanGear CS-S ................................................................. 47

Scanning with ScanGear Toolbox CS.......................................... 49

Scanning with Adobe Photoshop 5.0 LE .................................... 50

Scanning with Caere OmniPage Limited Edition ........................ 51

Macintosh

Macintosh Platform

Using Plug-in Module CS-S ........................................................ 53

Scanning with CanoScan Toolbox CS ......................................... 55

Scanning with Adobe Photoshop 5.0 LE .................................... 56

Viewing Electronic Manuals with Adobe Acrobat Reader 3.0 .......... 57

System Information ......................................................................... 59

FB1200S Getting Started 3

Features of the CanoScan FB1200S

This scanner is a flatbed color scanner with 1200 dpi optical resolution

incorporating the following features.

• Fine Color Tones and High Resolution

Achieves a maximum optical resolution of 1200 dpi x 1200

dpi. The 1200 dpi primary scan (horizontally across

document) is realized with VAROS, the proprietary Canon

system short for VAriable Refraction Optical System. VAROS

is a two-pass scanning technique that combines the results

of the scanning unit's first pass with a second pass that is

optically shifted by a half pixel. Reading 12 bits (4,096

colors) per red, green and blue (RGB) channel, the scanner

offers 12-bit or 8-bit output that reproduces brilliant tones

at high resolution.

• Standby Power and Energy-Saving Features

This scanner, even with the power on, consumes only 12

watts or lower at standby and only 35 watts or lower at full

operation. The standby feature means the scanner is always

ready to use. The product meets the Energy Star

requirements for energy conservation.

• Convenient Start Button

The one-touch start button on the front of the scanner

allows convenient use of the accompanying software

(ScanGear Toolbox CS/CanoScan Toolbox CS).

• Optional Film Adapter Unit

The FAU-S10 optional film adapter unit allows films and

transparencies to be scanned singly or in batches, increasing

the versatility of this high-quality scanner. Refer to the

manual accompanying the FAU-S10.

• Optional Automatic Document Feeder

The ADF-S9 optional automatic document feeder permits

hands-free operation for up to 20 sheets, a convenient

time-saving feature. Refer to the Product Guide.

CHAPTER 1

Setting Up the Scanner

In this section, we explain the step-by-step procedures for

setting up the scanner from opening the package to checking

the operation of the scanner.

Please follow the procedures without skipping any steps.

P. 5

Inspecting the Package

Contents

Installing the SCSI Card

Setting the SCSI ID and

the Terminator Settings

Product Guide p.20

Setting Up the Scanner

SCSI Card Installed

in your computer?

Will the Scanner be the only SCSI

Device Connected to the Computer?

Unlock the Scanning Unit

P. 16

P. 7

Connecting to the Computer

P. 6

P. 18

Connecting the AC Adapter

P. 20

Installing the Software

P. 28

Trying Out the Scanner P. 40

Trying Out the Scanner

YES

MacintoshWindows

YES

FB1200S Getting Started 5

Inspecting the Package Contents

After opening the box, inspect its contents.

Scanner Unit and Accessories

Software and Documents

•CanoScan Setup Utility CD-ROM

Contains the software to operate the scanner, the software

manuals and reader software for the manuals.

• Getting Started (This Guide)

Explains the procedures for preparing the scanner to connect it to a

computer and introduces the accompanying software.

• Other Documents

•Please contact your retailer if any item is missing.

You are now ready to set up the scanner.

Scanner Unit

AC Adapter

WARNING

AVA-2902E SCSI Card

Windows Platform

SCSI Interface Cable

Connects the scanner to a computer

(Half Pitch 50-Pin, D-Sub 25-Pin)

Power Cord

6FB1200S Getting Started

Setting Up the Scanner

Unlock the Scanning Unit

The scanner is shipped with the scanning unit locked to prevent

damage during transport. You must unlock it to use the scanner.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

1Remove the document cover. Grasp it with both

hands at the hinges and lift straight up.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

2Locate the lock switch and push it toward the

unlock mark.

Lock Switch

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

3Replace the document cover, taking care to insert

it in straight.

•Make sure to unlock the scanner before plugging the AC

adapter into the outlet. If left locked, a malfunction or

problems may occur.

WARNING

Unlocked State

FB1200S Getting Started 7

Installing the SCSI Card

These procedures are only required for use of the scanner with the Windows

platform.

What is a SCSI Card?

SCSI (pronounced ‘scuzzy’) is a standard interface for connecting SCSI

devices, such as scanners and hard disk drives. SCSI connectors are

usually not supplied as standard equipment on computers running

Windows. Accordingly, a SCSI card with a SCSI connector must be

installed to connect SCSI devices together.

SCSI Card

SCSI Connector

•Before you pick up the SCSI card, discharge the static electric-

ity from your body by touching a grounded metal surface like

the chassis of the computer.

•Do not remove the SCSI card from its protective wrapping

until you are ready to install it.

•Hold the SCSI card by the edges. Never touch the terminals or

other circuitry with your bare hands.

•Using the computer with the SCSI card installed incorrectly

can damage the SCSI card. Make sure the SCSI card is installed

correctly before use.

•If you experience difficulty with installation or in using the

SCSI card, call a Canon Customer Support Help Desk.

•The SCSI card shipped with this product is not guaranteed to

support daisy chain device configurations. It is recommended

that this SCSI card be used only to connect the scanner to your

computer.

•Windows models can be used with Windows 95, Windows 98

and Windows NT 4.0.

Macintosh

Windows

WARNING

8FB1200S Getting Started

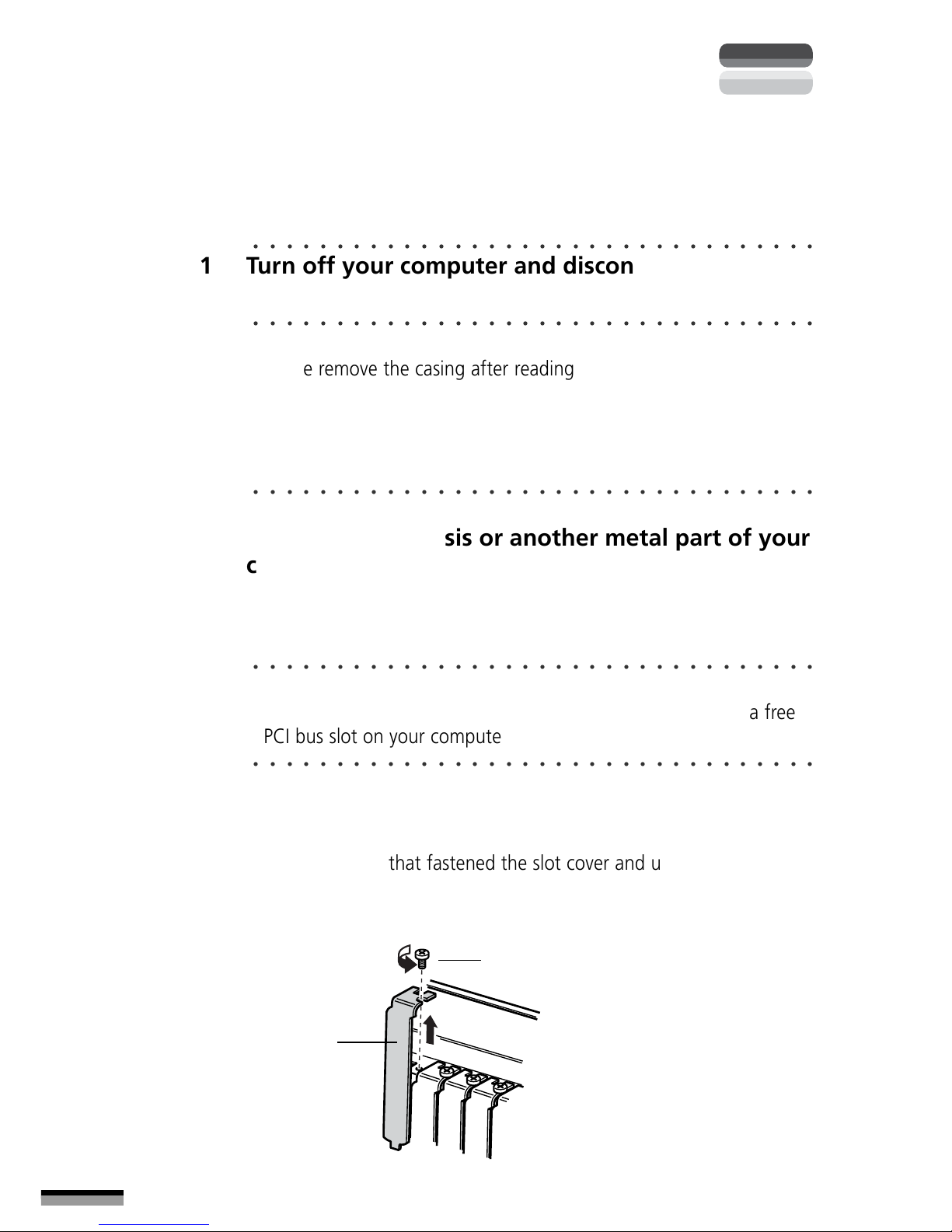

How to Install the SCSI Card

Have a Phillips (+) screwdriver handy and follow the procedures below

to install the AVA-2902E SCSI Card into your computer.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

1Turn off your computer and disconnect all the

connected devices and cables.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

2Remove the computer casing.

•Please remove the casing after reading the manual accompanying

the computer. Some computers may require specialized tools or

procedures to remove the casing. Please consult the retailer from

which you purchased your computer if you are unclear about the

requirements for the task.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

3Discharge the static electricity from your body by

touching the chassis or another metal part of your

computer.

•Static electricity can irrevocably damage the high-precision

components on the SCSI card. It is, therefore, essential to discharge

any static electricity from your body before you proceed.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

4Locate a free PCI bus slot on your computer.

•Consult the manual accompanying your computer to locate a free

PCI bus slot on your computer.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

5Use the Phillips (+) screwdriver to remove the slot

cover from the PCI bus slot in which the SCSI card

will be installed.

•Save the screw that fastened the slot cover and use it to fasten the

SCSI card to the computer. Keep the slot cover in a safe place for

future use.

Screw

Slot Cover

Macintosh

Windows

Other manuals for CanoScan FB 1200S

Table of contents

Other Canon Scanner manuals

Canon

Canon S 400 MS 500 User manual

Canon

Canon DR 5010C - imageFORMULA - Document Scanner User manual

Canon

Canon Imageformula scanfront 220 User manual

Canon

Canon CANOSCAN LIDE 200 User manual

Canon

Canon DR-6080 User manual

Canon

Canon imageFORMULA DR-1210C User manual

Canon

Canon imageFORMULA DR-2080C User manual

Canon

Canon CanoScan LiDe 50 User manual

Canon

Canon P-208 User manual

Canon

Canon CanoScan FB 320P User manual

Canon

Canon CanoScan LiDE 30 User manual

Canon

Canon CanoScan 8000F User manual

Canon

Canon CanoScan 9900F User manual

Canon

Canon CR-25 - imageFORMULA Desktop Check Scanner User manual

Canon

Canon CanoScan LiDE 25 User manual

Canon

Canon imageFORMULA DR-3080C Installation and operation manual

Canon

Canon imageFORMULA CR-190i User manual

Canon

Canon imageFORMULA DR-3080C User manual

Canon

Canon DR-X10C - imageFORMULA - Document Scanner User manual

Canon

Canon imageFORMULA CR-190i User manual

Canon

Canon DR 5010C - imageFORMULA - Document Scanner Instructions for use

Canon

Canon imageFORMULA DR-3020 User manual

Canon

Canon CanoScan FB 630U User manual

Canon

Canon DR-X10C - imageFORMULA - Document Scanner Instructions for use

Popular Scanner manuals by other brands

Plustek

Plustek Scanner user guide

Z/I Imaging

Z/I Imaging PhotoScan 2001 instructions

Renkforce

Renkforce DS100-5M operating instructions

Image Access

Image Access WideTEK A2 Operation manual

Fujitsu

Fujitsu FI-4860C2 Specifications

GeoSlam

GeoSlam ZEB Horizon Hardware guide

Kodak

Kodak i5800 Scanner Brochure & specs

Kodak

Kodak i7300 user guide

Revopoint

Revopoint POP user manual

Fujitsu

Fujitsu fi-4860C installation guide

Eddyfi Technologies

Eddyfi Technologies Floormap X user manual

Faselase

Faselase F6 user manual

Fujitsu

Fujitsu CardMinder user guide

Uniden

Uniden BC340CRS owner's manual

Infinite Peripherals

Infinite Peripherals INFINEA TAB M user manual

Mustek

Mustek PageExpress 4800 Pro user guide

Optex

Optex 750830 owner's manual

Innova

Innova 5210 user manual
