Canon BJC-4400 Series User manual

QY8-13P1-000

MAY. 1998



1998 CANON INC. CANON BJC-4400 PRINTED IN JAPAN (IMPRIME AU JAPON)

REVISION 0

SERVICE

REFERENCE MANUAL

Q30-2830-220 120V(CCSI)

Q30-2830-221 120V(CAN)

Q30-2830-222 (UNIVERSAL)

Q30-2830-230,630 220V-240V(EUR)

Q30-2830-231,631 220V-240V(GER)

Q30-2830-232,632 220V-240V(FRN)

Q30-2830-280,680 220V-240V(UK)

Application

This manual has been issued by Canon Inc. for qualified persons to learn technical theory, installation, maintenance, and repair

of products. This manual covers all localities where the products are sold. For this reason, there may be information in this

manual that does not apply to your locality.

Corrections

This manual could include technical inaccuracies or typographical errors due to improvements or changes in the products. When

changes occur in applicable products or in the content of this manual, Canon will release technical information as the need arises.

In the event of major changes in the contents of this manual over a long or short period, Canon will issue a new editions of this

manual.

The following paragraph does not apply to any countries where such provisions are inconsistent with local law.

Trademarks

The product names and company names described in this manual are the registered trademarks of the individual companies.

translated into another language, in whole or in part, without the written consent of Canon Inc., except in the case of internal

business use.

CANON INC.

BJ Products Technical Support Dept

16-1, Shimonoge 3-chome, Takatsu-ku, Kawasaki-shi, Kanagawa 213, Japan

This manual was produced on an Apple MacintoshPower Mac 8500/180 personal computer and Apple

LaserWriter16/600PS-J laser beam printer; final pages were printed on Varityper5300 with 4000-J RIP. All graphics were

produced with MACROMEDIAFREEHAND5.5J.

All documents and all page layouts were created with QuarkXPress3.3J.

I.PREFACE

This manual is based on the following manuals, and only includes differences between BJC-4300 and

BJC-4400.

QY8-1352-000 BJC-4300 SERVICE MANUAL, Rev.0

II.CONTENTS

CHAPTER 1: MAJOR CHANGES

This chapter explains the main differences between BJC-4300 and BJC-4400.

CHAPTER 2: SERVICE MANUAL

This chapter explains the main differences between the SERVICE MANUAL of the BJC-4300 and

BJC-4400.

NOTE

· Page No. displayed are those of pages to be replaced for each item.

CHAPTER 1

MAJOR CHANGES

I.MAJOR CHANGES

BJC-4400 contains the following modifications compared to BJC-4300.

1.1 PRODUCT SPECIFICATIONS

1. Faster throughput speed(especially in HS mode)

2. T-shirt Transfer (TR-201) added as media type

1.2 PRINTER MECHANICAL SYSTEM

1. Countermeasures for quality improvements to the current model were incorporated

Shape changes : Carriage, paper delivery guide, platen and bottom case

Additional changes : Increased area and amount of grease application

1.3 PRINTER ELECTRICAL SYSTEM

1. To improve throughput speed, the carriage motor, the paper feed motor and the motor driver were

modified.

CHAPTER 2

SERVICE MANUAL

Part 2: Product Specifications

BJC-4400

2-1

1. PRODUCT OUTLINE

1.1 Product Outline

This full color bubble jet desktop printer not only realizes high image printing through the implementation

of the PhotoRealism concept, but also higher speed printing compared to previous models.

This printer achieves high image printing by adopting "drop modulation technology" in the color BJ

cartridge and the photo BJ cartridge.

The expanded printing environment has allowed the printer to have banner printing capabilities. The

printer can also be used as a compact color scanner when the scanner cartridge is installed in the carriage.

All the function settings are easily set by the personal computer. The operation is easily performed with the

bidirectional Centronics interface (effective only for the device ID response)

This printer uses a built-in AC adapter. This is a small and light weight personal color printer with high

performance capabilities.

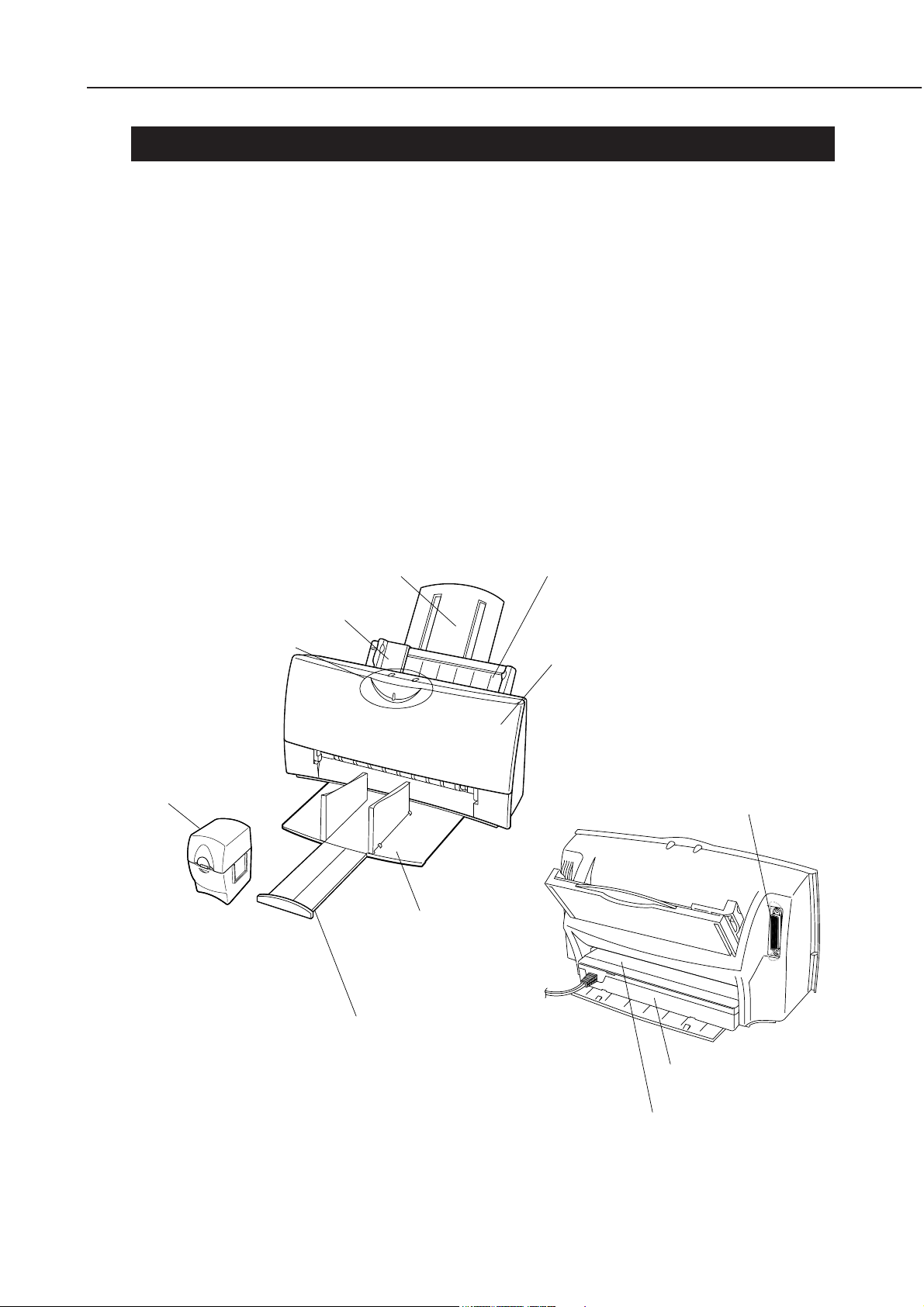

AC Adapter

Parallel Interface Connector

Manual Feeding Slot

Paper Support Cut Sheet Feeder

Paper Guide

Operator Panel Front Cover

Paper Output Tray

Paper Output Tray Extension Guide

BJ Cartridge Container

Figure 2-1 Printer Exterior

Part 2: Product Specifications

2-2

1.2 Features

1. Higher speed printing

Black BJ Cartridge : 5.5 PPM (HS mode)

Color BJ Cartridge : 2.2 PPM (HS mode)

2. Compact (desk-top size)

Dimensions: 383 mm W

x231.6 mm D x203 mm H

Weight: Approx. 3.5 kg (7.7 lbs) (including color BJ cartridge)

3. Built-in AC adapter employs a high-current capable switching power supply.

4. Automatic power control (auto power on/off)

5. High quality printing of 720 x 360 dpi (in both monochrome and black when using the special printer

driver)

6. Two standard built-in printer control modes

LQ mode (EPSON LQ-2550 emulation)

BJ mode (IBM Proprinter X24E emulation)

[Canon extended mode is supported when using the canon printer driver.]

7. User replaceable BJ cartridge and adopting drop modulation technology color/ photo BJ cartridge .

Color BJ Cartridge Drop modulation technology has been adopted.

(Multi drop) It has separate ink cartridges (Bk) (Y, M, C) and the head with 136 nozzles

in a vertical line; 64 nozzles (Bk) + 24 nozzles x3 (Y, M, C).

Black BJ Cartridge Contains the black ink and the head with 128 nozzles.

Depending on each sales territory, it is not packed with the printer, but is

available separately.

Photo BJ Cartridge Drop modulation technology has been adopted.

(Multi drop) It has integrated ink cartridges with the head with 136 nozzles in a vertical

line; 64 nozzles (Bk) + 24 nozzles x3 (Y, M, C).

Black ink cartridge Black ink cartridge for the color BJ cartridge.

Color ink cartridge Tri-color (Y, M, C) ink cartridge for the color BJ cartridge.

(*Previous color and photo BJ cartridges that do not use drop modulation technology may be used,

however the printing quality will be the same as when drop modulation technology is not used.)

8. Device ID compatible to "Plug and Play"

(Responds only to the device ID/status of nibble mode)

9. Banner printing capabilities.

10. Capable of the double paper feeding with the leverless cut sheet feeder and manual feed. (It is possible

to feed paper manually even when the paper has been set on the cut sheet feeder.)

11. Photo quality printing using the Photo kit option and the photo printing special driver.

12. Cartridge container packed with the printer.

13. High quality photo image input using the option color image scanner cartridge.

BJC-4400

Part 2: Product Specifications

2-8

2. SPECIFICATIONS

2.1 Printer Specifications

1. Type

Desk-top serial color bubble jet printer

2. Paper feeding method

Auto feeding and manual feeding

3. Cut Sheet Feeder capacity

Plain paper: Maximum 10 mm (approximately 100 pages of 64g/m2paper)

Envelopes: 10 envelopes (Commercial number 10 and DL)

Transparencies: 50 sheets

BPF: 10 sheets

Glossy film/ BJ cloth: One page with the manual feeding

Scanning document: Place between the scanning holder. One page with the ASF.

4. Manual feeding slot capacity

One sheet

5. Paper weight

Automatic feed / Manual feeding slot: 64 to 105 g/m2(17 lbs to 28 lbs)

6. Printing speed

Burst

7. Printing direction

Unidirectional

(Print direction is automatically changed according to optimum printing directional control.)

8. Printing width

Maximum 8”

9. Line feed speed

90 ms/line (128/360” line)

10. Built-in printing control modes

LQ mode: Epson LQ-2550 emulation

BJ mode: IBM Proprinter X24E emulation

(Canon extended mode is supported when the Canon driver is used.)

11. Line feed pitch (n: programmable)

LQ mode: 1/6”, 1/8”, n/60”, n/72”, n/180”, n/216”, and n/360”

BJ mode: 1/6”, 1/8”, n/180”, and n/360”

BJC-4400

Color BJ Cartridge (Black printing) Black BJ Cartridge (Black printing)

HQ mode 173 cps (10 cpi) 346 cps (10 cpi)

HS mode 271 cps (10 cpi) 542 cps (10 cpi)

Part 2: Product Specifications

2-9

11. Printing characters

Typefaces: LQ&BJ mode Roman, Gothic, Courier, Prestige, Script, Draft

Pitch: LQ mode 10, 12, 15, 17, 20 cpi, and PS

BJ mode 10, 12, 17 cpi ,and PS

Character matrix: HQ mode 36 (H) x48 (V) dots

HS mode 18 out of 36 (H) x48 (V) dots

Character set: LQ mode Italic character set and Graphic character set

and International character set

BJ mode IBM character set 1, 2

and all character set

(code page 437, 850, 852 860, 863 and 865)

12. Number of columns printed

13. Bit image

Vertical: 8, 24 and 48 dots

Horizontal: 60, 120, 180, 240, 360 and 720* dpi

* In smoothing mode or when using the Canon driver.

14. Buffer

15. Interface

IEEE1284 compatible parallel interface

BJC-4400

Mode Pitch cpl *

LQ mode 10 cpi 10 cpi 80 cpl

10 cpi doublewide 5 cpi 40 cpl

10 cpi condensed 17 cpi 137 cpl

10 cpi condensed-doublewide 8.5 cpi 68 cpl

12 cpi 12 cpi 96 cpl

12 cpi doublewide 6 cpi 48 cpl

12 cpi condensed 20 cpi 160 cpl

12 cpi condensed-doublewide 10 cpi 80 cpl

15 cpi 15 cpi 120 cpl

15 cpi doublewide 7.5 cpi 60 cpl

Proportional spacing PS Varies

BJ mode 10 cpi 10 cpi 80 cpl

10 cpi doublewide 5 cpi 40 cpl

10 cpi condensed 17 cpi 137 cpl

10 cpi condensed-doublewide 8.5 cpi 68 cpl

12 cpi 12 cpi 96 cpl

12 cpi doublewide 6 cpi 48 cpl

Proportional spacing PS Varies

* cpl: characters per line

Receive buffer Download buffer

LQ mode 22 kB 32 kB

BJ mode 22 kB 0 kB
