Reference Guide

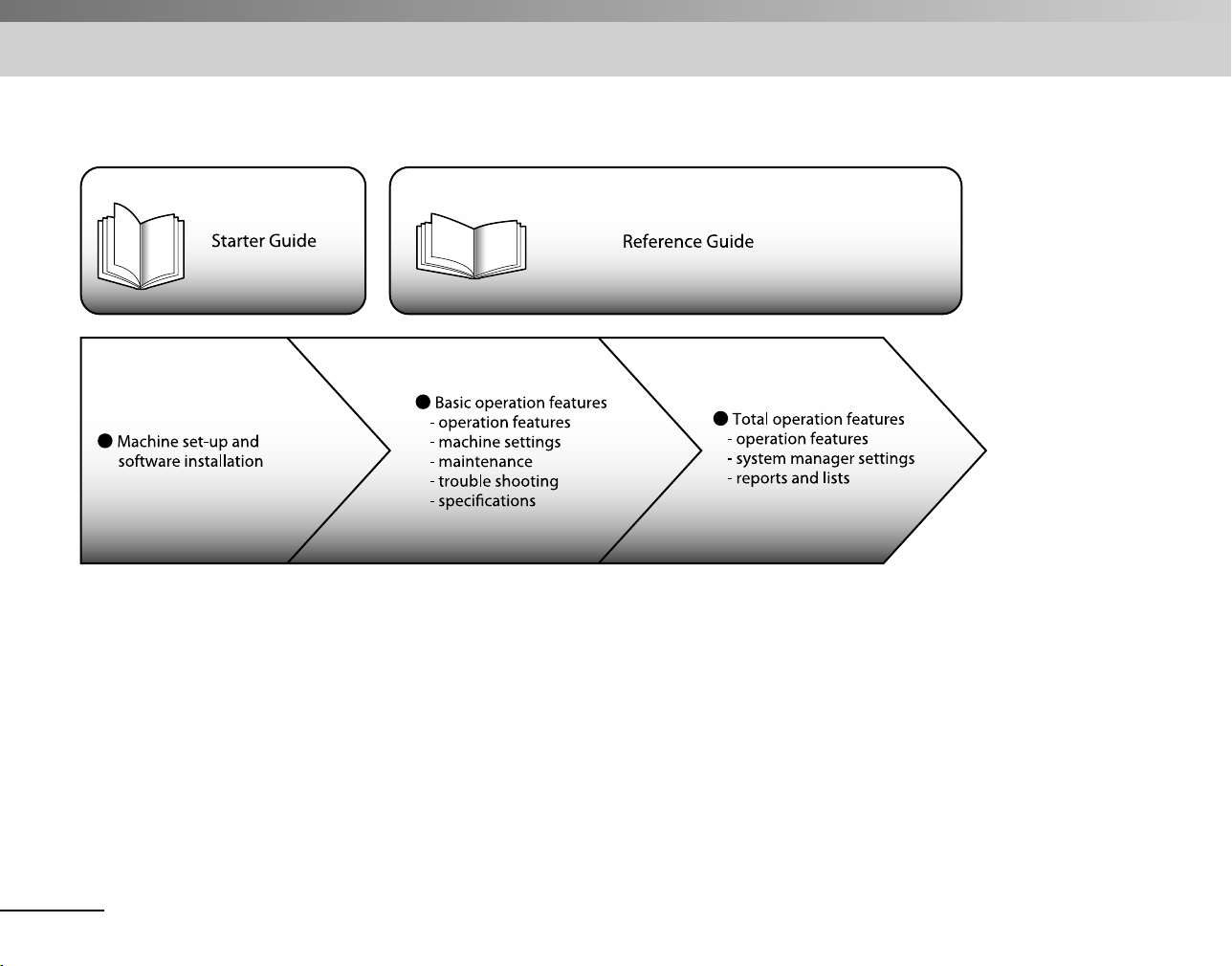

Manuals for the Machine

Considerable effort has been made to make sure that the manuals for the machine are free of inaccuracies and omissions. However, as we are

constantly improving our products, if you need an exact specification, please contact Canon.

The machine illustration on the cover may differ slightly from your machine.

Depending on the country of purchase, some default values may vary and some settings may not be available.

●

iii

Things You Can Do

Specify a recipient with a single

key

One-Touch Speed Dialing Keys

p. 3-13

Specify a recipient with a two-digit

code

Coded Speed Dialing Codes

p. 3-13

Specify multiple recipients as a

group

Group Dialing

p. 3-14

Look up a particular recipient

Address Book Search

p. 3-14

Redial when the line is busy

Redialing

p. 3-18

Send documents to multiple

recipients

Broadcasting

p. 3-28

Receive faxes in memory without

printing out

Memory Reception

p. 3-24

Reject faxes without their numbers

RX Restriction

p. 3-27

Send a fax at a specified time

Delayed Sending

p. 3-28

Send or receive a fax automatically

upon request

Polling

p. 3-29

Send a fax to be relayed to other

fax machines

Relay

p. 3-30

Select a scan mode depending on

the type of image

Image Quality

p. 4-3

Adjust the density level of scanned

images

Density

p. 4-3

Enlarge or reduce copied images

Zoom Ratio

p. 4-4

Print a document from a PC*1

Printing

p. 5-2

Sort printouts by page order*1

Collate Printing

p. 5-3

Restrict the use of the machine

with a password

System Manager Settings

p. 6-2

*1Indicates the features available only for

the FAX-L160.

How This Manual Is Organized

1 Before Using the Machine

2 Document and Paper

3 Sending and Receiving

4 Copying

5 Printing (FAX-L160 Only)

6 System Manager Settings

7 Maintenance

8 Troubleshooting

9 Appendix

Contents

Manuals for the Machine............................................................................ii

Things You Can Do.......................................................................................iii

How to Use This Guide ............................................................................ xiv

Illustrations Used in This Manual...........................................................................xv

Legal Notices .............................................................................................. xvi

1. Before Using the Machine...........................................................................1-1

Machine Components............................................................................ 1-2

Operation Panel........................................................................................ 1-5

Operation Panel......................................................................................................... 1-5

LCD (Standby Mode)............................................................................... 1-8

Fax Mode...................................................................................................................... 1-8

Copy Mode ..................................................................................................................1-8

Optional Handset .................................................................................... 1-9

Maintaining the Handset........................................................................................1-9
