Canon IMAGECLASS MF7400 Safety guide
ENG
Starter Guide
Please read this guide before operating this product.
After you nish reading this guide, store it in a safe place for future reference.
1
Set Up the Machine
Unpacking the Machine

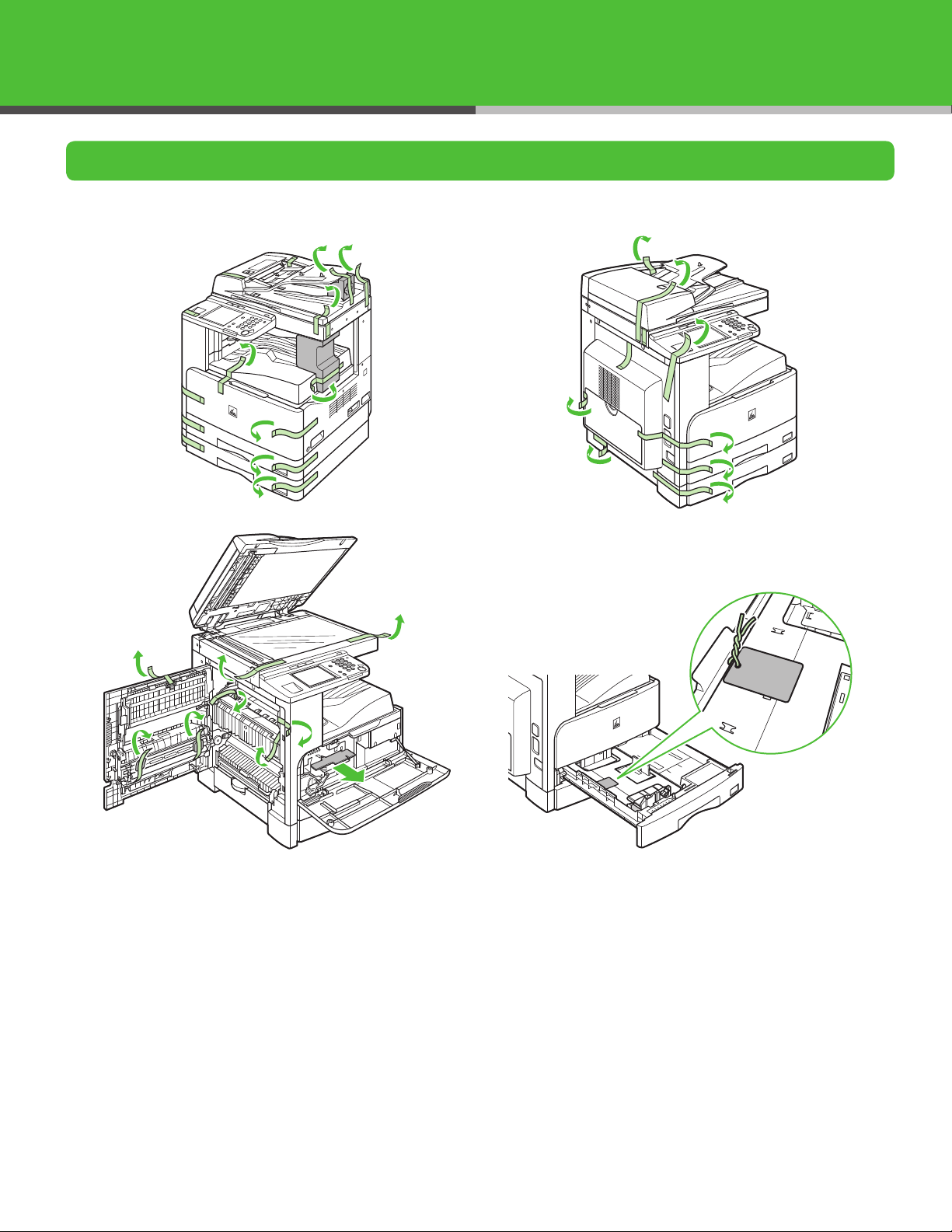

Remove all shipping tape and packing material from the machine.
Remove the vinyl-tie and label attached on the
metal plate in each paper cassette.
2
Before Setting Up the Machine
When carrying the machine, be sure that it is carried by two or more people holding the parts indicated below.
The shapes of your machine and supplies may dier slightly from those illustrations listed in this manual.
●
●
3

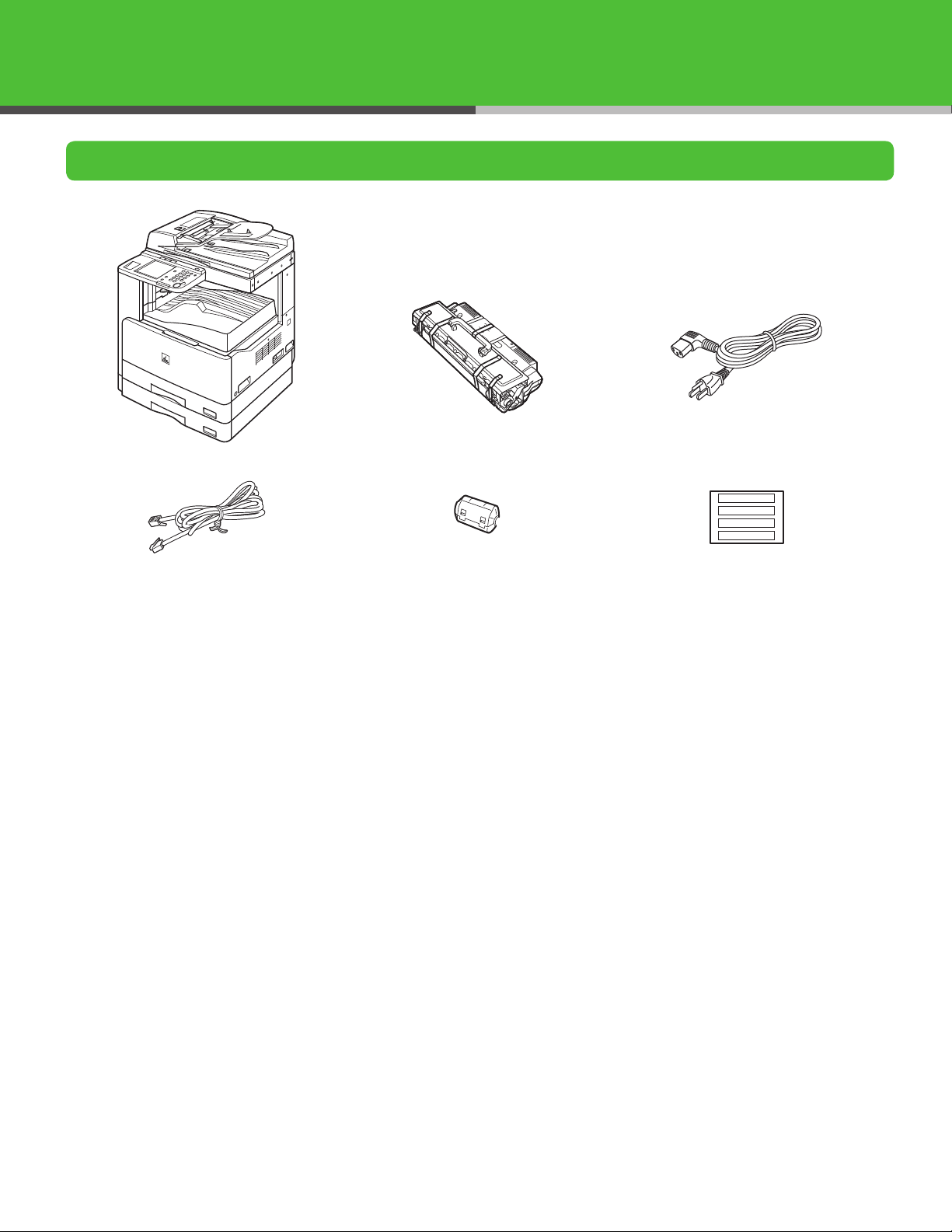

Do You Have Everything?
Machine●Cartridge●Power Cord●
Telephone Cable●Ferrite Core for USB Cable●Document Size Label●
Starter Guide●Limited Warranty Notice●Paper Size Label●
Basic Operation Guide●Cartridge Warranty Notice●Stamp Cartridge●
UFRII LT/FAX User Software CD-ROM●Registration Card●Tweezers●
PCL User Software CD-ROM*●
Manual CD-ROM●
MF7480/MF7470 only*
4
Manuals for the Machine
Starter Guide (This Document): Machine set-up and software installation
Basic Operation Guide: Basic features, maintenance, trouble shooting, and specications
Reference Guide (located on the Manual CD-ROM): Total operation features, network and remote user interface,
system settings, reports and lists, and trouble shooting
Color Network ScanGear User’s Guide (located on the User Software CD-ROM): Color Network ScanGear
installation and instructions
PCL Driver Guide (MF7480/MF7470 only. Located on the User Software CD-ROM): PCL printer driver installation
and instructions
UFR II Driver Guide (located on the User Software CD-ROM): UFRII LT printer driver installation and instructions
Fax Driver Guide (located on the User Software CD-ROM): Fax driver installation and instructions
Assistance:
If you have a problem with your machine and you cannot solve it by referring to the manuals listed above, please
contact our Canon Authorized Service Facilities or the Canon Customer Care Center at 1-800-828-4040 between
the hours of 8:00 A.M. to 8:00 P.M. EST Monday through Friday and 10:00 A.M. to 8:00 P.M. on Saturday.
●
●
●
●
●
●
●
5
Install Cartridge
1
Remove the cartridge from the bag.
2
Remove the desiccant bag and the shipping tape.
3
Remove the short shipping tape.
4
Remove the packing materials.
5
Gently rock the cartridge several times to evenly
distributed the toner inside.
6
Place the cartridge on a at surface and pull the seal
completely out.
Do not pull out the seal at an angle.
6
7
Remove the long shipping tape.
8
Remove the protective cover.
9
Push the release button on the left cover of the main unit
to open the left cover.
10
Open the front cover.
11
Rotate the unlock lever until it clicks.
12
While grasping the handle of the cartridge holder, pull
the cartridge holder out of the machine until it stops.
7
13
Hold the cartridge by its handle, then insert it into the
cartridge holder.
14
Push the cartridge holder into the machine as far as it will
go.
15
Rotate the lever to the locked position.
16
Close the front cover.
Be careful not to get your ngers caught.
17
Gently close the left cover until it clicks.
Be careful not to get your ngers caught.
8
Load Paper
1
Pull out the paper drawer until it stops.
2
Push down the metal plate to lock.
If you load LTR size paper, go to step 6, or otherwise go to step 3.
3
Detach the end guide (A) by pressing it down. Reattach
the end guide into the desired paper size slots and tilt it
backwards to its original upright position.
4
Lift the lock lever on the side guide to the upright
position and slide the side guide to the groove marked for
the desired paper size.
5
Lower the lock lever to the left to lock the side guide.
Be sure to set the lock lever correctly. If the lock lever is
positioned incorrectly, the wrong paper type will be shown on
the touch panel display. This may also cause paper jams, dirty
prints, etc.
9
6
Fan the paper stack and even the edges.
7
Load the paper stack of the appropriate size with the print
side facing up.
When loading paper, be careful not to cut your ngers at the
edges of the paper.
Make sure the paper stack does not exceed the load limit
mark (A) and it is loaded under the small ns (B) on the paper
guides.
Each paper drawer holds approximately 250 sheets of paper
(22 lb bond (80 g/m2)).
8
A3 A4
A4 A5 B5 LGL LTR STMT U2
B4 B5 11X17 LTR U1 U3
Set the paper-size detecting lever, located on the left side
of the paper drawer, to match the size of the paper being
loaded.
Be sure to set the paper-size detecting lever correctly. If the lever
is positioned incorrectly, the wrong paper type will be shown on
the touch panel display. This may also cause paper jams, dirty
prints, etc.
–
–
This manual suits for next models
