Candy Aquamatic 10 T User manual

User instructions

Aquamatic 10 T

INDEX

Introduction

General points on delivery

Guarantee

Safety Measures

Technical Data

Setting up and Installation

Control Description

Detergent drawer

Programme Selection Advise

The Product

Table of Programmes

Computing a wash

Cleaning and routine maintenance

Faults Search

CHAPTER

OUR COMPLIMENTS

Thank you for choosing a Candy appliance.

Quality washing machines which guarantee

high performance and reliability.

Candy is also able to offer a comprehensive

range of other household appliances:

dishwashers, washer-dryers, cookers,

microwave ovens. Traditional ovens and

hobs, refrigerators and freezers.

Ask your local retailer for the complete

catalogue of Candy products.

Please read this booklet carefully as it

provides important guide lines for safe

installation, use and maintenance and

some useful advice for best results when

using your washing machine.

Keep this booklet in a safe place for further

consultation.

“When contacting a Candy Service Centre

always quote the Model Number and Serial

Number of Your Appliance”.

CHAPTER 2

GUARANTEE

Your new appliance is fully guaranteed by the

manufacturer for 12 months against

electrical/mechanical breakdown excluding:

A. Any faults which occur due to bad

installation or misuse of the machine.

B. Any faults which occur due to repair of, or

interference with, the machine by any person

not authorised by the manufacturer to carry

out service.

C. Any faults which occur due to any parts

which are fitted to the machine which are

not the original manufacturers parts.

D. Any faults arising from non-domestic use or

unusual or abnormal use of the machine.

E. Any faults arising from operation at

incorrect voltage.

F. Any faults arising from incorrect operation of

the machine.

The guarantee applies to Gt. Britain and

Northern Ireland only, and is an addition to

your statutory rights.

Your appliance is supplied with a registration

card which should be completed and

returned as indicated.

Your purchase receipt should be retained

and shown to the Service Engineer in the

event of a Service call.

CHAPTER1

GENERAL POINT ON DELIVERY

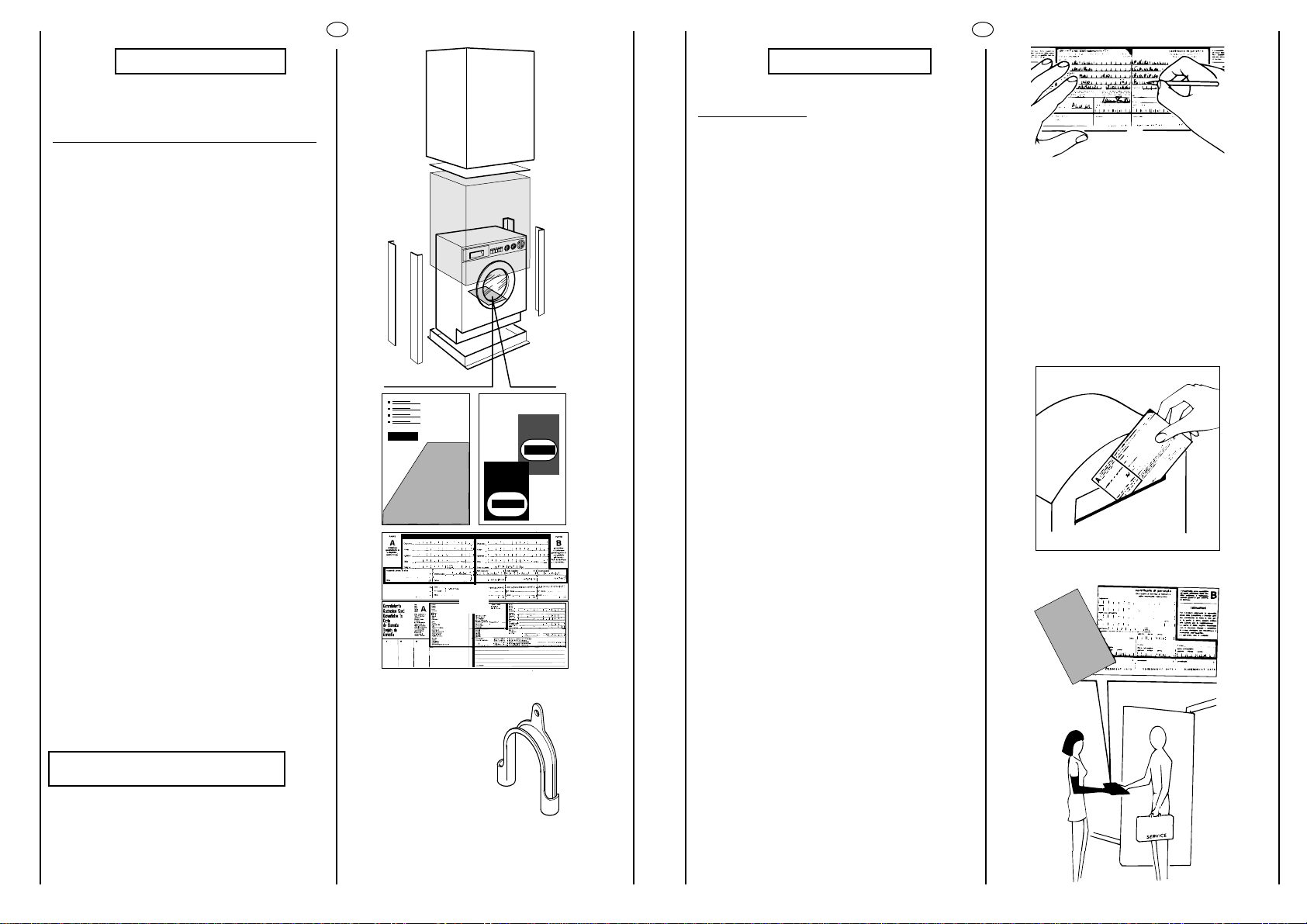

On delivery, check that the following are

included with the machine:

A) AN INSTRUCTION MANUAL

B) CUSTOMER SERVICE ADDRESSES

C) GUARANTEE CERTIFICATES

D) CLAMP FOR OUTLET HOSE

KEEP THEM IN A SAFE PLACE



SPEDIRE TRATTENERE

EUROPE

Dovunque

tu sia.

●

Do not use adaptors or multiple plugs.

●

Do not allow the appliance to be used by

children without due supervision.

●

Do not pull the mains lead or the appliance

itself to remove the plug from the socket.

●

Do not leave the appliance exposed to the

natural elements (rain, sun etc.)

●

Important!

When the appliance location is on a carpeted

floor, attention must be paid to ensure that

there is no obstruction to the bottom vents.

●

During transport do not lean the load door

against the trolley.

●

Lift the appliance in pairs as illustrated in the

diagram.

●

In case of failure

and/or incorrect operation, turn the washing

machine off, disconnect the electrical supply,

close the water inlet tap and do not tamper

with the appliance. Only contact a Candy

Technical Assistance Centre for any eventual

repairs and ask for original Candy spare parts.

●

Should the supply cord (mains cable) be

demaged, this is to be replaced by a specific

cable available from the after sales service

centre.

CHAPTER 3

SAFETY MEASURES

IMPORTANT:

FOR ALL CLEANING AND MAINTENANCE

WORK ENSURE THE APPLIANCE IS

DISCONNECTED FROM THE ELECTRICAL

SUPPLY

●

Remove the plug

●

Turn off the water inlet tap.

●

All Candy appliances must be earthed.

Ensure that the main electricity circuit is

earthed. Contact a qualified electrician if

this is not the case.

This appliance complies with Directives

89/336/EEC, 73/23/EEC and following

changes.

●

Do not touch the appliance with wet or

damp hands or feet.

●

Do not use the appliance when bare-

footed.

WARNING: DURING THE WASHING

CYCLE, THE WATER CAN REACH A

TEMPERATURE OF 90°C.

●

Before opening the washing machine

door, ensure that there is no water in the

drum.

IMPORTANT WARNING:

THIS APPLIANCE MUST BE SECURELY

EARTHED

90° C

CHAPTER 5

SETTING UP INSTALLATION

Move the machine near to its permanent

position without the packaging base.

Cut tube - Holding straps

Unscrew the two top screws Aand remove the

cover, sliding it off horizontally

Remove the cardboard protection.

Unscrews the two tie braces Bon the

crosspiece(with a H. 19 spanner) and remove

the polystyrene spacers under it.

IMPORTANT:

DO NOT REMOVE THE SPACERS

ABOVE THE CROSSPIECE.

Replace the cover with the two screws A.

Please ensure when fitting the table top the

locating pins are inserted correctly in their

slots, positioned on the side of the cabinet as

shown in the relevant diagram.

WARNING:

DO NOT LEAVE THE PACKAGING WITHIN

THE REACH OF CHILDREN AS IT IS A

POTENTIAL SOURCE OF DANGER.

ELECTROPUMP POWER

POWER RESISTANCE

MAX ABSORBED POWER

220 V (240 FOR U.K. ONLY)

FUSE

SPIN SPEED

CHAPTER 4

WASHING

6,6 (3 kg)

2,3 (10 l)

Ibs

Gall

150W

250W

30W

MAXIMUM DRY LOAD

WATER LEVEL

WASH MOTOR POWER

SPIN MOTOR POWER

r.p.m.

1250

1000

1100W

WATER PRESSURE Mpa min. 0,05

max. 0,8

43 cm

16,9 INC

69, cm

27, INC

1 cm

20,1 INC

Fix the sheet of corrugated material on the

bottom as shown in picture.

WATER CONNECTION

Your machine may either be plumbed in or

connected to existing taps, using a tap

adaptor with a 3/4 B.S.P. threaded end

connection. The water supply hoses can be

found inside the drum and are terminated in

two different ways. One end which has a 90°

elbow is to be connected to the appliance

water connection Ewhile the straight end is

to be connected to the domestic supply

tap. The hose with the white collar should be

connected to the cold tap, and the hose

with the red collar to the hot tap. The

appliance is not suitable for use with mixer

taps.

The appliance must be connected to the

water mains using new hose-sets. The old

hose-sets should not be reused.

Hook the end of the outlet hose over the rim

of the sink or outlet pipe, making sure that it

is not kinked. For better positioning of the

outlet hose make use of the plastic hose

clamp provided.

Where possible, use a fixed discharge pipe

with a diameter greater than that of the

outlet hose of the washing machine to allow

air to escape.

The minimum height of the top of the outlet

hose should be 50 cm.

Extending the outlet hose, especially if the

extension is more than 1 metre, could lead

to malfunctioning of the discharge.

50 cm.

The programme chart is located inside of the

detergent drawer as indicate.

Level the machine by means of the front foot.

a) Turn the nut clockwise to release the screw

adjuster of the foot.

b) Rotate the foot to raise or lower until it

stands firmly on the ground.

c) Lock the foot in position by turning the nut

anti-clockwise until it comes up against the

bottom of the machine.

ELECTRICAL CONNECTIONS

If the plug we supply does not fit

CUT IT OFF AND DESTROY IT!

You can’t use it on other appliances, and the

exposed wires could be dangerous if anyone

plugged it in.

Fit a suitable plug, as follows:

Connect

green and yellow

wire

blue wire

brown wire

WARNING

This appliance must be earthed

After installation, the appliance must be

positioned so that the plug is accessible.

Fuses and plugs

This appliance should be used only on a socket

with a minimum rating of 13 Amps.

Our ready-fitted plug is already equipped with

a 13 amp fuse which is BS 1362 ASTA approved.

Any replacement should be exactly the same.

If the fuse cover is lost, do not use the plug until

it is replaced. A correct replacement fuse

cover (obtainable from your dealer or

Electricity Board) must be the same colour as

shown or named on the insert on the base of

the plug.

▲

to the terminal in the plug

marked withe the letter E, OR

marked with the

symbol, .............

OR coloured green,

OR coloured green and yellow.

marked N

OR coloured black.

marked L

OR coloured red.

HOT

WATER

COLD

WATER

DESCRIPTION OF CONTROLS

DOOR OPENING BUTTON

IMPORTANT:

A SPECIAL SAFETY DEVICE PREVENTS THE

DOOR FROM OPENING AT THE END OF THE

WASH/SPIN CYCLE.

WE RECOMMEND THAT YOU ALLOW TWO

MINUTES TO ELAPSE BEFORE OPENING THE

DOOR AT THE END

OF THE FINAL SPIN CYCLE.

OFF/ON BUTTON

NO SPIN BUTTON

By pressing this button it is possible to eliminate

the spin-drying on all programmes. This

operation is suitable for programmes at 90°C

and at 60°C in case of special treated fabrics

(cottonova or permanent press) or for mixed

delicate fabrics.

2 min.

AVSNITT 6

CONTROLS

Detergent drawer

Door open button

Off/On button

No spin button

Slow spin button

Wash control temperature knob

Timer knob for wash programmes

LICDEAF B

OPEN

DOOR

SPIN

OFF

CHAPTER 7

DETERGENT DRAWER

The detergent drawer is divided into 2

compartments:

- Main wash detergent

- Softener

When washing with bleach,

use the compartment for softener.

When pre-washing, put the detergent directly

inside the drum.

IMPORTANT:

MOST DETERGENT MANUFACTURERS WILL

PROVIDE A CONTAINER FOR DETERGENTS

TO BE PLACED DIRECTLY INTO THE DRUM.

IMPORTANT:

ONLY INTRODUCE LIQUID DETERGENTS

INTO THE SECOND COMPARTMENT.

SLOW SPIN BUTTON

The programmes for resistant fabrics operate

at high spin speed.

In special circumstances, when the high

speed spin is not required, the slow spin key

may be pressed thus eliminating the high spin.

In the delicate programmes the drum always

spins at 400 r.p.m.

WASH TEMPERATURE CONTROL KNOB

ROTATES IN BOTH DIRECTIONS

With this device it is possible to reduce, but no

increase washing cycle temperature.

The table of programmes indicate the

maximum temperature advised for each type

of wash.

WARNING: THIS TEMPERATURE MUST

NEVER BE EXCEEDED

TIMER CONTROL FOR WASH

PROGRAMMES

IMPORTANT:

ALWAYS TURN THE CONTROL IN A

CLOCKWISE DIRECTION, NEVER IN AN

ANTI-CLOCKWISE DIRECTION. DO NOT

PRESS THE “ON” BUTTON (C) BEFORE

SELECTING THE PROGRAMME

The tables describe the wash programmes on

the basis of the numbers or symbols chosen.

SLOW

SPIN

CHAPTER 9

THE PRODUCT

IMPORTANT:

When washing heavy rugs, bed spreads and

other heavy articles, it is advisable not to spin

them as damage may occur.

To be machine-washed, woollen garments

must bear the machine washable label.

IMPORTANT:

When sorting articles ensure that:

- there are no metal objects in the washing

(e.g. brooches, safety pins, pins, coins etc.).

- cushion covers are buttoned, zips and hooks

are closed, loose belts and long tapes on

dressing gowns are knotted.

- runners from curtains are removed.

- attention is paid to garment labels.

- when sorting, any tough stains should be

removed prior to washing using only those

stain removers recommended on label.

CHAPTER 8

PROGRAMME SELECTION

ADVICE

For the various types of fabrics and levels of

soiling the washing machine has 2 different

programme bands. Wash cycle, temperature

and length of cycle (see table of washing cycle

programmes).

There is also a pre-wash cycle which can be

used with especially dirty laundry.

1 Resistants Fabrics (heavy cottons)

The programmes have been designed for a

maximum wash and rinses, with spin intervals,

which ensure perfect rinsing. The gradual

reduction of the water temperature ensures less

fabrics creasing and the final spin gives a more

efficient water extraction.

2 Wool and mixed or Delicate Fibres

This is a wash cycle which alternates washing

and soaking and is particularly recommended

for very delicate fabrics such as machine

washable wool. The wash cycle and rinses are

carried out with high water levels to ensure the

best results.

●●

●

●●

❙❀

CHARGE

DETERGENT Please, read these notes

In case of very dirty articles, a 2 kg maximum load is recommended.

1) When pre-washing, put the detergent directly into the drum.

2) Programmes according to IEC 456.

PROGRAM FOR

Heavily soiled

Colour fast table cloths, towels,

underwear

Normally soiled

Coloured, shirts dressing gowns, sheets

Cottons colour fast

Non fast coloureds, blue jeans

Energetic rinsing

Conditioner, fragrance, softener

Energetic spin

Heavily soiled

Shirts, sheets, underwear

Universal

All types of lightly stained laundry

RAPID PROGRAMME

Shirts, blouses, skirts with resistants colours,

curtains

“MACHINE WASHABLE”woollens

Delicate spin

Pre-wash1)

Pre-wash bleaching

Drain only

TABLE OF PROGRAMMES

CHAPTER 10

FABRIC

Resistants fabrics

Cotton, linen

Cotton, mixed

resistant

Cotton, mixed

Cotton

Cotton, linen

Mixed and delicate

fabrics

Mixed, resistants

Cotton, mixed fabrics,

synthetics

Synthetics (nylon,

perlon), mixed cotton

Woollens

Mixed, delicate

synthetics, wool

No spin fabrics

SYMBOL

ON LABEL

WEIGHT

MAX

1,5

SELECT.

PROG.

SELECT.

TEMP.

°C

40°/90°

30°/60°

30°/40°

40°/60°

30°/50°

40°

95°

60°

40°

60°

50°

40°

GET THE BEST RESULTS FROM YOUR NEW CANDY MACHINE

To ensure you get the best results from your new Candy machine it is

important to use the right detergent in your everyday wash. There are

many detergents on today’s supermarket shelves and making a

choice from the wide range available can often be confusing.

At Candy we regularly test many different types of detergent to assess

which give the best wash results in our machines. We found only one

brand always lives up to our exacting standards and provides

outstanding cleaning across a broad range of stains, as well as

providing high levels of fabric care. That’s why Candy gave Ariel their

official seal of approval.

Other manuals for Aquamatic 10 T

Table of contents

Other Candy Washer manuals

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
