Cambridge Audio SX-50 User manual

SX-50 Standmount Speakers

Manual Generated: 02/11/2023 - 13:20

Table of Contents

SX-50 Standmount Speakers 3 ...................................................................................................................................................................................

Introduction 4 ................................................................................................................................................................................................................

What's included with the SX-50's? 5 ..........................................................................................................................................................................

Front panel 6 .................................................................................................................................................................................................................

Rear panel 7 ...................................................................................................................................................................................................................

Installation instructions 8 ...........................................................................................................................................................................................

Technical speciﬁcations. 10 ........................................................................................................................................................................................

Frequently Asked Questions 11 ..................................................................................................................................................................................

Troubleshooting 12 .......................................................................................................................................................................................................

SX-50 Standmount Speakers

Last updated: December 30, 2022 11:07. Revision #9726

Users Manual

Introduction

Last updated: January 19, 2023 01:56. Revision #9727

Thank you for purchasing these Cambridge Audio SX-50 stand mount loudspeakers. We hope that you enjoy many years of listening pleasure from

them. Your loudspeakers can only be as good as the system it is connected to. Please do not compromise on your ampliﬁer or cabling. Naturally we

particularly recommend ampliﬁcation from the Cambridge Audio range, which has been designed to the same exacting standards as our

loudspeakers. Your dealer can also supply excellent quality speaker cable to ensure your system realises its full potential.

Thank you for taking the time to read this manual; we do recommend you keep it for future reference.

For upcoming news on future products, software updates and exclusive oﬀers, make sure you register your product at

http://www.cambridgeaudio.com/register

What's included with the SX-50's?

Last updated: January 19, 2023 01:56. Revision #9728

1. 2 x SX-50 speakers.

2. Installation guide.

3. 8 x rubber pads.

4. 2 x foam bungs.

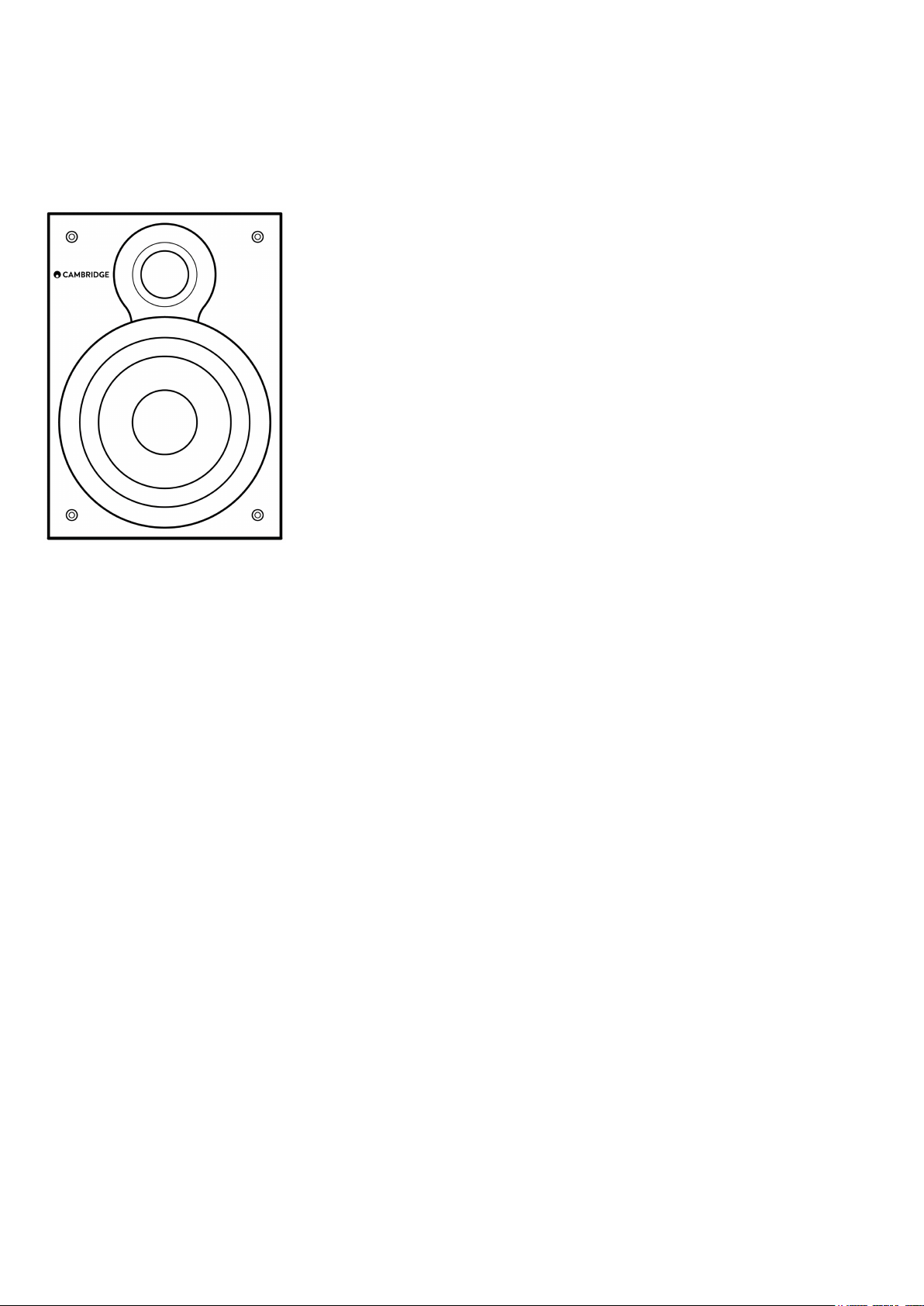

Front panel

Last updated: January 19, 2023 01:56. Revision #9729

1. 1” (25mm) Silk Dome Tweeter.

2. 5.25 ”(135mm) Treated Paper Cone Driver.

Rear panel

Last updated: January 19, 2023 01:56. Revision #9730

1. Rear bass port.

2. +/- Speaker connection terminals.

Installation instructions

Last updated: January 19, 2023 01:56. Revision #9731

1. Firstly, using high-quality speaker cable connect the SX-50 stand mount speakers to the speaker terminals on your ampliﬁer. Ensure that you pay

close attention to match the polarity of each connection.

2. For the best results we would recommend using speaker stands to mount your SX-50 speakers. Alternatively, the speakers can be placed on a

shelf, and in either case we would suggest leaving at least a 5cm space behind the rear of each speaker.

3. If placed on a desk, or close to a wall you may beneﬁt from using the included foam bass tuning bungs. These can be placed into the rear port of

each speaker to reduce the low frequency output.

4. Finally, when positioning, we would suggest that the distance between speakers and the listening position is equal. However, we would

encourage experimentation until you ﬁnd a solution that works for your space.

Technical speciﬁcations.

Last updated: January 19, 2023 01:56. Revision #9732

Sensitivity (SPL)

87dB

Frequency Response

50Hz - 22kHz

Impedance

8 Ohms

Drivers

1 x 5.25” (135mm) treated paper cone.

1 x 1” (25mm) tweeter.

Crossover

2 Way

Recommended Ampliﬁer Power

10 - 100 Watts

Porting

1 Rear

Speaker Dimensions (H x W x D)

225 x 161 x 240mm.

Weight

3.0kg (6.6 lbs)
