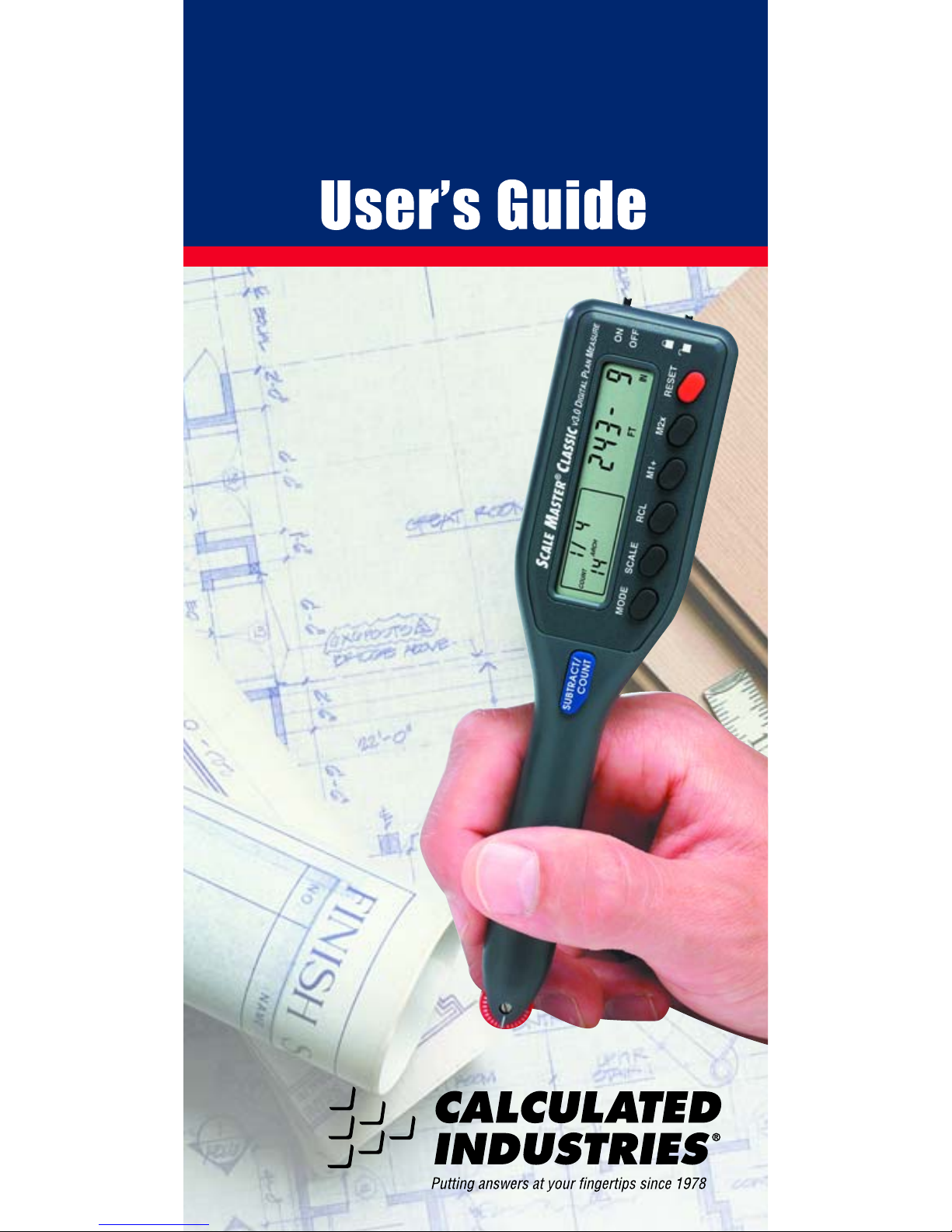

Calculated Industries SCALE MASTER CLASSIC 6020 User manual

•Guide de

l’utilisateur

•Guía del

usuario

SCALE MASTER

CLASSIC v3.0

Model 6020

2 – Scale Master®Classic v3.0

Preliminary Information

Key Definitions/Functions . . . . . . . .3

Imperial/Metric Modes . . . . . . . . . . .4

Adjusting the Wheel . . . . . . . . . . . . . .5

Using the Scale Master Classic . . . . . .5

“Rolling” a Measurement . . . . . . . . . .5

Built-in Scales . . . . . . . . . . . . . . . . . . . .6

Full Reset/All Clear . . . . . . . . . . . . . .7

Changing Measurement Units . . . . .7

Using the Custom Scale/Ruler . . . . .7

Memory Function Keystrokes . . . . . .8

Programming Modes . . . . . . . . . . . . .8

Area and Volume . . . . . . . . . . . . . . . .10

Converting Between Scales . . . . . . .12

Locking Scale Settings . . . . . . . . . . .12

Using the Counter . . . . . . . . . . . . . . .13

Appendix . . . . . . . . . . . . . . . . . . . .13

Error/Auto-Range Function . . . . . .13

Interference . . . . . . . . . . . . . . . . . . . . .13

Automatic Shut-Off . . . . . . . . . . . . . .13

Battery Replacement . . . . . . . . . . . . .14

Turning the Clicker & Beep On/Off

. . . .14

Specifications . . . . . . . . . . . . . . . . . . .14

Repair and Return . . . . . . . . . . . . . .15

Warranty . . . . . . . . . . . . . . . . . . . .16

Guide de l’utilisateur (Français) . . . .19

Guía del usuario (Español) . . . . . . . .31

TABLE OF CONTENTS

3 – User’s Guide

Key Definitions/Functions

[Off/On] – Power On/Off switch

Turns power On or Off. Turning power

Off does not clear scales or modes.

[Lock] – Lock switch

Locks the mode and scale so they can-

not inadvertently be changed.

[Subtract/Count] – Subtract/Count key

Toggles measuring mode between pos-

itive and negative direction. Increases

the Count value by one. Count function

is active in the count mode.

[Rcl] – Recall key

Recalls stored values. Press [Rcl] [Rcl]

to recall the last rolled value.

[Mode] – Mode key

Used to toggle between the following

scale modes (in sequence):

1) Architectural (ARCH);

2) Engineering I (ENG I);

3) Engineering II (ENG II);

4) Custom (CUSTOM);

5) Count (COUNT).

[Scale] – Scale key

Used to toggle between various scales

within each scale mode.

[M1+] – Memory Add key (Length)

Adds the displayed value to memory.

This key is used to store a length in order

to calculate an area.

(Cont’d)

4 – Scale Master®Classic v3.0

[M2x] – Memory Add key (Width)

Adds the displayed value to memory.

This key is used to store a width in order

to calculate an area. When a length and

width have been stored in [M1+] and

[M2x], pressing [Rcl] [M2x] displays the

stored width, the next press of [M2x]

displays the area calculated from the

stored length and width, and the next

press of [M2x] displays the calculated

volume if a height has been stored.

Please see pages 10-12 for storing and

calculating an Area and Volume.

[Reset]

Used to clear the display. When pressed

together with another key, clears the

value of that key.

Imperial/Metric Modes

The Scale Master Classic is set up to use

Imperial (English) dimensional units by

default. The Scale Master Classic can be set up

to use Metric scales by using the following

sequence:

1) Turn unit off via switch.

2) Press and hold [Subtract/Count] key.

3) Turn unit on via switch.

4) Release [Subtract/Count] key.

While in Metric mode, MET will remain lit

in the scale box.

Repeat the procedure above to switch back

to Imperial mode.

(Cont’d)

5 – User’s Guide

Adjusting the Wheel

To adjust the Celcon®polymer wheel, take

a small, flat-head jeweler’s screwdriver

and slightly rotate the screw near the wheel

tip. Rotating the screw between 1 ⁄4 to 1⁄ 3

turn should adjust the wheel between free

spinning (which is too loose) to skidding

(which is too tight).

“Rolling” a Measurement

To take a measurement with the Scale

Master Classic:

1) Switch the unit on. Press [Reset] to clear

the display.

2) Select your scale mode by pressing the

[Mode] key. Then press the [Scale] key

to select your scale.

3) Begin rolling. The display will register

your measurements.

To ensure accurate measurements, be

sure to hold the unit upright and start

and stop the SMC at the exact points

you are measuring.

4) Press the appropriate key if you want

to store this measurement (ex. [M1+]

to store as length, [M2x] to store as

width).

5) Press [Reset] to clear the display and

begin a new measurement.

USING THE SCALE MASTER®CLASSIC

6 – Scale Master®Classic v3.0

Built-In Scales

Imperial (English) Units

Architect Engineer I Engineer II

ARCH ENG I ENG II

1 foot= 1 inch= 1 inch=

1/32" 10.0' 300.0'

1/16" 20.0' 333.3'

3/32" 30.0' 400.0'

1/8" 40.0' 416.6'

3/16" 50.0' 500.0'

1/4" 60.0' 583.3'

3/8" 83.3' 600.0'

1/2" 100.0' 625.0'

3/4" 166.6' 666.6'

1/1 (1") 200.0' 750.0'

3/2 (1 1/2") 250.0' 1,000.0'

2/1 (2") 1,200.0'

3/1 (3") 2,000.0'

4/1 (4") 3,000.0'

Metric Units

Architect Engineer I Engineer II

ARCH ENG I ENG II

1:1 1:100.0 1:1,000

1:2 1:125.0 1:1,250

1:3 1:150.0 1:1,500

1:4 1:200.0 1:1,625

7 – User’s Guide

1:5 1:250.0 1:2,000

1:10 1:300.0 1:2,500

1:20 1:400.0 1:5,000

1:25 1:500.0 1:6,000

1:30 1:10k

1:40 1:12.5k

1:50 1:20k

1:75 1:25k

1:50k

Full Reset/All Clear

To perform a complete reset of the unit, press

[Reset] and [Subtract/Count] simultaneously.

Changing Measurement Units

Press and hold [Subtract/Count] and press

[Mode] to switch between units. You can

also convert values from Imperial Units

(English) to Meters within the Imperial

mode. However, you cannot convert

values from Metric to Imperial when in

Metric mode.

Using the Custom Scale/Ruler

The default value (after a full reset) for

Custom Scale is one-to-one (1 foot equals

1 foot). This lets you use your Scale Master

Classic as a rolling ruler (in Feet-Inches),

which is especially useful for measuring

irregular shapes.

(Cont’d)

8 – Scale Master®Classic v3.0

1) To reset your Custom Scale setting to

a one-to-one ratio, press [Reset] and

[Subtract/Count] simultaneously.

2) Then press the [Mode] key until the

“Custom” mode appears.

3) Begin rolling.

Memory Function Keystrokes

[Rcl] [M1+] or [Rcl] [M2x]

Displays the value stored in the memory

[Reset] and [M1+] simultaneously

[Reset] and [M2x] simultaneously

Clears the value stored in the memory

[Reset] and [Rcl] simultaneously

Clears values stored in memory registers

([M1+] and [M2x]).

Programming Modes

Custom Scale

You can program and store six Custom

Scales: three in Imperial (English) mode

and three in Metric mode.

You can set a custom scale two ways:

by “rolling in” a known distance or by

entering the exact distance.

(Cont’d)

9 – User’s Guide

Rolling or Entering a Custom Scale

1) Press [Mode] until “1: CUS 1”appears

in the scale box display.

2) Press [Subtract/Count] and [Scale]

simultaneously.“

ROLL” will appear in the

main display. If you are entering a

scale, skip to step 4.

3) Roll desired dimension. “ROLLING“ now

appears in the main display.

Note: For greater accuracy, you may want to roll

the known distance several times, then enter

the distance times the number of rolls (for

example, roll a distance 5 times and if the

distance is 3 feet, enter 15 feet).

4) Press [Scale]. The display will show

zeroes and the units of measurement

annunciator will begin flashing (FT-IN for

Imperial Mode, MM for Metric Mode).

5) If you do not want to change the units

of measure, skip to step 6. If you want

to change the units of measure, press

[M1+] until you reach the desired units.

6) Press [Scale] to begin setting the scale

distance. The left-most digit will

begin flashing. Press:

[M1+] to increment this digit,

[Subtract/Count] to decrement,

[Scale] to advance to next digit,

[Mode] to move back one digit.

7) Continue to press [Scale] until all dig-

its are set and the display returns to

zero. The scale is now stored.

10 – Scale Master®Classic v3.0

Area and Volume

Finding Area

1) Roll the first dimension and press

[M1+]. A small “M” will appear in the

scale box display and the main display

will be cleared.

2) Roll the second dimension and press

[M2x]. The main display will be cleared.

3) Press [Rcl] [M2x]. This displays the linear

value stored in this register. The second

press of [M2x] will calculate and display

the area, which is the value stored in

[M1+] times the value stored in [M2x].

Finding Volume

1) Roll the first dimension and press [M1+].

2) Roll the second dimension and press

[M2x].

3) Storing a height value (if you have pre-

viously set a height, skip to step 4):

a. To Roll and Store a Height:

i. Roll the third dimension and

press [Subtract/Count] and [M2x]

simultaneously. The display will

show the rolled value and the unit

of measure will begin flashing.

ii. If you do not want to change the

unit of measure, go to step iii. To

change the unit of measure, press

[M1+] until you reach the desired

unit.

Table of contents

Languages:

Other Calculated Industries Calculator manuals

Calculated Industries

Calculated Industries Measure Master Pro 4020 User manual

Calculated Industries

Calculated Industries Tradesman Calc 4400 User manual

Calculated Industries

Calculated Industries 3442 User manual

Calculated Industries

Calculated Industries KitchenCalc Pro User manual

Calculated Industries

Calculated Industries Measure Master 4018 User manual

Calculated Industries

Calculated Industries Quilter's FabriCalc 8400 User manual

Calculated Industries

Calculated Industries CONVERSIONCALC PLUS User manual

Calculated Industries

Calculated Industries PIPE TRADES PRO 4095 User manual

Calculated Industries

Calculated Industries 3423 User manual

Calculated Industries

Calculated Industries Pocket Handyman IV User manual

Calculated Industries

Calculated Industries 5065 User manual

Calculated Industries

Calculated Industries Sheet Metal/HVAC Pro Calc User manual

Calculated Industries

Calculated Industries 9430 User manual

Calculated Industries

Calculated Industries 3430 User manual

Calculated Industries

Calculated Industries 43285 User manual

Calculated Industries

Calculated Industries 4088 User manual

Calculated Industries

Calculated Industries Construction Master IV User manual

Calculated Industries

Calculated Industries 4030 User manual

Calculated Industries

Calculated Industries 9530 User manual

Calculated Industries

Calculated Industries Mortgage PaymentCalc 3401 User manual

Calculated Industries

Calculated Industries Ultra Scale Master 6250 User manual

Calculated Industries

Calculated Industries Qualifier Plus IIcx User manual

Calculated Industries

Calculated Industries 3416 User manual

Calculated Industries

Calculated Industries Home ProjectCalc User manual

Popular Calculator manuals by other brands

HP 35s Instruction guide

Casio

Casio CFX-9970G user guide

LEXIBOOK

LEXIBOOK EL350 instruction manual

HP HP-97 Service manual

Citizen

Citizen SDC-414N instruction manual

Casio

Casio fx-3800P Operation manual

Canon

Canon P26-DHIII instructions

Citizen

Citizen 520DPA instruction manual

Sharp

Sharp EL-9900 Operation manual

Casio

Casio FX-9860GII - SOFTWARE VERSION 2-00 quick start guide

Casio

Casio MS-7UC user guide

Sharp

Sharp WriteView EL-W506 operation instruction

Casio

Casio FC-200 owner's manual

Casio

Casio fx-CG50 instructions

HP HP-67 Owner's handbook

Royal

Royal CBC2000 instruction manual

Heathkit

Heathkit IC-2009 Assembly manual

Universal

Universal UNV-15907 owner's manual
