Brother PL-PRN015 User manual

Revised, February 2001

First edition, December 2000

PL-PRN015

L-

-3

Brother Industries, Ltd.

L-3260N

PARTS REFERENCE LIST

This catalog gives the numbers and names of parts on this machine.

CONTENTS

Main Unit (HL-326 N)

Finisher/Stapler (FS-5 5 )

Bridge Unit (BU-5 )

4 bin Mail Box (MX-5 )

Interchange Unit (SP-5 )

Duplex Unit (DX-5 )

Multi-purpose Tray (MP-5 )

2 sheets Tray Table (LT-52 )

5 sheets x 2 Tray Table (LT-51 )

BROTHER LASER PRINTER

HL-3260N

PARTS REFERENCE LIST

NOTE: The periodical maintenance parts (parts for the Maintenance Kit) are bolded in the parts lists.

LOCATION OF UNIT............................................... 2

1.EXTERIOR 1 (HL3260N)..................................... 6

2.EXTERIOR 2 (HL3260N)..................................... 8

3.LASER UNIT (HL3260N).................................... 10

4.TRANSFER UNIT (HL3260N)............................ 12

5.PAPER FEED SECTION 1 (HL3260N).............. 14

6.PAPER FEED SECTION 2 (HL3260N).............. 16

7.PAPER FEED SECTION 3 (HL3260N).............. 18

8.TONER HOPPER UNIT (HL3260N)................... 20

9.PAPER REGISTRATION (HL3260N)................. 22

10.PAPER TRAY 1 (HL3260N) .............................. 24

11.PAPER TRAY 2 (HL3260N) .............................. 26

12.FUSING UNIT 1 (HL3260N).............................. 28

13.FUSING UNIT 2 (HL3260N).............................. 30

14.PAPER EXIT (HL3260N)................................... 32

15.DRIVE SECTION 1 (HL3260N)......................... 34

16.DRIVE SECTION 2 (HL3260N)......................... 36

17.DRIVE SECTION 3 (HL3260N)......................... 38

BROTHER LASER PRINTER (HL-3260N)

PARTS REFERENCE LIST

This catalog gives the numbers and names of parts on this machine.

CONTENTS

18.ELECTRICAL SECTION 1 (HL3260N).............. 40

19.ELECTRICAL SECTION 2 (HL3260N).............. 42

20.FRAME SECTION (HL3260N)........................... 44

21.PRINT CONTROL BOARD (HL3260N)............. 46

22.ACCESSORIES AND AC CORDS (HL3260N) . 48

23.PACKING MATERIALS (HL3260N)................... 50

24.MAINTENANCE KIT (HL3260N) ....................... 52

25.SPECIAL TOOLS (HL3260N)............................ 54

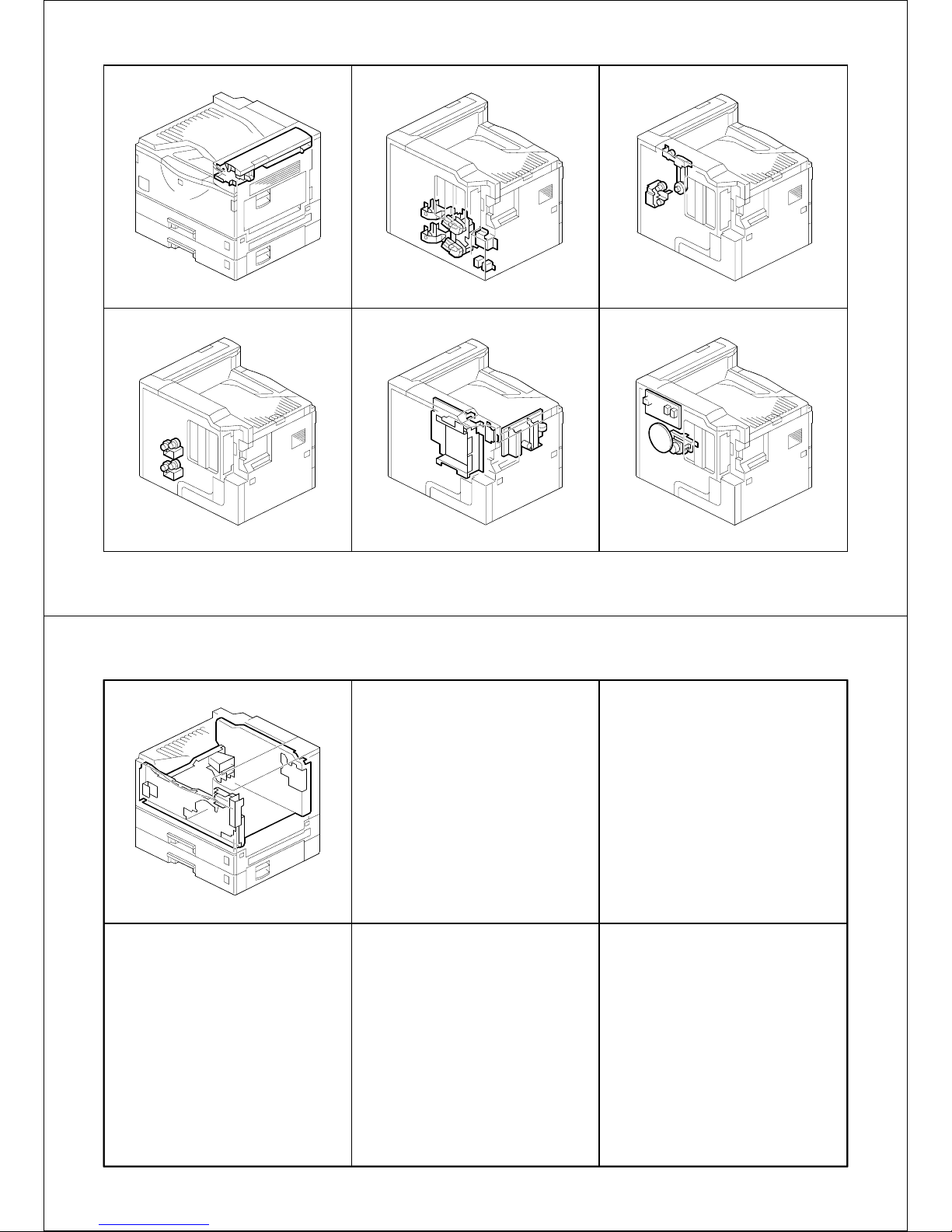

LOCATIONS OF UNITSLOCATIONS OF UNITS

1. EXTERIOR 1 (HL3260)

See Page 6

2. EXTERIOR 2 (HL3260)

See Page 8

3. LASER UNIT (HL3260)

See Page 10

LOCATIONS OF UNITS

4. TRANSFER UNIT (HL3260)

See Page 12

LOCATIONS OF UNITS

5. PAPER FEED SECTION 1 (HL3260)

See Page 14

LOCATIONS OF UNITS

6. PAPER FEED SECTION 2 (HL3260)

See Page 16

LOCATIONS OF UNITSLOCATIONS OF UNITS

7. PAPER FEED SECTION 3 (HL3260)

See Page 18

8. TONER HOPPER UNIT (HL3260)

See Page 20

9. PAPER REGISTRATION (HL3260)

See Page 22

LOCATIONS OF UNITS

10. PAPER TRAY 1 (HL3260)

See Page 24

LOCATIONS OF UNITS

11. PAPER TRAY 2 (HL3260)

See Page 26

LOCATIONS OF UNITS

12. FUSING UNIT 1 (HL3260)

See Page 28

LOCATIONS OF UNITSLOCATIONS OF UNITS

13. FUSING UNIT 2 (HL3260)

See Page 30

14. PAPER EXIT (HL3260)

See Page 32

15. DRIVE SECTION 1 (HL3260)

See Page 34

LOCATIONS OF UNITS

16. DRIVE SECTION 2 (HL3260)

See Page 36

LOCATIONS OF UNITS

17. DRIVE SECTION 3 (HL3260)

See Page 38

LOCATIONS OF UNITS

18. ELECTRICAL SECTION 1 (HL3260)

See Page 40

LOCATIONS OF UNITSLOCATIONS OF UNITS

19. ELECTRICAL SECTION 2 (HL3260)

See Page 42

LOCATIONS OF UNITSLOCATIONS OF UNITSLOCATIONS OF UNITS

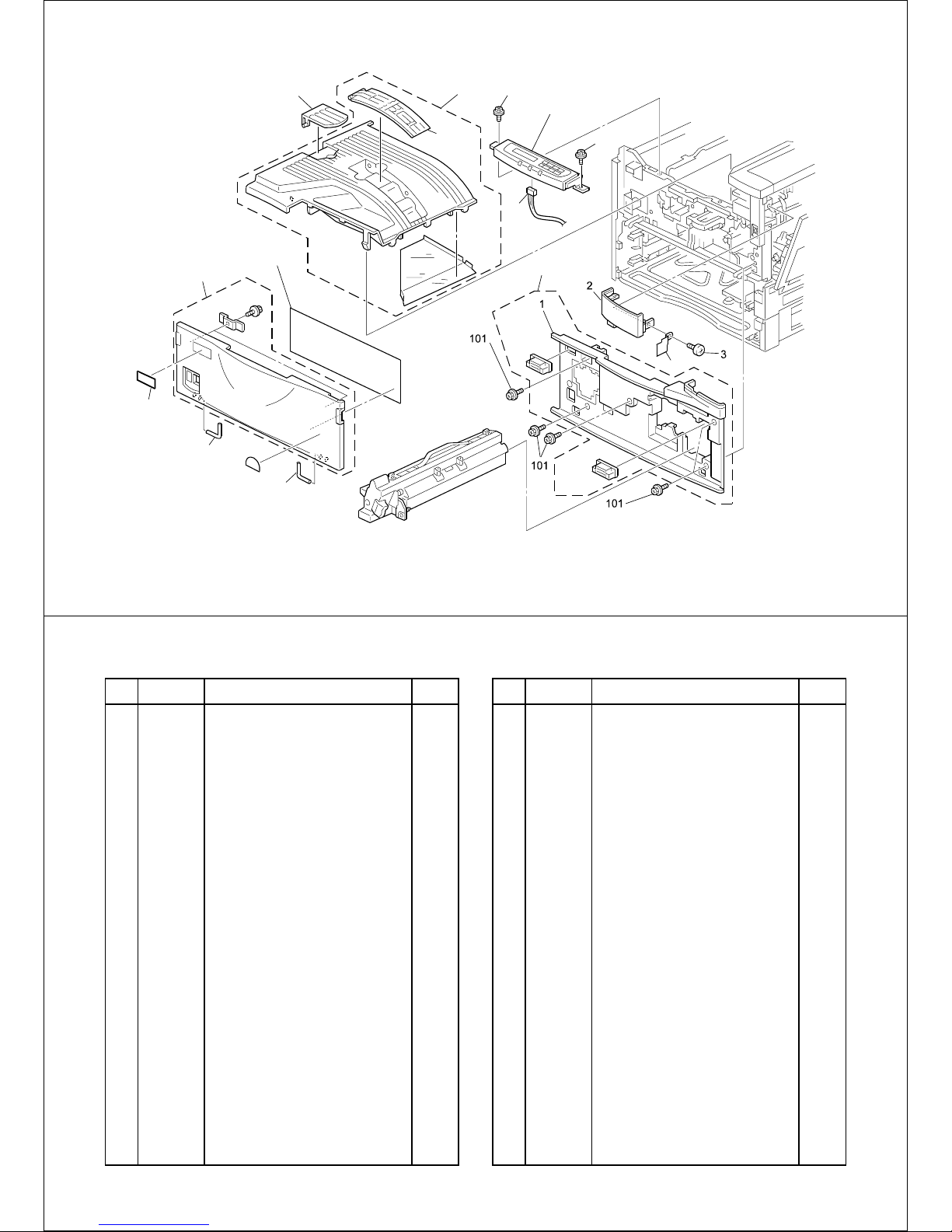

1.EXTERIOR 1 (HL3260N)

11 9

102

1 LJ2928001 INNER COVER 1

2 LJ2460001 UPPER RIGHT FRONT COVER 1

3 LJ3069001 SCREW – M3X4.5 1

4 LJ3068001 HINGE – FRONT COVER 2

5 LJ2507001 MODEL PLATE – BR 1

6 LJ2462001 FRONT DOOR ASS’Y 1

7 LJ2457001 OPERATION INSTRUCTION SHEET 1

8 LJ2463001 OPERATION PANEL ASS’Y – BR 1

9 LJ2438001 COPY TRAY 1

10 LJ2930001 PAPER SUPPORT COVER 1

11 LJ2929001 SUB PAPER TRAY 1

12 LJ2456001 FRONT COVER ASS’Y 1

13 LJ3111001 SHEET – SCREW – PLATE 1

14 LJ8708001 HARNESS – OPERATION PANEL – RP2 1

101 LJ2483001 TAPPING SCREW – M3X8

102 LJ2748001 TAPPING SCREW – M3X8

Description Q’ty Per

Assembly

Part No.

Index

No.

Description Q’ty Per

Assembly

Part No.

Index

No.

1.EXTERIOR 1 (HL3260N)

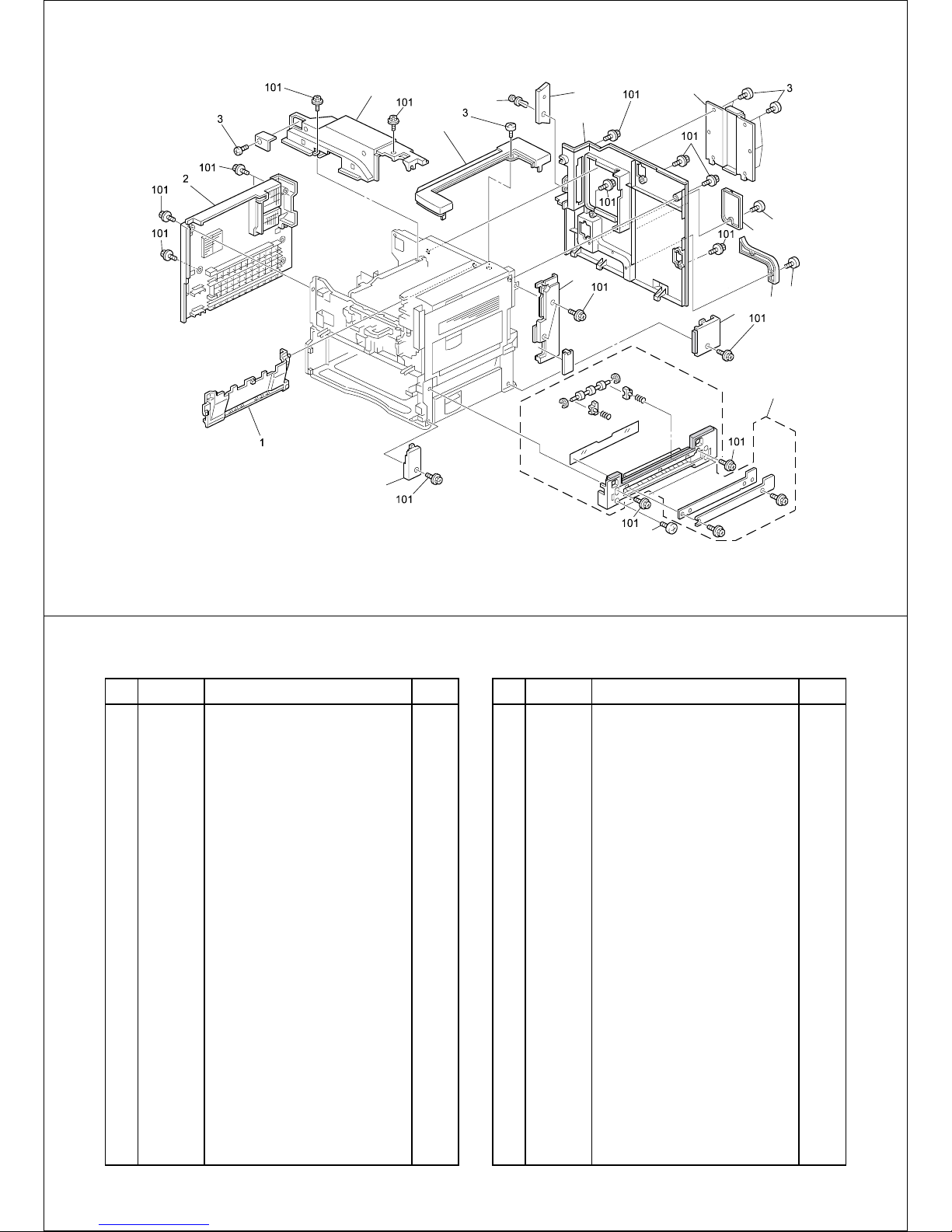

2.EXTERIOR 2 (HL3260N)

1 LJ2439001 PAPER EXIT COVER 1

2 LJ2466001 LEFT COVER 1

3 LJ3069001 SCREW – M3X4.5 8

4 LJ2467001 REAR PAPER EXIT COVER 1

5 LJ3083001 REAR COVER 1

6 LJ2471001 REAR COVER 1

7 LJ2459001 UPPER PAPER EXIT COVER 1

8 LJ2458001 RIGHT REAR COVER 1

9 LJ2971001 RIGHT REAR LOWER COVER 1

10 LJ2970001 RIGHT FRONT LOWER COVER 1

11 LJ2441001 MIDDLE RIGHT COVER 1

12 LJ3067001 SCREW – M4 1

13 LJ3084001 REAR CAP COVER – LARGE 1

14 LJ3085001 REAR CAP COVER – SMALL 1

15 LJ3086001 RIVET – 5 3

16 LJ2916001 RIVET – M14 1

17 LJ3110001 COVER – IC CARD 1

101 LJ2483001 TAPPING SCREW – M3X8

Description Q’ty Per

Assembly

Part No.

Index

No.

Description Q’ty Per

Assembly

Part No.

Index

No.

2.EXTERIOR 2 (HL3260N)

3.LASER UNIT (HL3260N)

1 LJ2474001 LASER UNIT ASS’Y 1

Description Q’ty Per

Assembly

Part No.

Index

No.

Description Q’ty Per

Assembly

Part No.

Index

No.

3.LASER UNIT (HL3260N)

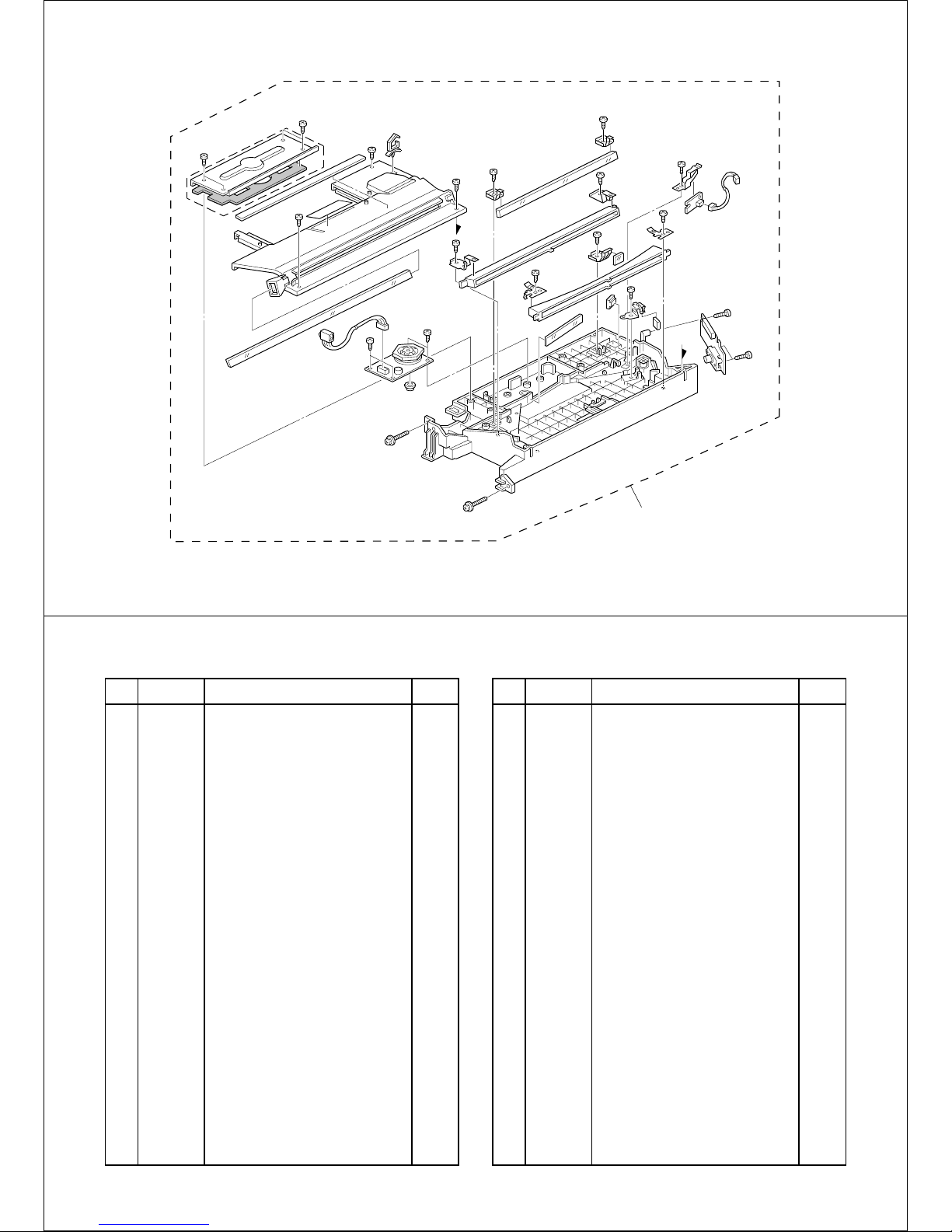

4.TRANSFER UNIT (HL3260N)

26 27

19 13

1 LJ2503001 RIGHT COVER 1

2 LJ8619001 ID SENSOR 1

3 LJ3015001 SHUTTER LEVER 1

4 LJ2866001 PRESSURE SPRING 1

5 LJ2863001 PRESSURE SPRING REAR 1

6 LJ2957001 BUSHING – DRIVEN ROLLER 2

7 LJ2967001 CLEANER – RESIST DRIVEN ROLLER 1

8 LJ2897001 REGISTRATION DRIVEN ROLLER – RP2 1

9 LJ3014001 GROUNDING TERMINAL 1

10 LJ2966001 R GUIDE PLATE – RESIST ROLLER 1

11 LJ2865001 PRESSURE SPRING 1

12 LJ3009001 LEVER – TRANSFER / SEPARATION UNIT 1

13 LJ2868001 REAR BUSHING – TRANSFER ROLLER 1

14 LJ2867001 PRESSURE SPRING 1

15 LJ3007001 TERMINAL – TRANSFER ROLLER 1

16 LJ3008001 TERMINAL – SEPARATION 1

17 LJ2915001 SPRING PLATE – BAND STOPPER 1

18 LJ3016001 BAND – VERTICAL TRANSPORT COVER 1

19 LJ2875001 FRONT DISCHARGE SHEET 1

20 LJ2876001 REAR DISCHARGE SHEET 1

21 LJ3013001 COVER – ID SENSOR 1

22 LJ2504001 COVER – TRANSFER UNIT 1

23 LJ2434001 TRANSFER / SEPARATION UNIT: ASS’Y 1

24 LJ3006001 DECAL: COVER: RIGHT 1

25 LJ2862001 PRESSURE SPRING FRONT 1

26 LJ2869001 BUSHING: TRANSFER ROLLER: FRONT 1

27 LJ3012001 ROLLER: TRANSFER ROLLER: REAR 1

101 LJ2478001 TAPPING SCREW – M3X8

102 LJ2482001 TAPPING SCREW – M3X6

Description Q’ty Per

Assembly

Part No.

Index

No.

Description Q’ty Per

Assembly

Part No.

Index

No.

4.TRANSFER UNIT (HL3260N)

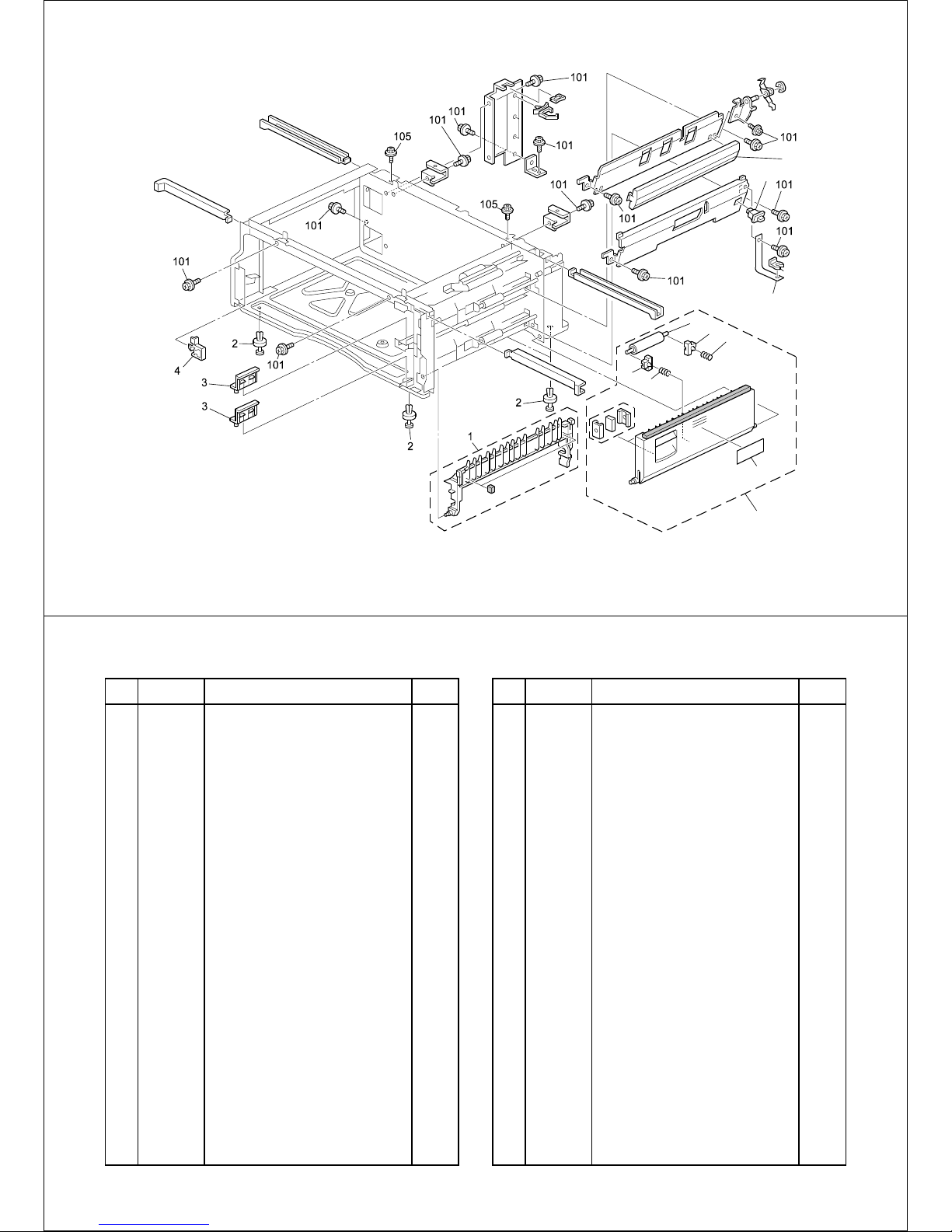

5.PAPER FEED SECTION 1 (HL3260N)

910

10 11

1 LJ2974001 LOWER PAPER GUIDE PLATE 1

2 LJ2903001 RUBBER PAD – H5 4

3 LJ2779001 SHOE – RIGHT RAIL 2

4 LJ2780001 SHOE – SUPPORTER 2

5 LJ2977001 VERTICAL TRANSPORT GUIDE 1

6 LJ8617001 PUSH SWITCH 1

7 LJ2979001 STOPPER BAND 1

8 LJ2499001 SNAP RING 1

9 LJ2899001 PULL OUT ROLLER – OPTION TRAY 1

10 LJ2841001 BUSHING – VERTICAL TRANSPORT 2

11 LJ2840001 SPRING – VERTICAL TRANSPORT 2

12 LJ2469001 COVER – VERTICAL TRANSPORT 1

13 LJ2978001 DECAL – RIGHT COVER 1

101 LJ2482001 TAPPING SCREW – M3X6

102 LJ2487001 RETAINING RING – M3

103 LJ3125001 CLAMP

104 LJ3122001 CLAMP – ES-0510

105 LJ2491001 PHILIPS SCREW – M4X8

Description Q’ty Per

Assembly

Part No.

Index

No.

Description Q’ty Per

Assembly

Part No.

Index

No.

5.PAPER FEED SECTION 1 (HL3260N)

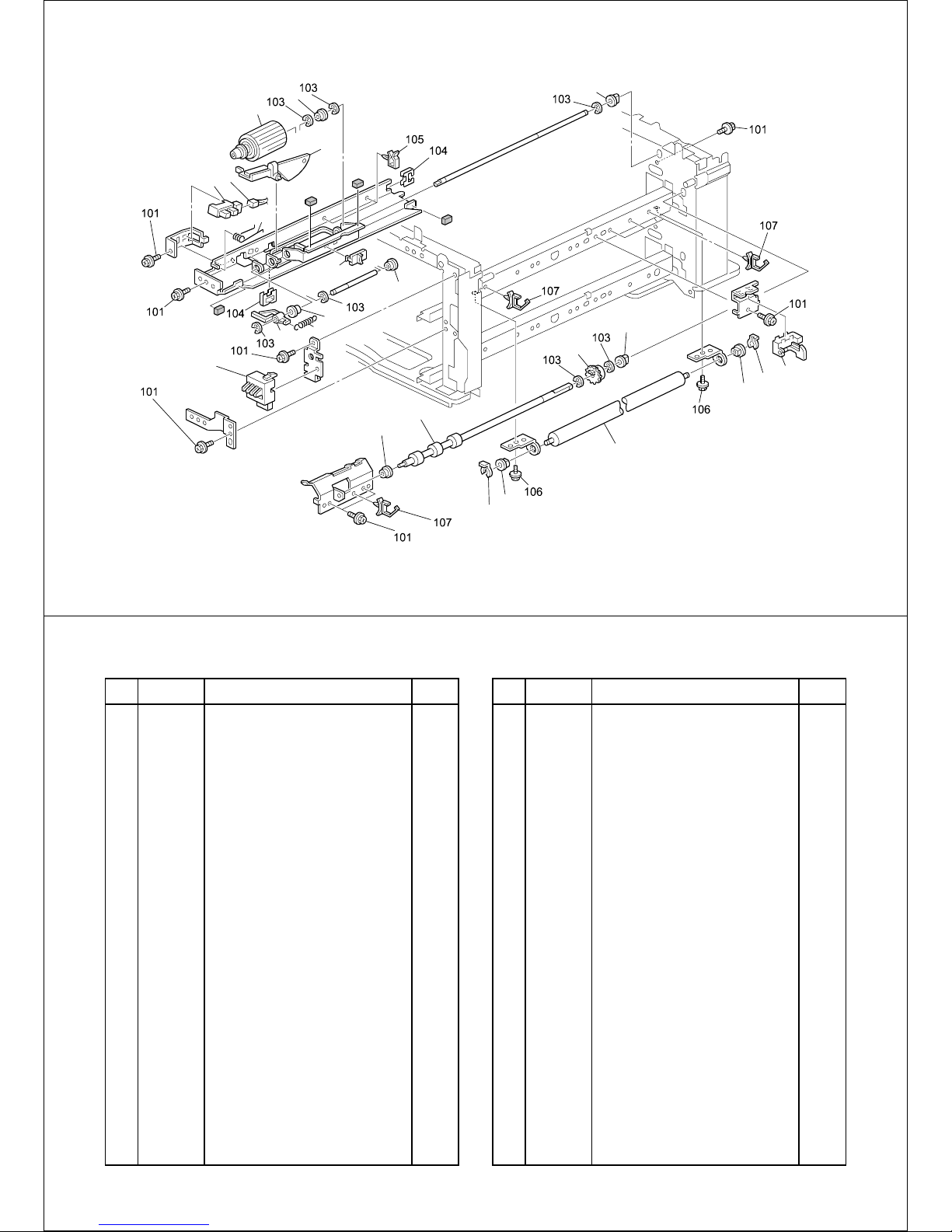

6.PAPER FEED SECTION 2 (HL3260N)

1 LJ8616001 PUSH SWITCH – PAPER SIZE 1

2 LJ2789001 LOCK LEVER – FEED ROLLER 1

3 LJ2790001 TENSION SPRING – LOCK LEVER 1

4 LJ8604001 PHOTOINTERRUPTER 1

5 LJ8679001 RELAY HARNESS – PAPER END SENSOR 1

6 LJ2444001 FEELER – PAPER END SENSOR 1

7 LJ2429001 PAPER FEED ROLLER 1

8 LJ2799001 BUSHING – MOTOR SHAFT 2

9 LJ2984001 TORSION SPRING – LOCK LEVER 1

10 LJ2440001 BUSHING – ROLLER GUIDE 1

11 LJ8614001 PHOTOINTERRUPTER 1

12 LJ2502001 C RING – PAPER FEED ROLLER 2

13 LJ2956001 ROLLER CLUTCH – VERTICAL TRANS 1

14 LJ2952001 UPPER ROLLER GUIDE 1

15 LJ3118001 BUSHING – PAPER FEED ROLLER 5

16 LJ2896001 DRIVEN ROLLER – RP2 1

17 LJ2842001 BUSHING – M4 1

101 LJ2482001 TAPPING SCREW – M3X6

102 LJ2484001 TAPPING SCREW – 3X30

103 LJ2488001 RETAINING RING – M4

104 LJ3122001 CLAMP – ES-0510

105 LJ3129001 HARNESS CLALMP – LWS-0306ZC

106 LJ2496001 PHILIPS SCREW WITH WASHER – M3X4

107 LJ3127001 HARNESS CLAMP – RLMC-05TV0

Description Q’ty Per

Assembly

Part No.

Index

No.

Description Q’ty Per

Assembly

Part No.

Index

No.

6.PAPER FEED SECTION 2 (HL3260N)
