Brother Laser Printer

PARTS REFERENCE LIST

MODEL: HL-1030/1240/1250/1270N

Read this list thoroughly before maintenance work.

Keep this list in a convenient place for quick and easy reference at all times.

September, 1999

PL-PRN001

NOTE FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items:

(1) Code

(2) Q'ty

(3) Description

(4) Symbol ( PCB No., Revision , and Parts location mounted on the PCB.)

Note : No orders without Parts Code or Tool No. can be accepted.

REF.NO. CODE Q’TY DESCRIPTION SYMBOL REMARK

Revision No.: marked on the main printed circuit board.

B48K056 - 201A

Revision No.: marked on the power supply printed circuit board.

Rev. A

2. Design-changed parts :

If the parts are changed, any one of the following symbols is indicated in the REMARKS column.

#A : compatible between old and new

#B : replaceable from old to new

#D : incompatible

# : newly established

3. The original of this list was made based on the information available in September, 1999.

4. Parts are subject to change in design without prior notice.

(1) (4)

(3)

(2)

Design change indication

Specification No .

Pattern alteration No.

Circuit board No.

Design change indication

(The first version has no sign.)

CONTENTS

1. FRAME / DRIVE UNIT .......................................................................... 1

2. LASER UNIT ......................................................................................... 1

3. PAPER FEEDER .................................................................................. 3

4. FIXING UNIT......................................................................................... 5

5. PAPER CASSETTE ......................................................................... 7AB

6. COVERS............................................................................................... 9

7. MAIN PCB........................................................................................... 11

8. ENGINE PCB...................................................................................... 13

9. LOW-VOLTAGE POWER SUPPLY PCB............................................ 13

10. HIGH-VOLTAGE POWER SUPPLY PCB........................................... 15

11. AC CORDS ......................................................................................... 15

12. ACCESSORIES .................................................................................. 17

13. PACKING MATERIALS ...................................................................... 19

14. NETWORK BOARD ............................................................................ 19

15. ADJUSTING TOOL ............................................................................. 21

1. FRAME / DRIVE UNIT

PR2002157

REF.NO.

CODE Q'TY DESCRIPTION SYMBOL REMARK

1UL9311001 1MAIN MOTOR ASSY

2 087320616 4 TAPTITE, CUP S M3X6

3LJ4069001 1SOLENOID ASSY

4 000300415 1 SCREW, BIND M3X4

5LJ4432001 1TAPE 32X12

6UL8984001 1LINK

7LJ4745001 1FAN MOTOR UNIT

8UL9099001 1TONER EMPTY PCB UNIT (LIGHT EMISSION) B512038

9UK4405001 1PANEL PCB ASSY B512048

10 087320616 3 TAPTITE, CUP S M3X6

11 LJ7403001 4RUBBER FOOT

12 UL9104001 1TONER EMPTY PCB UNIT (LIGHT RECEPTION) B512037

13 087320616 2 TAPTITE, CUP S M3X6

14 LJ8031001 1LT RELAY PCB ASSY, HL-1250/1270N B512060

15 087320616 1 TAPTITE, CUP S M3X6

16 LE1169001 1USB GROUND PLATE, HL-1270

17 UL8970001 1SOLENOID RELEASE SPRING 30/99

18 LJ5591001 1PLANET GEAR ASSY (SP)

18 LJ5838001 1PLANET GEAR ASSY B (SP)

19 UL8985001 1GEAR 59

20 LJ5705001 1GEAR 21 PRESSURE PLATE

21 087320616 1 TAPTITE, CUP S M3X6

22 UL8972001 1P/R CLUTCH LEVER

23 UL8971001 1F/R CLUTCH LEVER

24 UL8982001 1DEVELOP JOINT

25 UL8983001 1JOINT SPRING

26 UL8959001 1FRICTION SPRING DELETE

MODEL HL-1030/1240/1250/1270/1270N 84U-Z04/Z01/Z02/Z05/Z03-010

T/I NO. PR99165 / PR2000014 / PR2000073 / PR2000132 / PR2000152 / PR2001023 / PR2001049

PR2001061/ PR2001100 / PR2002013 / PR2002098 / PR2002139 / PR2002157

2. LASER UNIT

REF.NO.

CODE Q'TY DESCRIPTION SYMBOL REMARK

1LJ4157001 1LASER UNIT (SP) (B512033)

2 087321615 3 TAPTITE, CUP S M3X16

MODEL HL-1030/1240/1250/1270/1270N 84U-Z04/Z01/Z02/Z05/Z03-020

- 1 -

MODEL HL-1030/1240/1250/1270/1270N 84U-Z04/Z01/Z02/Z05/Z03-010

1. FRAME / DRIVE UNIT

2. LASER UNIT

- 2 -

MODEL HL-1030/1240/1250/1270/1270N 84U-Z04/Z01/Z02/Z05/Z03-020

PR2002098

T/I NO.PR99165 / PR2000014 / PR2000073 / PR2000152 / PR2001023 / PE2001049 / PR2001061

/ PR2001100 / PR2002013 / PR2002098

21 26 3

23 22

3. PAPER FEEDER

REF.NO.

CODE Q'TY DESCRIPTION REMARK

1UL9060001 1PAPER FEED ROLLER ASSY

2UL9066001 1PAPER PICK-UP ROLLER ASSY

3UL9071001 1TR ELECTRODE HELICAL SPRING A

3LJ4499001 1TR ELECTRODE HELICAL SPRING B

4LJ4843001 1OUTER CHUTE 1 (SP)

5UL9070001 1GEAR 21

6UL9059001 1JOINT 5

7UL9062001 1BEARING 5

8UL9069001 1CONDUCTOR BEARING 5

MODEL HL-1030/1240/1250/1270/1270N 84U-Z04/Z01/Z02/Z05/Z03-040

T/I NO. PR2000051 / PR2000108 / PR2000130

CAUTION:

1) The new version of the TR electrode helical spring, TR ELECTRODE HELICAL SPRING B

(LJ4499001) should be used for ALL HL-1030/1270N printers and the HL-1240/1250 printers

whose serial No. is the following number or later;

HL-1240: J9J211817 - (EXCEPT J9J212235 - J9J217459, J9J219423 - J9J219997)

HL-1250: J9J221758 -

2) The old version of the TR electrode helical spring, TR ELECTRODE HELICAL SPRING A

(UL9071001) should be used for HL-1240/1250 whose serial No. is before the number above

and the numbers in the range of J9J212235 - J9J217459 & J9J219423 - J9J219997.

3) The old and new versions of the TR electrode helical spring are incompatible with each

other.

- 3 -

3. PAPER FEEDER

- 4 -

MODEL HL-1030/1240/1250/1270N 84U-Z04/Z01/Z02/Z03-045/047

PR2000130

T/I NO. PR2000051 / PR2000108 / PR2000130

4. FIXING UNIT PR2002144

REF.NO. CODE Q'TY DESCRIPTION REMARK

1 LJ7759001 1 FIXING UNIT, 115V (SP) CHNG

1 LJ7760001 1 FIXING UNIT, 230V (SP) CHNG

1 LJ4718001 1 FIXING UNIT, 230V LEG (SP)

1-1 UL8902001 1 THERMISTOR ASSY

1-2 087311215 1 TAPTITE, CUP B M3X12

1-3 LJ4169001 1 HEAT ROLLER 25 (SP)

1-3 LJ4719001 1 HEAT ROLLER 25 LEG (SP)

1-4 UL8908001 2 HR BEARING 25

1-5 LJ4160001 1 HALOGEN LAMP, 115V (SP)

1-5 LJ4163001 1 HALOGEN LAMP, 230V (SP)

1-6 UL8929001 8 EJECT PINCH ROLLER

1-7 LJ4431001 8 PINCH SPRING

1-8 LJ4407001 2 CLEANER ROLLER ASSY

1-9 LJ4409001 2 CLEANER SPRING

1-10 087312015 2 TAPTITE, CUP B M3X20

1-11 Z07200001 1 TAPTITE, PAN B M3X10

1-12 LJ4845001 4 PICK OFF FINGER (SP)

1-13 LJ4853001 1 PRESSURE ROLLER 20 (SP)

1-13 LJ4852001 1 PRESSURE ROLLER 20 LE (SP)

1-14 UL8920001 1 PAPER EJECT ACTUATOR

1-15 UL8921001 1 EJECT ACTUATOR SPRING

1-16 UL8914001 2 IDLE GEAR 13

1-17 LJ5871001 1 IDLE GEAR HOLDER

1-18 UL8923001 1 FU DRIVE GEAR 20/38 ADD

1-19 LJ7256001 1 EJECT ROLLER SHAFT L ADD

1-20 LJ7257001 1 EJECT ROLLER ASSY R ADD

1-20-1 LJ7258001 1 EJECT ROLLER SHAFT R ADD

1-21 LJ7259001 1 EJECT ROLLER BUSHING L ADD

1-22 LJ7260001 1 EJECT ROLLER BUSHING R ADD

1-23 LJ7261001 1 FU FRAME LOWER 2 ADD

1-24 LJ7262001 1 EJECT ROLLER JAM REMOVE TOOL ADD

2 087320815 1 TAPTITE, CUP S M3X8

3 LJ4740001 2 SHOULDER SCREW

MODEL HL-1030/1240/1250/1270/1270N 84U-Z04/Z01/Z02/Z05/Z03-050/051

T/I NO. PR99179, PR99186, PR2000029, PR2000057, PR2000157,PR2001118 / PR2002091 /

PR2002144

- 5 -

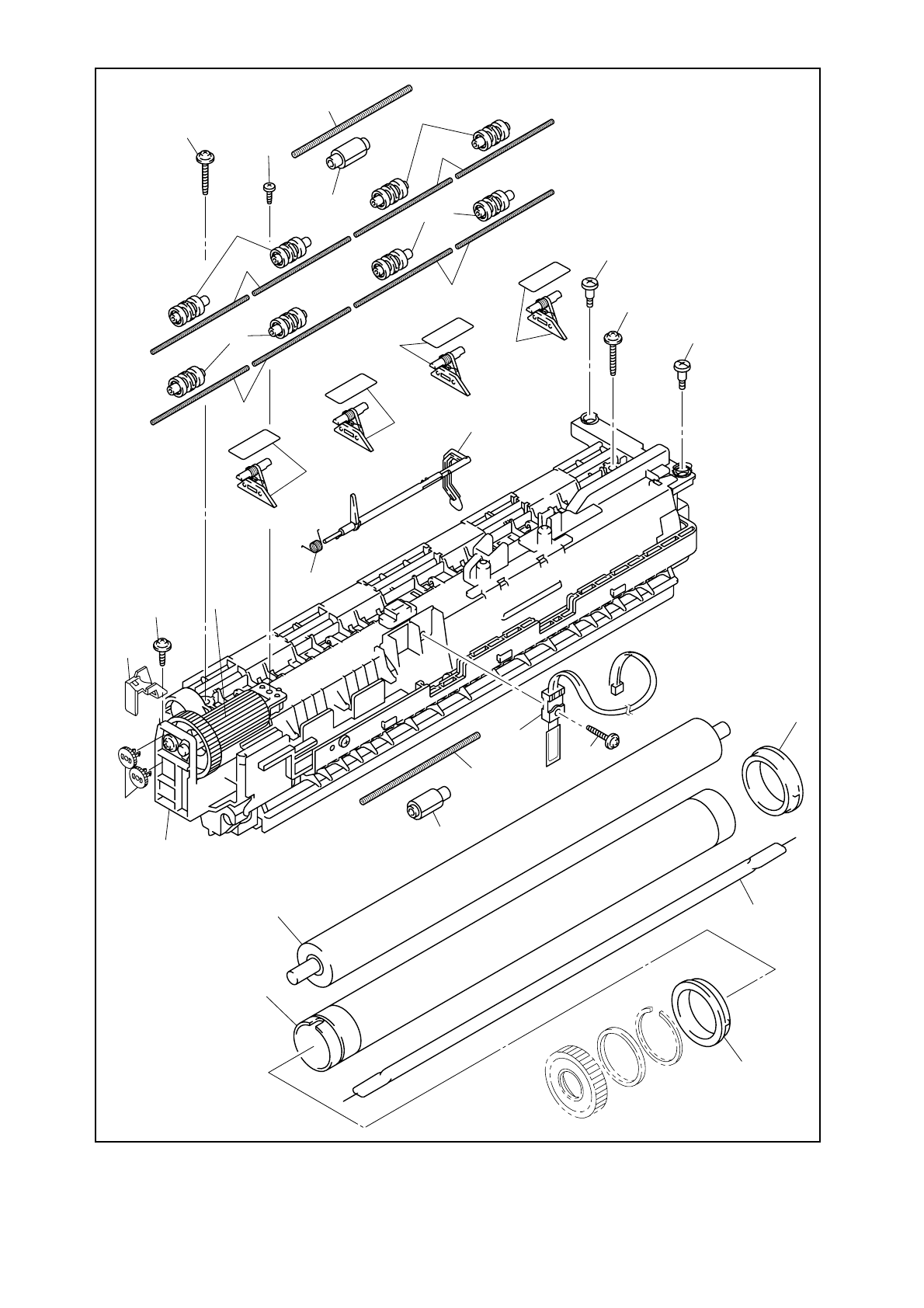

4. FIXING UNIT

- 6 -

MODEL HL-1030/1240/1250/1270/1270N 84U-Z04/Z01/Z02/Z05/Z03-045/047

T/I NO. PR2000029 / PR2000057 / PR2001118 / PR2002091

PR2002091

1-10 1-11

1-6

1-7

1-6

1-7

1-6

1-10

1-1

1-9

1-8

1-13

1-16

1-17

1-18

1-2

1-9

1-8

1-12

1-12 1-12

1-15

1-14

1-4

1-3

1-4

1-5

5-1. PAPER CASSETTE, LGL PR2002009

REF.NO.

CODE Q'TY DESCRIPTION REMARK

1LE1162001 1PAPER TRAY ASSY, LGL (SP)

1-1 LJ4537001 1PRESSURE PLATE ASSY, LGL

1-2 UL9077001 2PRESSURE PLATE SPRING

1-3 UL9078001 1SIDE GUIDE L

1-4 UL9079001 1SIDE GUIDE R

1-5 U73515001 2TAPTITE, CUP B M2.6X5

1-6 UL9080001 2SIDE GUIDE RACK

1-7 UL9081001 1SIDE GUIDE GEAR

1-8 UL9082001 1FRICTION SPRING

1-9 087310815 1 TAPTITE, CUP B M3X8

1-10 UL9083001 1REAR PAPER GUIDE

1-11 UL9084001 1SEPARATION PAD HOLDER ASSY

1-12 UL9090001 1SEPARATION PAD SPRING

1-13 UL9091001 1PAPER INDICATOR

1-14 UL9092001 1LOCK LEVER

1-15 LJ4534001 1PRESSURE ROLLER HOLDER, LGL

1-16 LJ4892001 1PRESSURE ROLLER COLLAR 2 ASSY CHNG

1-17 UL9095001 1RELEASE LEVER EXTENSION SPRING

1-18 LJ2061001 1PAPER TRAY COVER

1-19 UF8709001 1TAPTITE, TORX PAN B M3X8

1-20 LJ4272001 1TRAY COVER FILM

1-21 LJ4221001 1SCRATCH SPONGE HOLDER ASSY

1-22 LJ4200001 2SCRATCH SPONGE SPRING

1-23 LJ4865001 1MYLAR LABEL 1240 TRAY

1-24 LJ4332001 1TRAY FEED GUIDE ASSY ADD

MODEL HL-1030/1240/1250/1270/1270N 84U-Z04/Z01/Z02/Z05/Z03-045

T/I NO. PR2000066 / PR2000127 / PR2002009

5-2. PAPER CASSETTE, A4 PR2002009

REF.NO.

CODE Q'TY DESCRIPTION REMARK

1LJ4181001 1PAPER TRAY ASSY, A4 (SP)

1-1 UL9074001 1PRESSURE PLATE ASSY, A4

1-2 UL9077001 2PRESSURE PLATE SPRING

1-3 UL9078001 1SIDE GUIDE L

1-4 UL9079001 1SIDE GUIDE R

1-5 U73515001 2TAPTITE, CUP B M2.6X5

1-6 UL9080001 2SIDE GUIDE RACK

1-7 UL9081001 1SIDE GUIDE GEAR

1-8 UL9082001 1FRICTION SPRING

1-9 087310815 1 TAPTITE, CUP B M3X8

1-10 UL9083001 1REAR PAPER GUIDE

1-11 UL9084001 1SEPARATION PAD HOLDER ASSY

1-12 UL9090001 1SEPARATION PAD SPRING

1-13 UL9091001 1PAPER INDICATOR

1-14 UL9092001 1LOCK LEVER

1-15 LJ4196001 1PRESSURE ROLLER HOLDER, A4

1-16 LJ4892001 1PRESSURE ROLLER COLLAR 2 ASSY CHNG

1-17 UL9095001 1RELEASE LEVER EXTENSION SPRING

1-18 LJ2061001 1PAPER TRAY COVER

1-19 UF8709001 1TAPTITE, TORX PAN B M3X8

1-20 LJ4272001 1TRAY COVER FILM

1-21 LJ4221001 1SCRATCH SPONGE HOLDER ASSY

1-22 LJ4200001 2SCRATCH SPONGE SPRING

1-24 LJ4332001 1TRAY FEED GUIDE ASSY ADD

MODEL HL-1030/1240/1250/1270/1270N 84U-Z04/Z01/Z02/Z05/Z03-047

T/I NO. PR2000127 / PR2002009

- 7A -
