Start Here

MFC-790CW

Quick Setup Guide

CHN-ENG Version 0

Before you can use the machine, read this Quick Setup Guide for the correct setup and installation.

Unpack the machine and check the components

WARNING

Plastic bags are used in the packaging of your machine. To avoid danger of suffocation, please keep

these bags away from babies and children.

WARNING Warnings tell you what to do to prevent possible personal injury.

Important

DO NOT connect the USB cable before installing driver.

Inbox Ink Cartridges

[x4]

Black

Yellow

Cyan

Magenta

(Approx. 65% yield of the

replacement cartridge) For

details, see Consumable

items in the User’s Guide. Quick Setup Guide

User’s Guide CD-ROM Telephone Line Cord Power Cord USB Interface Cable

Telephone Handset

Side Cover

aRemove the protective tape and film covering

the machine.

bRemove the green protective packing aby

lifting the front of the machine and then pulling

down on the packing part.

cMake sure you have all components.

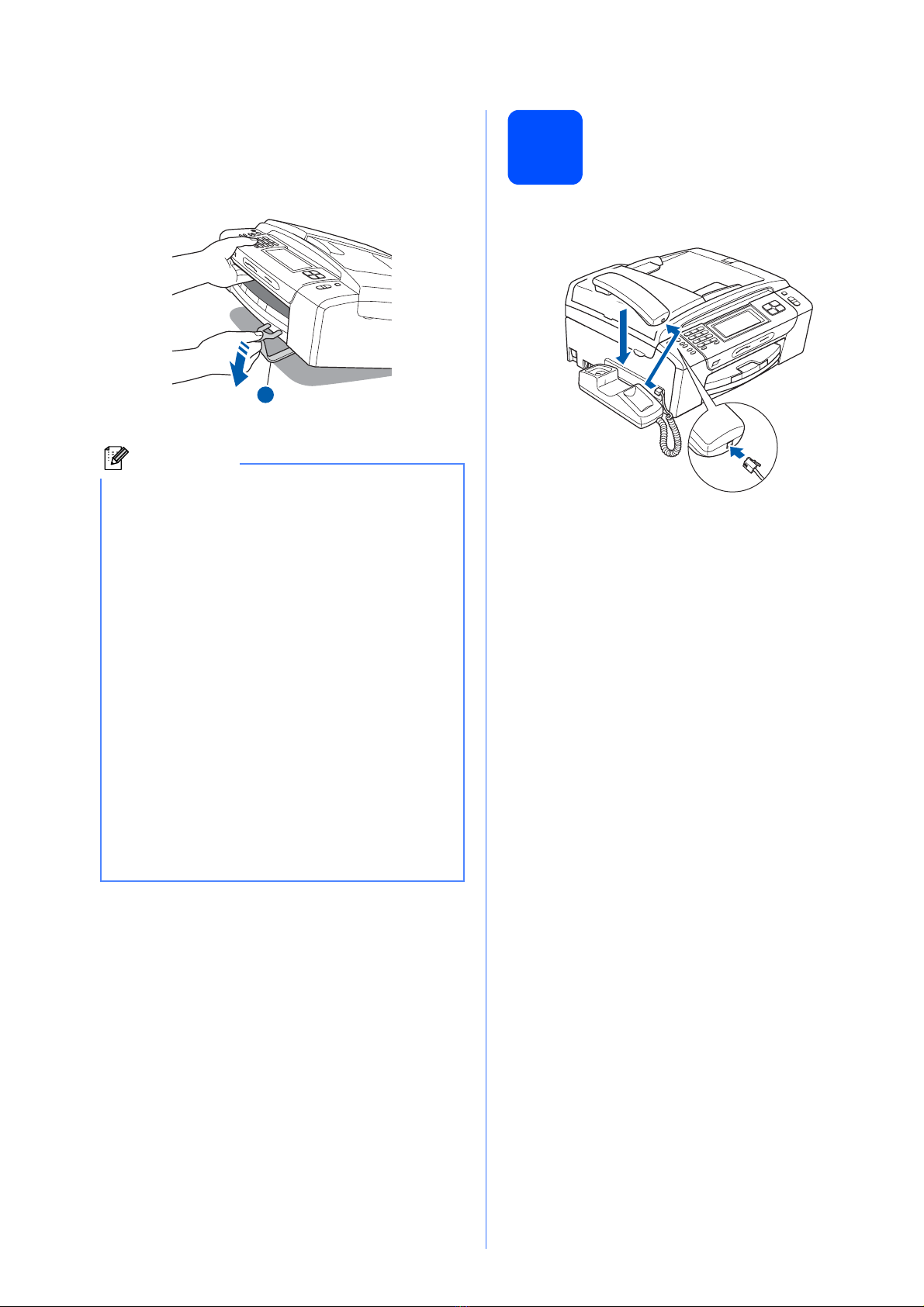

Connect the handset

aConnect the curled handset cord to the

handset.

Note

• The components included in the box may differ

depending on your country.

• Save all packing materials and the box in case

for any reason you must ship your machine.

•

For a network connection you will need to

purchase a network interface cable. Please

use the supplied USB cable for a USB

connection

• To ensure safe operation the supplied plug

must be inserted only into a standard power

outlet that is properly grounded through the

standard electrical wiring. Non grounded

equipment may cause an electrical shock

hazard, and may cause excessive electrical

noise radiation.

USB cable

Please make sure you use a USB 2.0 cable

(Type A/B) that is no more than 2 metres long.

Network cable

Use a straight-through Category5 (or greater)

twisted-pair cable for 10BASE-T or 100BASE-TX

Fast Ethernet Network.

Load plain A4 paper

aPull the paper tray acompletely out of the

machine.

bOpen the paper tray cover a.

cWith both hands, gently press and slide the

paper side guides aand then the paper length

guide bto fit the paper size.

Make sure that the triangular marks con the

paper side guides aand paper length guide b

line up with the mark for the paper size you are

using.

dFan the stack of paper well to avoid paper jams

and misfeeds.

eGently put the paper into the paper tray print

side down and top edge first. Check that the

paper is flat in the tray.

fGently adjust the paper side guides to the

paper with both hands. Make sure that the

paper side guides touch the edges of the

paper.

gClose the paper tray cover a.

hSlowly push the paper tray completely into the

machine.

Important

Do not push the paper in too far.

iWhile holding the paper tray in place, pull out

the paper support auntil it clicks, and then

unfold the paper support flap b.

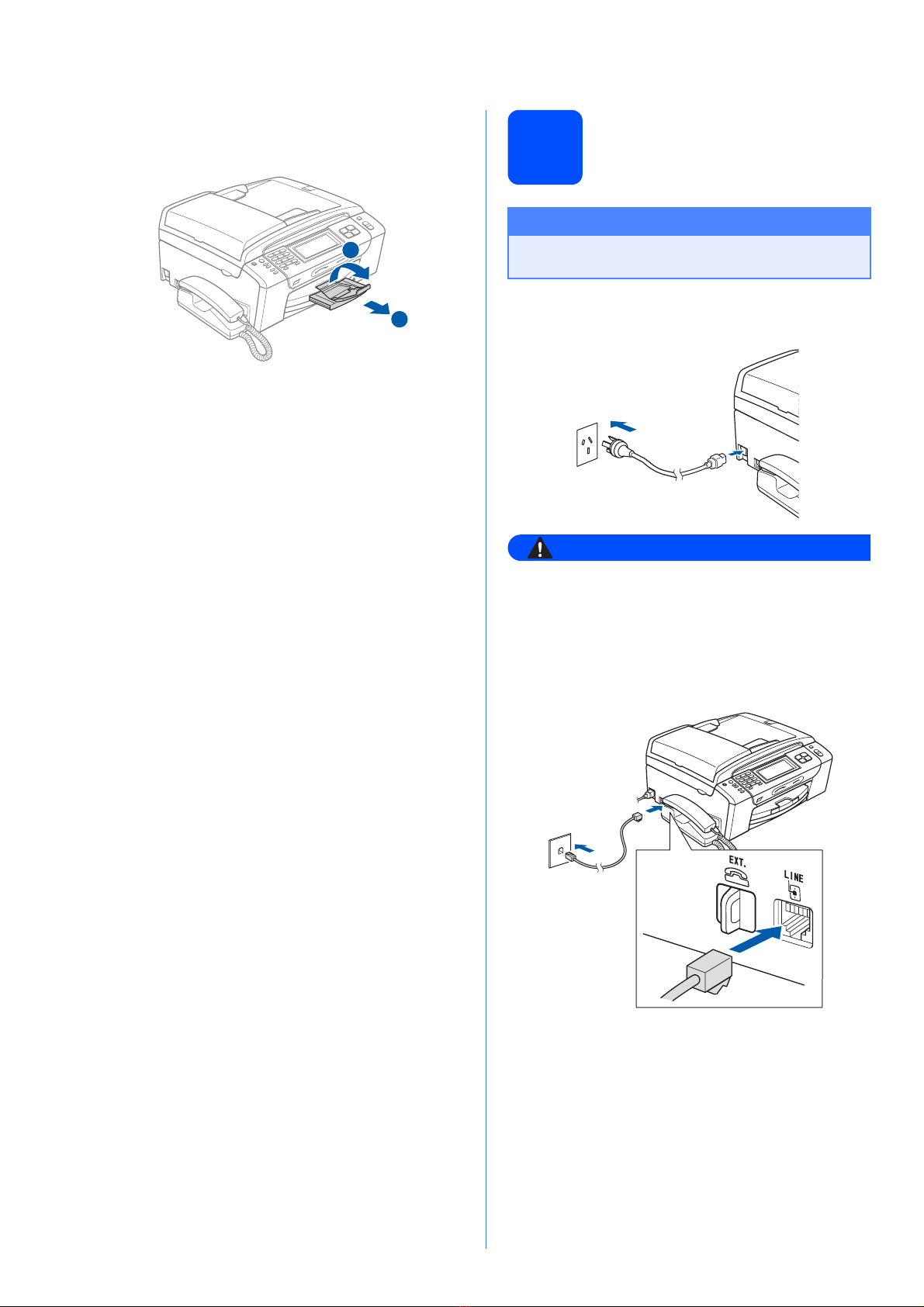

Connect the power cord

and telephone line

aConnect the power cord.

WARNING

The machine must be fitted with an earthed

plug.

bConnect the telephone line cord. Connect one

end of the telephone line cord to the socket on

the machine marked LINE and the other end to

a telephone wall socket.

Important

DO NOT connect the USB cable before

installing driver.

WARNING

Since the machine is grounded through the

power outlet, you can protect yourself from

potentially hazardous electrical conditions on

the telephone network by keeping the power

cord connected to your machine when you

connect it to a telephone line. Similarly, you

can protect yourself when you want to move

your machine by disconnecting the telephone

line first and then the power cord.

Install the ink cartridges

WARNING

If ink gets in your eyes, wash them out with

water at once, and if irritation occurs consult a

doctor.

aMake sure that the power is turned on.

The LCD shows:

bOpen the ink cartridge cover a.

cRemove the green protective part a.

dUnpack the ink cartridge.

Important

The telephone line cord MUST be connected

to the socket on the machine marked LINE.

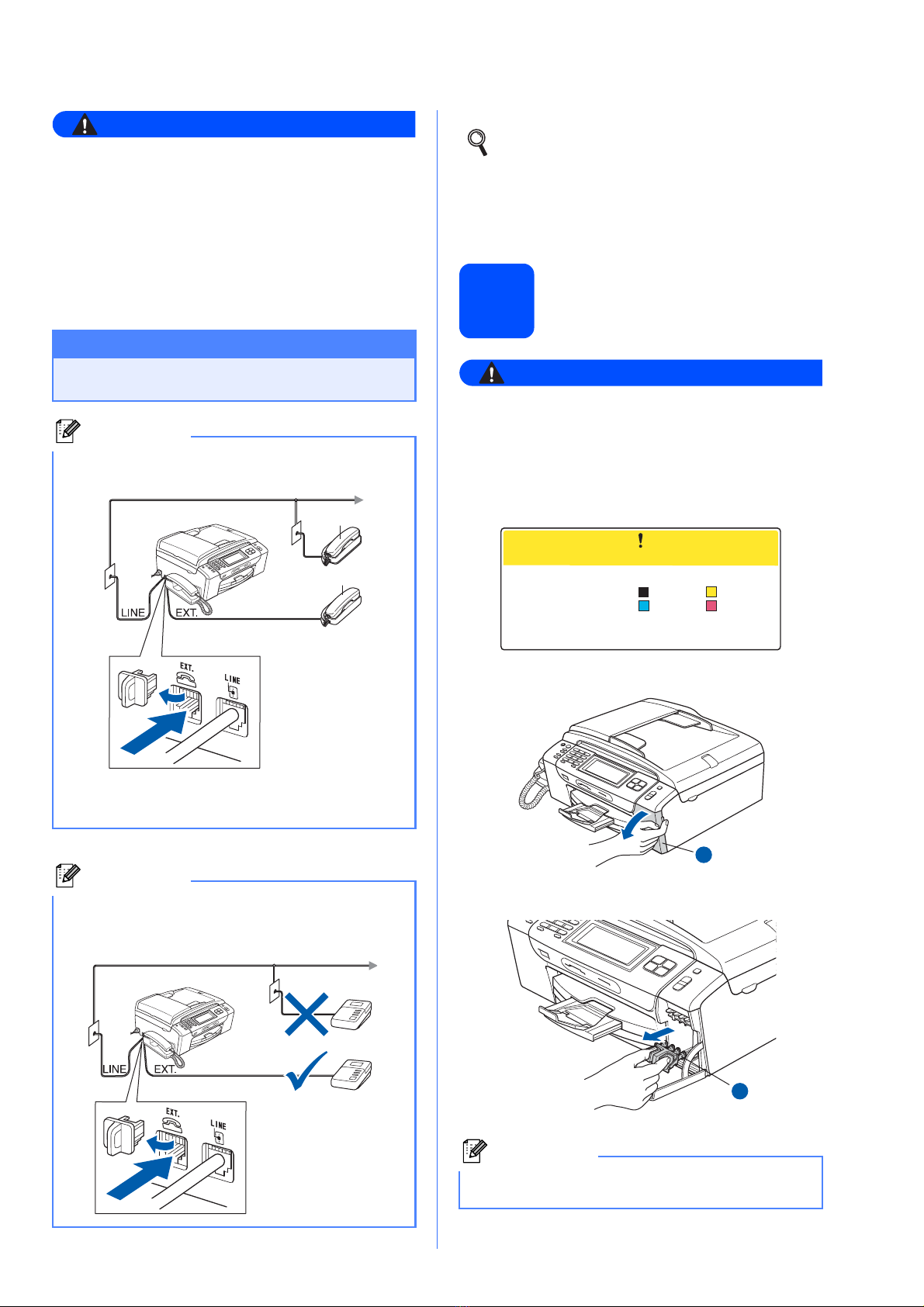

Note

If you are sharing one telephone line with an

external telephone, connect it as shown below.

1Extension telephone

2External telephone

Note

If you are sharing one telephone line with an

external telephone answering machine, connect it

as shown below.

Set the receive mode to Manual if you have

an external answering machine. See

Choose a Receive Mode on page 8. For

additional details, see Connecting an

external TAD (telephone answering device)

in Chapter 7 of the User’s Guide.

Note

Do not throw away the green protective part.

You will need it if you transport the machine.

No Cartridge

Install Ink

Black

Cyan

Yellow

Magenta

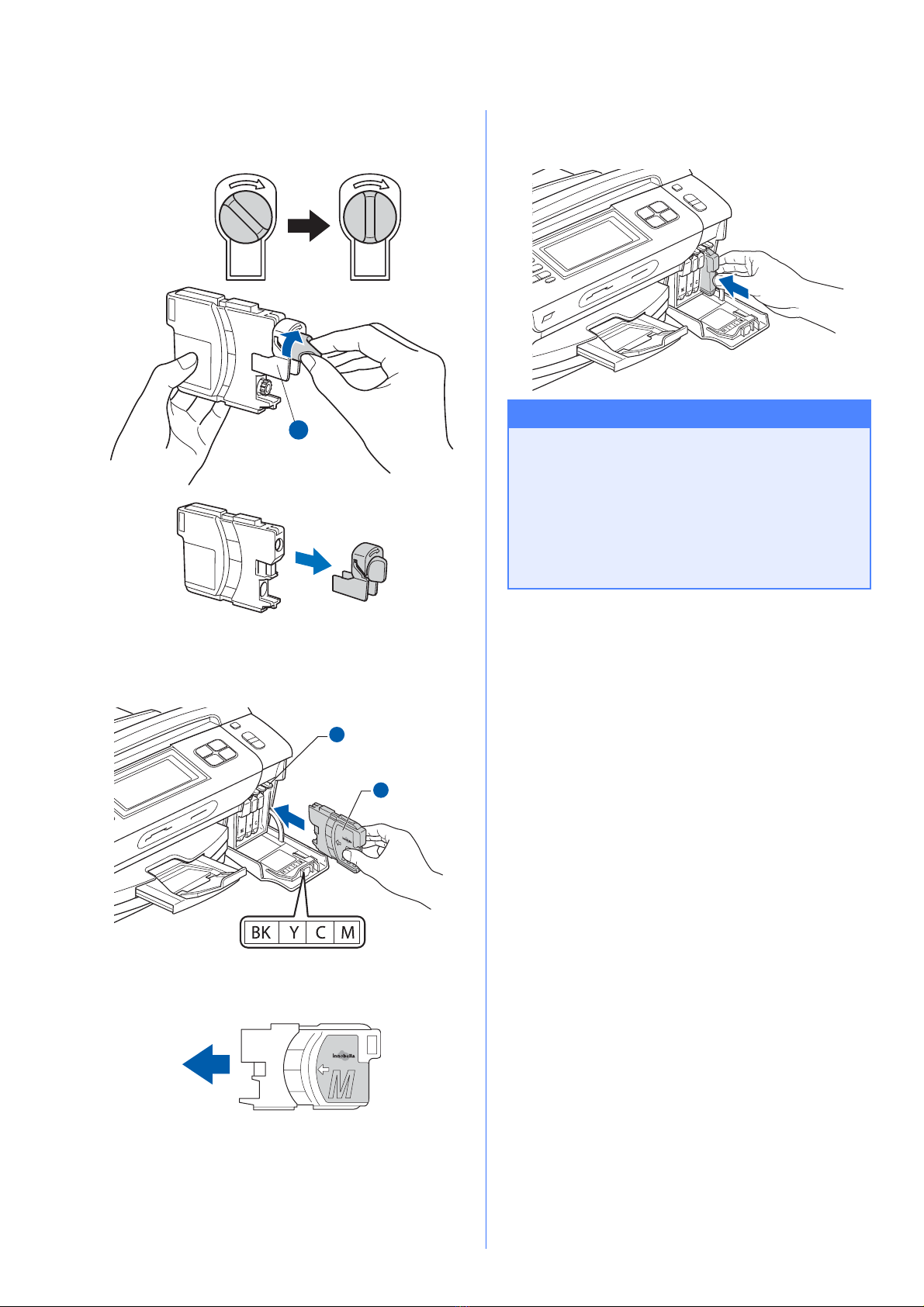

eTurn the green knob on the protective yellow

cap clockwise until it clicks to release the

vacuum seal, then remove the cap a.

fTake care to match the color of the lever a

with the cartridge color b, as shown in the

diagram below.

gInstall each ink cartridge in the direction of the

arrow on the label.

Gently push the ink cartridge until it clicks. After

all the ink cartridges are installed close the ink

cartridge cover.

Important

After initial installation of the ink cartridges,

the machine will start cleaning the ink tube

system. This cleaning process will last

approximately four minutes.

DO NOT unplug the machine from the power

outlet or attempt to stop the cleaning process.

Interruption of cleaning process may cause

undesired print quality problems.

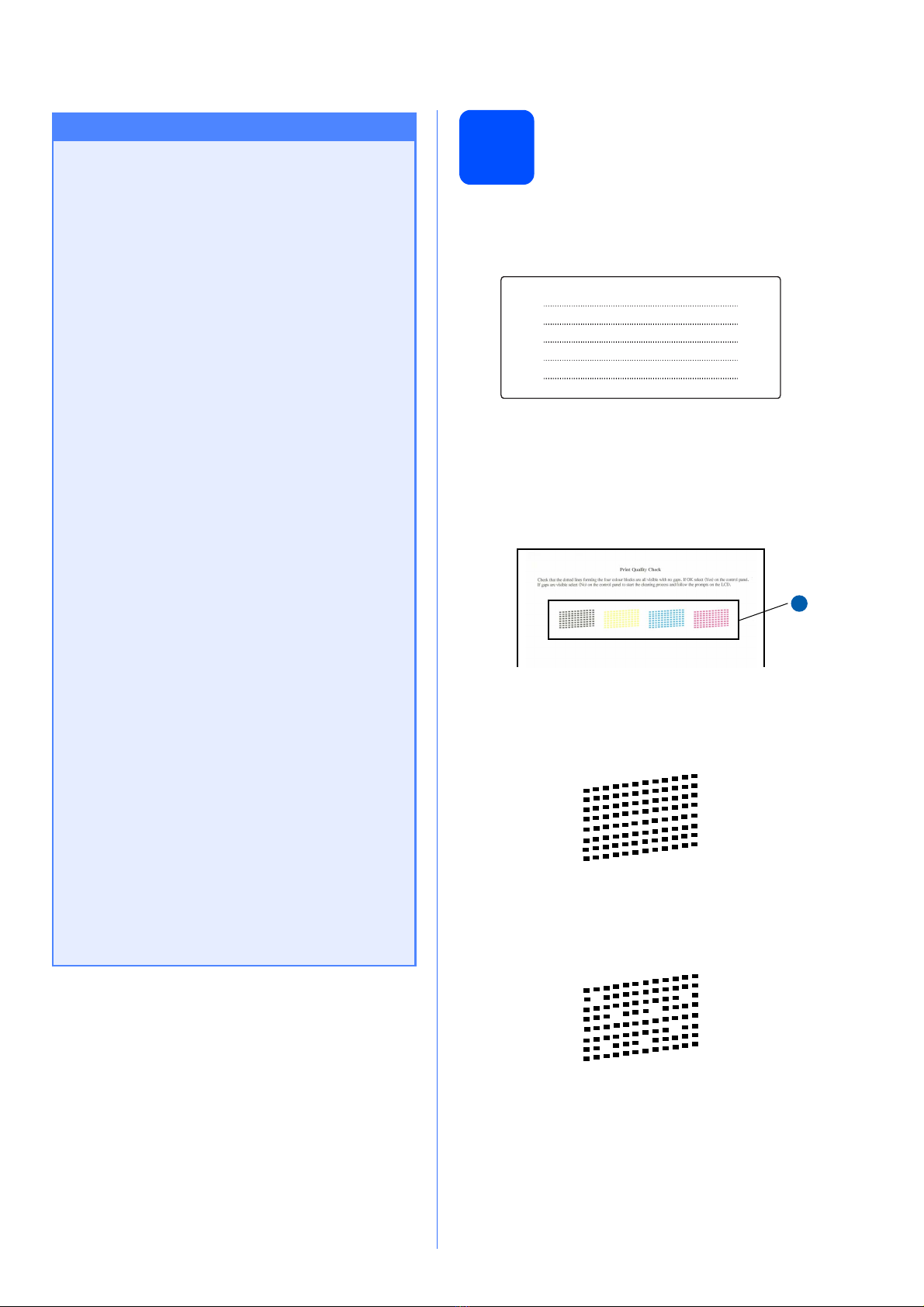

Check the print quality

aWhen the preparation process has finished, the

LCD shows this message

Press Color Start.

The machine starts printing the Print Quality

Check Sheet.

bCheck the quality of the four color blocks aon

the sheet. (black/yellow/cyan/magenta)

cIf all lines are clear and visible, press Yes to

finish the quality check.

If you can see missing short lines, press No and

go to d.

Important

• DO NOT take out ink cartridges if you do not

need to replace them. If you do so, it may

reduce the ink quantity and the machine will

not know the quantity of ink left in the

cartridge.

• DO NOT shake the ink cartridges. If ink

stains your skin or clothing, wash with soap

or detergent at once.

• DO NOT repeatedly insert and remove the

cartridges. If you do so, ink may seep out of

the cartridge.

• If you mix the colors by installing an ink

cartridge in the wrong position, clean the

print head several times after correcting the

cartridge installation. (See Cleaning the

print head in Appendixes B of the User's

Guide.)

• Once you open an ink cartridge, install it in

the machine and use it up within six months

of installation. Use unopened ink cartridges

by the expiration date written on the

cartridge package.

• DO NOT dismantle or tamper with the ink

cartridge, this can cause the ink to leak out

of the cartridge.

• Brother multifunction machines are

designed to work with ink of a particular

specification and will work to a level of

optimum performance when used with

genuine Brother branded ink cartridges.

Brother cannot guarantee this optimum

performance if ink or ink cartridges of other

specifications are used. Brother does not

therefore recommend the use of cartridges

other than genuine Brother branded

cartridges with this machine or the refilling

of empty cartridges with ink from other

sources. If damage is caused to the print

head or other parts of this machine as a

result of using incompatible products with

this machine, any repairs required as a

result may not be covered by the warranty.

Poor

Set Paper and Press Start

dThe LCD asks you if the print quality is OK for

black and color. Press Yes or No.

After pressing Yes or No for both black and

color, the LCD shows:

ePress Color Start, the machine will then start

cleaning the colors.

fAfter cleaning is finished, press Color Start.

The machine starts printing the Print Quality

Check Sheet again. Go back to b.

Choose a Receive Mode

There are three possible receive modes: Fax Only,

Fax/Tel and Manual.

aPress MENU.

bPress aor bto display Initial Setup.

cPress Initial Setup.

dPress Receive Mode.

ePress Fax Only, Fax/Tel or Manual.

fPress Stop/Exit.

Black OK?

Yes No

Start Cleaning?

Press Start

For details, see Using receive modes in

Chapter 6 of the User's Guide.

You control the

telephone line and must

answer every call

yourself.

Manual

Your machine

automatically answers

every call as a fax.

Fax Only

Your machine controls

the line and

automatically answers

every call. If the call is

not a fax, the telephone

will ring for you to pick

up the call.

Fax/Tel

Your external telephone

answering device (TAD)

automatically answers

every call. Voice

messages are stored

on the external TAD.

If you set Fax Detect

to On, the Fax

messages are printed.

Manual

Yes

Are you using the built-in

TAD? See Digital TAD in

Chapter 9 of the

User's Guide.

Do you want to use the telephone features of your

machine (if available) or an external telephone or

external telephone answering device connected on the

same line as the machine?

Are you using the voice message

function of an external telephone

answering device?

Do you want the machine to

answer fax and telephone calls

automatically?

Yes

Set up the TAD

You must record an outgoing message in order to use

the TAD mode.

aRecord the TAD outgoing message

(TAD Message).

bActivate TAD mode.

Press . The button will light when the mode

is active.

Set the LCD contrast

(If needed)

If you are having difficulty reading the LCD, try

changing the contrast setting.

aPress MENU.

bPress aor bto display General Setup.

cPress General Setup.

dPress aor bto display LCD Settings.

ePress LCD Settings.

fPress LCD Contrast.

gPress Light, Med or Dark.

hPress Stop/Exit.

Set the date and time

The machine displays the date and time, and if you

set up the station ID, the date and time displayed on

your machine will be printed on every fax you send.

aPress MENU.

bPress aor bto display Initial Setup.

cPress Initial Setup.

dPress Date&Time.

eEnter the last two digits of the year on the

Touchscreen, and then press OK.

(e.g. Enter 08for 2008.)

fRepeat for Month and Day, and Hours and

Minutes in 24-hour format.

gPress Stop/Exit.

See Outgoing message (OGM) in Chapter 9

of the User’s Guide.

If the TAD Mode is on, it overrides your

Receive Mode setting. The built-in digital

TAD answers voice calls. If the call is a fax,

you can receive a fax automatically. For

details, see Digital TAD in Chapter 9 of the

User’s Guide.

Note

You can also adjust the angle of the display by

lifting it.

Year:2008

Year :20 08

Date&Time

Da te& Time

Enter personal

information (station ID)

You should store your name and fax number to be

printed on all fax pages that you send.

aPress MENU.

bPress aor bto display Initial Setup.

cPress Initial Setup.

dPress Station ID.

eEnter your fax number (up to 20 digits) on the

Touchscreen, and then press OK.

fEnter your name (up to 20 characters) using

the Touchscreen, and then press OK.To enter

numbers or special letters, press

repeatedly until the character you want to enter

appears, then press the character you want to

use.

gPress Stop/Exit.

Set tone or pulse dialling

mode

Your machine comes set for Tone dialling service. If

you have Pulse dialling service (rotary), you need to

change the dialling mode.

aPress MENU.

bPress aor bto display Initial Setup.

cPress Initial Setup.

dPress aor bto display Tone/Pulse.

ePress Tone/Pulse.

fPress Pulse (or Tone).

gPress Stop/Exit.

Note

• If you need to enter a character that is on the

same button as the last character, press cto

move the cursor to the right.

• If you entered a letter incorrectly and want to

change it, press dor cto move the cursor to the

incorrect character, press .

Note

If you make a mistake and want to start again,

press Stop/Exit and go back to a.

For details, see Entering Text in Appendix C

of the User's Guide.

Other manuals for MFC-790CW

Table of contents

Other Brother All In One Printer manuals

Brother

Brother MFC 3240C - Color Inkjet - All-in-One User manual

Brother

Brother DCP120C - Flatbed Multifunction Photo Capture... User manual

Brother

Brother MFC-J4625DW Instruction Manual

Brother

Brother HL-L2300D Operating manual

Brother

Brother MFC-J220 User manual

Brother

Brother DCP-8080DN User manual

Brother

Brother MFC-4820C User manual

Brother

Brother DCP-8110DN Assembly instructions

Brother

Brother MFC-8220 User manual

Brother

Brother MFC4450 User manual

Brother

Brother MFC 3100C - Inkjet Multifunction User manual

Brother

Brother DCP-9040CN User manual

Brother

Brother MFC-J4310DW User manual

Brother

Brother DCP-1600E User manual

Brother

Brother DCP 8085DN User manual

Brother

Brother MFC-J5910DW User manual

Brother

Brother DCP-395CN Safety guide

Brother

Brother MFC-440CN User manual

Brother

Brother MFC-J3930DW Technical manual

Brother

Brother MFC-L2685DW Operating and maintenance manual

Brother

Brother DCP-6690CW User manual

Brother

Brother MFC-J825DW User manual

Brother

Brother 09055CDN User manual

Brother

Brother 8220 - MFC - Multifunction Quick start guide

Popular All In One Printer manuals by other brands

Triumph Adler

Triumph Adler DC 2016 Instruction handbook

Epson

Epson WorkForce WF-2510 Basic guide

Epson

Epson Stylus Scan 2000 Product information guide

Epson

Epson PictureMate Snap PM 240 Start here

Konica Minolta

Konica Minolta bizhub C35 user guide

Konica Minolta

Konica Minolta BIZHUB 558 Quick reference guide

Lexmark

Lexmark MX710 Series setup sheet

Lexmark

Lexmark XC8155 user guide

Lexmark

Lexmark X642E Service manual

Sharp

Sharp MX-2310U Start guide

Aficio

Aficio 200 manual

Canon

Canon ImageCLASS 2300 setup sheet

Ricoh

Ricoh Pro C900 Brochure & specs

Lexmark

Lexmark X925 Installation

Epson

Epson Stylus CX8400 Series Brochure & specs

Oce

Oce VarioLink 5022 user guide

Copystar

Copystar CS 4551ci Specifications

Konica Minolta

Konica Minolta Magicolor 4650EN Service manual
