Brother MFC 4550 User manual

These machines are made for use in the USA or CANADA only. We

can not recommend using them overseas because it may violate the

Telecommunications Regulations of that country and the power

requirements of your fax machine may not be compatible with the

poweravailableinforeigncountries.UsingUSAorCANADAmodels

overseas is at your own risk and will void your warranty.

UF72440013

Printed in Japan

*Manufactured by Brother Industries Ltd. whose quality system

is registered by BSI and JQA.

BSI Certificate of registration No. FM27391

JQA Certificate of registration No. JQA-0340

Brother International Corporation

200 Cottontail Lane,

Somerset, NJ 08875-6714, U.S.A.

Brother International Corporation (Canada) Ltd.

1 rue Hôtel de Ville,

Dollard-des-Ormeaux, QC, CANADA H9B 3H6

MFC 4550/6550MC/7550MC

OP-US-5.0

MFC 4550

MFC 6550MC

MFC 7550MC

OPERATIONS

MANUAL

for Fax, Printer, Copier

CONTENTS

Chapter 1: THE CONTROL PANEL KEYS

Chapter 2: HOW TO USE ON-SCREEN PROGRAMMING

(OSP)AND HELP KEY

Chapter 3: TELEPHONE FUNCTION SETTINGS

Chapter 4: USING THE UNIT AS A TELEPHONE

Chapter 5: SENDING FAXES

Chapter 6: RECEIVING FAXES AND OTHER CALLS

Chapter 7: POLLING

Chapter 8:

REMOTE FAX OPTIONS (Only for MFC 4550)

Chapter 9: MESSAGE CENTER MODE SETTINGS

(Only for MFC 6550MC/7550MC)

Chapter 10: USING THE MFC AS A PRINTER

Chapter 11: PRINTING REPORTS AND LISTS

Chapter 12: HOW TO USE THE COPY FUNCTION

Chapter 13: REPLACING TONER CARTRIDGE AND DRUM UNIT

Chapter 14: REGULAR MAINTENANCE

Chapter 15: OPTIONAL ACCESSORIES

Chapter 16: TROUBLESHOOTING PROCEDURES

Chapter 17: SPECIFICATIONS

Chapter 18: IMPORTANT INFORMATION

Chapter 19: INDEX

MFC 4550/6550MC/7550MC

OP-US-5.0

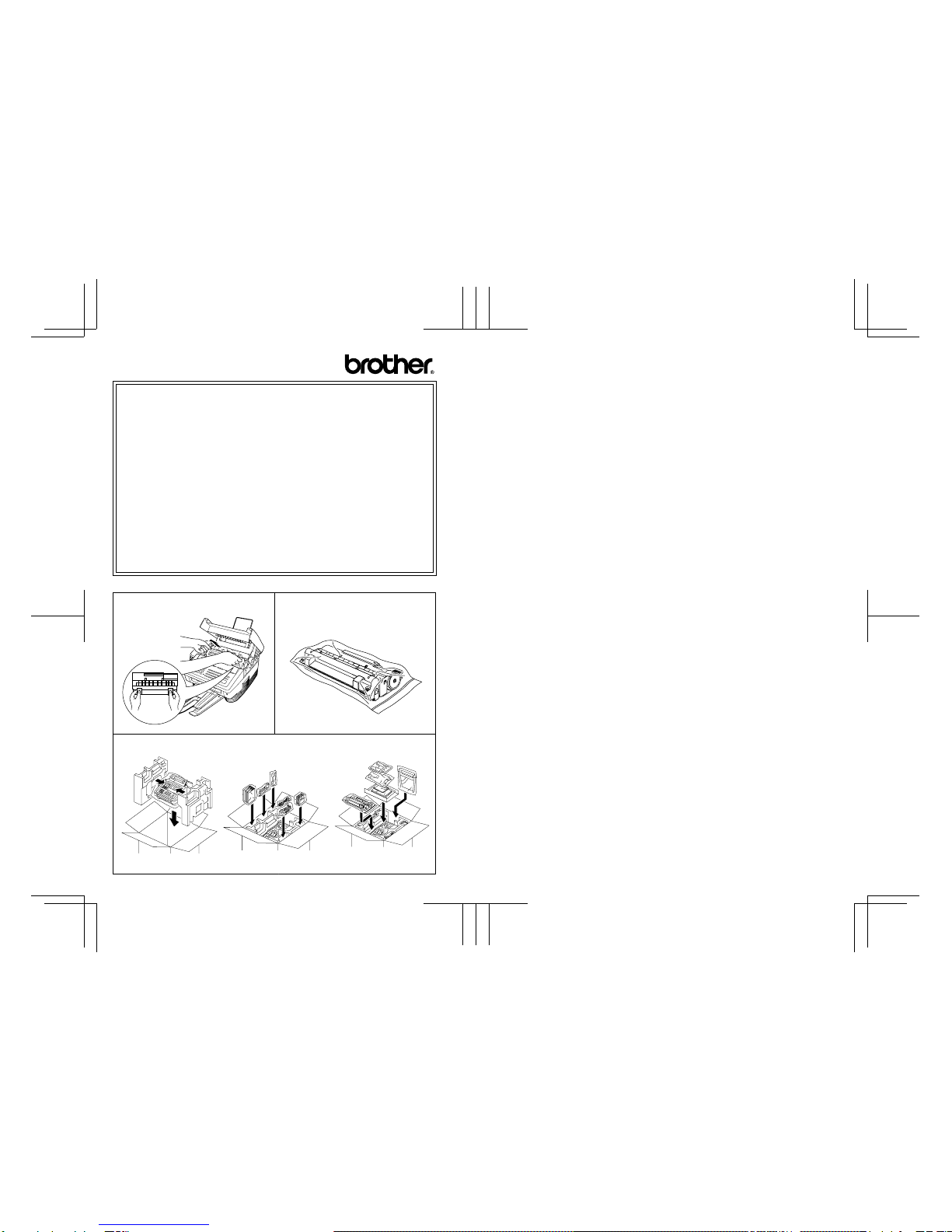

1. Remove the drum unit.

Shipment of the Multi-Function Center (MFC)

If for any reason you must ship your MFC, carefully package the MFC

to avoid any damage during transit. It is recommended that you save

and use the original packaging. The MFC should be adequately insured

with the carrier.

Warning

When shipping the MFC, the DRUM UNIT assembly including the TONER

CARTRIDGE must be removed from the machine (MFC) and placed in

the zip lock bag. Failure to remove it and place it in the zip lock bag

during shipping, will cause severe damage to the machine and will

VOID THE WARRANTY.

2. Place the drum unit in the zip lock

bag.

3. Repack the Machine (MFC).

MFC 4550/6550MC/7550MC

OP-US-5.0

Introduction to the Operations Manual

forFax,Printer,Copier

Have you set up your MFC and prepared your computer for

the printer mode by following the instructions in the Setup

Manual? The Setup Manual will help you prepare your MFC

touseitasafax,printerandcopier.

Your Multi-Function Center 6550MC/7550MC has 6

performance modes in one machine. It is a Fax, Printer,

Copier, Scanner, PC Fax and Message Center.

And your MFC 4550 has 5 performance modes. It is a Fax,

Printer, Copier, Scanner and PC Fax.

After you complete setting up the MFC, see the “Operations

ManualforFax, Printer, Copier,”formoreinformationabout

your MFC, such as functions of the machine and the control

panel. Information about maintenance, troubleshooting and

technicalspecificationsarealsoavailableinthismanual.

Please keep this manual beside your MFC, so you can access

important information whenever necessary.

See the Multi-Function Link Pro Owner's Manual for

information on how to set up your MFC and Personal Computer

and how to use the Scanner and PC Fax.

MFC 4550/6550MC/7550MC

OP-US-5.0

TABLE OF CONTENTS

• ·· For Your Information

1. THE CONTROL PANEL KEYS............... 1-1

TELEPHONE AREA ................................ 1-2

ONE-TOUCH, PRINTER AND COPY AREA .............. 1-3

LCD & USER SETUP AREA .......................... 1-5

MESSAGE CENTER AREA (Only for MFC 6550MC/7550MC) 1-7

2. HOW TO USE ON-SCREEN PROGRAMMING (OSP)

AND HELP KEY .......................... 2-1

User-friendly Programming ........................... 2-1

Using the Function Mode to Access On-screen Programming

(OSP) ........................................... 2-1

Alternating Displays for On-screen Programming (OSP) ..... 2-2

Function Selection Table ............................. 2-2

Using the Help Key ................................. 2-9

How to Print a Help List ............................. 2-9

How to Enter Text in Function Mode ................... 2-10

How to Enter Special Characters, Symbols and Punctuation

Marks in Function Mode ............................ 2-11

How to Set the Sleep Time ........................... 2-12

3. TELEPHONE FUNCTION SETTINGS ........ 3-1

Setting the Dialing Mode (Tone/Pulse) ................... 3-1

Setting the Date and Time ............................ 3-2

Setting the Station ID ............................... 3-3

Setting the Beeper Volume Level ....................... 3-5

Storing the One-Touch Dial Numbers ................... 3-6

Storing the Speed-Dial Numbers ....................... 3-7

• When You Wish to Change the Stored One-Touch and

Speed-Dial Numbers (During Step 6 on Page 3-6, 8) ...... 3-9

• Memory Storage/Temporary Battery Back Up ........... 3-9

Setting Up Number Groups for Broadcasting ............. 3-9

• Types of Numbers ............................... 3-11

• Chain Dialing .................................. 3-11

4. USING THE UNIT AS A TELEPHONE ........ 4-1

Manual Dialing .................................... 4-1

One-Touch Dialing .................................. 4-1

MFC 4550/6550MC/7550MC

OP-US-5.0

TABLE OF CONTENTS

Speed Dialing ..................................... 4-1

• Using Hold, Pause, # with the Telephone .............. 4-1

• On Hook Dialing ................................. 4-2

Searching the Telephone Index ........................ 4-2

5. SENDING FAXES ......................... 5-1

A) DOCUMENT BASICS ............................ 5-1

The Size of Your Documents ........................ 5-1

How to Insert the Document ........................ 5-1

The Auto Document Feeder (ADF) ................... 5-2

Getting Ready to Send a Fax ....................... 5-3

Setting the Resolution .......................... 5-3

Setting the Contrast ........................... 5-4

B) BASIC FAX TRANSMISSIONS ..................... 5-5

• Sending a Fax ................................ 5-5

• Talking to the Other Party When Sending a Fax ...... 5-5

Sending a Fax Automatically ....................... 5-6

Sending a Fax Manually ........................... 5-6

Automatic and Manual Redialing .................... 5-7

• Optional Settings When You Send a Fax Manually ..... 5-7

• Printing Page Headers .......................... 5-7

C) ADVANCED FAX TRANSMISSIONS ................. 5-8

Sending a Fax by Using Super Quick-Scan

(Memory Transmission) ........................... 5-8

• If You Get a MEMORY FULL Message When Trying to

Send a Fax by Using Super Quick-Scan ............. 5-8

Setting the Daily Timer (for Delayed Transmissions) ..... 5-9

Delayed Transmission ............................ 5-10

Broadcasting .................................. 5-11

• Getting Familiar with the Broadcasting Function .... 5-11

Sending by Multiple Transmissions ................. 5-12

Interrupting the Timer and Polled Job ............... 5-14

Canceling a Job ................................ 5-15

D) FAX TRANSMISSION OPTIONS ................... 5-16

Setting the Overseas Mode ........................ 5-16

Setting Your MFC for Multiple Resolution

Transmission .................................. 5-17

Sending a Fax with an Electronic Cover Page Message ... 5-18

• Selecting a Comment for the Cover Page ........... 5-19

MFC 4550/6550MC/7550MC

OP-US-5.0

TABLE OF CONTENTS

Customizing Your Cover Page Comment .............. 5-19

Printing a Sample Cover Page ..................... 5-20

To Always Send a Cover Page ...................... 5-21

• Sending an Automatic Cover Page ................ 5-22

Sending a Fax When the Cover Page Is ON ........... 5-22

Sending a Cover Page Temporarily .................. 5-22

Sending a Fax with Call Reservation

(Talking to the receiving party after fax transmission) ... 5-24

• Using the Call Reservation Function .............. 5-24

Printing the Call Back Message .................... 5-26

ECM (Error Correction Mode) ...................... 5-26

Error Retransmission ............................ 5-26

Next-FAX Reservation ........................... 5-27

6. RECEIVING FAXES AND OTHER CALLS ..... 6-1

A) BASIC SETUP TO RECEIVE FAXES ................. 6-1

Selecting an Answer Mode ......................... 6-1

Manual Reception (Manual Mode) ................... 6-2

Automatic Fax Only Reception (Fax Mode) ............. 6-2

Setting the Ring Delay ............................ 6-2

The F/T Switch (Fax/Telephone Mode) ................ 6-3

Recording an F/T Outgoing Message (OGM)

(Only for MFC 6550MC/7550MC) .................... 6-4

Setting the F/T Ring Time ......................... 6-5

Smoothing ..................................... 6-6

Setting the Size of the Recording Paper ............... 6-7

Printing a Reduced Size Copy of the Incoming Document .. 6-8

Auto Reduction ............................... 6-8

Using Fixed Reduction Ratios .................... 6-8

• Selecting the Ratios of Fixed Reduction ............. 6-9

• Reception into Memory (Out of Paper Reception) ..... 6-10

Settign the Print Density ......................... 6-10

Toner Save Function ............................. 6-11

Speaker Volume ................................ 6-12

Ring Volume ................................... 6-13

B) REMOTE ACTIVATION .......................... 6-14

What is Remote Activation? ....................... 6-14

• Connecting an External or Extension Telephone ..... 6-14

Using Remote Codes ............................. 6-15

MFC 4550/6550MC/7550MC

OP-US-5.0

TABLE OF CONTENTS

Using the Activation Code ...................... 6-15

Using the Deactivation Code .................... 6-15

Making the Remote Codes Easier to Use .............. 6-16

Troubleshooting ................................ 6-16

Changing and Registering Remote Codes ............. 6-16

C) CONNECTING TO A TELEPHONE ANSWERING DEVICE

(TAD) ........................................ 6-17

How to Use an External TAD with the MFC ........... 6-17

• Connecting an External TAD to the MFC ........... 6-18

Flowchart of External TAD Reception ................ 6-19

Hookup....................................... 6-19

Recording the TAD’s Outgoing Message (OGM) ......... 6-20

D) DISTINCTIVE RINGING ......................... 6-20

Distinctive Ringing .............................. 6-20

What Is Distinctive Ringing? .................... 6-20

What Is the Advantage of Using the Distinctive Ringing

Function? .................................. 6-20

Can My MFC Use Distinctive Ringing? ............ 6-20

Can I Change the Setting Later? ................. 6-21

How Will the MFC Treat All Other Numbers? ....... 6-21

The Message Center Answers the Other Phone Number(s)

on the Line: (Only for MFC 6550MC/7550MC) ....... 6-21

External Telephone Answering Device (TAD) Answers

Other Number(s) on the Line: ................... 6-22

Retrieving Faxes from a Remote Site When Using

Distinctive Ringing: (Only for MFC 6550MC/7550MC) . 6-22

How Does the Distinctive Ringing Function Work? ... 6-22

Flowchart of an Incoming Call ................... 6-23

Which Phone Number Should I Register? ........... 6-25

What Must I Do to Set Up Distinctive Ringing? ...... 6-25

Setting the Distinctive Ringing Function ............. 6-25

How to Turn the Distinctive Ringing Function ON or OFF 6-27

E) CALLER ID ................................... 6-27

What is Caller ID? .............................. 6-27

Advantages of Caller ID .......................... 6-27

How Does Caller ID Work? ........................ 6-28

The Caller ID Appears on the Display When Your

Telephone Rings .............................. 6-28

The Caller ID is Stored in Your Machine’s Memory ... 6-28

Scanning through the Caller IDs Stored in the Memory .. 6-28

MFC 4550/6550MC/7550MC

OP-US-5.0

TABLE OF CONTENTS

• Clearing a Caller ID Stored in Memory ............ 6-29

Printing the Caller ID List ........................ 6-30

F) RECEIVE PASSWORD........................... 6-31

Turning Receive Password On or OFF ............... 6-31

7. POLLING................................ 7-1

• What Is Polling? ................................. 7-1

• How Does It Work? ............................... 7-1

• When to Use Polling .............................. 7-1

Polling Another Fax Machine (Calling) .................. 7-2

Setting Up Polled Waiting (Being Called) ................ 7-3

Delayed Polling .................................... 7-4

Setting Up Polled Waiting with Super Quick-Scan .......... 7-5

Sequential Polling .................................. 7-5

8. REMOTE FAX OPTIONS (Only for MFC 4550) . 8-1

Setting the Fax Storage .............................. 8-1

Paging/Fax Forwarding .............................. 8-3

Setting Up Paging (Registering the Paging Number) ........ 8-4

Setting Up Fax Forwarding (Registering the Fax

Forwarding Number) ................................ 8-6

What Is Remote Control Access? ....................... 8-6

Setting the Remote Access Code ....................... 8-7

How to Use Remote Access and Control Codes ............. 8-8

Remote Fax Retrieval ............................... 8-8

• When to Enter the Remote Access Code ............... 8-8

Remote Control Commands ........................... 8-9

Retrieving the Memory Status List and Fax Messages

Remotely ........................................ 8-10

Changing the Fax Forwarding Number Remotely ......... 8-10

Printing a Fax Message ............................. 8-11

9. MESSAGE CENTER MODE SETTINGS

(Only for MFC 6550MC/7550MC) ............. 9-1

A) GETTING STARTED ............................. 9-1

What Is the Message Center Mode? .................. 9-1

What Do I Want the Message Center to Do? ............ 9-1

Flowchart of an Incoming Call ...................... 9-3

MFC 4550/6550MC/7550MC

OP-US-5.0

Turning on the Message Center with 3 Basic Steps ....... 9-6

Setting the Message Storage ........................ 9-6

Recording the MSG CTR Outgoing Message

(MSG CTR OGM) ................................ 9-7

Activating the Message Center Mode ................. 9-8

B) GETTING YOUR MESSAGES ...................... 9-9

How Will I Know Messages Have Been Received? ........ 9-9

• What Happens When the Memory Is Full... .......... 9-9

Playing an Incoming Voice Message (ICM) and Recorded

Memo (or Voice Alarm) ........................... 9-10

Backup Printing Option .......................... 9-10

Printing a Fax Message .......................... 9-11

• Erasing and Printing FAX Messages .............. 9-12

Calling Your Message Center for Messages

(See Remote Retrieval) ........................... 9-12

C) ERASING YOUR MESSAGES ..................... 9-13

Erasing Incoming Voice Messages, Fax Messages and

Recorded Memo (or Voice Alarm).................... 9-13

One by One Erasing ........................... 9-13

All in One Erasing ............................ 9-13

D) CHANGING THE OUTGOING MESSAGE ........... 9-14

Playing Your Outgoing Message (OGM) .............. 9-14

Erasing Your Outgoing Message (OGM) .............. 9-15

E) MORE FEATURES.............................. 9-16

Setting the Toll Saver ............................ 9-16

Setting the Maximum Time for Incoming Messages

(ICM MAX. TIME) .............................. 9-17

Playing OGM (Outgoing Message) ON/OFF Setting ..... 9-18

Recording a Conversation ......................... 9-18

Recording a Memo .............................. 9-19

F) PAGING/FAX FORWARDING ..................... 9-20

What Is Paging/Fax Forwarding? ................... 9-20

Setting Up Paging (Registering the Paging Number) .... 9-21

Setting Up Fax Forwarding (Registering the Fax

Forwarding Number) ............................ 9-23

• Memory Backup of Message Center Memory ........ 9-23

Changing the Fax Forwarding Number Remotely ....... 9-24

G) REMOTE RETRIEVAL........................... 9-24

What Is Remote Control Access? .................... 9-24

Setting the Remote Access Code .................... 9-24

TABLE OF CONTENTS

MFC 4550/6550MC/7550MC

OP-US-5.0

Using the Remote Access Code ..................... 9-25

Remote Control Commands ....................... 9-26

Retrieving the Memory Status List and Fax Messages

Remotely ..................................... 9-27

Changing the Fax Forwarding Number Remotely ....... 9-27

H) VOICE ALARM ................................ 9-28

Voice Alarm ................................... 9-28

Setting the Voice Alarm .......................... 9-28

• Recording Voice Messages for the Voice Alarm ....... 9-29

How Will the Voice Alarm Perform When the Scheduled

Time Arrives… ................................. 9-30

Using the Voice Alarm: Playing Entries, Erasing Entries

One by One, Erasing All at Once .................... 9-31

Remote Control of the Voice Alarm .................. 9-32

10.

USING THE MFC AS A PRINTER ............ 10-1

Acceptable Paper .................................. 10-1

Control Panel Keys ................................ 10-4

Simultaneous Operation ............................ 10-4

On/OffLine Key ................................... 10-4

FF/Cont Key ..................................... 10-4

Test/Reset Key.................................... 10-5

Print Priority Key ................................. 10-5

• Windows® Printing ............................. 10-6

• Remote Printer Console Program for DOS

(Only for MFC 6550MC/7550MC) ................... 10-6

• Popular Printer Emulation Support

(Only for MFC 6550MC/7550MC) ................... 10-6

• Bidirectional Parallel Interface ..................... 10-6

• Enhanced Memory Management ................... 10-6

Multipurpose Sheet Feeder .......................... 10-7

Manual Feed Slot ................................. 10-9

When you load one sheet of paper manually: ............. 10-9

When you load more than one sheet of paper manually: .... 10-9

• Paper Tray ................................... 10-10

Printing the Internal Font List

(Only for MFC 6550MC/7550MC) .....................10-11

Printing the Print Configuration List

(Only for MFC 6550MC/7550MC) .................... 10-12

TABLE OF CONTENTS

This manual suits for next models

Table of contents

Other Brother All In One Printer manuals

Brother

Brother DCP-6690CW User manual

Brother

Brother DCP-8110DN Operating and maintenance manual

Brother

Brother MFC 640CW - Color Inkjet - All-in-One Setup guide

Brother

Brother MFC-J4410DW User manual

Brother

Brother DCP-130C User manual

Brother

Brother MFC-J4310DW Training manual

Brother

Brother MFC-8880DN User manual

Brother

Brother DCP-J125 User manual

Brother

Brother MFC-6800 User manual

Brother

Brother DCP-1400 User manual

Brother

Brother MFC-J6510DW Installation instructions

Brother

Brother MFC-9140CDN Assembly instructions

Brother

Brother MFC-J265W User manual

Brother

Brother MFC 5890CN - Color Inkjet - All-in-One User manual

Brother

Brother Work Smart MFC-J450dw User manual

Brother

Brother DCP-7055W User manual

Brother

Brother MFC-253CW User manual

Brother

Brother MFC-730 User manual

Brother

Brother MFC-J4410DW Operating and maintenance manual

Brother

Brother MFC-J5910DW User manual

Brother

Brother MFC 250C - Color Inkjet - All-in-One Quick start guide

Brother

Brother MFC-8860DN User manual

Brother

Brother MFC 5890CN - Color Inkjet - All-in-One User manual

Brother

Brother DCP-J525W User manual

Popular All In One Printer manuals by other brands

Triumph Adler

Triumph Adler DC 2016 Instruction handbook

Epson

Epson WorkForce WF-2510 Basic guide

Epson

Epson Stylus Scan 2000 Product information guide

Epson

Epson PictureMate Snap PM 240 Start here

Konica Minolta

Konica Minolta bizhub C35 user guide

Konica Minolta

Konica Minolta BIZHUB 558 Quick reference guide

Lexmark

Lexmark MX710 Series setup sheet

Lexmark

Lexmark XC8155 user guide

Lexmark

Lexmark X642E Service manual

Sharp

Sharp MX-2310U Start guide

Aficio

Aficio 200 manual

Canon

Canon ImageCLASS 2300 setup sheet

Ricoh

Ricoh Pro C900 Brochure & specs

Lexmark

Lexmark X925 Installation

Epson

Epson Stylus CX8400 Series Brochure & specs

Oce

Oce VarioLink 5022 user guide

Copystar

Copystar CS 4551ci Specifications

Konica Minolta

Konica Minolta Magicolor 4650EN Service manual
