Braun ThermoScan 4 User manual
ThermoScan®4
Ear thermometer
IRT3515
English .....................3
Spanish....................18
Contact Us
Questions or Comments?
Call us toll-free at: 1-800-327-7226
Or visit our website at: www.BraunHealthcare.com
Please specify the model number when contacting consumer relations.
ThermoScan® is a registered trademark of Helen ofTroy Limited.
Certain trademarks used under license from
The Procter & Gamble Company or its aliates.
© 2022. All Rights Reserved.
Kaz USA, Inc., a Helen of Troy Company
400 Donald Lynch Blvd., Suite 300, Marlborough, MA 01752
Contáctenos
¿Preguntas o Comentarios?
Llámenos lada gratuita al: 1-800-327-7226
O visite nuestro sitio web: www.BraunHealthcare.com
Por favor especique el número de modelo al ponerse en contacto
con servicio al cliente.
ThermoScan® es una marca registrada de Helen ofTroy Limited.
Ciertas marcas registradas utilizadas bajo licencia de
The Procter & Gamble Company o sus aliados.
© 2022.Todos los derechos reservados.
Kaz USA, Inc., una Empresa de Helen of Troy
400 Donald Lynch Blvd., Suite 300
Marlborough, MA 01752
www.BraunHealthcare.com/us_en/patents
Made in China. / Hecho en China. IRT3515
PN: A004474R1
12MAY22
2
1
6
5
7
9
8
2 3 4
3
Product description
1Protective cap
2Hygienic lens lter
3Probe
4«start» button
5Probe tip (lens)
6Lens lter detector
7Display
8Battery door safety lock
9Battery door (1X 3V type CR2032 battery)
Indications for Use / Intended Use
The BraunThermoScan® 4 Ear thermometer is intended for
the intermittent measurement of human body temperature by
consumers in a home-use environment.
Warnings and precautions
Keep out of reach of children under 12 years.
NEVER use the thermometer for purposes other than those for
which it has been intended. Please follow the general safety
precautions when using on children.
NEVER immerse the thermometer into water or other liquids (not
waterproof). For cleaning and disinfecting please follow the
instructions in the “Care and cleaning”section.
DO NOT store this thermometer in temperature extremes below
-13 °F or over 131 °F (below -25 °C or over 55 °C ) or in excessive
humidity (above 95% non-condensing relative humidity).
If thermometer is stored in a location that is cooler or warmer than
where it will be used, allow it to acclimate to the room temperature
for 10 minutes before taking a measurement.
DO NOT use the thermometer if there are signs of damage on the
probe or on the thermometer itself. If damaged, DO NOT attempt
to repair the product.
English
4
NEVER insert a sharp object into the probe area or any other open
surface on the thermometer.
This thermometer consists of high-quality precision parts. DO NOT
drop the instrument. Protect it from severe impact and shock.
This thermometer must only be used with genuine Braun
ThermoScan® disposable lens lters (LF40/LF20). Other lens lters
can lead to inaccuracy.
DO NOT modify the equipment without the manufacturer’s
authorization.
To avoid inaccurate measurements ALWAYS use this thermometer
with a new, clean, disposable lens lter.
If the thermometer is accidentally used without a disposable lens
lter, clean the lens after use (see“Care and cleaning”).
Keep disposable lens lters out of reach of children.
This thermometer is intended for household use only.
Use of this thermometer is not intended as a substitute for
consultation with your physician.
Temperature elevation may signal a serious illness, especially in
neonates and infants, or in adults who are old, frail, or have a
weakened immune system. Please seek professional advice
immediately when a temperature elevation occurs on persons
that are:
• Neonates and infants under 3 months (Consult your physician
immediately if the temperature exceeds 99.4 °F [37.4 °C])
• Individuals over 60 years of age (Fever may be blunted or
absent in older individuals)
• Individuals having diabetes mellitus or a weakened immune
system (e.g., HIV positive, cancer chemotherapy, chronic
immunosuppressant treatment, splenectomy)
• Individuals who are bedridden (e.g., nursing home patient,
stroke, chronic illness, paraplegia, quadriplegia,
surgical recovery)
• A transplant recipient (e.g., liver, heart, lung, kidney)
5
This thermometer is not intended for pre-term babies or
small-for-gestational age newborn babies (birth to 4 weeks of age).
Pre-term is dened as babies born before 37 weeks of gestation.
Small-for-gestational-age is dened as a newborn baby, born at 37
weeks or later, with a weight below the 10th percentile for
newborn babies of the same gestational age.
This thermometer is not intended to interpret hypothermic
temperatures. If the device displays a temperature of 97.5°F
(36.4°C) or less with an LED backlight color of green or white, and
the individual is exhibiting atypical symptoms or behaviors,
contact your physician or health care professional.
DO NOT allow children to take their temperatures unattended.
Please consult your physician if you see symptoms such as
unexplained irritability, vomiting, diarrhea, dehydration, changes
in appetite or activity, seizure, muscle pain, shivering, sti neck,
pain when urinating, etc., even in the absence of fever.
Even in the absence of fever, those who exhibit a normal
temperature may still need to receive medical attention. People
who are on antibiotics, analgesics, or antipyretics should not be
assessed solely on temperature readings to determine the severity
of their illness.
English
6
Color-coded fever guidance
Color-coded fever guidance helps you to better understand the
meaning of your child’s temperature with the color indicated on
the display.The color-coded screen displays GREEN for a normal
temperature,YELLOW for a fever, and RED for a high fever.
Color range Reading Meaning
Green >96.3 °F - 99.4 °F
(>35.7 °C - 37.4 °C) Normal
Yellow >99.4 °F - 101.3 °F
(>37.4 °C - 38.5 °C) Fever
Red >101.3 °F
(>38.5 °C ) High Fever
Body temperature
Normal body temperature is a range. It varies by site of
measurement, and it tends to decrease with age. It also varies from
person to person and uctuates throughout the day. Therefore, it is
important to determine normal temperature ranges.
How to use your Braun ThermoScan®
Before taking the temperature, make sure the ear is free from
obstructions or excess earwax.
DO NOT attempt to take the reading without a hygienic lens lter
on – the measuring sensor must be kept protected and clean from
earwax to give accurate readings.
Change the hygienic lens lter with each use to ensure hygiene,
to keep child safe from cross-contamination and to ensure earwax
residues on the hygienic lens lter do not impact accuracy of
the reading.
7

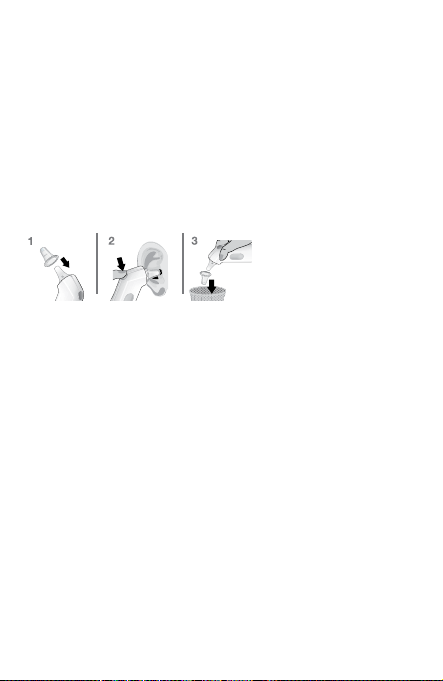

1. To turn the thermometer on, push the“start”button (4)
as shown on page 3.
During an internal self-check, the display
shows all segments.
The reading shown on the screen is the last
temperature taken.
Flashing symbol of lens lter will appear if no
lens lter is attached.Temperature can be
taken only if lens lter is mounted on
the probe.
The thermometer is ready to use after
two beeps and the non-ashing ear
icon appears.
2. Fit the probe (3) snugly into the ear canal,
then push the “start” button (4).
One beep signals normal temperature. Audio
temperature indicator will trigger 2
consecutive beeps when the reading is equal
or higher to 99.5 °F (37.5 °C) and 4 beeps if the
reading is equal or higher to 101.4 °F (38.6 °C).
The result is shown on the display (7).
3. Gently pull o the hygienic lens lter (2).
Do not use force in removing the hygienic
lens lter.
4. Put on a new, clean, hygienic lens lter by
snapping into position.
5. Place the protective cap on (1).
The BraunThermoScan® 4 Ear thermometer turns
o automatically after 60 seconds of inactivity.
The thermometer can be turned o by pressing
and holding the start button for more than
5 seconds.
English
8
Hygienic lens filters (LF40/LF20)
Use a clean hygienic lens lter with each measurement:
1. To ensure hygienic use
2. To protect your child from cross-contamination
3. To ensure earwax residues do not impact accuracy
of the reading
Earwax and dirt on the tip of the hygienic lens lter, even a
microscopic layer, can create an obstacle between the sensor and
the infrared heat emitted by the ear and impact the accuracy
of the measurement.
Temperature taking hints
• Replace the hygienic lens lter with every use to maintain
hygiene and accuracy.
• A measurement taken in the right ear may dier from the
measurement taken in the left ear. Therefore, always take the
temperature in the same ear.
• The ear must be free from obstructions or excess earwax
build-up to take an accurate reading.
• External factors may inuence ear temperatures, including
when an individual has:
– been lying on one ear or the other
– had their ears covered
– been exposed to very hot or very cold temperatures
– been recently swimming or bathing, or
– been wearing hearing aids or headphones for an extended
period of time
In these cases, remove the individual from the situation and wait
20 minutes prior to taking a temperature.
