Braeburn 4030 User manual

Store this manual for future reference

4030-110-03

Programmable Thermostats

User Manual

Read all instructions before proceeding.

PREMIER

SERIES

4030

Up to 2 Heat / 1 Cool Heat Pump

1 Heat / 1 Cool Conventional

Up to 3 Heat / 2 Cool Heat Pump

Up to 2 Heat / 2 Cool Conventional

with Humidity Control

4235

This manual covers the following thermostat models:

Contents

1 About Your Thermostat

Quick Reference - Thermostat and Display ...............4

2 User Settings

Accessing User Settings ...........................................8

Table of User Settings ...............................................9

Resetting Service Reminders ....................................9

Setting the Time and Day ........................................10

Humidity Setpoints (4235 only) ................................10

Backlight Control .....................................................11

Service Reminders ..................................................12

Temperature & Lock Code .......................................13

Resetting Thermostat ..............................................14

3 Setting Your Program Schedule

Tips Before Setting Your Program Schedule .............15

Programming a 7 Day Schedule ..............................17

Programming a 5-2 Day Schedule ...........................19

4 Operating Your Thermostat

Setting the System Control Mode ........................... 20

Setting the Fan Control Mode ..................................21

Temperature Adjustment ........................................ 22

Program Event Indicators ....................................... 23

System Status and Maintenance Indicators ............ 24

5 Additional Operation Features

Auto Changeover Mode ....................................... 28

Adaptive Recovery Mode ..................................... 28

Circulating Fan Mode ...........................................29

Programmable Fan Mode .....................................29

Compressor Protection .........................................29

Locking and Unlocking the Thermostat ................ 30

Indoor Remote Sensing ........................................31

Outdoor Remote Sensing ..................................... 31

Humidiﬁcation / Dehumidiﬁcation (4235 only).......32

Pre-Occupancy Purge ..........................................33

Condensate Overﬂow ...........................................34

Occupancy Control ...............................................34

Door Sensor .........................................................34

6 Thermostat Maintenance

Battery Replacement ........................................... 35

Thermostat Cleaning ........................................... 35

User Manual 2

Congratulations! You are in control of one of the easiest-to-use thermostats on the market today.

This thermostat has been designed to provide you with years of reliable performance and comfort control.

Features

• Stylish new design with large display and bright blue backlight

• SpeedSet®programming gives you the option of programming all 7 days at once

• Convenient HOLD feature lets you override the program schedule

• Extra large display characters make viewing settings even easier

• User selectable service monitors remind you of required system maintenance

• Multi-level keypad lockout prevents unauthorized use

• Precise temperature accuracy keeps you in control of your comfort

• Convenient programmable and circulating fan modes

• Optional indoor or outdoor remote sensing

• Optimal humidity control (model 4235 only)

• Expanded commercial features (commercial conﬁguration only)

3 User Manual

About Your Thermostat

User Manual 4

2 3 4

5 User Manual

SYSTEM Button ....................Selects the system you want to control

PROG Button .........................Enters programming mode or hold for 3 seconds to enter SpeedSet®mode

BACK Button*........................Secondary function of the PROG button - Moves to previous setting

HOLD Button .........................Enters / Exits HOLD mode (program bypass mode)

NEXT Button* ........................Secondary function of the HOLD button - Moves to next setting

FAN Button ............................Selects the system fan mode

RETURN Button*....................Secondary function of the FAN button - Exits program or settings modes

Up / Down Arrow Buttons.....Increases or decreases settings (time, temperature, etc.)

MENU Button.........................Used to access user settings mode

Lock / Unlock Thermostat ....Access user Lock / Unlock screen by holding PROG and HOLD

together for 5 seconds

Battery Compartment .......... Located on the back side of thermostat (if installed)

Thermostat

*BACK, NEXT and RETURN are secondary functions of the PROG, HOLD and FAN buttons. When in programming

or conﬁguration modes, BACK, NEXT and RETURN appear in the display screen indicating that the PROG, HOLD

and FAN buttons now function as BACK, NEXT and RETURN.

User Manual 6

About Your Thermostat

7 User Manual

Room Temperature .............................Displays the current room temperature

Set Temperature .................................Displays the current setpoint temperature

Outdoor Temperature ..........................If a Braeburn®outdoor sensor is connected, the

outdoor temperature will be displayed

Room Humidity (4235 only) .................Displays the current room Relative Humidity level

Humidity Call Indicator (4235 only) .....Indicates when there is a call for Humidiﬁcation or

Dehumidiﬁcation (in enabled)

Override Indicator................................Indicates that the current program schedule has

been temporarily overridden

Time of Day..........................................Displays the current time of day

Message Center ...................................Displays various thermostat status and

maintenance information

System Mode ......................................Displays the system mode and current system status

Fan Mode Indicator..............................Indicates the current system fan mode

Fan Status Indicator ............................Indicates that the system fan is running

Lock Mode Indicator............................Indicates if the thermostat is locked

Low Battery Indicator..........................Indicates when the batteries need to be replaced

Thermostat Display

User Manual 8

User Settings

User Settings allow you set the current time of day as

well as customize various thermostat features.

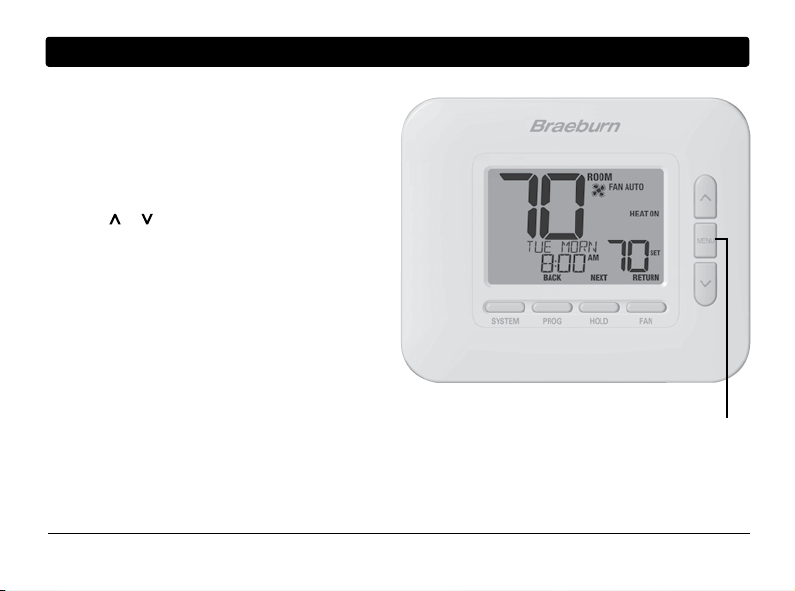

To access the User Settings, press and release the

MENU button to display the ﬁrst User Setting.

Press the or buttons to change the value for the

displayed User Setting. After your desired setting is

displayed, press NEXT (HOLD) to advance to the next

User Setting. You may also press BACK (PROG) to

move backwards through the User Settings.

When your changes are complete, press

RETURN (FAN) to exit.

9 User Manual

Table of User Settings

NOTE: Some user settings may not be available, depending on how the thermostat was conﬁgured during installation.

No.

User Setting

Displayed

Default

Available

Description of

Setting Settings Available Settings

1Reset SERVICE RESET N0

FILTER Message FILTER

[Only appears if the service ﬁlter time interval has expired] If a service ﬁlter time interval was selected in setting 11,

the thermostat will display a SERVICE FILTER message once that time interval is reached. Select NO to keep the message

displayed or select YES to clear the message and reset the timer.

2 Reset SERVICE

RESET NO

UV BULB Message UV BULB

[Only appears if the service UV bulb time interval has expired] If a service UV bulb time interval was selected in

setting 12, the thermostat will display a SERVICE UV BULB message once that time interval is reached. Select NO to keep

the message displayed or select YES to clear the message and reset the timer.

3 Reset SERVICE HUM

RESET NO

PAD Message HUM PAD

[Only appears if the humidiﬁer pad service time interval has expired] If a service humidiﬁer pad time interval was

selected in setting 13, the thermostat will display a SERVICE HUM PAD message once that time interval is reached.

Select NO to keep the message displayed or select YES to clear the message and reset the timer.

N0 Select to keep message displayed

YES Select to remove message and reset timer

NO Select to keep message displayed

YES Select to remove message and reset timer

NO Select to keep message displayed

YES Select to remove message and reset timer

Conditional Service Reminders

User Manual 10

No.

User Setting

Displayed

Default

Available

Description of

Setting Settings Available Settings

4Current Time of Day SET TIME 12:00

(Hour)

Set the current hour of the day. If thermostat was conﬁgured for a 24-hour clock, the settings 0-24 will be available.

5 Current Time of Day

SET TIME 12:00

(Minute)

Set the current minute of the hour.

6 Current Day of Week

SET DAY MON

Set the current day of the week.

Humidiﬁcation Setpoint

HUMID SET 10 RH%

[Only available if humidiﬁcation was enabled] Select a humidiﬁcation setpoint. When the relative humidity (RH%) falls

below this setpoint, the thermostat will activate your humidiﬁcation equipment. During a call for humidiﬁcation, the

thermostat will display HUMIDIFY in the lower left corner of the display.

8 Dehumidiﬁcation

DEHUMID 80 RH%

Setpoint

SET

[Only available if dehumidiﬁcation was enabled] Select a dehumidiﬁcation setpoint. When the relative humidity (RH%)

rises above this setpoint, the thermostat will activate your dehumidiﬁcation equipment. During a call for dehumidiﬁcation

the thermostat will display DEHUMIDIFY in the lower left corner of the display. Your thermostat can also be conﬁgured to

use the air conditioning system to reduce humidity during the cooling season by running an additional 1-3 degrees below

your cooling setpoint temperature if needed to reduce humidity.

1-12 Select the current hour of day

00-60 Select the current minute of the hour

MON-SUN Select the current day of the week

10% - 50% Select the humidiﬁcation setpoint

80%-40% Select the dehumidiﬁcation setpoint

Time and Day

Humidity Setpoint (4235 Only)
