User’s Manual page-1

DVD/VCD/CD/MP3/MPEG4 operations

RDS (Radio data system) operations

DVD setup

Bluetooth Hands-free Function

BV8728B

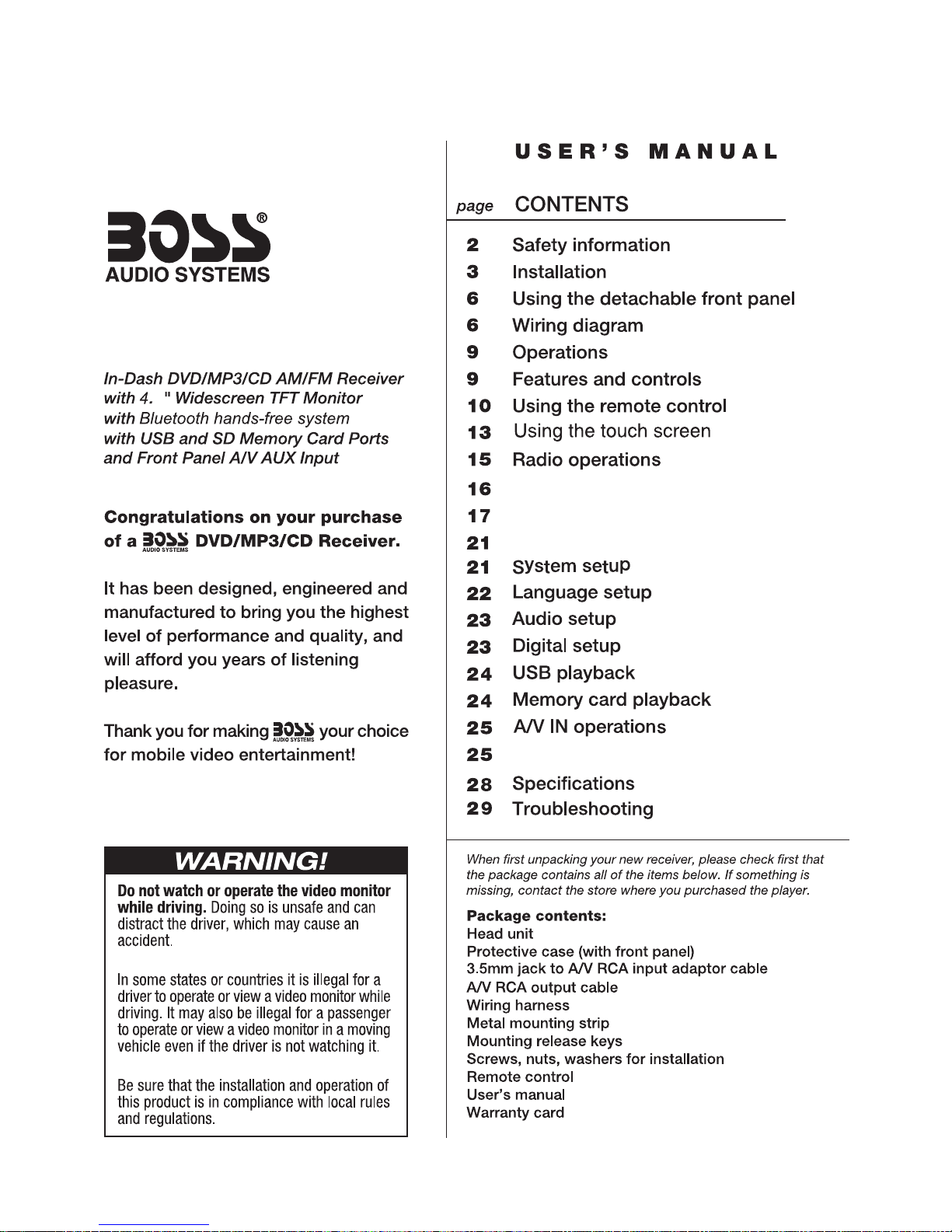

Safety information

CAUTION:

WARNING:

Region Management Information

DISC NOTES

Handling and Cleaning

Disc Cleaning

This mobile DVD player is a Class 1 laser product. However, this mobile DVD player uses a

visible/invisible laser beam which could cause hazardous radiation exposure if directed. Be sure

to operate the mobile DVD player correctly as described in this manual.

Use of controls or adjustments or performance of procedures other than those specified may

result in hazardous radiation exposure.

Do not open covers and do not attempt to repair this product yourself. Refer servicing to

qualified personnel.

- To reduce the risk of fire or electric shock, do not expose this equipment to rain or moisture.

- To reduce the risk of fire or electric shock, and annoying interference, use only the

recommended accessories.

- This device is intended for continuous operation.

This product incorporates copyright protection technology that is protected by method claims of

certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and

other rights owners. Use of this copyright protection technology must be authorized by

Macrovision Corporation, and is intended for home and other limited viewing uses only unless

otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is

prohibited.

This mobile DVD Player is designed and manufactured to respond to the Region Management

Information that is recorded on a DVD disc. If the Region number described on the DVD disc

does not correspond to the Region number of this Mobile DVD Player, this Mobile DVD Player

cannot play this disc.

You can playback the following discs:

DVD VIDEO/DVD AUDIO

VIDEO CD/AUDIO CD

MP3/WMA/JPEG/MPEG4

- Dirt, dust, scratches and warped discs will prevent proper operation.

- Do not place stickers or make scratches on discs.

- Do not bend discs.

- A disc should always be kept in its case when not in use to prevent damage.

- Do not place discs in the following places:

1. Direct sunlight.

2. Dirty, dusty and damp areas.

3. Near car heaters.

4. On the seats or dashboard.

Use a dry soft cloth to wipe the surface. If the disc is quite dirty, use a soft cloth slightly

moistened with isopropyl (rubbing) alcohol. Never use solvents such as benzene, thinner or

conventional record cleaners as they may mar the surface of the disc.

User’s Manual page 2-

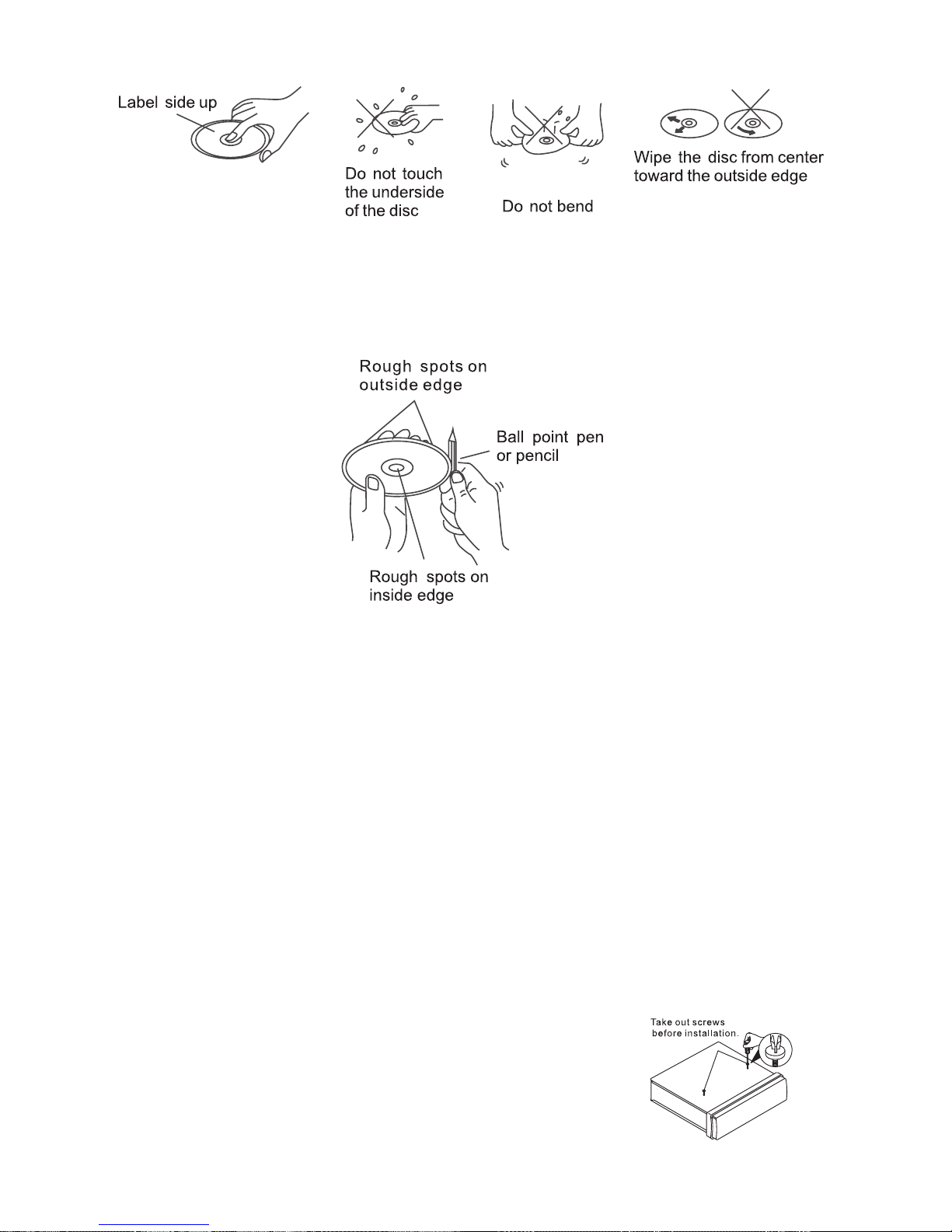

Preparing new discs with rough spots

Notes:

DIN mounting options

Remove transit screws before installation

A new disc may have rough edges on its inside and outside edges. If a disc with rough edges is

used, the disc will not be properly seated and the player will not play the disc. Therefore, remove

the rough edges in advance by using a ballpoint pen or pencil as shown on the right. Press the

side of the pen or pencil against the inside and outside edges of the disc.

- Choose a mounting location where the unit will not distract the driver.

- Before the installation of the unit, connect the wiring temporarily and make sure it is all

connected properly and the unit and the system works.

- Use only the parts included with the unit to ensure proper installation. The use of unauthorized

parts can cause malfunctions.

- Consult with your dealer if installation requires the drilling of holes or other modifications of the

vehicle.

- Install the unit where it does not get in the driver’s way and cannot injure the passenger if there

is a sudden stop, like an emergency stop.

- If installation angle exceeds 30° from horizontal, the unit may not perform properly.

- Avoid installing the unit where it will be subject to high temperature, such as from direct

sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive

vibration.

This unit can be installed either from the ‘Front’ (conventional DIN Front-mount) or the ‘Rear’

(DIN Rear-mount installation using the threaded holes on the sides of the chassis). For details,

refer to the following illustrated installation methods.

Before installing the unit, please remove the two transit screws.

Installation

User’s Manual page 3-

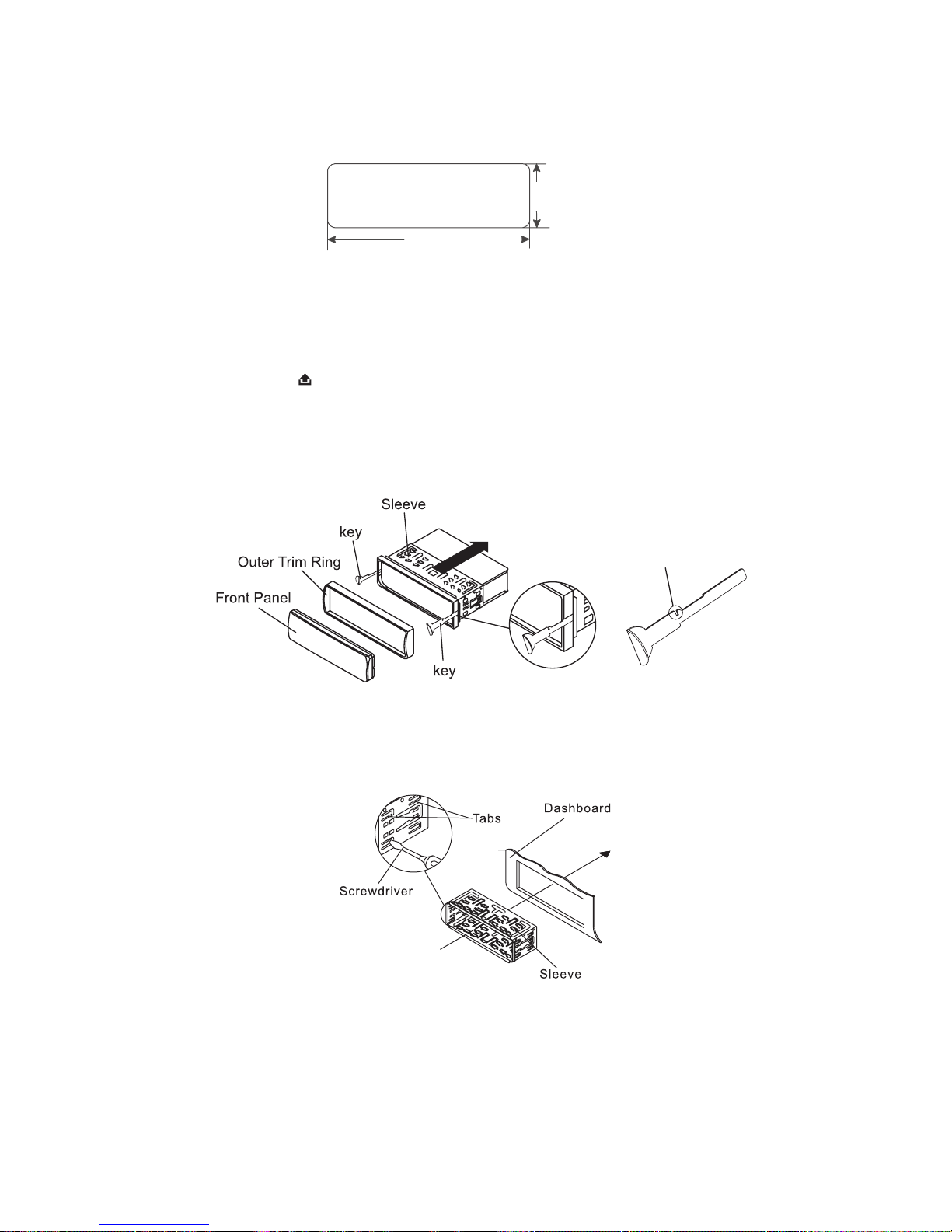

1. DIN front-mount (method A)

Installation opening

Installing the unit

RELEASE

This unit can be installed in any dashboard opening with dimensions as shown below:

Be sure to test all connections first, then follow these steps to install the unit.

1. Make sure the ignition is turned off. Disconnect the cable from the vehicle battery negative (-)

terminal.

2. Disconnect the wire harness and the antenna.

3. Press the ( ) on the front panel and remove the control panel (for details, refer to

‘Using the Detachable Front Panel’).

4. Lift the top of the outer trim ring. Then pull it out to remove it.

5. The two supplied keys release tabs inside the unit’s sleeve so you can remove it. Insert the

keys as far as they will go (with the notches facing up) into the appropriate slots at the center

of the left and right sides of the unit. Then slide the sleeve off the back of the unit.

6. Mount the sleeve by inserting it into the opening of the dashboard and bend open the tabs

located around the sleeve with a screwdriver. Not all tabs will be able to make contact, so

examine the opening to determine which tabs will be most effective. Bend open the

appropriate tabs behind the dashboard to secure the sleeve in place.

7. Reconnect the wire harness and the antenna, being careful not to pinch any wires or cables.

8. Slide the unit into the sleeve until it locks into place.

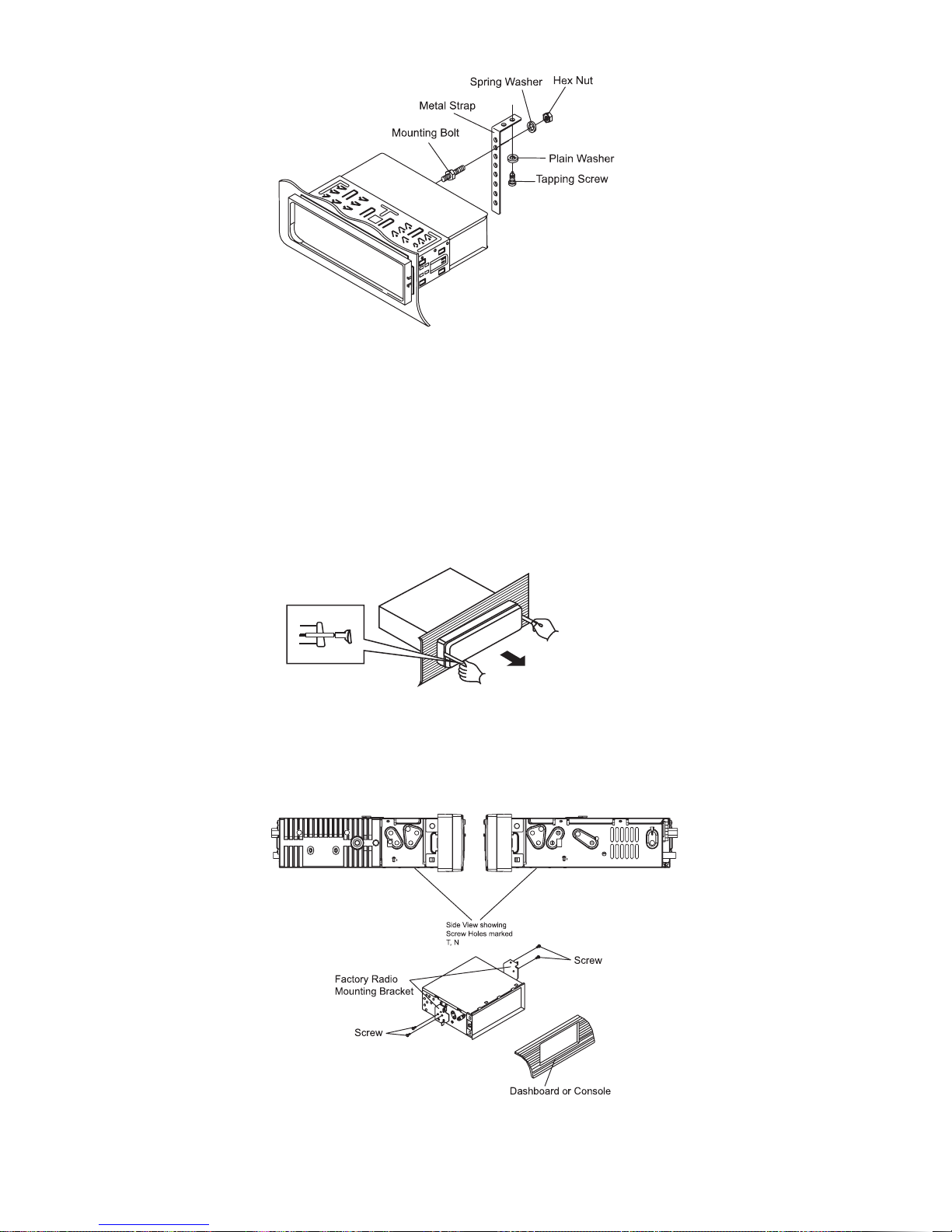

9. To further secure the unit, use the supplied metal strap to secure the back of the unit in place.

Use the supplied hardware (Hex Nut (M5mm) and Spring Washer) to attach one end of the

strap to the mounting bolt on the back of the unit. If necessary, bend the metal strap to fit your

vehicle’s mounting surface. Then use the supplied hardware (Tapping Screw (5x25mm) and

Plain Washer) to attach the other end of the metal strap to a solid metal part of the vehicle

under the dashboard. This strap also helps ensure proper electrical grounding of the unit.

(182 mm)

(53 mm)

6”

”

Notch

User’s Manual page 4-

10. Reconnect the cable to the vehicle battery’s negative (-) terminal. Then replace the outer

trim ring and install the unit’s front panel (see the steps of ‘to install the front panel’).

1. Make sure the ignition is turned off, and then disconnect the cable from the vehicle battery

negative (-) terminal.

2. Remove the metal strap attached to the back of the unit (if present).

3. Press the release button to remove the front panel.

4. Lift the top of the outer trim ring then pull it out to remove it.

5. Insert both of the supplied keys into the slots at the middle left and right sides of the unit then

pull the unit out of the dashboard.

If your vehicle is a Nissan or Toyota, follow these mounting instructions: Use the screw holes

marked T (Toyota) or N (Nissan) located on both sides of the unit to fasten the unit to the factory

radio mounting brackets supplied with your car.

Fasten the unit to the factory radio mounting brackets. Align the screw holes on the bracket with

the screw holes on the unit, and then tighten the screws (5x5mm) on each side.

Note: The outer trim ring, sleeve and the metal strap are not used for method B installation.

Removing the unit

2. DIN rear-mount (method B)

Left hand side Right hand side

5mm MAX

N/T

User’s Manual page 5-

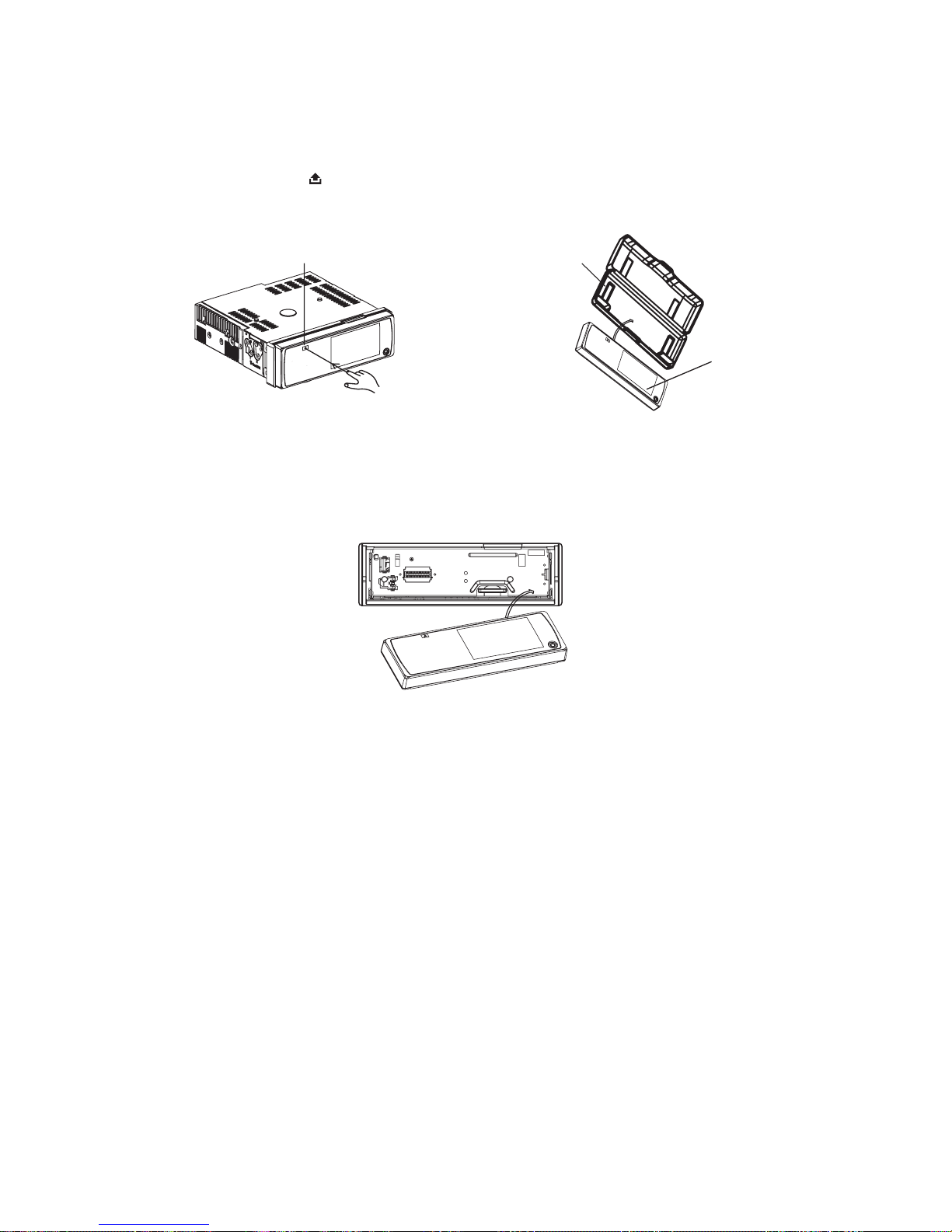

Using the detachable front panel

Removing the detachable front panel

The front panel of the unit may be removed as a theft deterrent. After removing the front

panel, use the case provided to prevent the front panel from getting damaged.

1. Press the ( ) button to open the front panel.

3. Store the front panel in its protective case.

Hold the right side of the front panel with the plate facing forwards.

First attach the right side of the front panel to the unit by inserting it into the right notch.

RELEASE

Attaching the front panel

Then push the left side of the front panel inwards to fix it in the right place.

Many vehicles are fitted with ISO connectors behind the dashboard, which makes it

easier to connect your car radio.

These connections can be found in the dashboard where the car radio will be fitted. Use

these cables to connect the car radio.

Should your car not be fitted with these ISO connectors, we strongly advise you to

consult your car dealer or a specialist to obtain the right adaptor. Once you have these

cables, you will need to connect your loudspeakers and the power supply to the

ISO connector, following the connection instructions below.

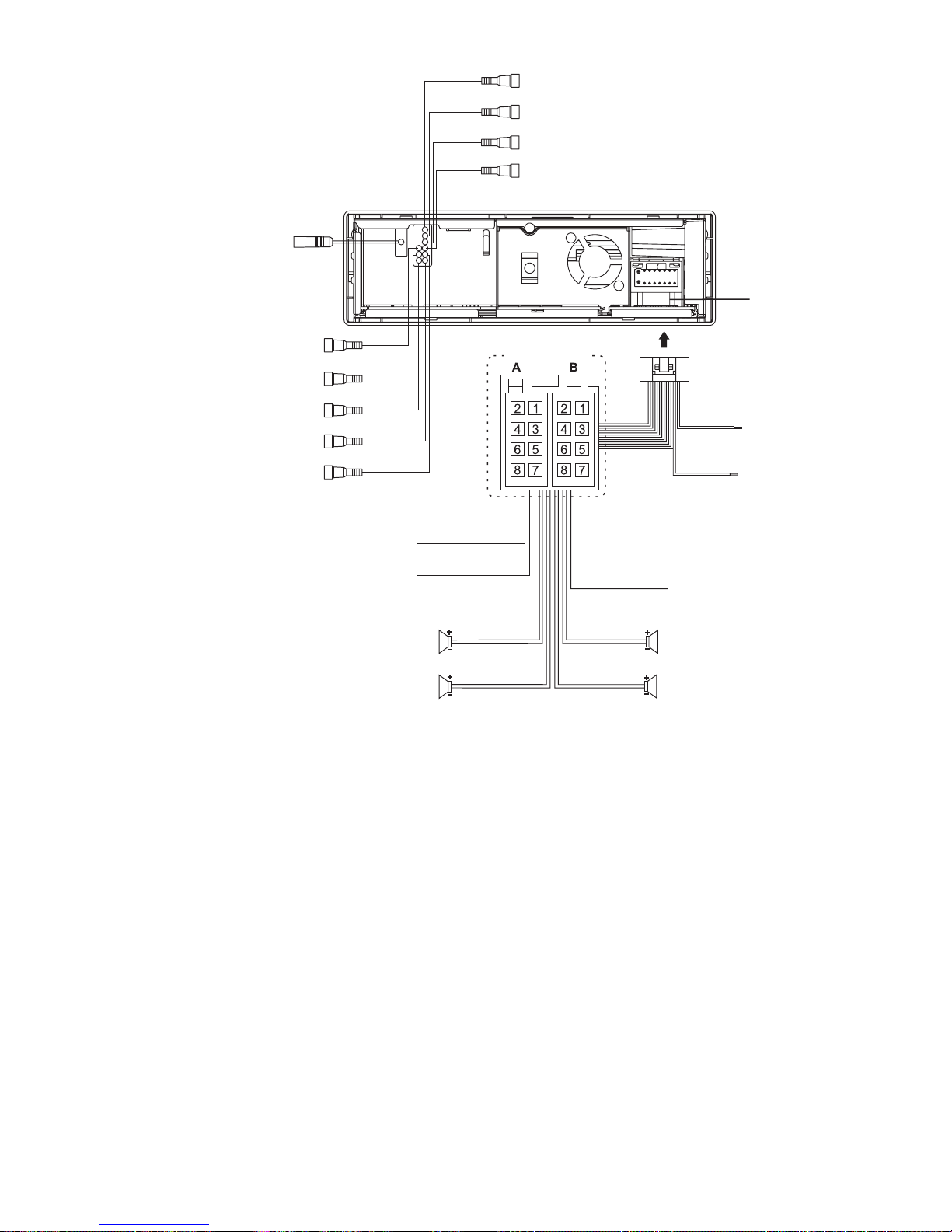

Wiring diagram

NOTE:

INCORRECT WIRING OR OPERATION WILL VOID THE WARRANTY OF THIS UNIT.

The manufacturer cannot be held responsible in the event of a malfunction if the

connections are not made properly.

Pull off the front panel.

Be sure it is

fully inserted. If not, the display or some of the keys may not function properly.

front panel

protective case

REL button

User’s Manual page 6-

ISO connector:

Part A:

A1:

A2:

A3:

A4:

A5:

A6:

A7:

A8:

Part B:

B1:

B2:

B3:

B4:

B5:

B6:

B7:

B8:

No Connect

Battery B+ (Yellow)

Antenna (Blue)

No Connect

Accessory (Red)

Ground B- (Black)

Rear Right + (Violet)

Rear Right - (Violet/Black)

FrontRight+(Grey)

Front Right - (Grey/Black)

Front Left + (White)

Front Left - (White/Black)

Rear Left + (Green)

Rear Left - (Green/Black)

ISO CONNECTOR

MEMORY B+ (YELLOW)

ACC B+ (RED)

POWER B+ FOR

RADIO ANTENNA ( )BLUE

GROUND B- (BLACK)

Radio Antenna Socket

PARKING BRAKE WIRE B

()

PINK/BLACK

Subwoofer output

Socket (Green)

Coaxial digital audio output

Socket (Orange)

RCA connector to front left

output (White)

RCA connector to front right

output (Red)

RCA connector to rear right output (Red)

RCA connector to rear left output (White)

Video output socket 1 (Yellow)

Video output socket 2 (Yellow)

FUSE 15A

WHITE

WHITE / BLACK

GREEN

GREEN / BLACK

VIOLET

VIOLET / BLACK

GREY

GREY / BLACK

FRONT

4 ohm

LEFT

SPEAKER

REAR

4 ohm

RIGHT

SPEAKER

FRONT

4 ohm

REAR

4 ohm

Video input To car rear view

camera (Yellow)

REVERSING CAMERA

ACTIVAION WIRE B+ (PINK)

User’s Manual page 7-

User’s Manual page 8-

WATCHING THE VIDEO MONITOR IS FORBIDDEN WHILE DRIVING:

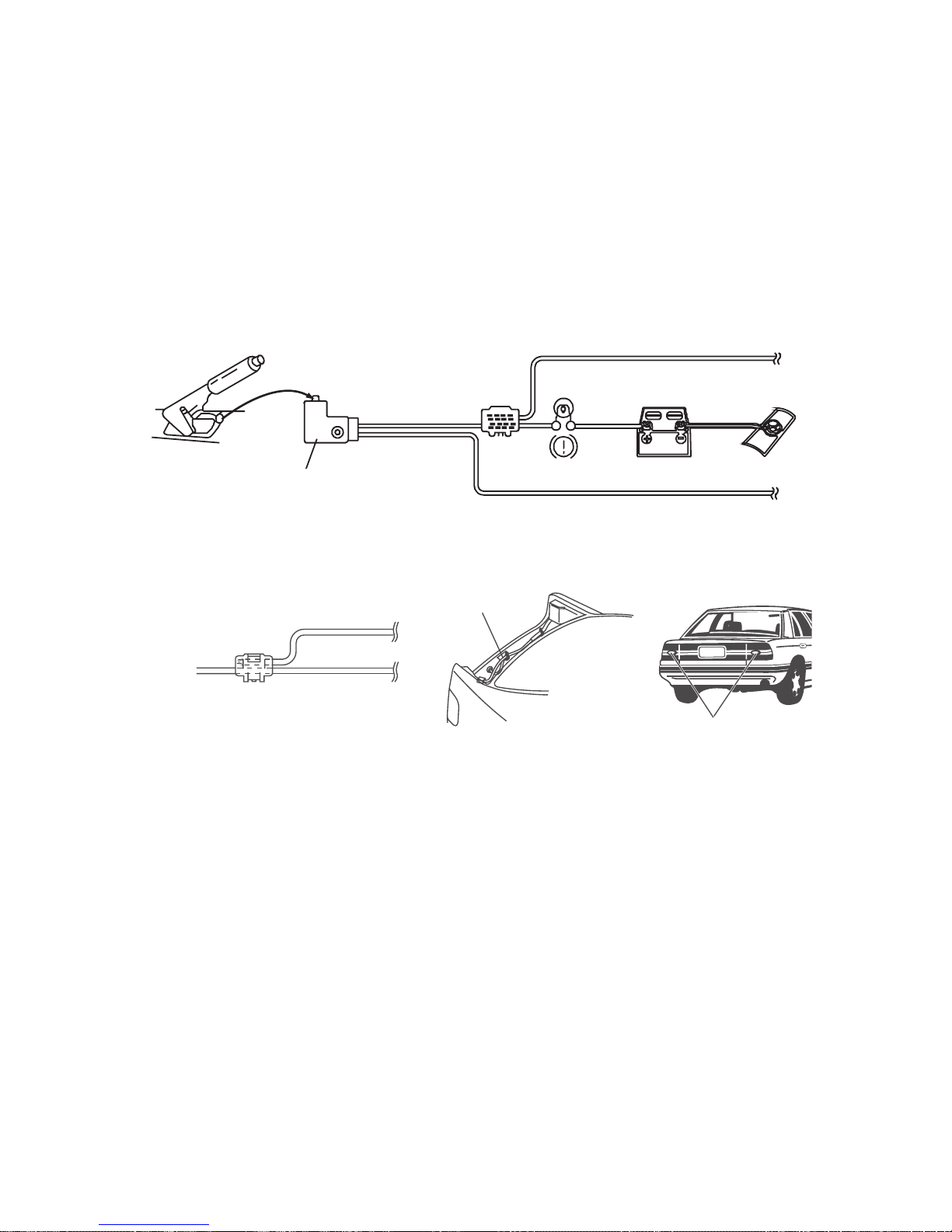

Connecting the Parking Brake line to the parking brake system built in the car

The “PARKING BRAKE” wire must be connected to the parking brake system of your car. The

LCD screen will display video images ONLY when the parking brake is engaged.

If the parking brake is not engaged, the screen will display the message “DISABLED WHILE

DRIVING”. This is a safety feature designed to prevent the driver from watching a video while

driving. The video output of this unit is not affected by this.

Note: In Radio Mode or CD/MP3 Mode images will be displayed on the monitor whether or not

the parking brake is engaged.

Connecting the reversing line to taillight on the car

Taillight

To Car Battery

To reversing line

To taillight

Taillight line

After connecting, at power on state, when you start up the reverse gear, the unit will

receive the picture from car rear view camera.

Parking Brake

Parking Brake switch

(Inside the car)

Parking Brake line (Pink/Black)

To metallic body or chassis of your car

Car Battery

Parking brake

indicator Light

- Turn the unit on by pressing any button except the (Release) button.

When the unit is switched on, press and hold down the button to go to standby mode.

- Press the ( ) button to shut off the sound output.

Press it again to resume previous sound level.

Flashes when the front panel is removed.

Press the button to display the main menu (or root

menu). Then you can access all the features (Such as

RADIO, BT, DISC, SD, USB, AV IN.) by tapping on

the touch screen icons. Touch an icon to select a

source. Touch the icon “ ” icon to exit the menu and

return to the previous mode. : The GPS, AV2, and

TV(MTV)function are not available for this unit.

Adjust the volume by pressing the button.

Turning the unit on/off

Mute on/off: MUTE

ANTI-THEFT LED indicator

Select source

SRC

Note

Sound adjustment

VOL + /VOL -

User’s Manual page 9-

Car radio

after sliding down the front panel after removing the front panel

10213

Operations

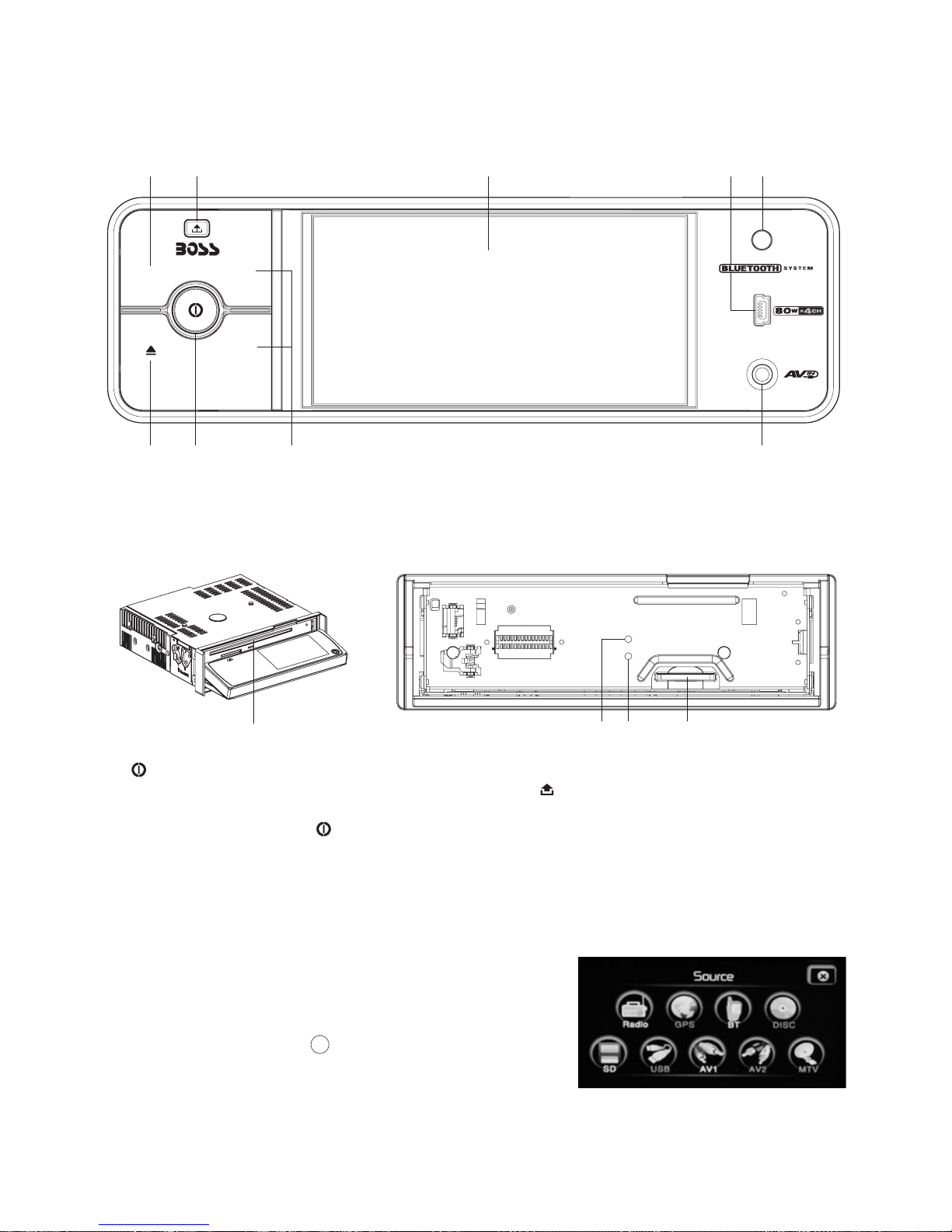

Features and controls

Front panel

BV8728B

SRC VOL

VOL

Table of contents

Other Boss Audio Systems Car Receiver manuals

Boss Audio Systems

Boss Audio Systems 726CA User manual

Boss Audio Systems

Boss Audio Systems 722CA User manual

Boss Audio Systems

Boss Audio Systems AVA-916B User manual

Boss Audio Systems

Boss Audio Systems BV9371BD User manual

Boss Audio Systems

Boss Audio Systems BV9965I User manual

Boss Audio Systems

Boss Audio Systems BVS13.3B User manual

Boss Audio Systems

Boss Audio Systems MP3-3O6OR User manual

Boss Audio Systems

Boss Audio Systems 812UAB User manual

Boss Audio Systems

Boss Audio Systems 825CA User manual

Boss Audio Systems

Boss Audio Systems BV7965 User manual

Boss Audio Systems

Boss Audio Systems MR1360UAB User manual

Boss Audio Systems

Boss Audio Systems 614CA User manual

Boss Audio Systems

Boss Audio Systems 506CA User manual

Boss Audio Systems

Boss Audio Systems 822UA User manual

Boss Audio Systems

Boss Audio Systems BV9958B User manual

Boss Audio Systems

Boss Audio Systems 754DI User manual

Boss Audio Systems

Boss Audio Systems 725CA User manual

Boss Audio Systems

Boss Audio Systems 750DI User manual

Boss Audio Systems

Boss Audio Systems BV7942 User manual

Boss Audio Systems

Boss Audio Systems 812UAB User manual

Boss Audio Systems

Boss Audio Systems 722CA User manual

Boss Audio Systems

Boss Audio Systems DVD-4200B User manual

Boss Audio Systems

Boss Audio Systems 755DBI User manual

Boss Audio Systems

Boss Audio Systems BV9354 User manual

Popular Car Receiver manuals by other brands

Motorola

Motorola VWA63 Service manual

Nextar

Nextar D3201 instruction manual

Alpine

Alpine CDE-163BT owner's manual

Pioneer

Pioneer DEH-P645R installation manual

Axxera

Axxera XDMA7600 Installation & owner's manual

XM OnyX quick start guide

Sound Storm

Sound Storm STM93R user manual

Soundstream

Soundstream VIR-5000 owner's manual

Avson

Avson MKT Platform user manual

Sony

Sony MEX-1HD - Audio Library System operating instructions

Pioneer

Pioneer DVH-P500UB Operation manual

JVC

JVC KD-AHD69 Specifications

Blaupunkt

Blaupunkt SANTIAGO CR 87 operating instructions

Sony

Sony CDX-4160 - Cd Receiver operating instructions

XFIRE AUDIO

XFIRE AUDIO BMW42S owner's manual

VDO

VDO CD 2253 datasheet

Volvo

Volvo 13 84 580 installation instructions

ZENEC

ZENEC ZE-160DVD instruction manual
