NOTES ON INSTALLATION

● The unit is designed for 12V DC, negative ground operation system only.

Before installing the unit, make sure your vechicle is connected to 12V DC

negative grounded electrical system.

● The negative battery terminal must be disconnected before making

connections, Incorrect can reduce damaging to the unit due to short circuit.

● Be sure to connect the color coded leads correctly according to the

diagram. Incorrect connections may cause the unit malfunction or damage

the vehicle's electrical system.

● Be sure to connect the speaker(-) leads to the speaker(-)terminal. Never

connect the lef tand right channel speaker cables each other or to the

vehicle body. Do not block vents or radiator panels. Blocking them will

cause heat to build up inside and may result in fire.

● After the completion of the installation and begin to operate the unit

(including replacing the battery), please press the RESET button on the

front panel with pointed objects(such as ball pen)bo set the unit to initial

status.

NOTES ON INSTALLATION

ACCESSORIES

■ WIRELESS REMOTE CONTROL ■ MOUNTING SLEEVE

■ OWNER'S MANUAL ■ USB CABLE

■ A/V INPUT CABLE ■ SPEAKER CABLE

■ NUT (5MM) ■ SPRING WASHER

■ SCREW (5 X 25MM) ■ SCREW

■ STRAP ■ LEVER

■ RADIO REMOVAL KEYS ■ WIRING HARNESS

PRECAUTIONS

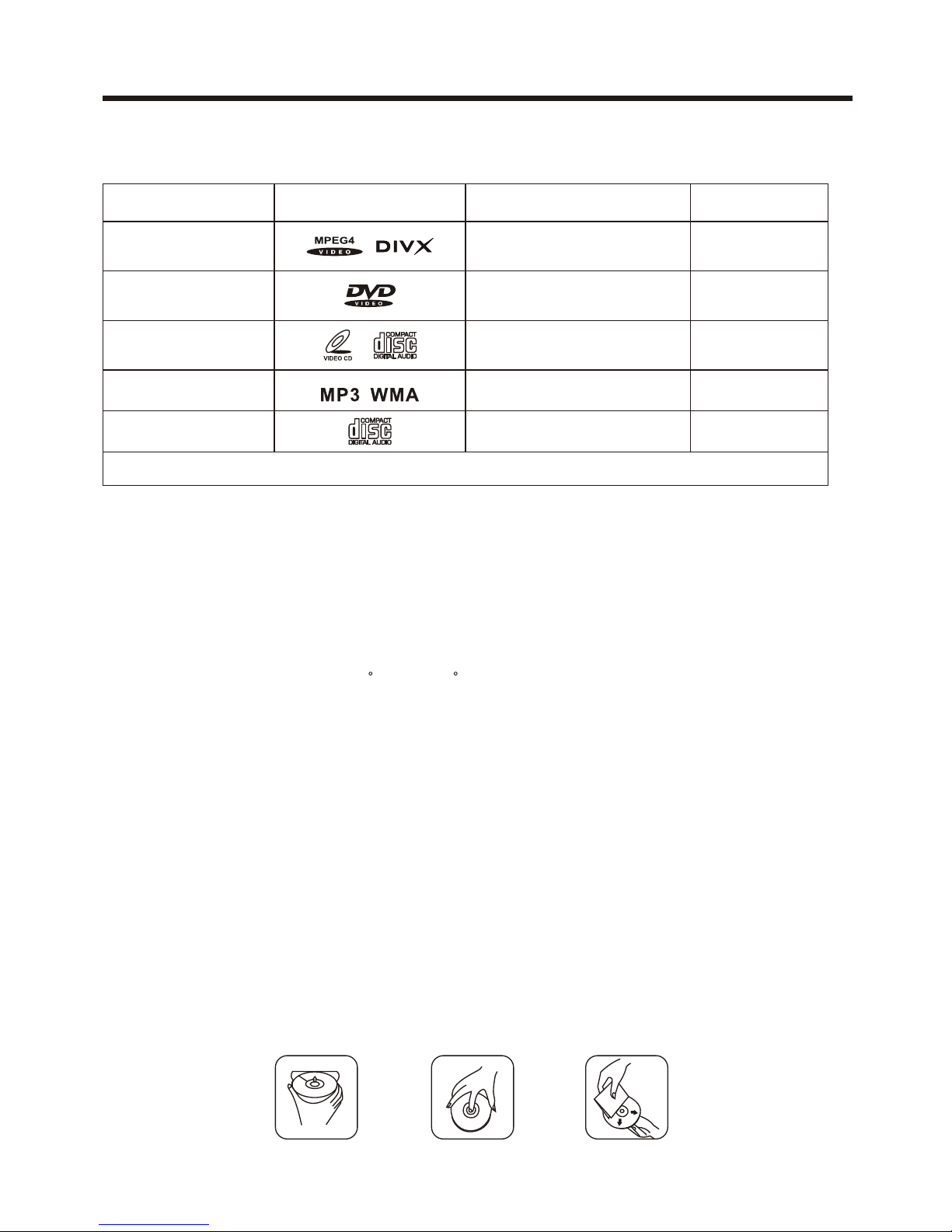

THIS UNIT CAN PLAY THE FOLLOW DISC ONLY

NOTE : The uni t is com pact ibl e with DVD, DVD+/ -R,VCD 1. 0/2.0/ 3.0,SVCD,CD,CD-R,CD-RW and JP EG

TYPE OF DISC LABEL ON THE DISC RECORDED MATERIAL

Sound and moving

pictures

Sound only

MPEG4/DIVX

DVD

VCD

MP3/WMA

● DO NOT ATTEMP TO MODIFY THE UNIT, MODIFYING THE UNIT MAY

CAUSE AN ACCIDENT.

● STOP THE VEHICLE BEFORE CARRYING OUT ANY OPERATION THAT

COULD INTERFERE WITH YOUR DRIVING.

● DO NOT TURN ON THE UNIT IF THE TEMPERATURE INSIDE THE

VEHICLE IS OUT OF -20 C TO 60 C.

● THIS PRODUCT IS DESIGNED FOR ONE SINGLE VIDEO OUTPUT,

PLEASE USE A SPLITTER IF YOU WOULD LIKE TO CONNECT FOR

MULTIPLE VIDEO OUTPUT.

● TO ENJOY OPTIMUM SOUND AND VISION WHILE PLAYING, HANDLE

THE DISC. AS FOLLOWS:

- Handle the disc by its edge to keep the disc clean, and do not touch the

surface.

- Do not use your CDs with paste residue or ink attached.

- Do not use CDs with labels or stickers attached, which may leave a sticky

residue while begining to peel off.

- Clean the discs with an optional cleaning cloth. Wipe each disc from

center out.

Sound and moving

pictures

Sound and moving

pictures

SIZE OF DISC

12CM

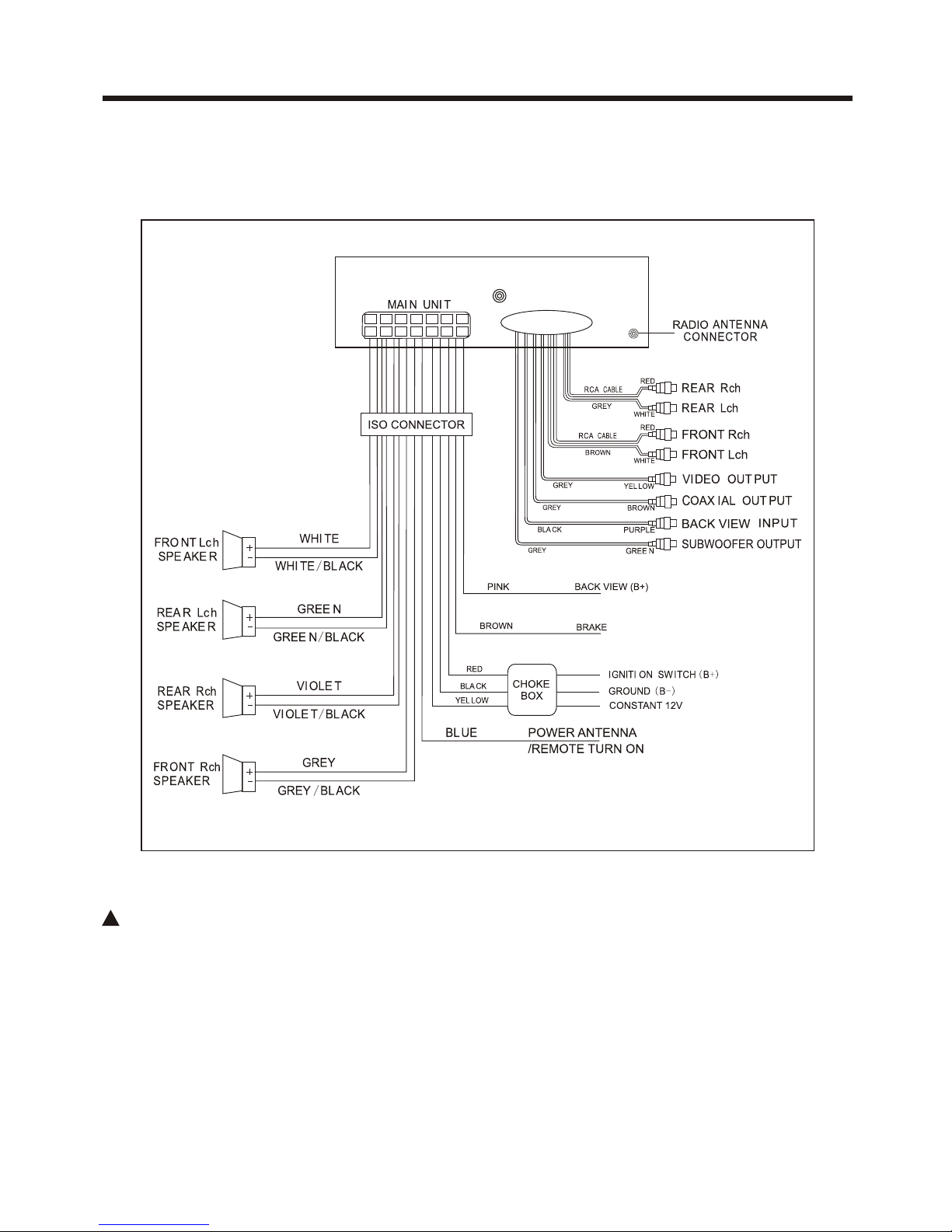

WIRING DIAGRAM

WIRE CONNECTION

!!!WARNNING

BRAKE WIRE MUST BE CONNECTED TO THE (-) SIDE OF THE PARKING

BRAKE SYSTEM. IF YOU DO NOT HOOK THIS WIRE UP, YOU WILL GET

A WARNING ON THE SCREEN THAT YOU WILL NOT BE ABLE TO WATCH

THE VIDEO WHILE THE CAR IS MOVING. YOU WILL BE ABLE TO HEAR

THE MOVIE BUT YOU WILL NOT BE ABLE TO WATCH IT UNLESS YOU

HOOK UP THE BRAKE WIRE. THEN YOU HAVE TO ENGAGE THE PARKING

BRAKE SYSTEM TO WATCH IT.

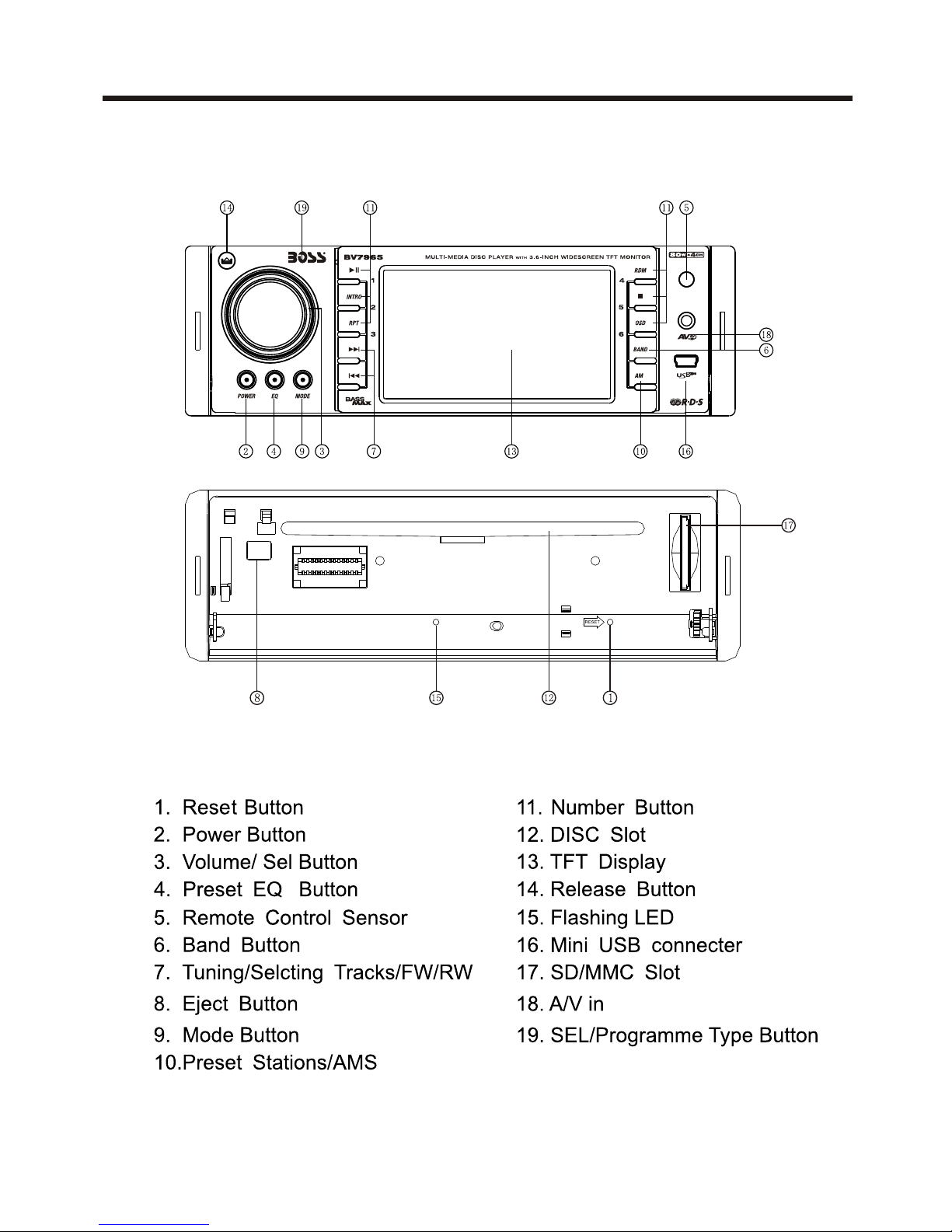

CONTROL PANEL LAYOUT

FRONT PANEL LAYOUT

BASIC OPERATION

INITIAL SYSTEM STARTS-UP

Operating the unit for the first time or after replacing the car battery, you

should press (14) to detach the front panel, and LED (15) will be blinking.

Press(1) Reset button with a pointed object(such as a ballpoint)to set the

unit to initial procedure.

NOTE: WHEN SOME ERRORS OCCUR IN THE LCD DISPLAY, YOU CAN

ALSO PRESS RESET BUTTON TO RESUME TO NORMAL. AND IT WILL

ERASE THE CLOCK SETTING AND SOME MEMORIZED FUNCTIONS.

TURNING THE UNIT ON/OFF

Press the POWER button will turn the radio on. Pressing for shortly will

shut it off.

VOLUME SELECTOR

For Volume button(3),press “VOL+” to increase the sound level and press

“VOL-” to decrease the sound level.

BASS/TREBLE/BAL(L-R)/FADE SELECTOR

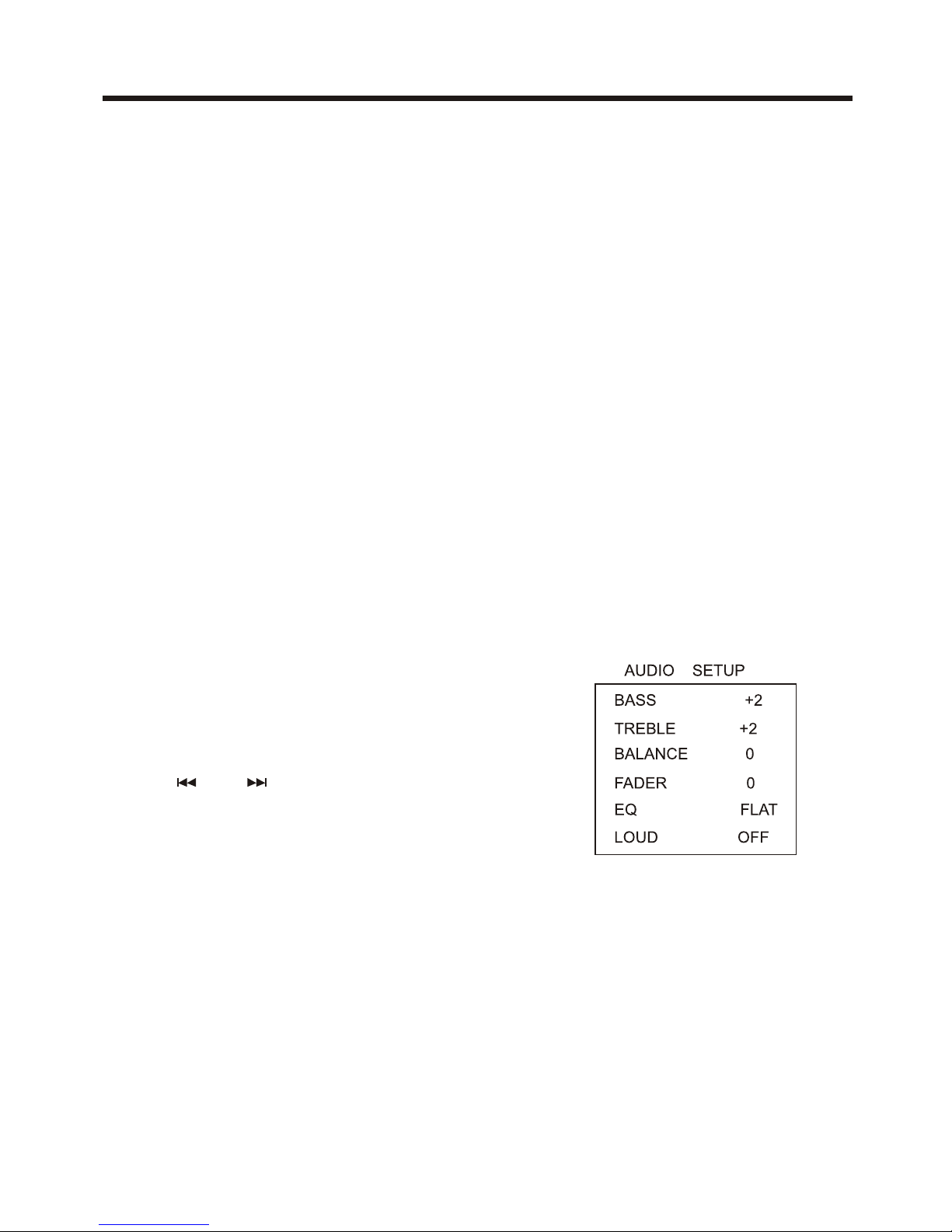

Press “SEL” button once to enter “AUDIO

SETUP” menu.

Press “ ”or “ ” button to select you

desired mode. You can adjust the current

level by press “VOL+” or “VOL-” knob.

NOTE: IF YOU DON'T ADJUST THE KNOB WITHIN 5 SECONDS AFTER

SELECTING THE DESIRED, THE UNIT WILL AUTOMATICALLY RETURN

TO THE CURRENT MODE BEING DISPLAYED.

MUTE FUNCTION

Press EQ button more than 1 second is mute function.Press this button to

cut down the sound output and “MUTE” appear on the LCD.Press it again to

revert the previouse volume level.

SETTING EQ

While listening music, you can set up rock music, popular, classic music or

jazz pre-EQ by pressing(4)"EQ" button the procedure as follows:

● POP mode is selected when the button is first press and rock indicated on

LCD.

● POP mode is selected when press the button for the second time and

class indicated on LCD.

● Classic mode is selected when press the button for the third time and rock

indicated on LCD.

● Press the button for the forth time to Select the JAZZ Pre-EQ mode, press

the button fifth times to turn off the P-EQ system→ Press EQ button more

than I second is "MUTE" function.

NOTE: BASS MODE AND TREBLE RETURN TO INITIAL SETTINGS WHEN

EQ SYSTEM IS ON, “BASS” AND “TREBLE” DISAPPEAR.

MODE SELECTOR

Press “MOD” button to select Radio → DVD → AUX mode.

SENSOR

(5)Receptor for the card remote commander.

ADJUST TIME

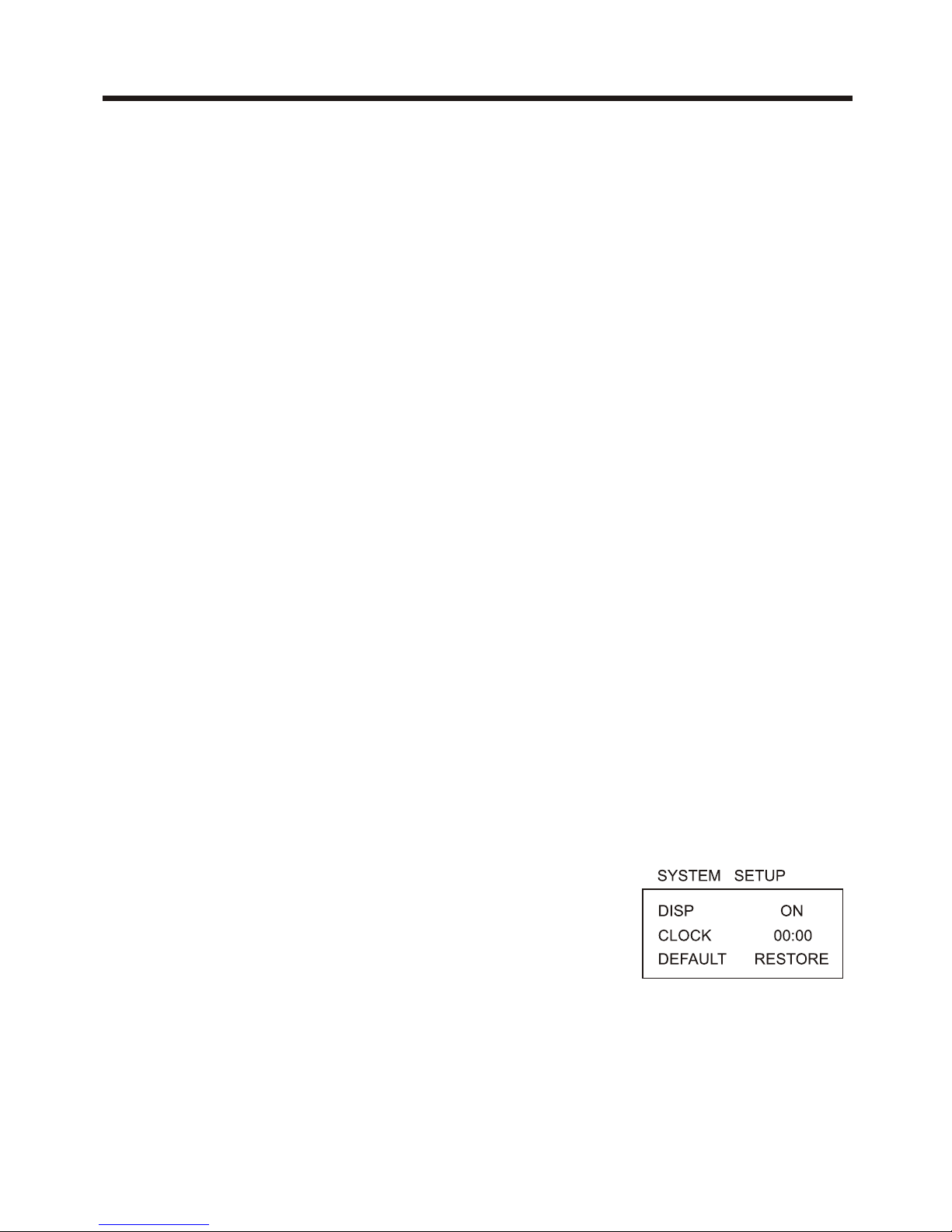

● Press “SEL” button to enter “SYSTEM SETUP”.

● Press VOL+/- button select “DISP ON” mode.

● When the clock appear on the menu,

Press “VOL+” or “VOL-” to adjust hours or minutes.

BASIC OPERATION

RADIO OPERATION

BAND SELECTOR

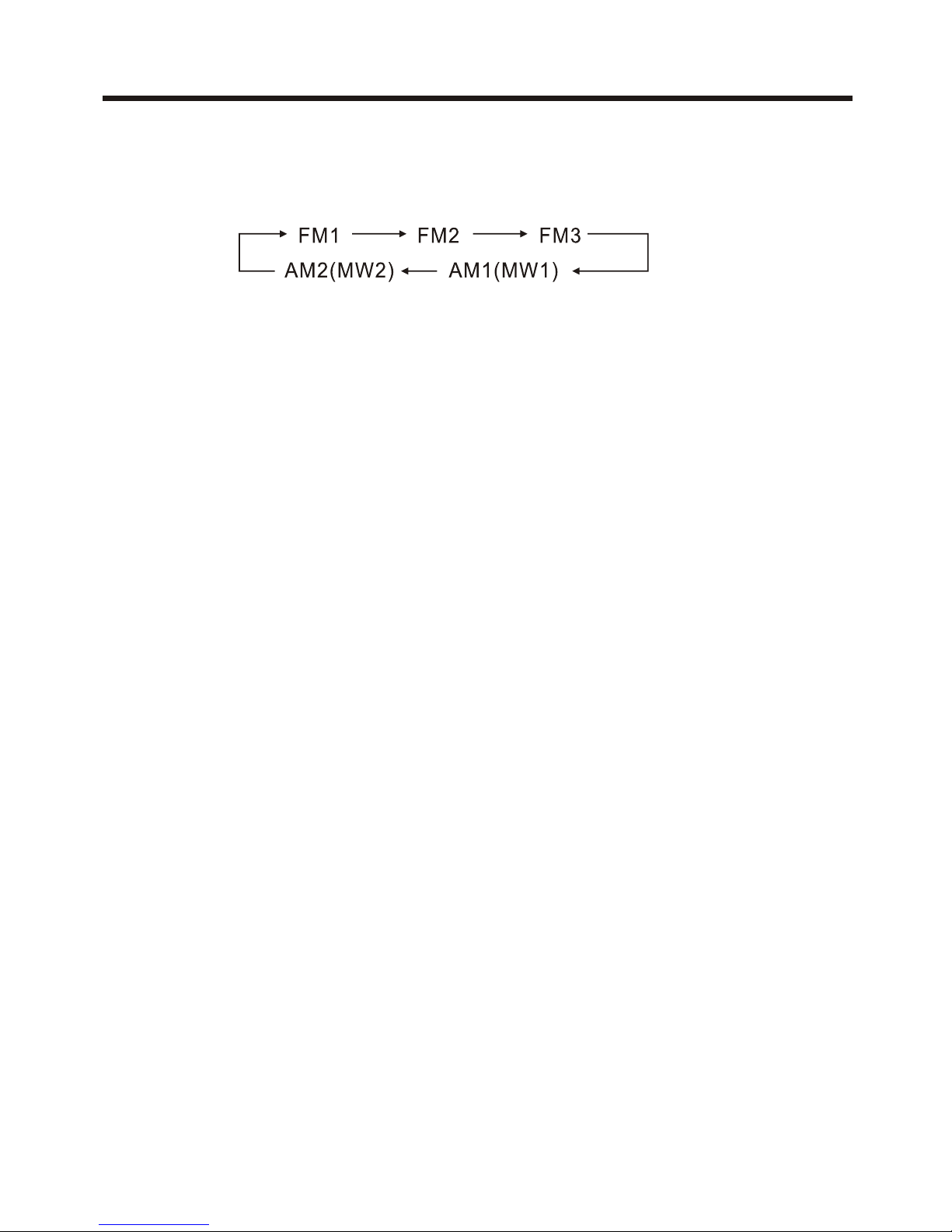

press (6)(band)button repeatedly to select band in the following order:

NOTE: ON DVD PLAYING MODE, PRESS (6) BUTTON TO SWITCH TO

AUTO PAL OR NTSC SYSTEM

MANUAL/AUTOMATIC TUNING

1. Pressing AMS button shortly, the radio searches station from the lowest

frequency to highest frequency. When a station strength level is more than

the threshold level of the stop level. The radio will holding the station for 5

seconds and the station frequency blinking on the LCD at the same time.

Pressing AMS button once again. The radio search will stop on the station.

Pressing anyone preset number button for several seconds. The radio will

save the station at the preset number button.

2. Pressing and holding AMS button more then 3 seconds. The radio

searches from the lowest frequency and check the signal strength. When

the field strength level is more than threshold level of the stop level. The

radio storing the station at the preset number (is can store 3x6 stations for

FM and 2x6 stations for AM in all) after finishing a circle of search. It will

stop searching on the M1.

NUMBER BUTTONS

Number buttons can help you store your favorite station by pressing any one

of the number button. You can follow the steps as bellow:

Press and hold any number button(1~6) until "CH" appears in the LCD

display when receiving a station. And now the station is already stored in the

corresponding number button.

18FM STATIONS AND 12 AM STATIONS CAN BE STORED

NOTE: Number button 1,2,3,4,5,6 have dual function, While radio mode, it

use to store and recall preset stations, While DVD, VCD, CD, MP3 and

WMA playing mode, they have other function.

For detail. Please refer to corresponding playing operation.

RDS OPERATION

RDS(RADIO DATA SYSTEM)OPERATION

TA:

Operated as follows:

-TA is turned ON/OFF and TA indicator is displayed.

When traffic announcement is transmitted, regardless of the mode, traffic

announcement is received.

If VOLUME LEVEL is below 24, VOLUME LEVEL is raised to 24, and returns

to its previous mode and volume level when the traffic announcement is over.

If volume is adjusted during traffic announcement, only the previous volume

is valid.

-When TA is on, SEEK, SCAN, AUTO MEMORY function can be received or

saved only when traffic program identification code has been received.

-When TA is ON, traffic program identification code is not received during

specified time.

TA SEEK: TA SEEK is activated.

PTY RADIO MODE

Press “SEL”Button more than 1 second is PTY function.

-Previous PTY is displayed when PTY key(19) is pressed. If there are no

keys entered for

2seconds, previously selected PTY is searched. During 1LOOP, if desired

PTY is not found, NO PTY is displayed.

-2 program types are SPEECH and MUSIC.

Rotate VOL knob clockwise or anti-clockwise to select the desired program

type.

AF: Alternative Frequencies

- Setting RDS Mode Press AF button(9) and release immediately to switch

on or off RDS mode. Whenever RDS is switched on, symbol “AF” appears on

the display.

NOTE: TURN ON/OFF TA OR PTY MODE MUST PRESS THE BUTTON "TA"

OR BUTTON "PTY" ON THE REMOTE CONTROLLER.

RDS OPERATION

AF/REG

- AF/REG key directs the activation of AF SEARCH.

- AF indicator is displayed when AF is ON, AF search is activated when

reception is had.

- During FM MODE, when AF is ON, SEEK, SCAN, AUTO, MEMORY function

can only receive and save RDS program. However, when italy option is in

use, regardless of RDS, programs that satisfy SD LEVEL Can be received

and saved.

REGION

- AF MOD E is converted to REGION ON/OFF MODE when AF ON MODE is

pressed for longer 1sec.

- ON: P1 CODE is checked when AF CHECK in progress

- OFF: P1 CODE and COVERAGEARE A is not checked when AF CHECK in

progress.

INDICATOR CONDITIONS

AF ON AF ON MODE, RDS information is received.

AF OFF AF OFF MODE

AF FLASHING AF ON MODE, RDS information is not received.

Other Boss Audio Systems Car Receiver manuals

Boss Audio Systems

Boss Audio Systems MR1525UI User manual

Boss Audio Systems

Boss Audio Systems DVD-2000B User manual

Boss Audio Systems

Boss Audio Systems BV9356I User manual

Boss Audio Systems

Boss Audio Systems BV7942 User manual

Boss Audio Systems

Boss Audio Systems 758DBI User manual

Boss Audio Systems

Boss Audio Systems BV7325B User manual

Boss Audio Systems

Boss Audio Systems BV8963 User manual

Boss Audio Systems

Boss Audio Systems BV9982U User manual

Boss Audio Systems

Boss Audio Systems BV8974B User manual

Boss Audio Systems

Boss Audio Systems 812UAB User manual

Boss Audio Systems

Boss Audio Systems BV7975 User manual

Boss Audio Systems

Boss Audio Systems 625UAB User manual

Boss Audio Systems

Boss Audio Systems MR1520UA User manual

Boss Audio Systems

Boss Audio Systems MR2180UA User manual

Boss Audio Systems

Boss Audio Systems BV7260B User manual

Boss Audio Systems

Boss Audio Systems MR762BRGB User manual

Boss Audio Systems

Boss Audio Systems BV9354 User manual

Boss Audio Systems

Boss Audio Systems BV9158B User manual

Boss Audio Systems

Boss Audio Systems BV9976B User manual

Boss Audio Systems

Boss Audio Systems BV8967B User manual

Boss Audio Systems

Boss Audio Systems BV9362BI User manual

Boss Audio Systems

Boss Audio Systems BV7948B User manual

Boss Audio Systems

Boss Audio Systems 616UAB User manual

Boss Audio Systems

Boss Audio Systems 820UA User manual

Popular Car Receiver manuals by other brands

Motorola

Motorola VWA63 Service manual

Nextar

Nextar D3201 instruction manual

Alpine

Alpine CDE-163BT owner's manual

Pioneer

Pioneer DEH-P645R installation manual

Axxera

Axxera XDMA7600 Installation & owner's manual

XM OnyX quick start guide

Sound Storm

Sound Storm STM93R user manual

Soundstream

Soundstream VIR-5000 owner's manual

Avson

Avson MKT Platform user manual

Sony

Sony MEX-1HD - Audio Library System operating instructions

Pioneer

Pioneer DVH-P500UB Operation manual

JVC

JVC KD-AHD69 Specifications

Blaupunkt

Blaupunkt SANTIAGO CR 87 operating instructions

Sony

Sony CDX-4160 - Cd Receiver operating instructions

XFIRE AUDIO

XFIRE AUDIO BMW42S owner's manual

VDO

VDO CD 2253 datasheet

Volvo

Volvo 13 84 580 installation instructions

ZENEC

ZENEC ZE-160DVD instruction manual
