Bosch FlexiDome solutions with

Dinion camera performance

FlexiDome cameras

Perfect images in any location

No application is too tough

Think your application is too demanding for a dome camera? Think again. From arctic

temperatures to blazing sun or heavy rain, the FlexiDome system from Bosch handles it all.

FlexiDome combines the award-winning performance of our proprietary 15-bit imaging

technology in a range of domes tough enough for almost any condition, yet stylish enough to

be mounted in any location. This combination of high-performance camera and rugged dome

provides a solution that meets the most demanding surveillance requirements.

SensUp automatically compensates

for low light levels, adjusting the

shutter speed to maintain contrast

and boost color clarity.

Bilinx control, conﬁgure and

update over the video cable.

XF-Dynamic combines with 15-bit DSP

technology to ensure exceptional video

clarity, extending the dynamic range to a

full 90 dB and maximizing image quality.

Programmable backlight compensation,

optimizes the area of interest.

True Day / Night, 24/7 coverage,

guaranteed perfect performance,

infrared sensitive.

Dinion’s 540 TVL high-resolution optics

generate more TV lines than conventional

CCTV cameras. That means sharper, more

detailed images and easier identiﬁcation.

With default shutter the camera

uses a fast shutter speed to

capture high-speed movement

without any blurring.

15 Bit10 Bit3 Bit1 Bit

In the past, if you wanted the discreet, attractive appearance of

a dome, you were forced to choose between camera

performance and installation robustness. That’s what inspired

Bosch to create the new FlexiDome series. Continuing our

tradition of market-tailored innovation, we’ve expanded the

range of application possibilities by bringing Dinion image

quality to the toughest of domes.

These compact, integrated solutions take dome cameras to

places never before thought possible. What’s more, they are

extremely affordable. And as complete solutions, they make

system design and installation easier than ever. They are

ﬂexible too, with a wide range of options to cater for every

requirement, from protected indoor locations to difﬁcult

lighting conditions and the harshest outdoor settings.

FlexiDome, smart surveillance go

Dome solutions to beat the harshest weather

Exte

ce goes everywhere

Always sharp, always clear

No matter how demanding the environment, FlexiDome

cameras deliver outstanding image quality under

almost any light conditions, day or night.

Ñ540 TVL high-resolution means sharper,

more detailed images and easier identiﬁcation.

ÑNightSense recognizes fading light and switches to

monochrome to boost camera sensitivity by a factor

of 3 - so when the sun goes down the picture doesn’t.

ÑAuto Black enhances picture contrast to

counteract the effects of foggy weather, glare or

dirt on the window. With Auto Black detail stays

clear even when visibility is low.

ÑDefault Shutter combines standard and fast

shutter speeds, eliminating motion blur without

losing sensitivity to ensure you capture all the details.

FlexiDomeXF, the ﬁnest image quality

in a dome

FlexiDomeXF cameras deliver ground-breaking results.

The 15-bit digital video processing chip, the heart of

the camera, extends the dynamic range and provides

32 times more detail than standard 10-bit cameras.

With the IR sensitive Day/Night versions you can rely on

the best picture quality round the clock, while a range

of extra features help you cover the most complex of

lighting situations:

Extensive backlighting, fast movement – no problem for FlexiDome

The Dinion advantage: high detail and perfect zoom

Strong and stylish

FlexiDome enclosures are built to handle severe

conditions. The proven design features a patented

dome shape that delivers the best optical performance,

even when viewing at a 90° tilt position. On the

outside, a scratch resistant coating with UV block

further improves the picture quality.

You can put our ultra-tough FlexiDomeXT+ anywhere.

It operates between – 50 and + 50 °C and is IP66

(NEMA4X) rated under harsh conditions, so it’s

weatherproof, watertight and corrosion-protected.

It will stand up to human attacks too, thanks to its

patented impact-resistant design, shock-resistant

mountings, protective inner liner and tamper-prooﬁng.

Installation has never been easier

FlexiDome solutions deliver high performance straight

from the box. They may be designed for demanding

applications, but we’ve incorporated a host of features

to ensure installation, operation and maintenance are as

easy as possible.

ÑCover the exact ﬁeld of view you need with a range

of varifocal lenses from super wide-angle to telephoto

ÑFast, simple installation using easy pan, tilt and

horizon adjustments; a Lens Wizard to help you

obtain optimal 24 hour lens focusing, and a local

service monitor connection

ÑRemote camera conﬁguration and ﬁrmware updates

directly over the video cable via Bilinx

ÑWide power range from 12 V to 28 V AC or DC

ÑOptional UTP connectivity

ÑMount the domes virtually anywhere, including surface,

ﬂush and suspended ceilings walls and corners

Surface mount Corner mount Pendant mount Wall mount

Mount options

FlexiDome brings domes to every application, inside or out Top performance even in high contrast scenes

Smart ideas from the leader in CCTV solutions

Committed to innovation and quality, Bosch Security Systems continually sets new standards

in surveillance solutions. Drawing on our broad CCTV experience and know-how, the new

FlexiDome family represents another milestone. By incorporating Dinion camera technology,

FlexiDome offers a unique solution – only Bosch can give you such a high level of performance

from a dome camera. And it’s not just the product you can rely on. Our world class service

means you have all the support you need.

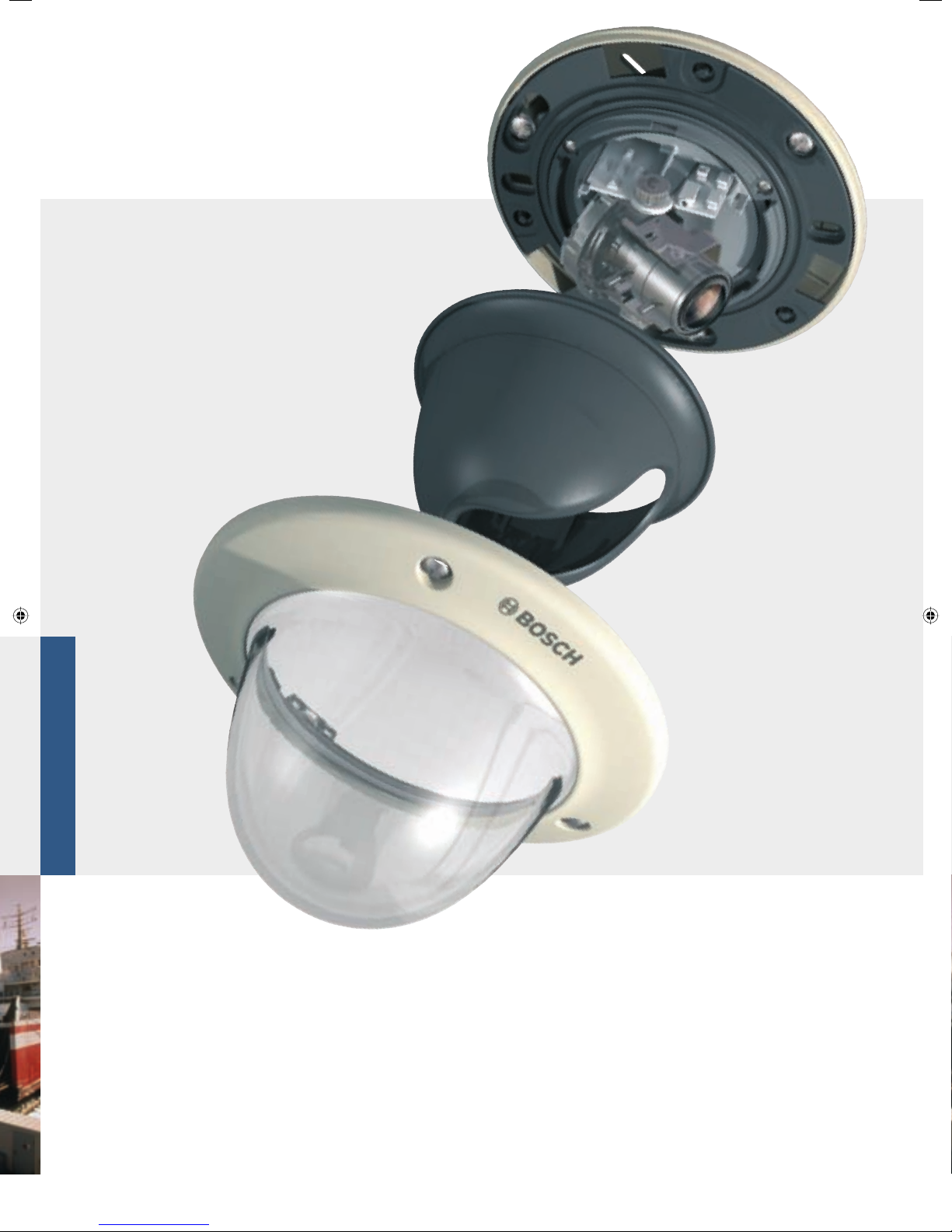

Mounting FlexiDome is simplicity itself, with only three

parts to connect. The bracket, protective camera housing

and the outer dome can be screwed in place easily.

FlexiDome

Dinion system models

FlexiDome Dinion camera

Features VF XT+ XF DN

SensUp ••

Bilinx ••••

540 TVL color resolution ••••

XF-Dynamic ••

Programmable BLC ••

Day/Night with IR corrected lens •

Default shutter ••

NightSense •••

Standard BLC ••

High speed lens •

Heater / IP66 and Nema4X rating /

Impact-proof rated / tamper-proof •••

Tradition of quality and innovation

For over 100 years, the Bosch name has stood for

quality and reliability. Bosch Security Systems

proudly offers a wide range of ﬁre, intrusion, social

alarm, CCTV, management and communication

systems and components to help you ﬁnd the

solution for any application. We are the global

supplier of choice for innovative technology backed

by the highest level of service and support.

When you need solutions you can rely on, choose

Bosch.

Bosch Security Systems

For more information please visit

www.boschsecurity.com

Printed in the Netherlands

VS-EH-en-01_F01U517855_01
