Bosch EX10C704B‑N User manual
CCTV | EX10 Extreme Environment Camera
The EX10 series is particularly suited for harsh weather
applications. The simple, effective design allows
performance in the most challenging of environmental
conditions, including wash-down facilities, corrosive
environments and sub-zero temperatures.
Made of an injection-molded ABS/Nylon resin, the EX10
series is engineered specifically to withstand hot, cold
and wet environments. An insulated inner chamber
eliminates the requirement for internal heaters and
blowers. Compliant to IP67, the EX10 series also features
an easy-access camera compartment for easy camera/lens
adjustments and installation.
Rugged, compact, power protected and extreme weather-
sealed, the EX10 is the ideal camera for harsh
environments in day or dark conditions. The EX10 comes
complete with a nylon wall bracket for quick and easy
installation.
Functions
Applications
•Food processing
•Marine vessels and marinas
•Clean rooms
•Acid / alkali environments
•Swimming pools
•Sewage treatment plants
•Industrial freezers
•Oil rigs
Certifications and Approvals
CSA Type 6 Outdoor weather rating
CSA C22.2 No 0-M1991 General electrical rqts, part II
CSA C22.2 No 1-M94 Audio, video, and similar equipment
CSA C22.2 No 94-M91 Special purpose enclosures
UL Std No 50 Enclosures for electrical equipment
UL Std No 2044 Commercial CCTV equipment
FCC Class B
EX10 Extreme Environment Camera
▶Weatherproof and insulated for hot and cold
environments
▶Installer-friendly, easy-access camera compartment
▶Extreme weather sealed, waterproof and IP67
compliant
▶Reduced power consumption, no requirement for
internal heater or fan
▶Operating temperature range from -60ºC to +60ºC
www.boschsecurity.com
2 | EX10 Extreme Environment Camera
Installation/Configuration Notes

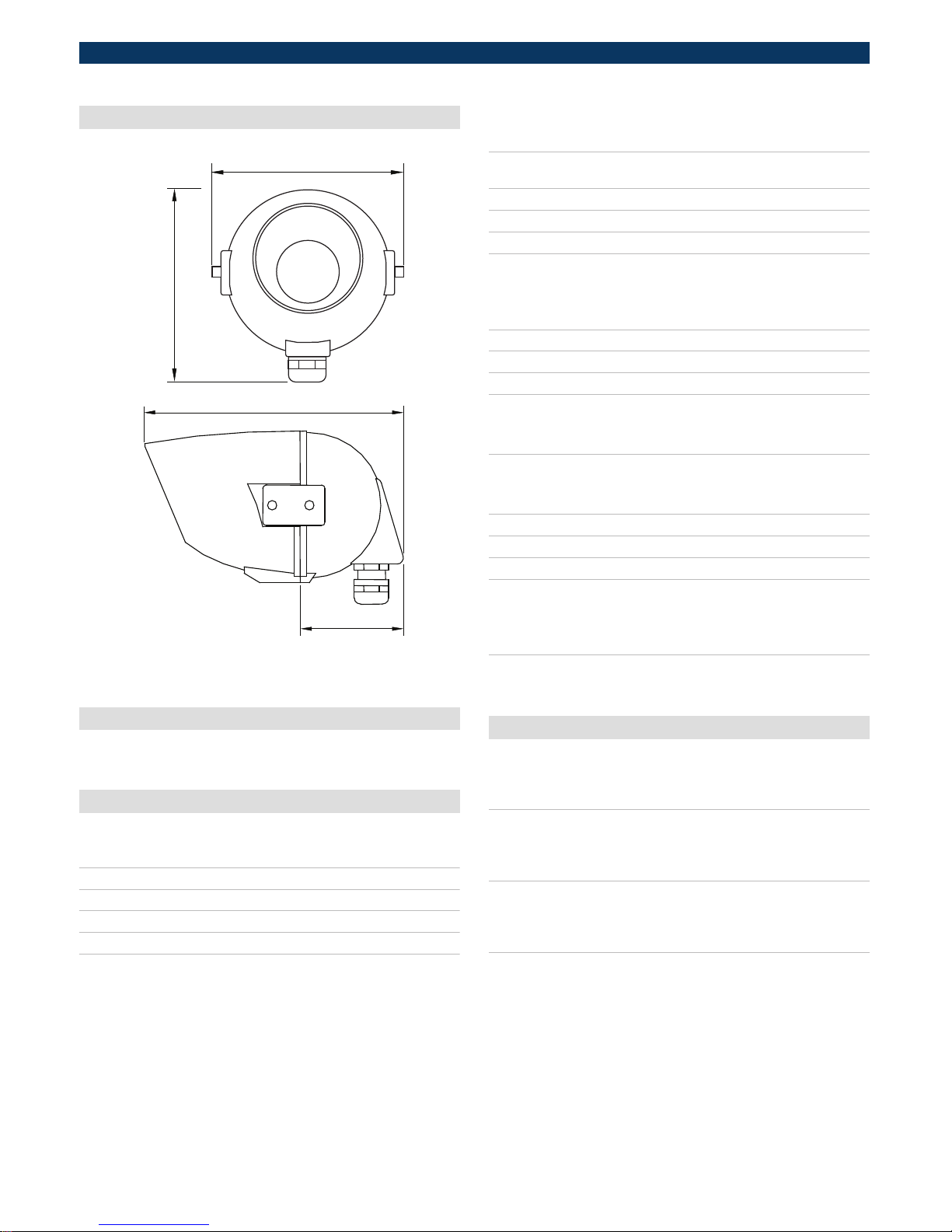

Dimensions
79.4 (3.1)
88.9
(3.5)
132 (5.2)
52 (2)
mm (in)
Parts Included
•Universal mounting bracket included
Technical Specifications
C7 Hi-Res Color
Image Sensor 1/3 in. Interline SuperHAD
Resolution 500 TVL
Effective Pixels NTSC 768 (H) x 494 (V)
Effective Pixels PAL 768 (H) x 494 (V)
Sensitivity 2.7 Lux at F1.4
S/N Ratio Greater than 48 dB
MX4 Extended Day/Night
Image Sensor 1/3 in. LXR CCD
Resolution 540 TVL color / 540 TVL mono-
chrome
Effective Pixels NTSC 768 (H) x 494 (V)
Effective Pixels PAL 752 (H) x 582 (V)
Sensitivity 0.02 Lux with F1.4 lens
S/N Ratio Greater than 48dB
All Models
Video Output 1 Vpp, 75 ohm
Gamma 0.45
Gain Control > 18 dB
Electronics Iris 1/60 to 1/100,000 (NTSC)
1/50 to 1/100,000 (PAL)
Voltage Supply 12 to 24 AC/DC
Power Consumption 120 mA at 12 VDC, 1.4 W (max)
Enclosure Injection-molded nylon
Window Polycarbonate
Dimensions 132 x 76 mm
5.2 x 3.0 in
Weight 0.375 kg (0.8 lb)
Operation Tempera-
ture Range
-60 °C to +60 °C (-76 °F to 140 °F)
Environmental IP67, NEMA6, NEMA6P compliant
Ordering Information
EX10C704B‑N Extreme Environment
Camera
1/3 in. hi-res color, 500TVL, 3.6 mm lens,
NTSC
EX10C704B-N
EX10C704B‑P Extreme Environment
Camera
1/3 in. hi-res color, 500TVL, 3.6 mm lens,
PAL
EX10C704B-P
EX10MX404B‑N Extreme Environment
Camera
1/3 in. extended day/night, 540/540TVL,
3.6 mm lens, NTSC
EX10MX404B-N
EX10MX404B-P Extreme Environment
Camera
1/3 in. extended day/night, 540/540TVL,
3.6 mm lens, PAL
EX10MX404B-P
EX10 Extreme Environment Camera | 3
Ordering Information
Accessories
BRKU10 U-type Bracket
Bracket, U-type for EX10, black
BRKU10
UPA-2430-60 Power Supply
120 VAC, 60 Hz, 24 VAC, 30 VA Out
UPA-2430-60
UPA-2420-50 Power Supply
220 VAC, 50 Hz, 24 VAC, 20 VA Out
UPA-2420-50
EX.L102 Micro-Lens
2.5 mm Micro-Lens for 1/3‑inch CCD
EX.L102
EX.L103 Micro-Lens
2.9 mm Micro-Lens for 1/3‑inch CCD
EX.L103
EX.L104 Micro-Lens
3.6 mm Micro-Lens for 1/3‑inch CCD
EX.L104
EX.L105 Micro-Lens
4.3 mm Micro-Lens for 1/3‑inch CCD
EX.L105
EX.L106 Micro-Lens
6.0 mm Micro-Lens for 1/3‑inch CCD
EX.L106
EX.L108 Micro-Lens
8.0 mm Micro-Lens for 1/3‑inch CCD
EX.L108
EX.L112 Micro-Lens
12 mm Micro-Lens for 1/3‑inch CCD
EX.L112
EX.L116 Micro-Lens
16 mm Micro-Lens for 1/3‑inch CCD
EX.L116
EX.L6PACK Micro-Lens Pack
Micro-Lens Pack (2.5 mm, 2.9 mm, 6.0 mm,
8 mm, 12 mm, 16 mm) for 1/3‑inch CCD
EX.L6PACK
www.boschsecurity.com
4 | EX10 Extreme Environment Camera
Americas:
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: +1 800 289 0096
Fax: +1 585 223 9180
www.boschsecurity.us
Europe, Middle East, Africa:
Bosch Security Systems B.V.
P.O. Box 80002
5600 JB Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: +31 40 2577 330
www.boschsecurity.com
Asia-Pacific:
Robert Bosch (SEA) Pte Ltd, Security Systems
11 Bishan Street 21
Singapore 573943
Phone: +65 6258 5511
Fax: +65 6571 2698
www.boschsecurity.asia
Represented by
© Bosch Security Systems Inc. 011 | Data subject to change without notice
T4822545419 | Cur: en-US, V24, 16 Feb 2011
