BOB INFANT CAR SEAT ADAPTER User manual
ENGLISH Single and Duallie®
INFANT CAR SEAT ADAPTER
TAKE TIME
READ AND UNDERSTAND THESE
INSTRUCTIONS COMPLETELY!
If you are unclear on any point, contact
your dealer or BOB before use.
For a list of dealers, visit www.bobgear.com
or call (800) 893-2447.
Before attempting to assemble or use your
new Infant Car Seat Adapter, read and
understand these assembly and use
instructions completely, as well as the
warnings at the beginning and throughout
this document, to ensure proper assembly
and operation.
BOB
®
Trailers, Inc. (800) 893-2447 www.bobgear.com
13501 South Ridge Drive, Charlotte, North Carolina 28273
INSTRUCTIONS
OMA64B
2
OMA64B
• Please save instructions for future use
and reference.
• For safe operation, all users must
read and understand instructions and
warnings completely before use.
• The BOB Infant Car Seat Adapter is
designed for use with BOB Strollers
equipped with Accessory Adapters
and compatible Infant Car Seats. This
product is not a universal adapter. Do
not use with car seats and/or stroller
models other than those specifically
listed in the stroller and Infant Car
Seat Compatibility Charts listed on
page 4.
• Maximum capacity 17.5lb (weight of
infant including clothing). Exceeding
capacity may cause stroller to
become unstable.
• Avoid serious injury from falling or
sliding out. Always use Infant Car Seat
harness.
• For Duallie Strollers, the Canopy
Catch is intended to prevent the right
canopy from rotating and causing
pinching and/or finger injuries
between canopy stays and Infant Car
Seat. Always secure right canopy stay
in Canopy Catch when using an Infant
Car Seat in Infant Car Seat Adapter.
• Never leave children unattended in
the stroller/Infant Car Seat.
• Always keep your Infant Car Seat
Carry Handle locked in the vertical/
carry position while in stroller, as extra
protection for your child.
• Always confirm Infant Car Seat Adapter
is properly locked in place in stroller
Accessory Adapter prior to use.
• Always confirm Infant Car Seat is
properly locked in place on Infant Car
Seat Adapter prior to use.
• Always secure the Infant Car Seat to
the Infant Car Seat Adapter with the
supplied Restraint Belt.
• Do not run or jog when using Infant
Car Seat Adapter with Infant Car Seat.
• Do not use off-road or on uneven
terrain when using the Infant Car Seat
Adapter with Infant Car Seat installed.
• Remove Infant Car Seat Adapter and
Restraint Belt when not in use.
• Do not place children directly in the
stroller seat with the Infant Car Seat
Adapter installed. Remove Infant
Car Seat Adapter from stroller prior
to placing a child directly into the
stroller seat.
• Restraint Belt is intended for use with
combination of BOB Infant Car Seat
Adapter and compatible Infant Car
Seats only. The Restraint Belt must be
removed prior to using stroller without
Infant Car Seat.
• Do not modify the Infant Car Seat
Adapter or any labels. Doing so voids
the warranty and could lead to a
dangerous condition.
• Care must be taken when attaching
Infant Car Seat to Infant Car Seat
Adapter to make sure hands and
fingers are clear of contacting
surfaces.
• Care must be taken when folding and
unfolding the stroller to prevent finger
entrapment or injury.
• To avoid injuries, never fold or unfold
stroller with other individuals within
reach of stroller.
• Plastic bags can be dangerous. Keep
plastic bags and other packaging
away from children and infants.
FAILURE TO FOLLOW THESE WARNINGS AND ASSEMBLY INSTRUCTIONS
COULD RESULT IN SERIOUS INJURY OR DEATH.
CONGRATULATIONS
Congratulations on your purchase
of the BOB®Infant Car Seat Adapter
(ICSA). It is designed to allow the
attachment of an Infant Car Seat to a
BOB stroller.
Please refer to charts on page 4 for
details of compatible ICSA models,
BOB strollers and Infant Car Seats. Find
your compatible Infant Car Seat on
the chart on page 4. Find key features
of your ICSA on Anatomy pages and
follow respective instructions.
For updates to this manual, warranty
and other recent product notifications,
Please visit www.bobgear.com
periodically or any time before making
approved changes or adding approved
equipment to your stroller.
WARNINGS
3
OMA64B
Warnings
Table of Contents
Compatibility Chart
Anatomy
CS1001 ICSA for Graco®Anatomy
Graco®Snug Ride®Infant Car Seat Anatomy
CS1002 ICSA for Peg Perego®Anatomy
Peg Perego®Primo Viaggio SIP™Infant Car Seat Anatomy
CS1003 ICSA for Chicco®Anatomy
Chicco®KeyFit™Infant Car Seat Anatomy
CS1011 ICSA Duallie for Graco®Anatomy
Graco®Snug Ride®Infant Car Seat Anatomy
Stroller Accessory Adapter Anatomy
Restraint Belt Anatomy
Canopy Catch Anatomy (CS1011 Only)
Instructions
Installing Your ICSA
Attach Restraint Belt
Install Canopy Catch
Attach ICSA to Stroller
Prepare Stroller for ICSA
Install ICSA
Preparing to Attach Infant Car Seat
Infant Car Seat Installation
Graco®Infant Car Seat Installation
Peg Perego®Infant Car Seat Installation
Chicco®Infant Car Seat Installation
Secure Restraint Belt
Remove Infant Car Seat from Stroller
Folding Stroller with ICSA Attached
Remove ICSA from Stroller
Removing Restraint Belt from Stroller
Limited Warranty
TABLE OF CONTENTS
BOB IS NOT RESPONSIBLE FOR INJURY, DEATH, DAMAGE OR
FAILURE THAT RESULTS FROM OWNER’S FAULTY ASSEMBLY, USE
OR MAINTENANCE.
2
3
4
5
5
5
6
6
7
7
8
8
9
9
9
10
10
10
11
11
11
12
12
13
13
14
15
16
16
16
17
18
19
4
OMA64B

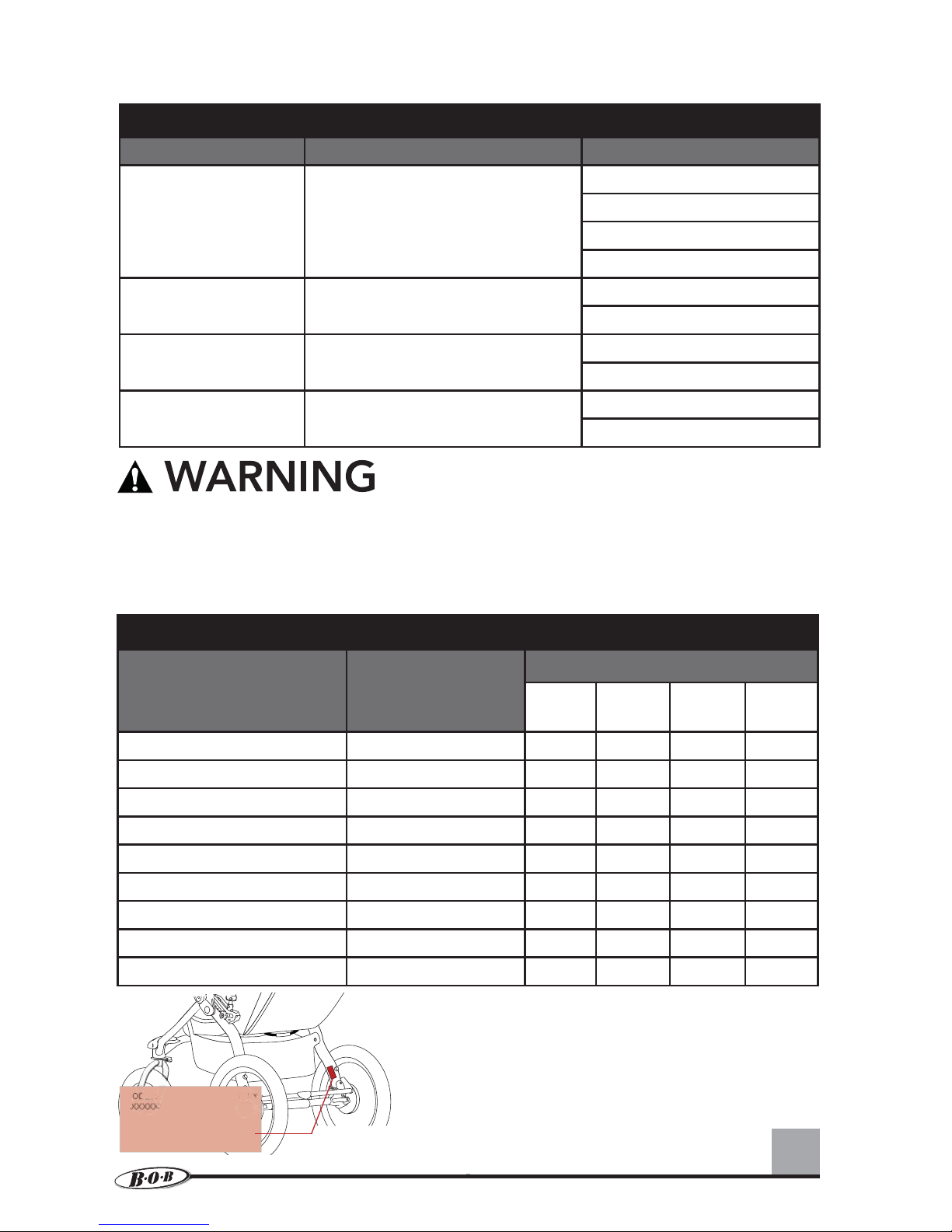

COMPATIBILITY CHART
BOB STROLLER COMPATIBILITY CHART
BOB STROLLER
Serial Number (S/N) Range
-S/N located on right
swingarm, white label on
inboard side.
BOB ICSA Model
CS1001 CS1002 CS1003 CS1011
Sport Utility Stroller AU000000 and higher Yes Yes Yes -
Ironman®AV000000 and higher Yes Yes Yes -
Revolution®SE BB000000 and higher Yes Yes Yes -
Revolution®CE AP000000 and higher Yes Yes Yes -
Stroller Strides®AQ000000 and higher Yes Yes Yes -
Sport Utility Stroller Duallie®AW000000 and higher - - - Yes
Ironman®Duallie®AX000000 and higher - - - Yes
Revolution®SE Duallie®AR000000 and higher - - - Yes
Stroller Strides®Duallie®AT000000 and higher - - - Yes
MODEL: SO: XXXXX
XXXXXXXXXX
MFG: DATE XXXX-XX-XX
Serial Number - Warranty Void if Removed
XXXXXXXX
Serial Number
INFANT CAR SEAT COMPATIBILITY CHART
BOB ICSA Model Infant Car Seat Brand Infant Car Seat Model
CS1001- Single Graco®
Snug Ride®
Snug Ride®30
Snug Ride®32
Snug Ride®35
CS1002 - Single Peg Perego®Primo Viaggio SIP™
Primo Viaggio SIP 30/30™
CS1003 - Single Chicco®KeyFit™
KeyFit™30
CS1011 - Duallie®Graco®Snug Ride®
Snug Ride®30
The BOB Infant Car Seat Adapter is designed for use with BOB Strollers
equipped with Accessory Adapters and compatible Infant Car Seats.
This product is not a universal adapter. Do not use with car seats and/or
stroller models other than those specifically listed in the stroller and Infant
Car Seat Compatibility Charts.
5
OMA64B
ANATOMY

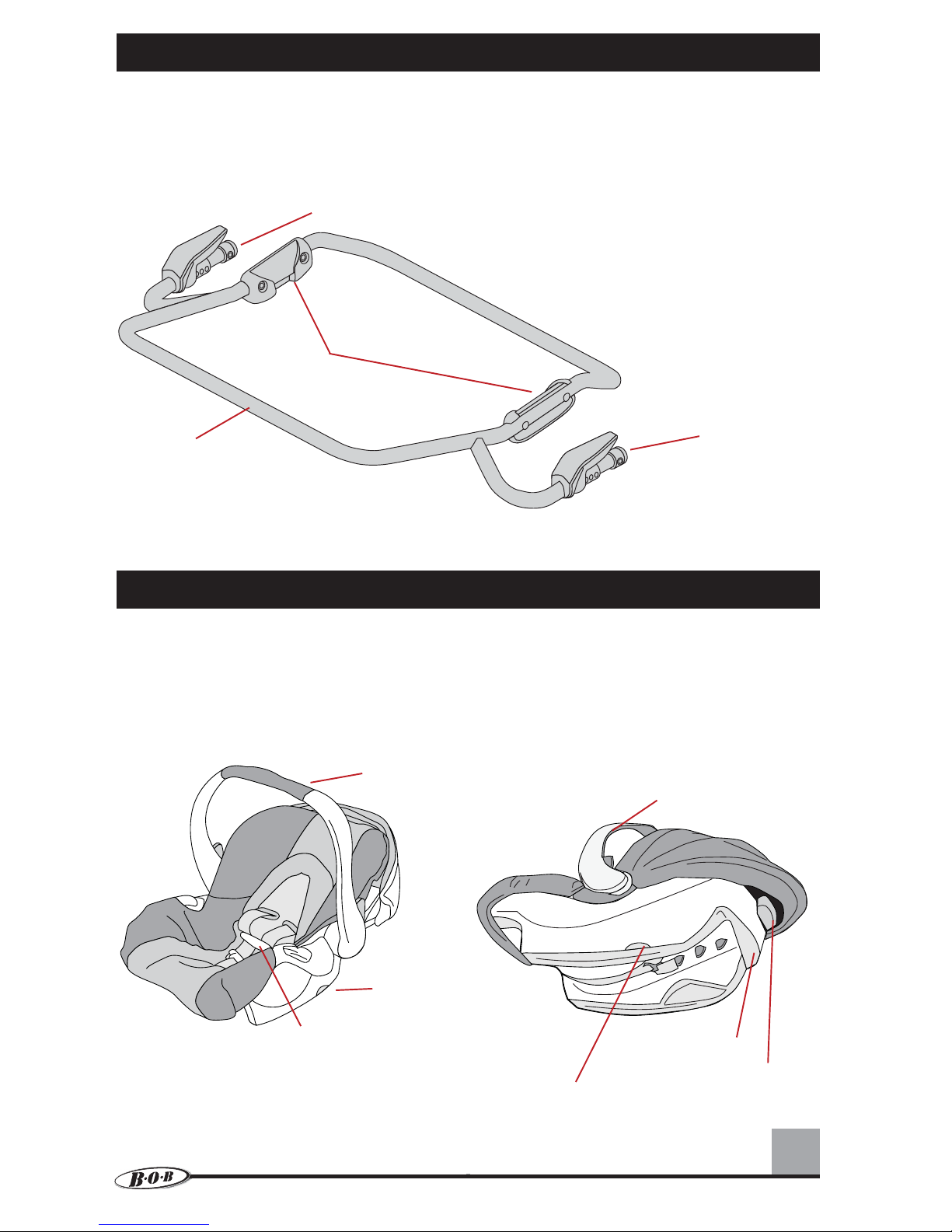

CS1001 ICSA FOR GRACO® ANATOMY
Remove ICSA from packaging. Please dispose of packaging material properly,
recycle if possible.
NOTE: Note key features of each product. Instructions refer to these features
by name.
GRACO® SNUG RIDE®INFANT CAR SEAT ANATOMY
NOTE: Snug Ride®model shown, similar key features exist on all compatible
Graco®Snug Ride®models. (See Compatibility Chart Page 4).
NOTE: Note key features of each product. Instructions refer to these features
by name.
Locking End Cap
Locking End Cap
Hooks
Front Spacers
Front Tube
Carry Handle Carry Handle
Groove Feature
Plastic Hook
Steel Loops
Harness
Release
Handle
6
OMA64B

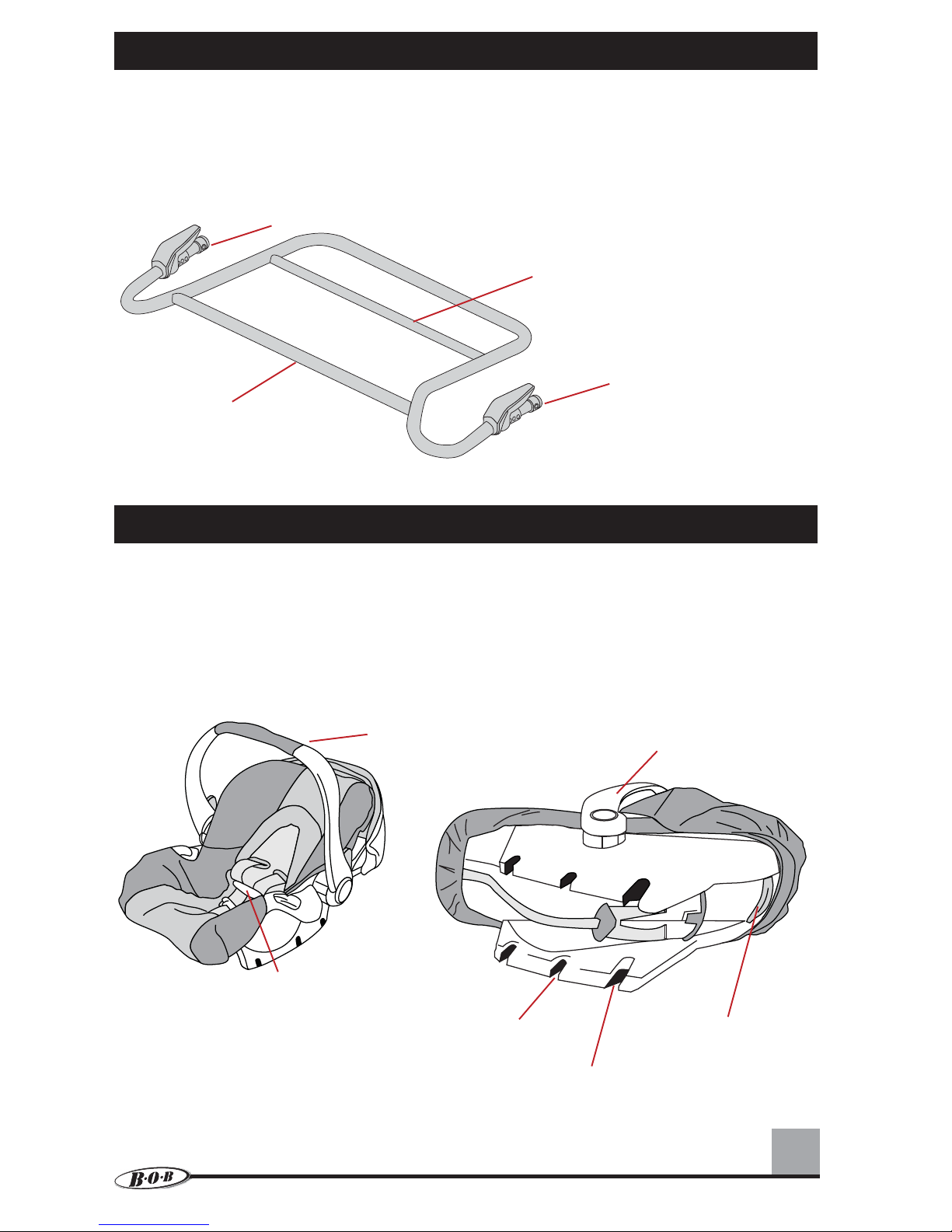

CS1002 ICSA FOR PEG PEREGO®ANATOMY
Remove ICSA from packaging. Please dispose of packaging material properly,
recycle if possible.
NOTE: Note key features of each product. Instructions refer to these features
by name.
PEG PEREGO®PRIMO VIAGGIO™INFANT CAR SEAT ANATOMY
NOTE: Primo Viaggio SIP™model shown, similar features exist on all
compatible Peg Perego® Primo Viaggio SIP™models. (See Compatibility Chart
Page 4).
NOTE: Note key features of each product. Instructions refer to these features
by name.
Front Tube
Locking End Cap
Locking End Cap
Latch Tube
Carry Handle Carry Handle
Release HandleLatch Feature
Harness
Groove Feature
7
OMA64B

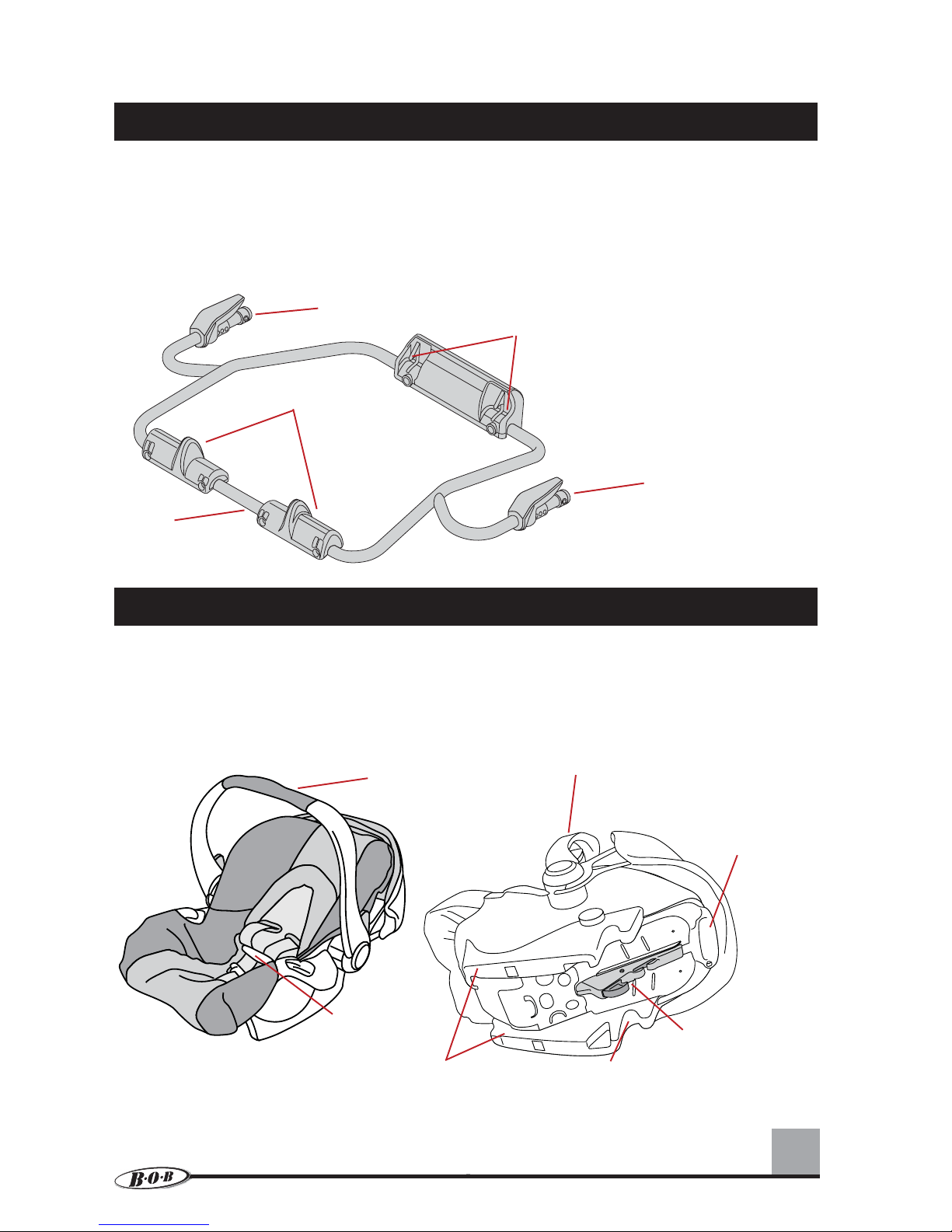

CS1003 ICSA FOR CHICCO®ANATOMY
Remove ICSA from packaging. Please dispose of packaging material properly,
recycle if possible.
NOTE: Note key features of each product. Instructions refer to these features
by name.
CHICCO® KEYFIT™INFANT CAR SEAT ANATOMY
NOTE: KeyFit™model shown, similar key features exist on all compatible
Chicco®KeyFit™models. (See Compatibility Chart Page 4).
NOTE: Note key features of each product. Instructions refer to these features
by name.
Locking End Cap
Locking End Cap
Hook Sockets
Front Tube
Carry Handle
Carry Handle
Release Handle
Harness
Side Hook
Side Hook
Shelf Feature
8
OMA64B

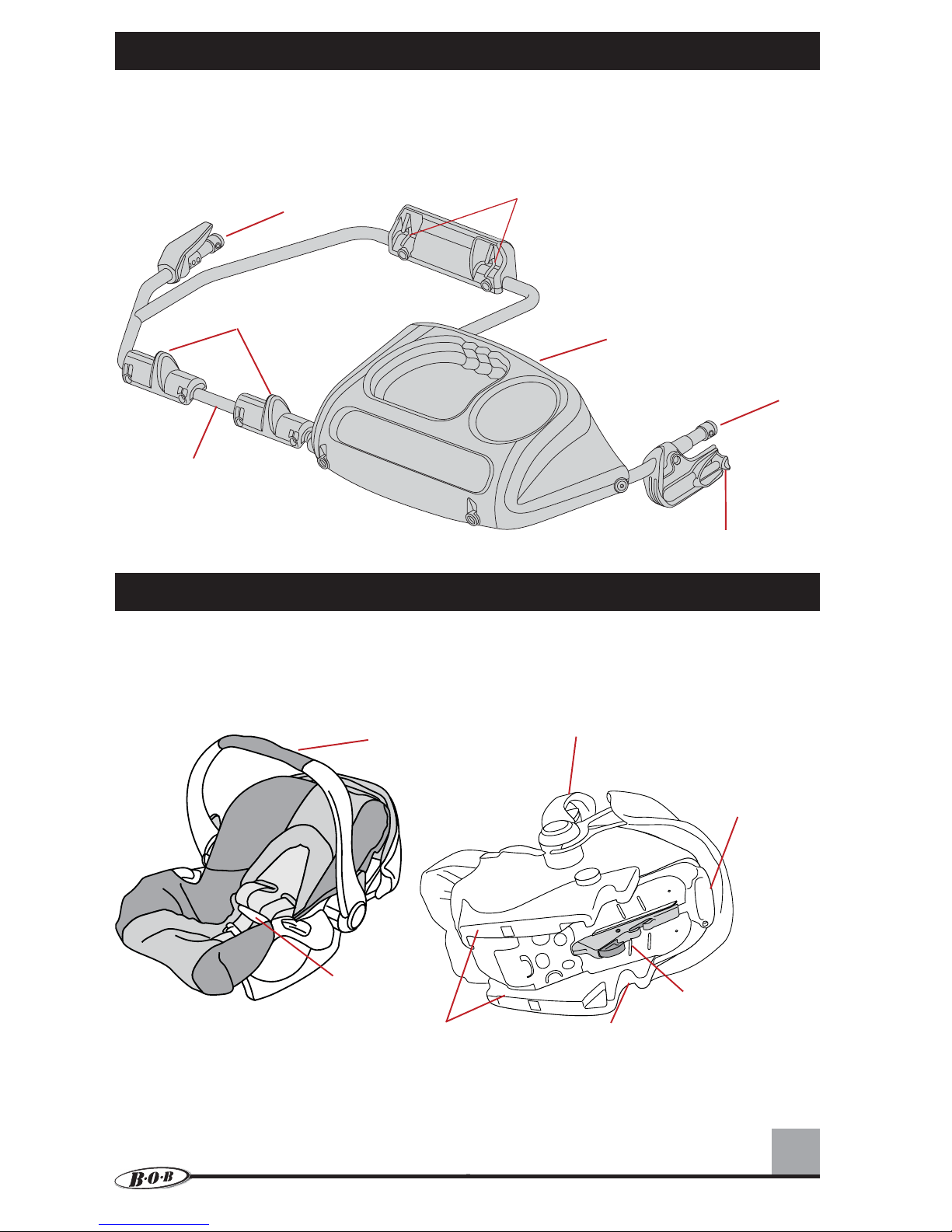

CS1011 ICSA DUALLIE FOR GRACO® ANATOMY
Remove ICSA from packaging. Please dispose of packaging material properly,
recycle if possible.
NOTE: Note key features of each product. Instructions refer to these features
by name.
GRACO® SNUG RIDE®INFANT CAR SEAT ANATOMY
NOTE: Snug Ride®model shown, similar key features exist on all compatible
Graco®Snug Ride®models. (See Compatibility Chart Page 4).
NOTE: Note key features of each product. Instructions refer to these features
by name.
Front Tube
Locking End Cap
Locking End Cap
Snack Tray
Release Guard Door
Front Spacers
Hooks
Carry Handle Carry Handle
Groove Feature
Plastic Hook
Steel Loops
Harness
Release
Handle
9
OMA64B

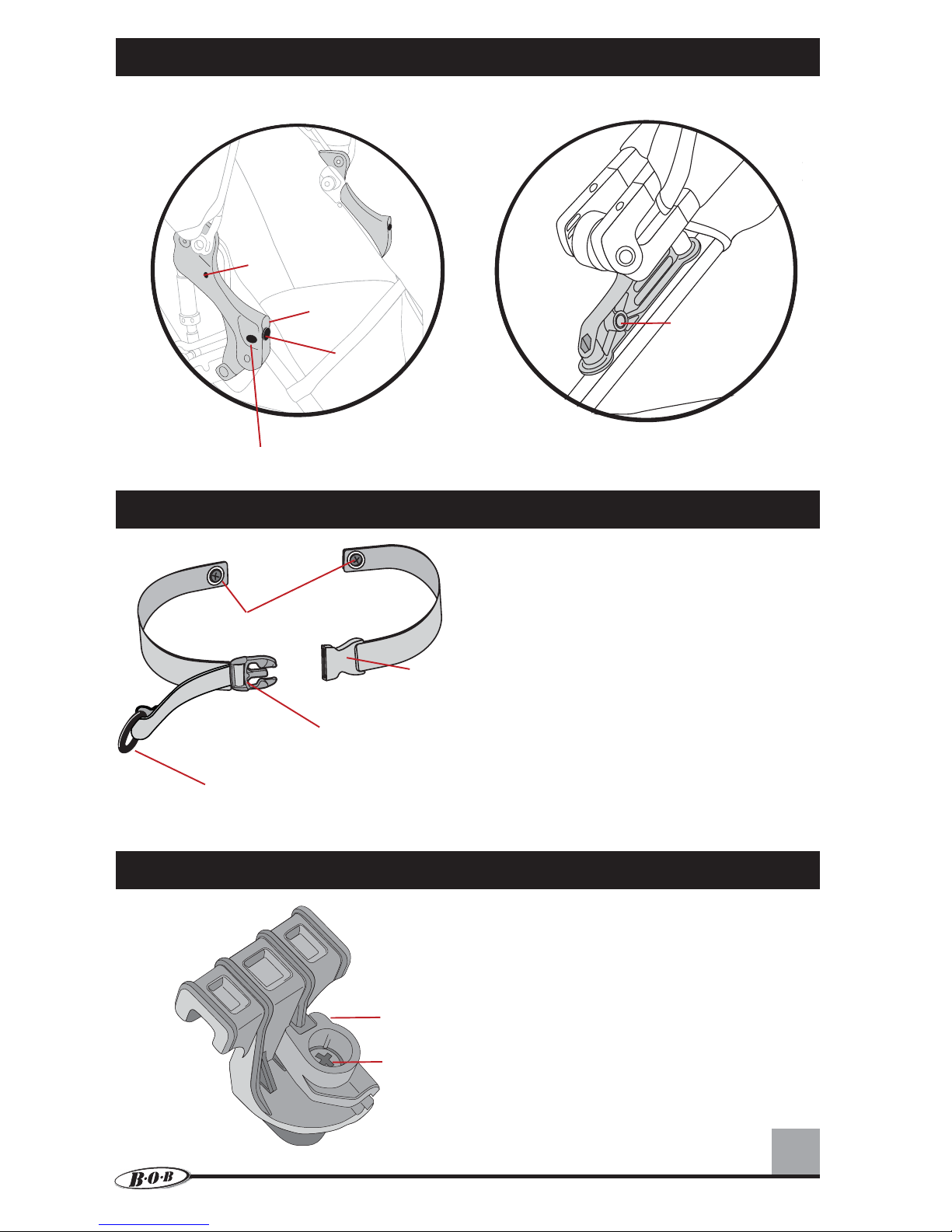

STROLLER ACCESSORY ADAPTER ANATOMY
RESTRAINT BELT ANATOMY
CANOPY CATCH ANATOMY (CS1011 ONLY)
Red Ring
Buckle (Male)
Buckle (Female)
Captured Screws
Receiver
Socket
Cover
Red Release
Button
Anchor Nut
SINGLE & DUALLIE
Anchor Nut
DUALLIE - Center Canopy Mount
Screw
Canopy Catch Clamp
10
OMA64B

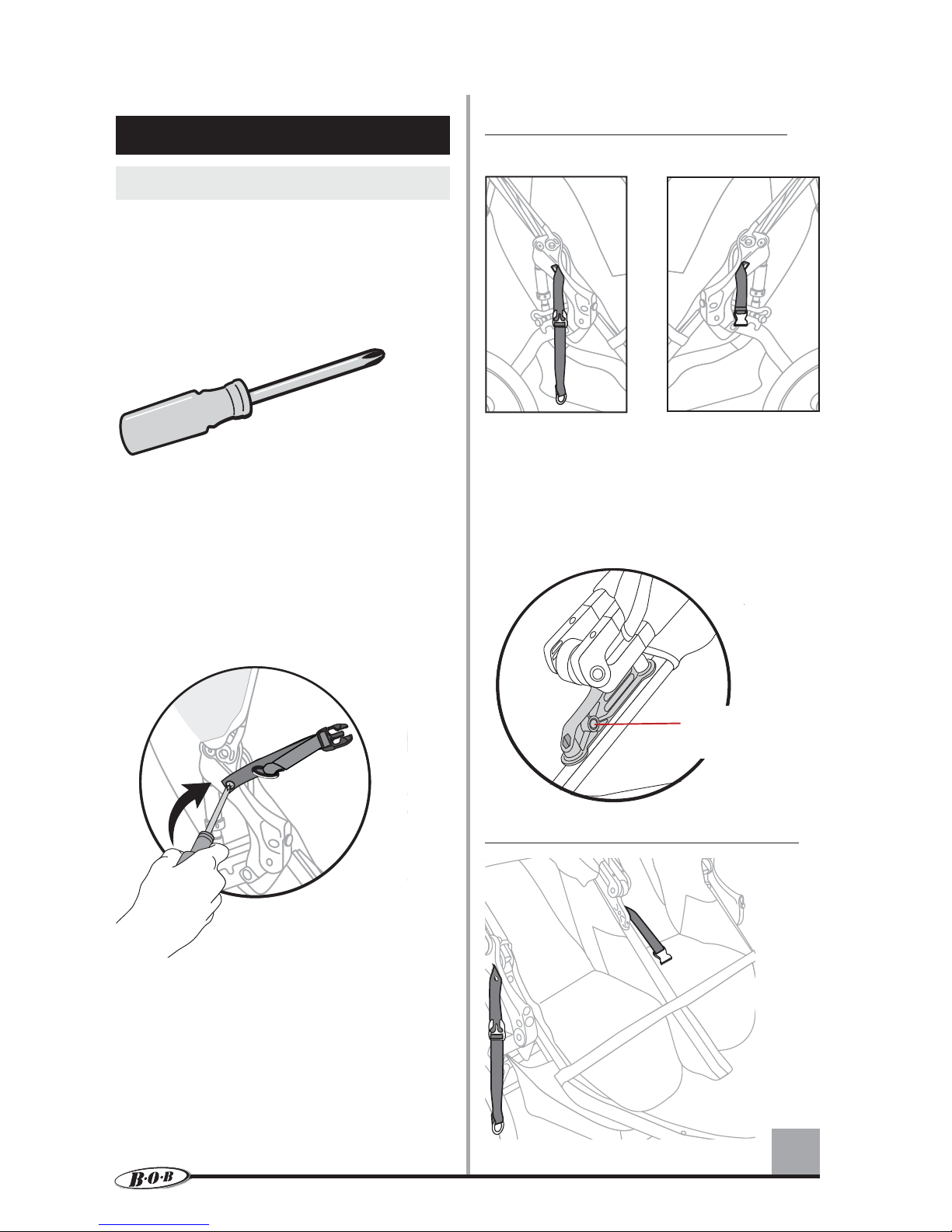

INSTALLING YOUR ICSA
ATTACH RESTRAINT BELT
1. Prepare Stroller
Set parking brake, rotate canopy
towards handlebar. (See stroller
owner’s manual if necessary).
2. Install Restraint Belt with
Screwdriver
Using a screwdriver, thread the
Captured Screw with Buckle (Male)
completely into Anchor Nut on Right
side of stroller Accessory Adapter
and tighten firmly.
NOTE: For Single strollers, thread
the Captured Screw with Buckle
(Female) completely into Anchor Nut
on Left side of Stroller Accessory
Adapter and tighten firmly.
INSTRUCTIONS
Restraint Belt Installed - SINGLE
Right Side Left Side
NOTE: For Duallie strollers, thread
the Captured Screw with Buckle
(Female) completely into Anchor Nut
on Left side of Center Canopy Mount
(center of stroller between seats) and
tighten firmly.
Restraint Belt Installed - DUALLIE
Duallie Center
Anchor Nut
