BluDot Open Plan Small Low Bookcase Quick start guide

Open Plan Small Low Bookcase

DESIGNED IN 2019

ASSEMBLY NOTES | REV 01

NEED A HAND?

844.425.8368 for assistance.

@BLUDOT

We design all our pieces in our Minneapolis studio. Follow

along on Instagram for some sneak peeks into the process.

1 | 844.425.8368 OPEN PLAN SMALL LOW BOOKCASE

8041

An�-�p Bracket

8042

An�-�p Strap

Back Panel

1QTY

Top Panel

1QTY

Shelf Panel

2QTY

Pt. 1217

Pt. 8054

Pt. 8053

QTY

Pt. 1218

Pt. 4022

Front Upright

QTY

Pt. 8041

Pt. 1690

Rear Left Upright

QTY

Pt. 8042

Pt. 9016

Rear Right Upright

QTY

Parts & Hardware

pin holes

Parts & Hardware

SERVICE@BLUDOT.COM |2ASSEMBLY NOTES

PT. 8053 x 4

rear left upright

rear right upright

Step 01

ATTACH BACK PANEL TO REAR UPRIGHTS.

Place metal pins in the rear uprights and align with back

panel piece as shown.

3 | 844.425.8368 OPEN PLAN SMALL LOW BOOKCASE

PT. 1690 x 6PT. 9016 x 1

Step 02

ATTACH TOP PANEL AND SHELF PANELS.

Attach the top panel and shelf panels to the rear uprights

using the provided hardware as shown.

SERVICE@BLUDOT.COM |4ASSEMBLY NOTES

PT. 4022 x 4

PT. 1690 x 6PT. 9016 x 1

Step 03

ATTACH FRONT UPRIGHTS.

Attach the front uprights to the top panel

and shelf panels using the provided

hardware as shown.

Step 04

INSTALL ADJUSTABLE GLIDES.

Install adjustable glides to the bottom of

the uprights as shown. Ensure that the

uprights are level prior to using the product.

5 | 844.425.8368 OPEN PLAN SMALL LOW BOOKCASE

PT. 1217 x 2

8041

An�-�p Bracket

PT. 8041 x 1

Step 05

ATTACH ANTI-TIP BRACKET TO BOOKCASE.

Brackets must be installed to the back rail of the top

panel. In order to prevent damage, it is recommended

that 3/32” pilot holes be drilled prior to installation.

Note: Ensure that the depth of the pilot hole does not

exceed 1/2”. A deeper pilot hole may be visible on the

opposite side.

SERVICE@BLUDOT.COM |6ASSEMBLY NOTES

PT. 1218 x 2PT. 8054 x 2

8041

An�-�p Bracket

PT. 8041 x 1

1” lower than

case top

wall

Step 06

ATTACH ANTI-TIP BRACKET TO WALL.

Wall anchors and fasteners are included for installation

into drywall. Please consult your local hardware

professional to determine the hardware best suited for

your wall type.

If the mounting locations are positioned on a stud, the

installation of wall anchors may be skipped. Instead,

drill 7/64” pilot holes in the marked positions and install

anti-tip bracket with provided hardware as shown.

If the mounting locations are not positioned on a stud,

drill 15/64” holes into the marked locations and press

wall anchors into the drilled holes and install anti-tip

bracket with provided hardware as shown.

BLU DOT DESIGN & MANUFACTURING, INC. DESIGNED IN MINNEAPOLIS, MN

8042

An�-�p Strap

PT. 8042 x 1

Additional Information

CLEAN

Clean with a slightly damp, soft cloth. To remove dirt and fingerprints, use quality cleaners formulated for

wood furniture. Wipe completely dry with a soft cloth in the direction of the wood grain.

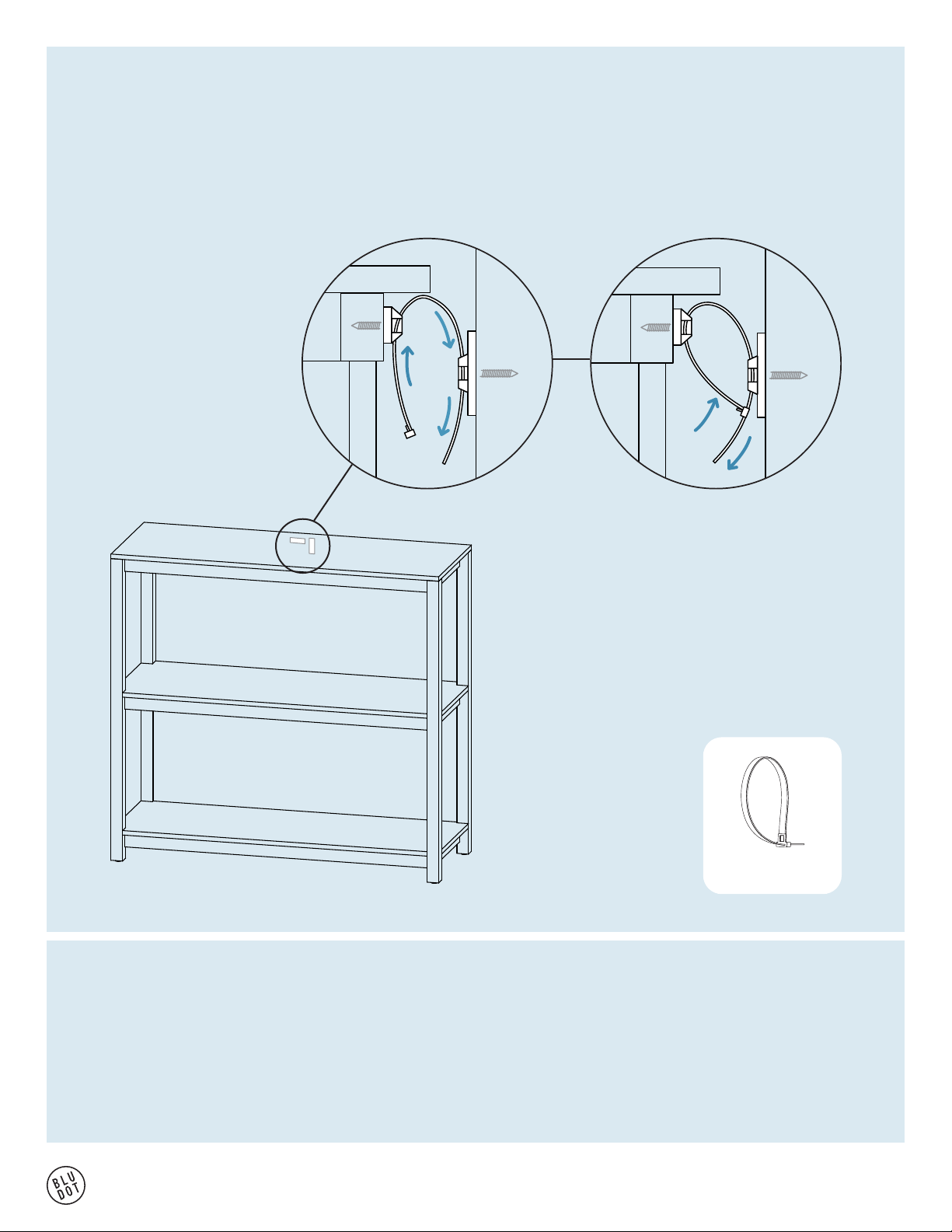

Step 07

SECURE BOOKCASE.

Install and tighten wall strap prior to using the product.
