Blaupunkt THc 542 User manual

Sound

www.blaupunkt.com

THc 542 7 606 336 001

THc 652 7 606 373 000

THc 662 7 606 337 001

THc 652

THc_Asien.indd 1THc_Asien.indd 1 10/2/07 9:43:28 AM10/2/07 9:43:28 AM

All manuals and user guides at all-guides.com

THc Series

ENGLISH

General

We provide a manufacturer guarantee for our products

bought within the European Union. You can view the

guarantee conditions at www.blaupunkt.de or ask for

them directly at:

Blaupunkt GmbH

Hotline

Robert-Bosch-Str. 200

D-31139 Hildesheim

Germany

Safety notes

Please observe the following safety notes

during the installation and connection.

- Disconnect the negative pole of the battery! Observe

the safety notes of the vehicle manufacturer.

- When you drill holes, ensure that you do not damage

any vehicle components.

- Use cable glands for holes with sharp edges.

- Leave ample clearance between the cables and other

harnesses.

- An incorrect installation can result in malfunctions

of the electronic vehicle systems or your car sound

system.

Recycling and disposal

To dispose of the product, please use the

available waste return and collection systems.

Subject to changes!

中文

概觀

我們對在歐洲聯盟內購買的本公司產品提供廠家保證。您

可以在 www.blaupunkt.de 閱讀有關保證條款或直接向

以下地點索取。

Blaupunkt GmbH

Hotline

Robert-Bosch-Str. 200

D-31139 Hildesheim

Germany

安全備註

請在進行安裝和連接時遵守以下安全備註。

- 拆開電池的負極！請遵守汽車廠商的安全備註。

- 當您鑽孔時，請確保您沒有損壞任何一件汽車組件。

- 對於有鋒利邊緣的孔，請使用電纜襯墊。

- 在電纜和線束之間保持足夠的空間。

- 不正確的安裝可以導致電子汽車系統或您的汽車音響系統

發生故障。

循環和處理

丟棄本產品時，請使用現有的廢物回歸和收集系

統。

有待更改。

THc_Asien.indd 2THc_Asien.indd 2 10/2/07 9:43:33 AM10/2/07 9:43:33 AM

All manuals and user guides at all-guides.com

THc Series

한국어한국어

일반일반

유럽공동체(EU) 지역에서 구입한 제품에 대해서는 제

조업체 보증을 제공합니다. 보증 조건에 대한 내용은

www.blaupunkt.de 를 참조하거나 다음 주소로 직접 문

의하십시오.

Blaupunkt GmbH

Hotline

Robert-Bosch-Str. 200

D-31139 Hildesheim

Germany

안전 정보안전 정보

본 기기의 설치 및 구성 중에는 다음의 안전 정

보를 반드시 준수하십시오.

- 배터리의 음극을 분리하십시오! 차량 제조업체의 안전 배터리의 음극을 분리하십시오! 차량 제조업체의 안전

정보를 준수하십시오.정보를 준수하십시오.

- 구멍을 뚫을 때에는 차량의 부품이 손상되지 않도록 주

의하십시오.

- 모서리가 날카로운 구멍의 경우에는 케이블 그랜드를 사

용합니다.

- 케이블과 다른 장치 사이에 넉넉한 여유 공간을 두십시

오.

- 기기를 올바르게 설치하지 않으면 차량의 전기 시스템

또는 카 사운드 시스템이 고장날 수 있습니다.

재활용 및 폐기재활용 및 폐기

제품을 폐기할 때는 적합한 폐기물 분리 수거 체계

를 따르십시오.

예고 없이 변경될 수 있습니다.

THc_Asien.indd 3THc_Asien.indd 3 10/2/07 9:43:34 AM10/2/07 9:43:34 AM

All manuals and user guides at all-guides.com

THc Series

OUT

Tweeter, 超級高頻揚聲器, 트위터트위터

Crossover Network, 交迭網絡, 크로스오버 네트워크크로스오버 네트워크

Input

Woofer

Tweeter

Red +

White +

Output

Installation, 安裝, 설치설치

Red +

–

THc_Asien.indd 4THc_Asien.indd 4 10/2/07 9:43:35 AM10/2/07 9:43:35 AM

All manuals and user guides at all-guides.com

THc Series

Installation, 安裝, 설치설치

Performance THc 652

Max. Power 240 Watt

Nominal Power 60 Watt

Impedance 4 Ohm

Frequency response 50-22.000 Hz

Sensitivity (2,83 V/m) 92 dB

Performance THc 542

Max. Power 200 Watt

Nominal Power 50 Watt

Impedance 4 Ohm

Frequency response 60-22.000 Hz

Sensitivity (2,83 V/m) 92 dB

THc 542

129,5mm/5.1“

49mm/1.9“

43mm/1.7“

71mm/2.8“

Ø 118mm/4.7“

138mm/5.4“

150mm/5.91“

THc 652

159mm/6.3“

59mm/2.3“

46mm/1.8“

71mm/2.8“

127mm/5.0“

143,3mm/5.6“

165mm/6.5“

52mm/2.0“

45mm/1.8“

71mm/2.8“

Ø 143mm/5.6“

155mm/6.1“

THc 662

Performance THc 662

Max. Power 240 Watt

Nominal Power 60 Watt

Impedance 4 Ohm

Frequency response 50-22.000 Hz

Sensitivity (2,83 V/m) 92 dB

THc_Asien.indd 5THc_Asien.indd 5 10/2/07 9:43:36 AM10/2/07 9:43:36 AM

All manuals and user guides at all-guides.com

Service numbers, 服務電話號碼, 서비스 센터 번호서비스 센터 번호

Country: Phone: Fax:

Germany (D) 0180-5000225 05121-49 4002

Austria (A) 01-610 39 0 01-610 393 91

Belgium (B) 02-525 5444 02-525 5263

Denmark (DK) 44 898 360 44-898 644

Finland (FIN) 09-435 991 09-435 99236

France (F) 01-4010 7007 01-4010 7320

Great Britain (GB) 01-89583 8880 01-89583 8394

Greece (GR) 210 94 27 337 210 94 12 711

Ireland (IRL) 01-46 66 700 01-46 66 706

Italy (I) 02-369 6331 02-369 6464

Luxembourg (L) 40 4078 40 2085

Netherlands (NL) 00 31 24 35 91 338 00 31 24 35 91 336

Norway (N) 64 87 89 60 64 87 89 02

Portugal (P) 2185 00144 2185 00165

Spain (E) 902 52 77 70 91 410 4078

Sweden (S) 08-7501850 08-7501810

Switzerland (CH) 01-8471644 01-8471650

Czech. Rep. (CZ) 02-6130 0446 02-6130 0514

Hungary (H) 76 511 803 76 511 809

Poland (PL) 0800-118922 022-8771260

Turkey (TR) 0212-335 06 71 0212-3460040

USA (USA) 800-950-2528 708-865 5296

Brasil

(Mercosur) (BR) 0800 7045446 +55-19 3745 2773

Malaysia

(Asia Paciﬁc) (MAL) +604-6382 474 +604-6413 640

09.07 CM-AS/SCS1 - 8 622 405 450

Blaupunkt GmbH

Robert-Bosch-Str. 200

D-31139 Hildesheim

THc_Asien.indd 8THc_Asien.indd 8 10/2/07 9:43:37 AM10/2/07 9:43:37 AM

All manuals and user guides at all-guides.com

1CM-AS/SCS1 - 8 622 405 388 - 02.07

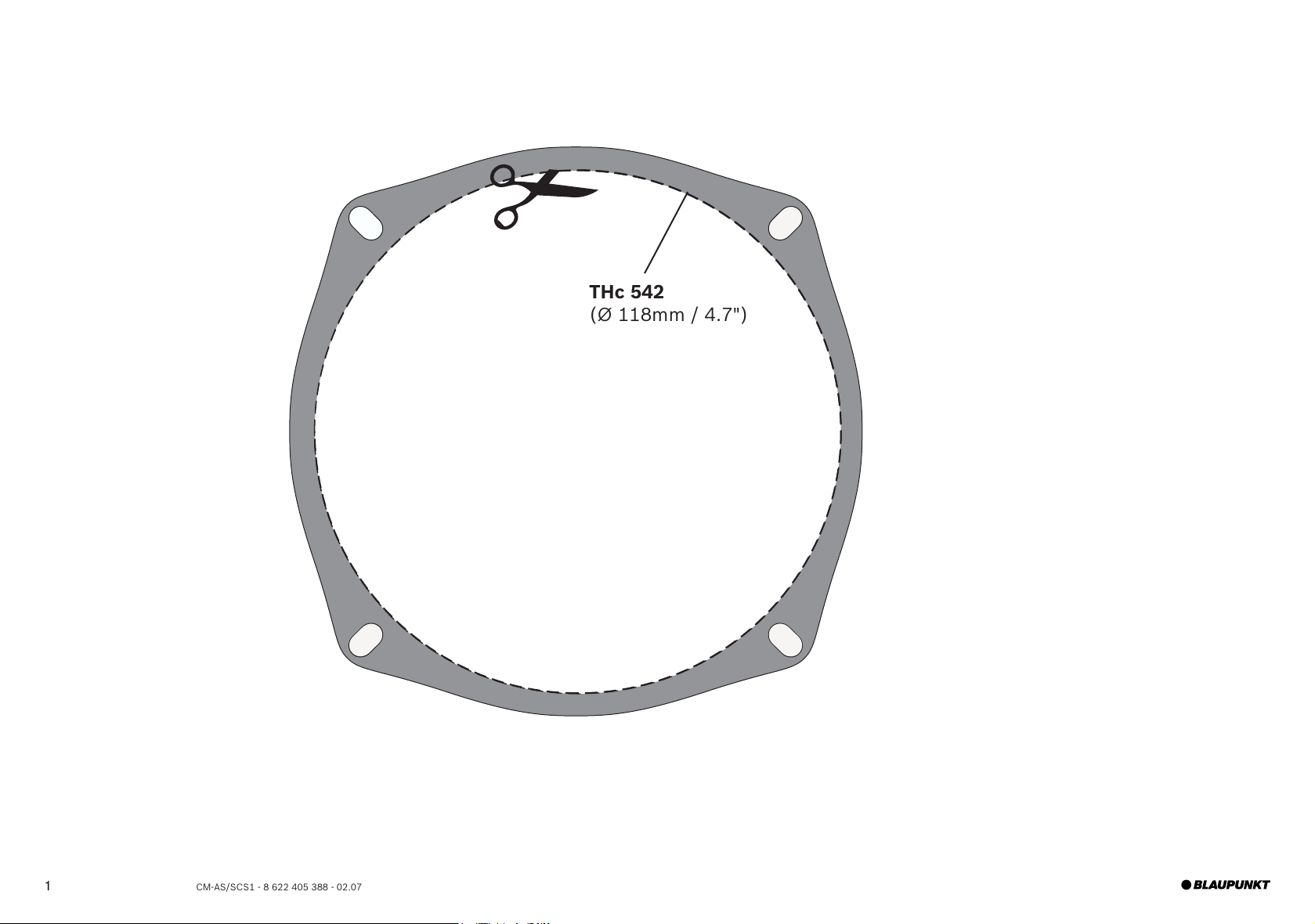

THc 542

(Ø 118mm / 4.7")

Bohrschabl_THc.indd 1Bohrschabl_THc.indd 1 02.10.2007 11:38:45 Uhr02.10.2007 11:38:45 Uhr

All manuals and user guides at all-guides.com

THc 662

(Ø 143mm / 5.6")

THc 542

(Ø 118mm / 4.7")

Bohrschabl_THc.indd 2Bohrschabl_THc.indd 2 02.10.2007 11:38:46 Uhr02.10.2007 11:38:46 Uhr
