BLADEZ BLADEZ T4 PRO Setup guide

ILLUSTRATED PARTS MANUAL

Model Number:

Revised 12-08-06

BLADEZ T4 PRO

TREADMILL

Bladez Corp. 20155 Ellipse Foothill Ranch, CA 92610 Phone: (949)206-8152 Fax: (949) 206-0013

www.ebladez.com Email: [email protected]

BLADEZ T4 PRO

TREADMILL

PARTS INFORMATION

www.ebladez.com Email:[email protected]

Page 1

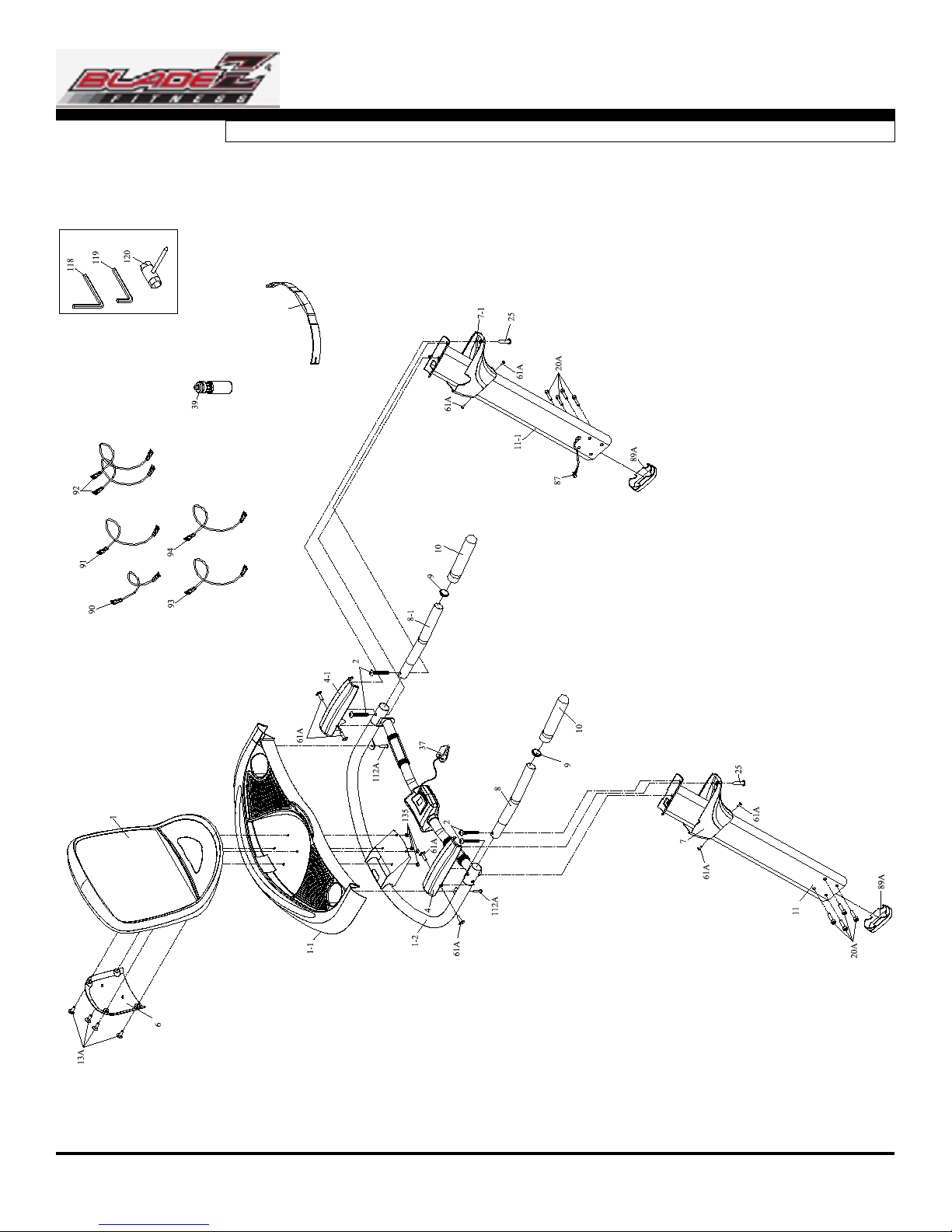

• FIGURE 1

132

BLADEZ T4 PRO

TREADMILL

PARTS INFORMATION

www.ebladez.com Email:[email protected]

Page 2

• FIGURE 2

ITEM # PART # DESCRIPTION TOTAL QTY

1-1 T4P001 Computer Console 1

1-1-1 T4P001-1 Bottle Holder 1

1-1-2 T4P001-2 Bottle Holder Set 1

1-2 T4P002 Bolt K-299 4

1-4 T4P004 Handrail Upper Cover (L) 1

1-4-1 T4P004-1 Handrail Upper Cover (R) 1

1-6 T4P006 Console Rear Cover 1

1-7 T4P007 Handrail Lower Cover (L) 1

1-7-1 T4P007-1 Handrail Lower Cover (R) 1

1-8 T4P008 Handle Pipe (L) 1

1-8-1 T4P008-1 Handle Pipe (R) 1

1-9 T4P009 Curved Pipe Cap 1-1/2”x1.5t 2

1-10 T4P010 PVC Foam Tube 2

1-11 T4P011 Upright Pipe (L) 1

1-11-1 T4P011-1 Upright Pipe (R) 1

1-13A T4P013A Bolt M4xP0.7x8 4

1-20A T4P020A Bolt K-415 8

1-25 T4P025 Bolt 5x25 2

1-37 T4P037 Safety Key 1

1-39 T4P039 Water Bottle 1

1-61A T4P061A Bolt M5xP0.8x15 8

1-87 T4P087 Controller Cable 1

1-89A T4P089A Elliptical Pipe Cap 2

1-90 T4P090 Cable (yellow, green) 14AWGx130mmx1T1R 1

1-91 T4P091 Cable (white) 14AWGx90mmx2T 1

1-92 T4P092 Cable (black) 14AWGx90mmx2T 2

1-93 T4P093 Cable (white) 14AWGx170mmx2T 1

1-94 T4P094 Cable (black) 14AWGx170mmx2T 1

1-112A T4P112 Bolt 4x12 2

1-118 T4P118 Wrench 6mm（80mmx80mm（ 1

1-119 T4P119 Wrench 5mm 1

1-120 T4P120 Screwdriver 1

1-132 T4P132 Chest Belt 1

1-135 T4P135 Nut M6xP1.0 4

BLADEZ T4 PRO

TREADMILL

PARTS INFORMATION

www.ebladez.com Email:[email protected]

Page 3

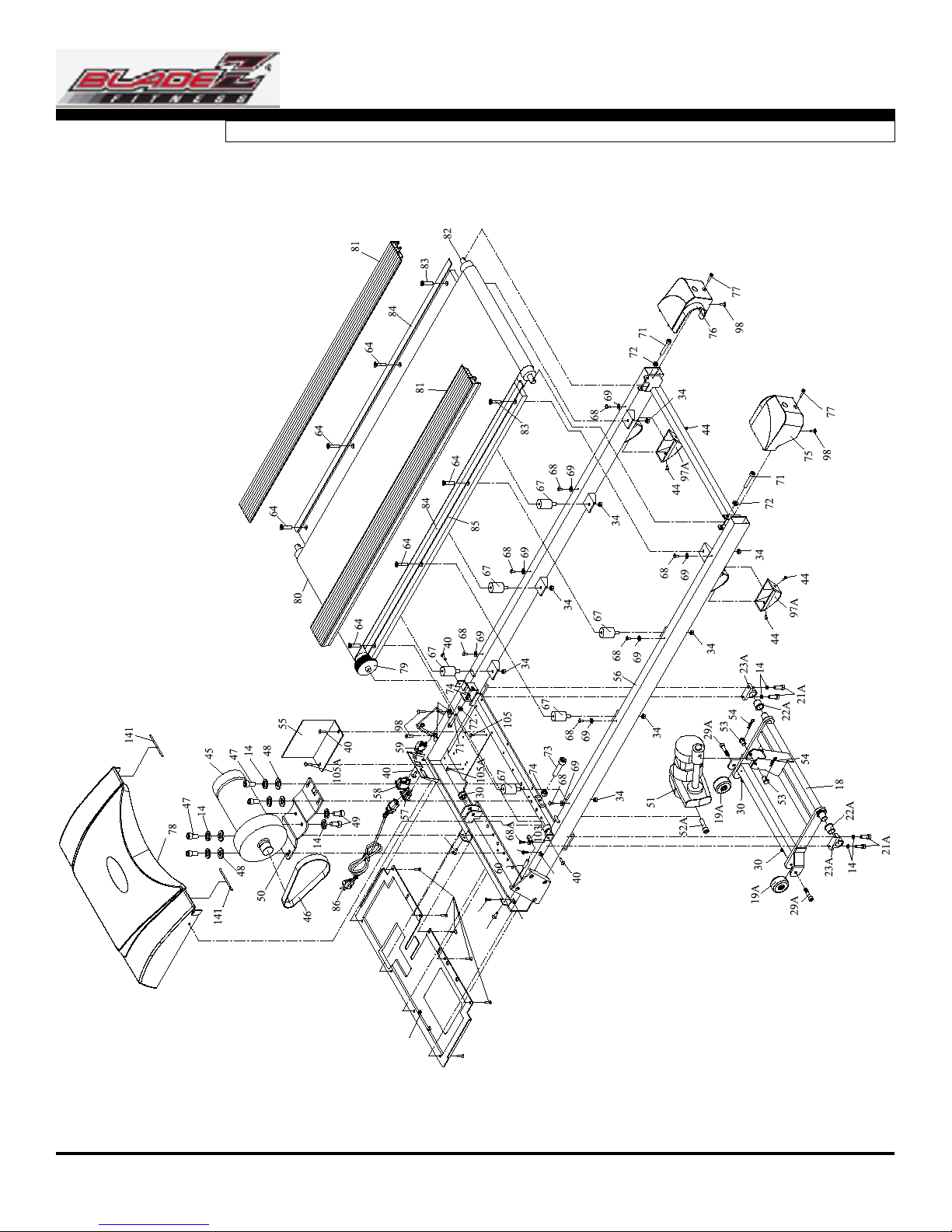

• FIGURE 3

88-1

BLADEZ T4 PRO

TREADMILL

PARTS INFORMATION

www.ebladez.com Email:[email protected]

Page 4

•FIGURE 4

ITEM # PART # DESCRIPTION TOTAL QTY

2-14 T4P014 Spring Washer M8 10

2-18 T4P018 Incline Frame 1

2-19A T4P019A Roller 60x10x30t 2

2-21A T4P021A Bolt M8xP1.25x25 4

2-22A T4P022A Plastic Sleeve 2

2-23A T4P023A Incline Frame Fixity 2

2-29A T4P029A Bolt M10xP1.5x60 2

2-30 T4P030 Nut M10xP1.5 3

2-34 T4P034 Nut M8xP1.25 8

2-40 T4P040 Bolt M5xP0.8x10 6

2-43 T4P043 Motor Cover (lower) 1

2-44 T4P044 Bolt M6xP1.0x10 13

2-45 T4P045 Motor 1

2-46 T4P046 Ribbed Belt 1

2-47 T4P047 Bolt M8xP1.25x20 4

2-48 T4P048 Washer 8x19x3.0t 4

2-49 T4P049 Bolt M8xP1.25x15 2

2-50 T4P050 Motor Mounting Board 1

2-51 T4P051 Incline Motor 1

2-52A T4P052A Bolt M10xP1.5x40 1

2-53 T4P053 U-Shaped Pin 2

2-54 T4P054 R pin 10x2.0 2

2-55 T4P055 Controller 1

2-56 T4P056 Frame 1

2-57 T4P057 Power Socket 1

2-58 T4P058 Power Switch 1

2-59 T4P059 Circuit Breaker 1

2-60 T4P060 Sensor (round) 1

2-64 T4P064 Bolt M8xP1.25x35 6

2-67 T4P067 Cushion 6

2-68 T4P068 Bolt M4xP0.7x10 8

2-68A T4P068A Bolt M4xP0.7x15 1

2-69 T4P069 Deck Fixing Plastic 8

2-71 T4P071 Bolt M8xP1.25x55 3

2-72 T4P072 Washer 8x16x1.5t 3

2-73 T4P073 Bolt M8xP1.25x45 1

2-74 T4P074 Nut M8xP1.25 2

2-75 T4P075 Rear Adjustment Box (L) 1

2-76 T4P076 Rear Adjustment Box (R) 1

2-77 T4P077 Bolt M4xP0.7x20 2

2-78 T4P078 Upper Cover 1

2-79 T4P079 Front Roller Set 1

2-80 T4P080 Belt 1

BLADEZ T4 PRO

TREADMILL

PARTS INFORMATION

www.ebladez.com Email:[email protected]

Page 5

• FIGURE 5

ITEM # PART # DESCRIPTION TOTAL QTY

2-81 T4P081 Deck 2

2-82 T4P082 Rear Roller Set 1

2-83 T4P083 Bolt M8xP1.25x40 2

2-84 T4P084 Shock-Absorbing Foam 2

2-85 T4P085 Running Board 1

2-86 T4P086 Power Cable 1

2-88 T4P088 Cable Fixity UC-0 2

2-88-1 T4P088-1 Cable Fixity UC-1 2

2-97A T4P097A Rubber Pad 2

2-98 T4P098 Bolt M4xP0.7x16 6

2-103 T4P103 Sensor Fixity 1

2-105 T4P105 Bolt M5xP0.8x8 1

2-105A T4P105A Bolt M5xP0.8x10 2

2-141 T4P141 Sound Insulation Pad 2

BLADEZ T4 PRO

TREADMILL

PARTS INFORMATION

www.ebladez.com Email:[email protected]

Page 6

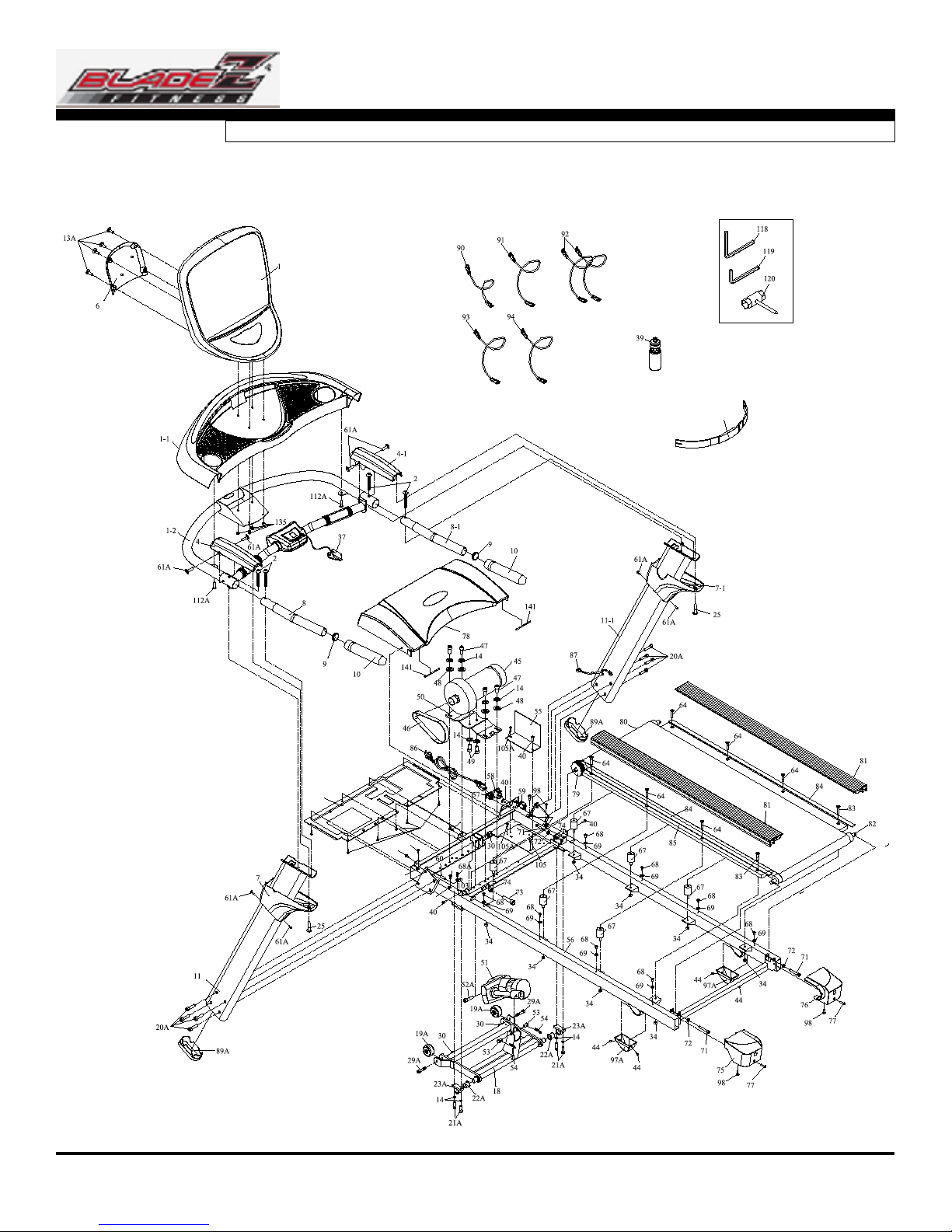

• FIGURE 6

132

BLADEZ T4-T6 PRO TREADMILL

88-1
