BENE LEVEL User manual

https://build.bene.com/

FR INSTRUCTIONS DE MONTAGE

EN ASSEMBLY INSTRUCTIONS

DE MONTAGEANLEITUNG

LEVEL & LEVEL TWIN

Aperçu du produit ........................... 3

Conditionnement ............................. 4

Montage ......................................... 5

Mise à niveau................................ 13

Fonction de base........................... 14

Option .......................................... 15

Réglage en hauteur........................ 45

Instructions d'entretien. Certificats.. 48

SOMMAIRE

Product overview ............................. 3

Included in delivery ......................... 4

Assembly ........................................ 5

Levelling....................................... 13

Basic function............................... 14

Option .......................................... 15

Height adjustment......................... 45

Cleaning instructions. Certificates ... 47

CONTENT

Produktübersicht ...............................3

Lieferzustand ....................................4

Montage ...........................................5

Nivellierung ....................................13

Grundfunktion.................................14

Optionen.........................................15

Höhenverstellung.............................45

Pflegehinweise. Zertifikate................46

INHALT

APERÇU DU PRODUIT

- sans réglage en hauteur (740mm)

- de la hauteur par rastomat (620 - 860mm)

- réglage en hauteur par manivelle (620 - 860mm)

LEVEL avec manivelle, charge maximale : 75kg

Chargez toujours les tables uniformément.

- sans réglage en hauteur (740mm)

- de la hauteur par rastomat (620 - 860mm)

- réglage en hauteur par manivelle (620 - 860mm)

PRODUCT OVERVIEW

- without height adjustment (740mm)

- height adjustment by rastomat (620 - 860mm)

- height adjustment by crank (620 - 860mm)

LEVEL with crank, maximum load: 75 kg

Always load tables evenly.

- without height adjustment (740mm)

- height adjustment by rastomat (620 - 860mm)

- height adjustment by crank (620 - 860mm)

PRODUKTÜBERSICHT

LEVEL

- ohne Höhenverstellung (740mm)

- Höhenverstellung mittels Rastomat (620 - 860mm)

- Höhenverstellung mittels Kurbel (620 - 860mm)

LEVEL mit Kurbel, maximale Belastung: 75 kg

Tische immer gleichmäßig beladen.

LEVEL TWIN

- ohne Höhenverstellung (740mm)

- Höhenverstellung mittels Rastomat (620 - 860mm)

- Höhenverstellung mittels Kurbel (620 - 860mm)

CONDITIONNEMENT

Colis « Plateau de table avec cadre » Colis « Piètement » Colis « goulotte horizontale »

Uniquement pour une profon-

deur de 600 / 700 et pour la

forme de plateau côté utilisateur.

Colis « socle combiné »,

possible uniquement LEVEL TWIN

INCLUDED IN DELIVERY

Colli “desktop with frame” Colli “desk ends” Colli “cable tray”

Only with a depth of 600/700

and user-side desktop shape.

Colli ”combination leg”,

only for LEVEL TWIN

LIEFERZUSTAND

Colli ”Tischplatte mit Rahmen” Colli ”Tischwange” Colli ”Kabelwanne”

Nur bei Tiefe 600/700 und bei

nutzerseitigen Plattenform.

Colli ”Kombifuß”,

nur bei LEVEL TWIN

1 1a

90°

D990974

GWSR-FLIS-VN-M6/12

Remarque : toujours installer les piètements avant la goulotte.

Fixer les piètements

Note: Always mount the table ends before the cable tray.

Secure the table ends

Hinweis: Tischwangen immer vor der Kabelwanne montieren.

Tischwangen fixieren

MONTAGE LEVEL

ASSEMBLY LEVEL

MONTAGE LEVEL

2 3

D990429

GWSR-ZKIS-VZ-M6/40

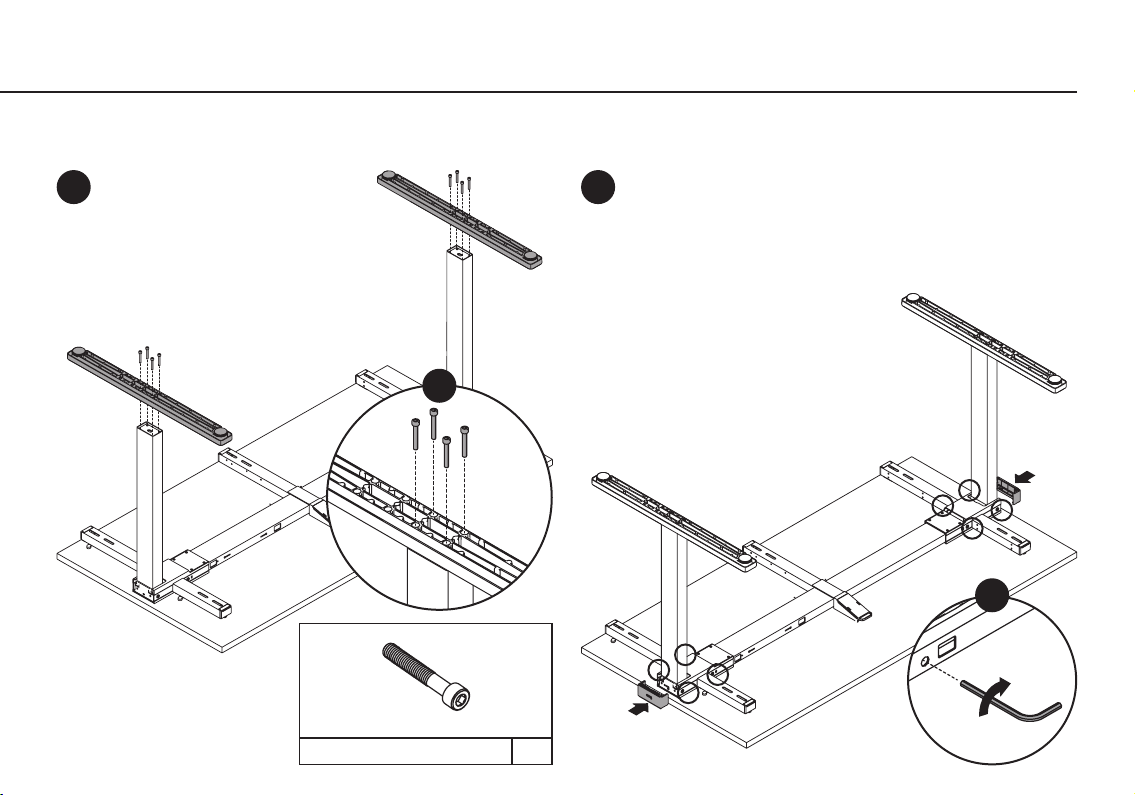

Installer l’embase de piètement

(fixer les vis avec 10 Nm maxi.)

Mount the cantilever leg (secure

with screws with max. 10 Nm)

Fußausleger montieren

(Schrauben fixieren max. 10 Nm)

Resserrer les vis à la main (max. 7,5 Nm)

et monter les caches.

Tighten screws by hand (with no more than 7.5 Nm)

and mount covers

Schrauben händisch nachziehen (max. 7,5 Nm)

und Abdeckungen montieren

MONTAGE LEVEL

ASSEMBLY LEVEL

MONTAGE LEVEL

1 1a

90°

D990974

GWSR-FLIS-VN-M6/12

Remarque : toujours installer les piètements avant la goulotte.

Fixer les piètements

Note: Always mount the table ends before the cable tray.

Secure the table ends

Hinweis: Tischwangen immer vor der Kabelwanne montieren.

Tischwangen fixieren

MONTAGE LEVEL (RASTOMAT)

ASSEMBLY LEVEL (RASTOMAT)

MONTAGE LEVEL (RASTOMAT)

2 3

D990429

GWSR-ZKIS-VZ-M6/40

Installer l’embase de piètement

(fixer les vis avec 10 Nm maxi.)

Mount the cantilever leg (secure

with screws with max. 10 Nm)

Fußausleger montieren

(Schrauben fixieren max. 10 Nm)

Resserrer les vis à la main (max. 7,5 Nm)

et monter les caches.

Tighten screws by hand (with no more than 7.5 Nm)

and mount covers

Schrauben händisch nachziehen (max. 7,5 Nm)

und Abdeckungen montieren

MONTAGE LEVEL (RASTOMAT)

ASSEMBLY LEVEL (RASTOMAT)

MONTAGE LEVEL (RASTOMAT)

1 1b

D990974

GWSR-FLIS-VN-M6/12

MONTAGE LEVEL (MANIVELLE)

ASSEMBLY LEVEL (CRANK)

MONTAGE LEVEL (KURBEL)

2 2a

90°

D990974

GWSR-FLIS-VN-M6/12

Remarque : toujours installer les piètements avant la goulotte.

Fixer les piètements

Note: Always mount the table ends before the cable tray.

Secure the table ends

Hinweis: Tischwangen immer vor der Kabelwanne montieren.

Tischwangen fixieren

MONTAGE LEVEL (MANIVELLE)

ASSEMBLY LEVEL (CRANK)

MONTAGE LEVEL (KURBEL)
