Belkin F9K1117V2 User manual

AC900 DB Wi-Fi® Dual-Band AC+ Gigabit Router

USER MANUAL

8820-01287 Rev. A00

F9K1117V2

TABLE OF CONTENTS

Getting Started

What’s in the Box

Initial Setup

Advanced Tools & Settings

The Belkin Router Manager

Adding Computers to Your Network

Manually Set Up Your Internet Connection

Additional Capabilities

Adding USB Devices

USB Print and Storage Manager

Guest Access

Media Server

Website Filters by Norton

IntelliStream QoS

IPv6 Configuration

Getting to Know Your Router

Front Panel

Back Panel

Technical Details

Technical Features

System Requirements

Using Your Router

Enabling Auto Update on Your Router

Updating Your Router via Your System Tray or Menu Bar

Updating the Router’s Firmware via the Web Interface

Resetting the Router

Restoring your Router to Factory Defaults

Restoring the Router to Default Settings Using the Web Interface

Troubleshooting, Support, and Warranty

Troubleshooting

Technical Support

Belkin International, Inc., Limited 2-Year Product Warranty

Regulatory Information

FCC Statement

Getting Started

What’s in the Box

AC900 DB Wi-Fi Dual-Band AC+ Gigabit Router

Ethernetcable(attachedtorouter)

Powersupply(attachedtorouter)

Networkinformationcard(attachedtorouter)



Quick Setup Guide

Initial Setup

WheretoPlaceYourRouter

Forthebestresults,placetheRouternexttoyourmodeminan

openlocationawayfromlargemetalobjectsandmagnetssuchas

thosefoundinspeakers.RaisingtheRouterabovefloorlevelcan

improvethestrengthofyourwirelesssignal.

HowtoSetItUp

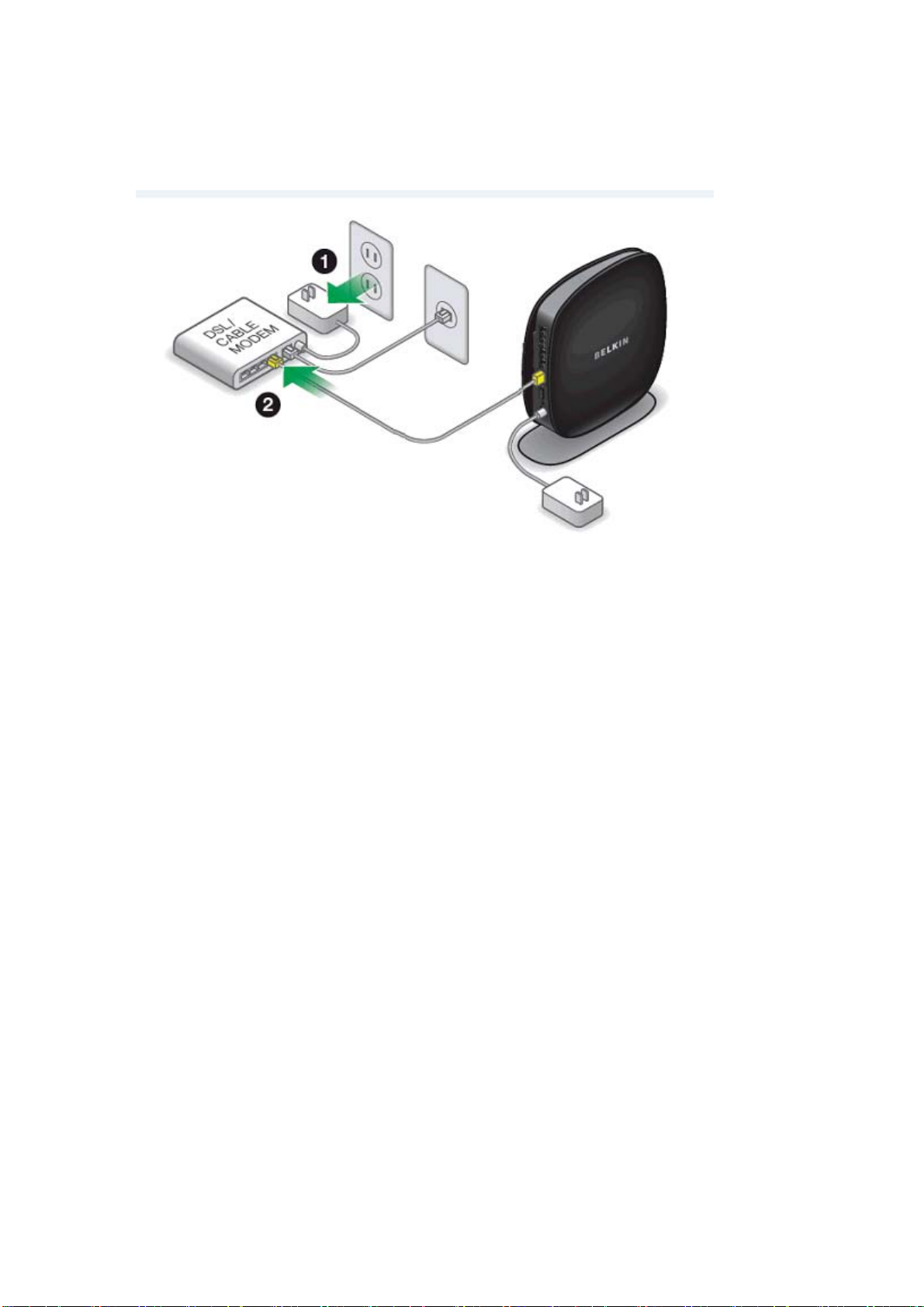

Connect Your AC900 DB Router

1. Turn off your modem by

disconnecting its power supply.

2. Connect your Router to your

modem using the cable (already attached).

[You can get the actual artwork from the N900DB QIG “QIG_F9K1104_8830-06656_N900.pdf”]

<diagram needs to be updated. Yellow port is the 5th port down (currently it is the 1st

port). Also, new belkin branding on the side, suggest saving new image as a different file

name>]]

3. Power up your modem by

plugging in its power supply.

4. Power up your Router by

plugging in its power supply.

[You can get the actual artwork from the N900DB QIG “QIG_F9K1104_8830-06656_N900.pdf”]

<diagram needs to be updated. Yellow port is the 5th port down (currently it is the 1st

port). Also, new belkin branding on the side, suggest saving new image as a different file

name>]]

YoumayneedtoenterausernameandpasswordprovidedbyyourISP.

Thisusernameandpasswordislikelytobefoundonmaterialsthatcame

fromyourISPwhenyousignedupforservice.Ifnecessary,youmayneed

tocontactyourISPtoretrieveyourusernameandpassword.

IfyouhaveastaticIPaddress,youmayneedtoenteradditional

informationalsoprovidedbyyourISP.

Ifyourcomputerdoesn’thaveawirelessadapter,orthesetupsoftwareis

unabletocontrolit,youmaybeaskedtoconnectyourcomputertothe

Routerwithanetworkcable.

Advanced Tools & Settings

[SCREENSHOTOFADVANCEDMENUsetupadvanced2.png]

Aftertheinitialsetupiscomplete,youhavetheoptiontochangesettingslike

yournetworkname,securitytype,andpassword.Tomakethesechangesand

others,clickontheAdvancedToolsiconattheCDSetupmenuandselectone

ofthefollowingsettingsthatyouwouldliketochange:

NetworkName&Security

Personalizeyournetworkname(SSID),password,andstrengthof

wirelesssecurity.

InternetServiceProvider&LoginSettings

HaveyoumovedorchangedInternetServiceProviders?Ifyou’dliketo

changethesesettingswithoutrunningthroughthesetupprocessagain,

thisistheplace.

The Belkin Router Manager

[N600SCREENSHOTOFTRAYAPPMENU(TBD)]

TheBelkinRouterManagerappearsinyoursystemtray(Windows)ormenubar

(Mac).ItsiconindicatesthecurrentstatusofyourRouterandalsoallowsyouto

accessyourRouter’ssettingstomakechanges.Italsoprovidesquickaccessto

softwarethatcamebundledwithyourRouter.

ToaccesstheRoutersettings,clickontheiconandselectfromthemenuthat

appears.

ThestatusofyourRouterisshownbytheBelkinRouterManagericon,which

closelymimicsthelightonthefrontoftheRouter.

Blue: You are connected to your Belkin Router and it is connected to the Internet.

Amber: You are connected to your Belkin Router, but it is not connected to the

Internet.

Adding Computers to Your Network

Wirelessdevicessuchascomputers,networkprinters,andgamingsystemscan

connecttoyourRouterwithafewsimplesteps.

Manual Setup

If you know what sort of Internet service you have, you might try a

manual setup. For this, you will need a Wi-Fi-enabled smartphone,

tablet, or computer.

Connect to Your Router

Retrieve the network ID card from the foot of your new Belkin

Router.

[Diagram of bottom of the router showing service card – can be

obtained from “Tested QIG 2011 07 14.pdf” provided]

Can’t find the card? The default network name and password are also printed on the foot of

the Router.

Use your computer, tablet, or smartphone to connect to the

wireless network shown on the network ID card.

[Diagram of connecting to SSID screenshot – needs creating, take

direction from “Tested QIG 2011 07 14.pdf” provided]

When requested, please enter the password (security key) provided

on the card.

Take a moment to look at the light on the front of the Router. If it

is solid blue, your Router was able to connect to the Internet

automatically.

[Image of front of the router with blue LED (needs creating)]

If not, please proceed to “Manually Set Up Your Internet

Connection” on page XX.

UsingtheWPSButton

1) StartWPSPushButtonConnection(WPSPBC)onyour

computerorotherWi‐Fidevicethatyouwouldliketo

connectwirelesslytoyourRouter.Oftentherewillbea

buttonforthispurposeinsoftwarethatcamewiththedevice,

oraphysical“WPS,”“PBC,”or“Security”buttononthedevice

itself.

2) Withintwominutes,presstheWPSbuttononyourRouter

andholdfortwoseconds.

TheWPSlight(smalllightaboveWPSbutton)willblinkblue

whileitlistensforyourWi‐Fidevice.Onceaconnectionis

established,thelightwillturnblueandthengoout.Ifa

connectionisnotestablished,thelightwillblinkamber.You

mayrepeattheprocesstotryagain.

YoucanrepeatthisprocessforeachWPS‐enableddeviceyou’d

liketoaddtoyournetwork.

Manually Set Up Your Internet

Connection

Use a browser to visit http://router/

The router homepage should appear.

[Image of browser showing the router homepage – see “Tested

QIG 2011 07 14.pdf” provided for guideline]

You can also try visiting http://192.168.2.1/

The status of your Internet connection is shown in the

upper right corner of the router homepage. If after a few

moments it says “Connected,” you’re done! You can surf

the Internet.

[Image of browser showing “connected” homepage – see “Tested QIG 2011 07

14.pdf” provided for guideline]

If not, select “Connection Type” from the menu on the left.

[Zoomed in image of the “Connection Type” option in the

homepage – see “Tested QIG 2011 07 14.pdf” provided for

guideline]

If a password screen appears, press “Submit.”

[Image of the login screen showing the submit button – see

“Tested QIG 2011 07 14.pdf” provided for guideline]

Dynamic Connection

Cable and fiber customers generally require a dynamic

connection. Some DSL customers require a PPPoE

connection. Let’s try dynamic first. Select “Dynamic” from the

menu that appears and press “Next.”

[Image of the connection type screen with dynamic

selected – see “Tested QIG 2011 07 14.pdf” provided for

guideline]

A service name is generally not required. Hit “Apply Changes.”

The Router will restart.

[Image of the service name page – see “Tested QIG 2011 07

14.pdf” provided for guideline]

If after a few minutes your Internet Status says “Connected,”

you’re done! You can surf the Internet.

[Image of browser showing “connected” homepage – see “Tested QIG 2011 07

14.pdf” provided for guideline]

If these steps do not work, try restarting your modem and

repeating the process.

If not, we’ll try a PPPoE connection next.

PPPoE Connection

Some DSL customers require a PPPoE connection. Select

PPPoE this time and press “Next.”

[Image of the connection type screen with PPPoE

selected – see “Tested QIG 2011 07 14.pdf” provided for

guideline]

Enter the username and password supplied by your Internet

provider and click “Apply Changes.” Ignore the other fields. The

Router will restart.

[Image of the PPPoE page – see “Tested QIG 2011 07 14.pdf”

provided for guideline]

If after a few minutes your Internet Status says “Connected,”

you’re done! You can surf the Internet.

[Image of browser showing “connected” homepage – see “Tested QIG 2011 07

14.pdf” provided for guideline]

If these steps do not work, try restarting your modem and

repeating the process.

[Be sure to use the correct icons, see the QIG F9K1104_8830-06656_N900.pdf for an

idea]

Connect Your Wireless Devices

iOS

(iPhone, iPad, and iPod touch)

1. Open the Settings app and select the Wi-Fi menu item.

2. Select your wireless network from the list that appears there. If

asked to do so, enter the network password.

Mac OS® X

Your Mac® provides a menu of available wireless networks at the right

end of the menu bar.

1. Click on the icon showing wireless waves.

2. Select your wireless network from the list that appears there. If

asked to do so, enter the network password.

Android

(phones and tablets)

1. Open the Settings app and select Wireless and Network.

2. From there, select Wi-Fi to see the list of available networks.

3. Select your wireless network from the list. If asked to do so, enter

your network password

Windows® 7

Your computer provides a menu of available wireless networks at the

right end of the task bar.

1. Left-click on the icon that looks like signal strength bars.
