Belkin F5D9630au4A Reference guide
Self Help Guide
If you still require further assistance Call: 1300 554 780
contact Belkin Technical Support Visit: www.belkin.com/support
TSG xxx011a-rev1
Page 1 of 59
IMPORTANT!
When setting up Wireless
Encryption on your router, please
perform the steps outlined in this
guide on a PC directly connected
to the router - NOT from your
wireless PC.
Wireless Encryption Guide

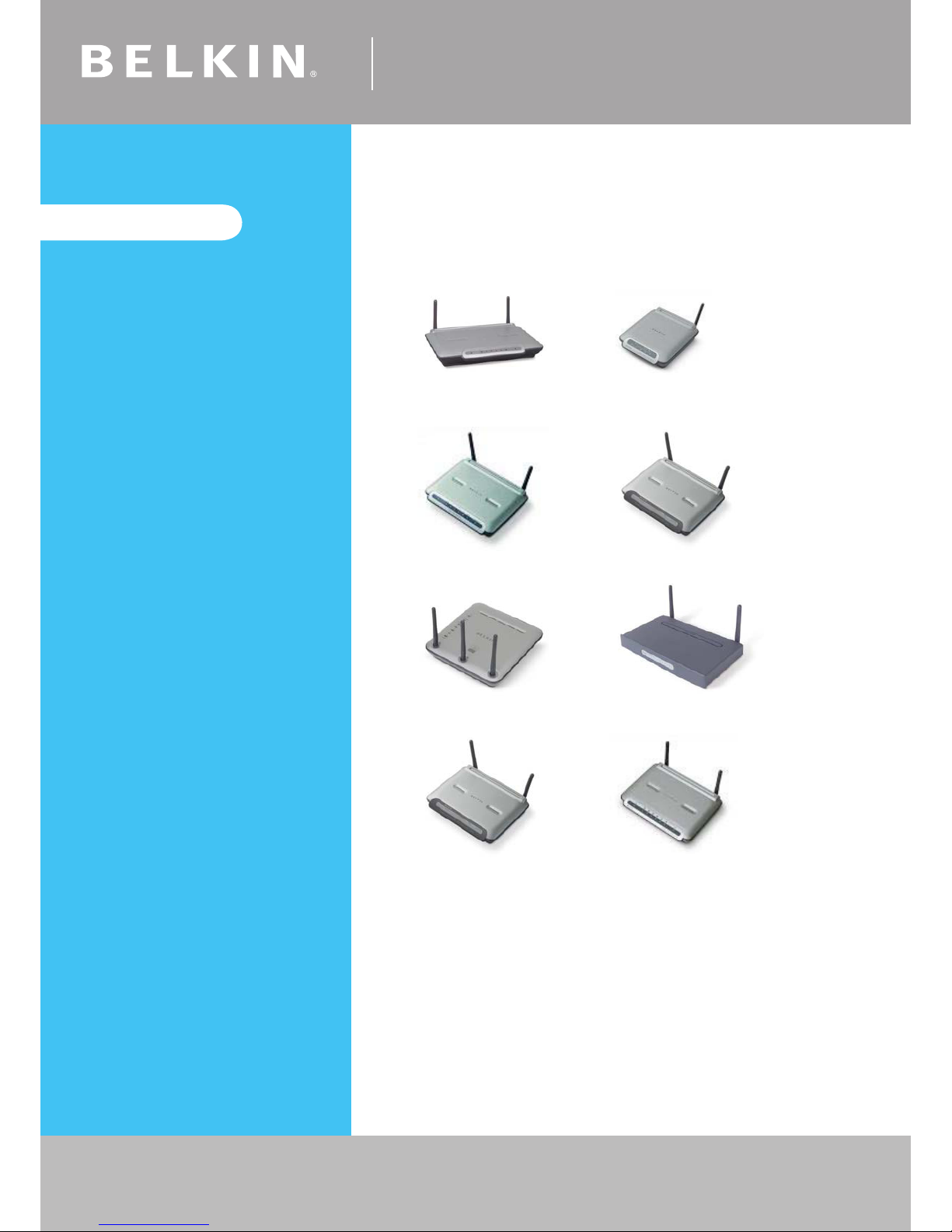

Step 1 Select Router
Your model number is located on the bottom of the router
F5D6231au4 F5D7230au4
F5D7231au4 F6D3230au4
F5D8230au4 F5D7630au4A
F5D7633au4A F5D9230au4 and F5D9630au4A
Self Help Guide
If you still require further assistance Call: 1300 554 780
contact Belkin Technical Support Visit: www.belkin.com/support
TSG xxx011a-rev1
Page 2 of 59

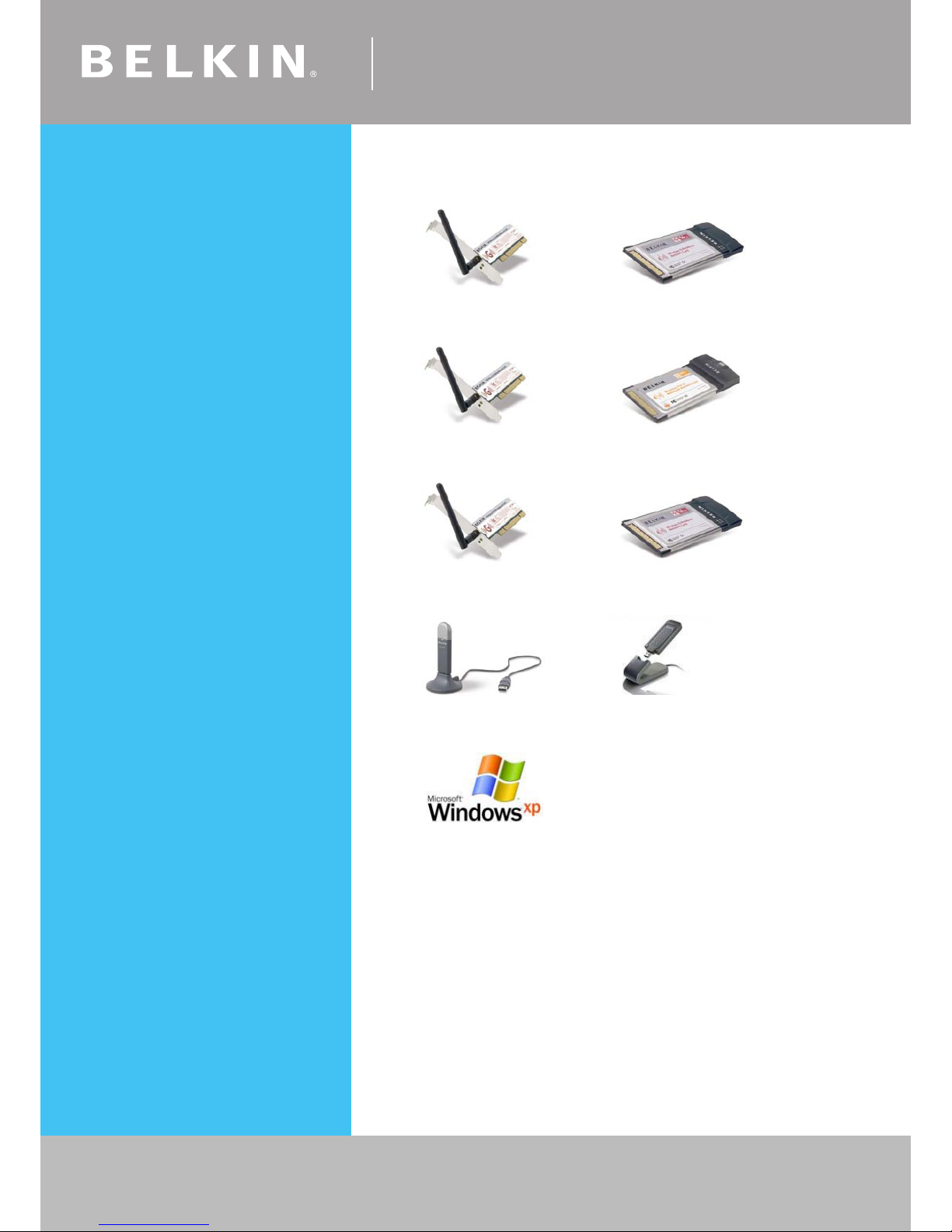

Step 2 Select Wireless Card
F5D7000au F5D7010au
F5D7001au F5D8010au
F6D3000au F6D3010au
F5D7050au F5D9050au
Windows Zero Configuration
Self Help Guide
If you still require further assistance Call: 1300 554 780
contact Belkin Technical Support Visit: www.belkin.com/support
TSG xxx011a-rev1
Page 3 of 59
For the following routers:
F5D6231au4
F5D7230au4
F5D7231au4
F5D9230au4
F5D9630au4A
F6D3230au4
Select Encryption Type:
WEP:
64bit
128bit
WPA
IMPORTANT!
When setting up Wireless
Encryption on your router, please
perform the steps outlined in this
guide on a PC directly connected
to the router - NOT from your
wireless PC.
Self Help Guide
If you still require further assistance Call: 1300 554 780
contact Belkin Technical Support Visit: www.belkin.com/support
TSG xxx011a-rev1
Page 4 of 59

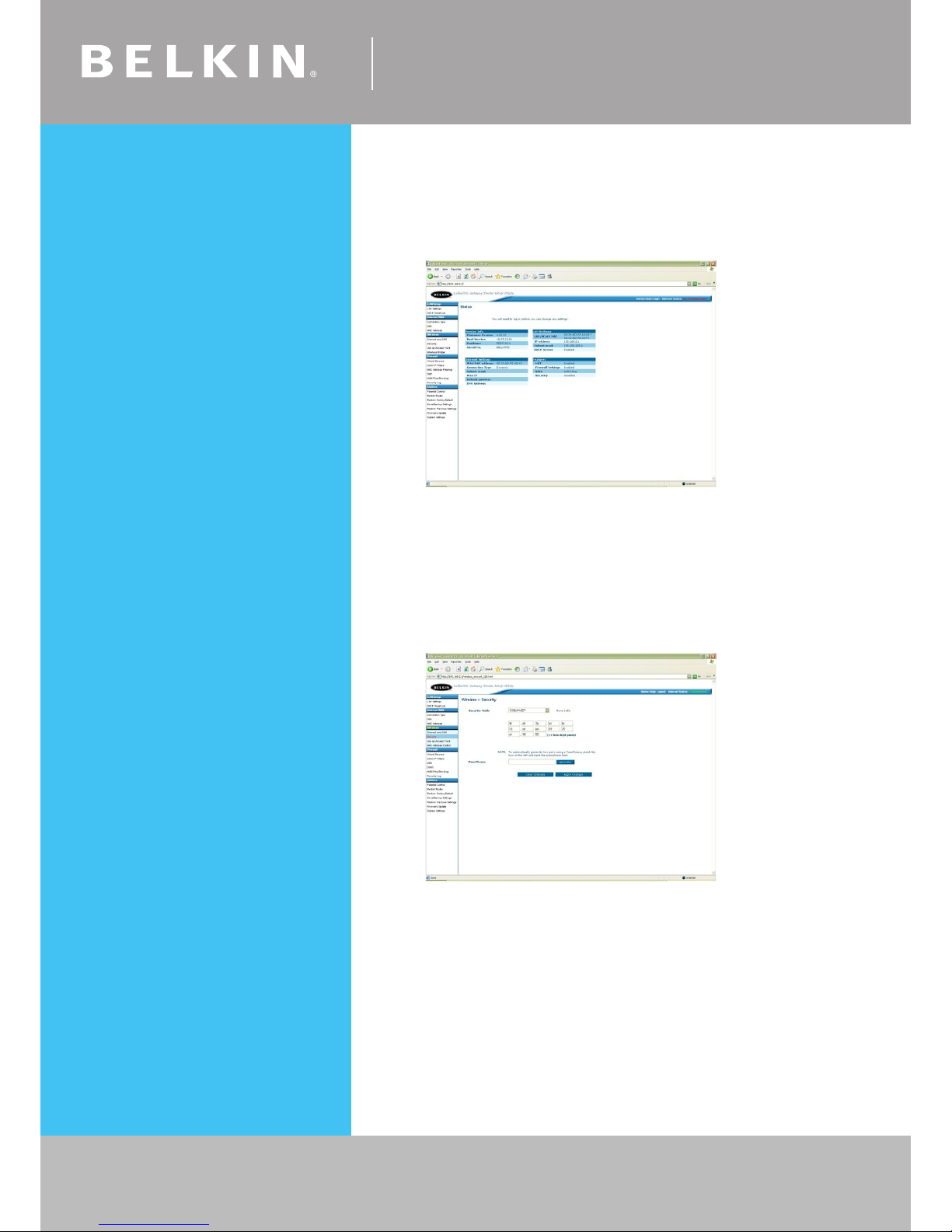

64Bit WEP
• Open Internet Explorer and type in http://192.168.2.1/ or click the link
• You will be presented with the following screen:
• On the left side of the screen, click on Security
• From the drop down box, choose 64 bit WEP
• Place a tick in “To automatically generate hex pairs using a
Pass Phrase…”
• Type in a PassPhrase in the box and click Apply Changes.
You will be presented with the screen below, write down on a piece of
paper Key 1 with out any dots or space eg. 1b9dda483d
• Close your Internet browser
DONE!
Click here to configure your wireless card
Self Help Guide
If you still require further assistance Call: 1300 554 780
contact Belkin Technical Support Visit: www.belkin.com/support
TSG xxx011a-rev1
Page 5 of 59

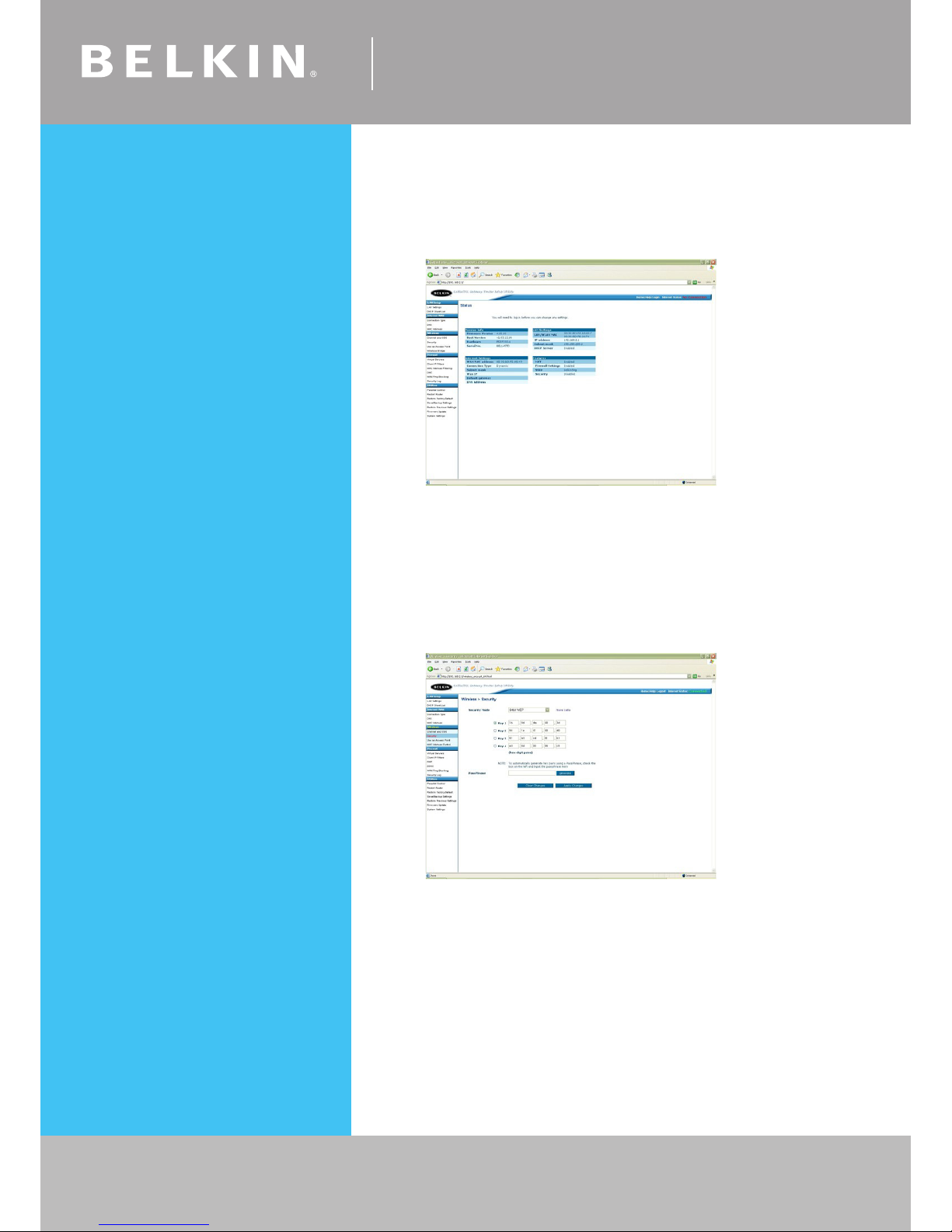

128 Bit WEP
• Open Internet Explorer and type in http://192.168.2.1 or click the link
• You will be presented with the following screen:
• On the left side of the screen, click on Security
• From the drop down box, choose 128 bit WEP
• Place a tick in “To automatically generate hex pairs using a
Pass Phrase…”
• Type in a PassPhrase in the box and click Apply Changes.
You will be presented with the screen below, write down on a
piece of paper the encryption key with out any dots or space
eg. 9fdf3bfdfb10afeb0925ef9605
• Close your Internet browser
DONE!
Click here to configure your wireless card
Self Help Guide
If you still require further assistance Call: 1300 554 780
contact Belkin Technical Support Visit: www.belkin.com/support
TSG xxx011a-rev1
Page 6 of 59

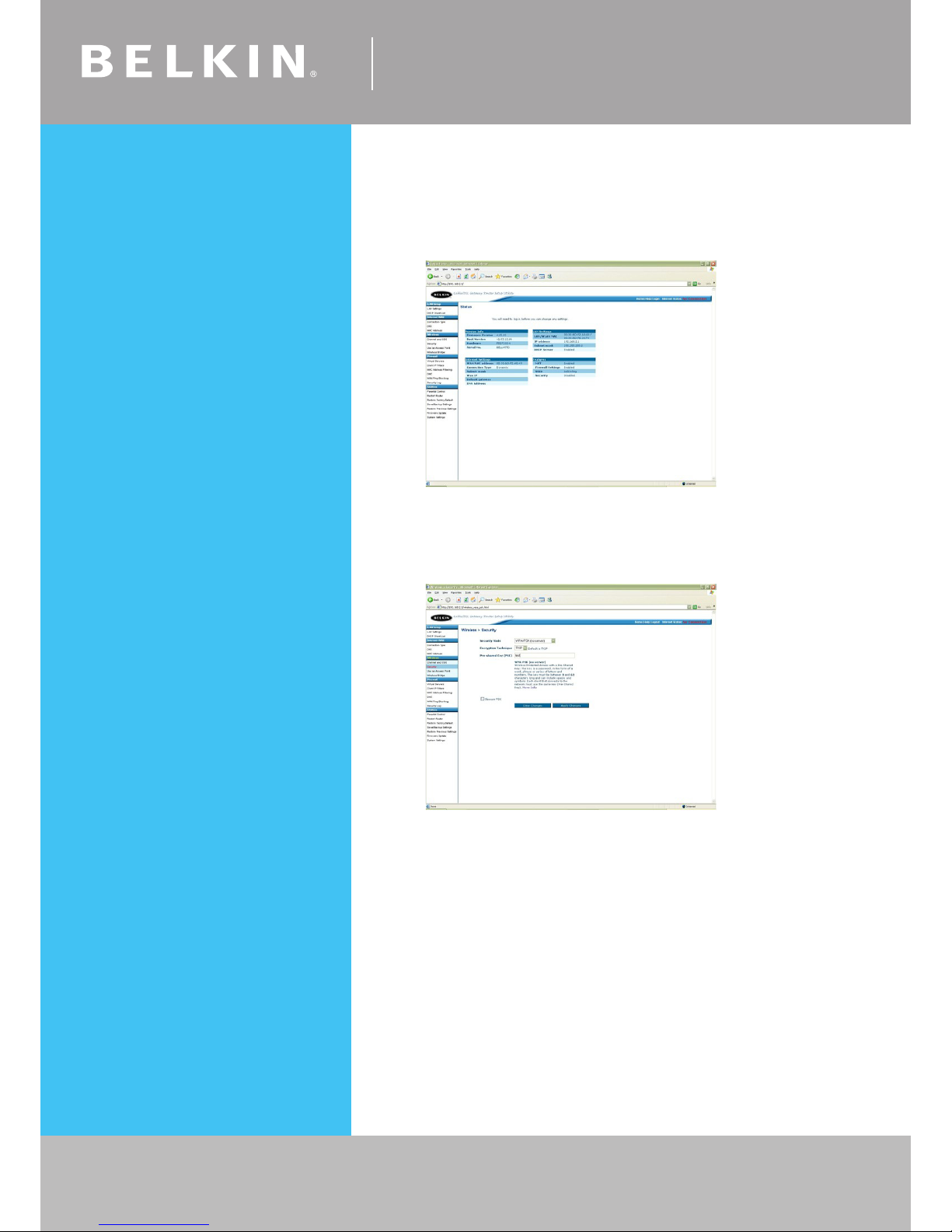

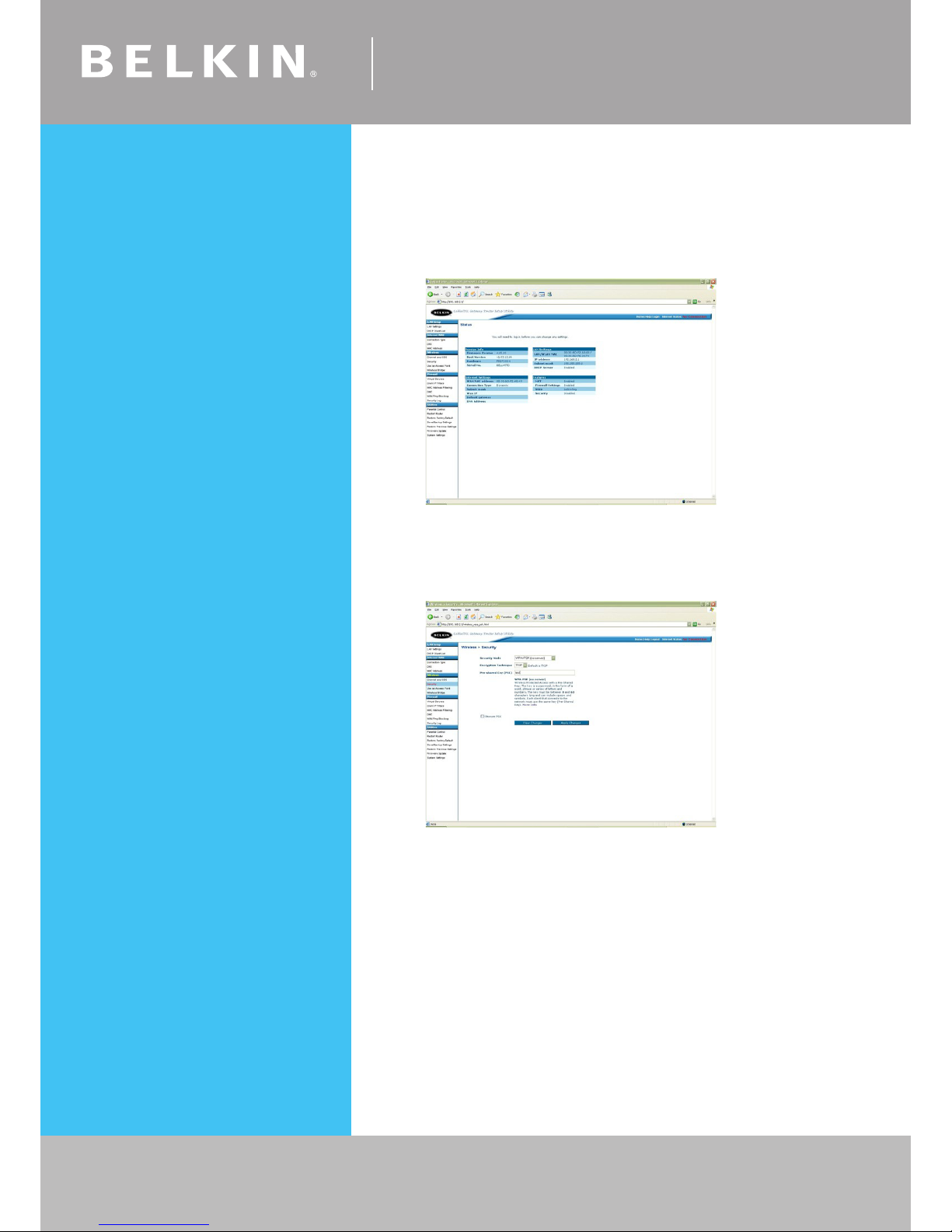

WPA
• Open Internet Explorer and type in http://192.168.2.1 or click the link
• You will be presented with the following screen:
• On the left side of the screen, click on Security
• From the drop down box, choose WPA-PSK
• Close your Internet browser
DONE!
Click here to configure your wireless card
Self Help Guide
If you still require further assistance Call: 1300 554 780
contact Belkin Technical Support Visit: www.belkin.com/support
TSG xxx011a-rev1
Page 7 of 59
For the following router:
F5D8230au4
Select Encryption Type:
WEP:
64bit
128bit
WPA
IMPORTANT!
When setting up Wireless
Encryption on your router, please
perform the steps outlined in this
guide on a PC directly connected
to the router - NOT from your
wireless PC.
Self Help Guide
If you still require further assistance Call: 1300 554 780
contact Belkin Technical Support Visit: www.belkin.com/support
TSG xxx011a-rev1
Page 8 of 59

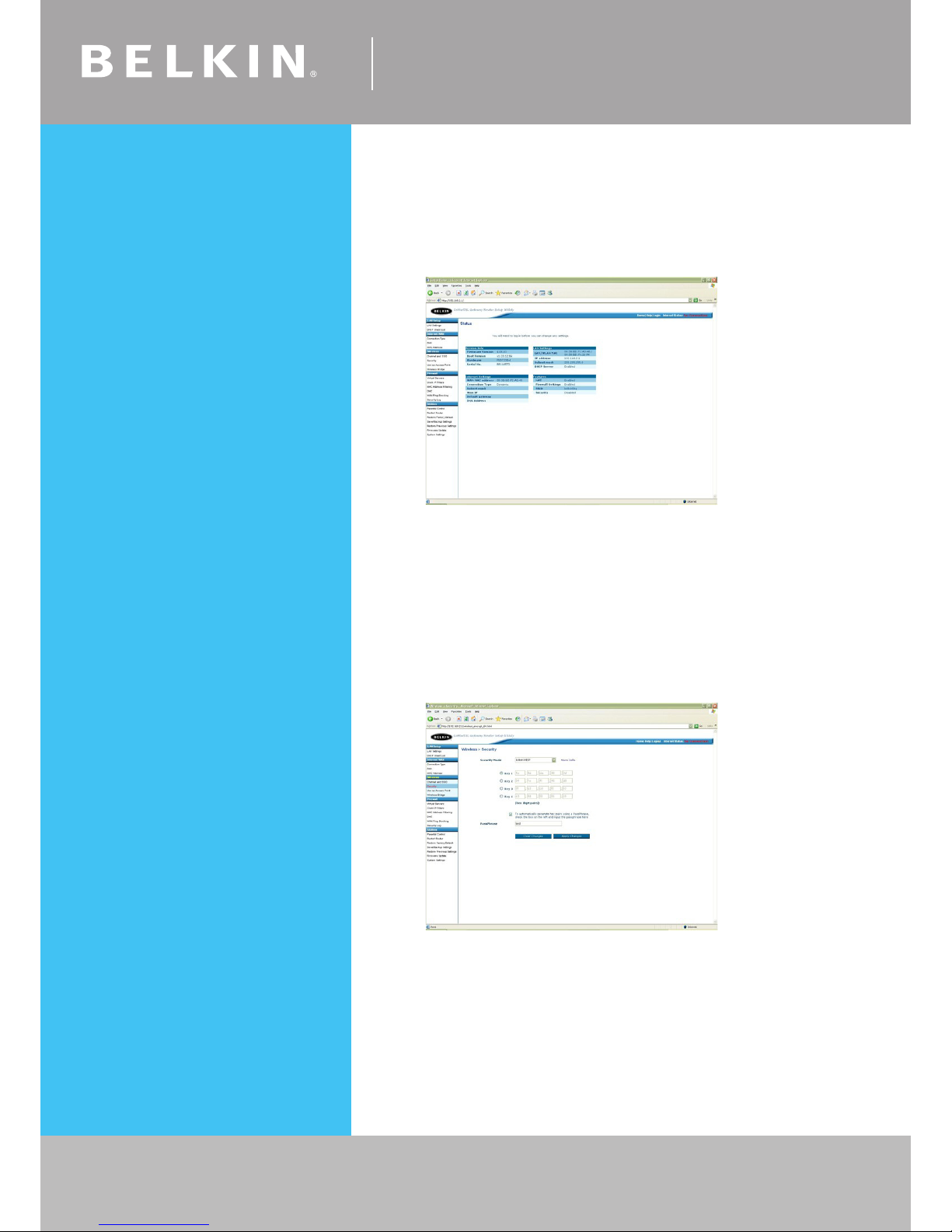

64Bit WEP
• Open Internet Explorer and type in http://192.168.2.1 or click the link
• You will be presented with the following screen:
• On the left side of the screen, click on Security
• From the drop down box, choose 64 bit WEP
• Type in a PassPhrase in the box and click generate.
You will be presented with the screen below, write down on a piece of
paper Key 1 with out any dots or space eg. 1b9dda483d
• Click Apply Changes to save settings
• Close your Internet browser
DONE!
Click here to configure your wireless card
Self Help Guide
If you still require further assistance Call: 1300 554 780
contact Belkin Technical Support Visit: www.belkin.com/support
TSG xxx011a-rev1
Page 9 of 59
128 Bit WEP
• Open Internet Explorer and type in http://192.168.2.1 or click the link
• You will be presented with the following screen:
• On the left side of the screen, click on Security
• From the drop down box, choose 128 bit WEP
• Type in a PassPhrase in the box and click generate.
You will be presented with the screen below, write down on a piece of
paper Key 1 with out any dots or space eg. 1b9dda483d
• Click Apply Changes to save settings
• Close your Internet browser
DONE!
Click here to configure your wireless card
Self Help Guide
If you still require further assistance Call: 1300 554 780
contact Belkin Technical Support Visit: www.belkin.com/support
TSG xxx011a-rev1
Page 10 of 59
WPA
• Open Internet Explorer and type in http://192.168.2.1 or click the link
• You will be presented with the following screen:
• On the left side of the screen, click on Security
• From the drop down box, choose WPA-PSK
• Close your Internet browser
DONE!
Click here to configure your wireless card
This manual suits for next models
