Belkin F1PI242EGAU User manual

Quick Installation Guide

Your step by step installation guide

Step 1 - Hardware Connections

Modem-Router

computer

Place the Modem-Router next to the computer.

Raise the Modem-Router’s antenna.

Find your new networking cable (it came in the box with

your Modem-Router) and connect it to a yellow port on

the back of the Router (Labelled LAN1 to LAN4).

Find your new telephone cable (it came in the box with

your Modem-Router) and connect it to the grey port on

the back of the Modem-Router (Labelled ADSL line).

Connect the other end to your telephone socket

on the wall.

Setup Overview

Step Hardware Connections:

Use the instructions in

this guide to connect your

Modem-Router.

Step Automatic Conﬁguration:

Insert the CD into your

computer and follow the

on-screen instructions.

Please ensure you have your

broadband/VoIP username

and password available before

proceeding.

Step Connect other Computers:

The CD can assist you in

connecting other computers

to your new network.

(Optional)

Quick Installation Guide

Step 1 - Hardware Connections (continued)

Wait 20 seconds for the Modem-Router to start up.

Look at the display on the front of the Router.

Make sure the “Power”, “Wired” and “Wireless”

icons are lit up in blue. If they are not, recheck

your connections.

Step 2 – Setup Assistant

F1PI242EGau

GD2201

trademarks of respective manufacturers listed.

Plug the Modem-Router’s power supply into the black

port on the back (Labelled PWR).

Plug the other end into the wall outlet.

Quick Installation Guide

Belkin and iiNet provides free technical support via phone and

the Web. However, we encourage you to attempt (or retry) Steps 1

and 2 before contacting Support. The Setup Assistant has built-in

intelligence to help diagnose and ﬁx common problems. If you’re

still having trouble, contact Belkin Support.

If you’re still having trouble, please contact contact iiNet or

Belkin support for assistance.

iiNet iiNet Support

13 22 58

support@iinet.net.au

iiNet Business Support

13 24 49

bizsupport@iinet.net.au

Belkin http://www.belkin.com/anz

Click on Support Centre

1800 235 546

Available Monday–Friday 08:00–20:00

Sydney time zone, closed public holidays

Support

Insert the CD into your computer.

The Setup Assistant will automatically appear on your

computer’s screen.

Follow the instructions there and you are ﬁnished!

13.2v/1200MA

Connects to

ADSL Internet

Connects to Power

Connects to USB

Data Storage

Connects to Desktop PC’s, Laptops and

Printers with Ethernet Ports

Connects to Phones

connecting via VoIP/iiTalk

Wireless Version

Antenna - Connects

Wireless Devices

Connects to PSTN

Land Line (VoIP failover)

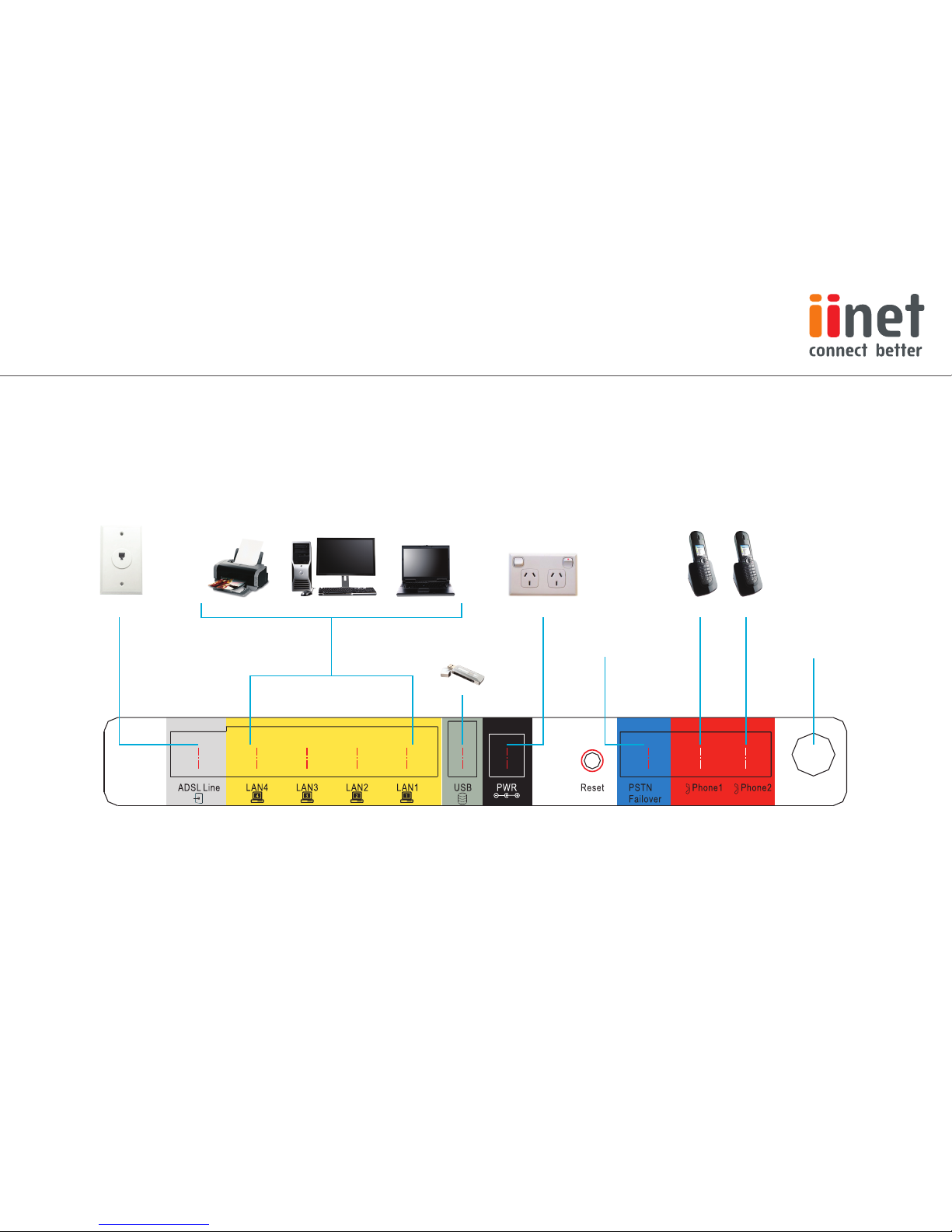

Hardware Connection Guide
