bbf A176663A User manual
ASSEMBLY INSTRUCTIONS
Part Number A176663A
72" x 36" Conference Table W- Metal Base
NEED HELP?
Call 1−800−950−4782
www bushbusinessfurniture com
?
Kee manual for future reference.
Lot Code #
IMPORTANT SAFETY INFORMATION A176663A
No mueva la unidad cuando esté
cargada. Hacerlo puede causar
inestabilidad, que el producto se
derrumbe, que se la caiga encima y/o
heridas (golpes) serias.
Ne pas déplacer l’unité lorsqu’ell est
chargée. Faire ainsi peut causer
l’instabilité, l’e ondrement ou le
renversement du meuble et/ou des
endommagements sérieux.
Do not move unit when loaded.
Doing so could cause instability,
product collapse, tip over, and/or
serious injury.
WARNING
EXPLODED VIEW A176663A
A
99BTOP7236ACS
A[ 1 ] W176664
99BTOP7236AMR
A[ 1 ] W176665
99BTOP7236AMC
A[ 1 ] W176666
99BTOP7236AAC
A[ 1 ] W176667
99BTOP7236SG
A[ 1 ] W186894
99BTOP7236HC
A[ 1 ] W179036
EXPLODED VIEW A176663A
H171568
B[ 2 ]
99YLEGSV - QTY 2
H172866
D[ 1 ]
99STCH72ASV - QTY 1
H172193
C[ 4 ]
H176662
E[ 1 ]
E
C
B
C
C
D
B
C
FASTENERS / HARDWARE A176663A
Fasteners are shown in actual size.
los fijadores son demonstrados en su tamaño actual.
les attaches sont montrées dans l'échelle grandeur.
H175656
S acer
[ 6 ]
H172201 [ 4 ]
Leveler
H172196 [ 6 ]
lock Nut 3/8-16
H176425
9/16"
[ 2 ]
H172195 [ 6 ]
3/8−16 X 1−3/4"
H84026 [ 1 ]
Grommet
H23682 [ 20 ]
#10 x 1"
H142302 [ 22 ]
#10 x 3/4"
1
STEP A176663A
9/16"
[ 2 ]
H175656
S acer
[ 2 ]
H172195 [ 2 ]
3/8−16 X 1−3/4"
H172196 [ 2 ]
lock Nut 3/8-16
C
B
2X
Safety glasses
gafas de seguridad
Lunettes de rotection
2STEP A176663A
H172195 [ 2 ]
3/8−16 X 1−3/4"
H172196 [ 2 ]
lock Nut 3/8-16
H175656
S acer
[ 2 ]
9/16"
[ 2 ]
B
C
2X
Safety glasses
gafas de seguridad
Lunettes de rotection
3
STEP A176663A
H172196 [ 2 ]
lock Nut 3/8-16
H172195 [ 2 ]
3/8−16 X 1−3/4"
H175656
S acer
[ 2 ]
9/16"
[ 2 ]
Do not fully tighten.
No a riete com letamenta.
Ne as viser a fond.
Safety glasses
gafas de seguridad
Lunettes de rotection
An assistant may be required.
Un asistente puede ser necesario.
L’aide d’une autre personne peut s’averer necessaire.
D
4
STEP A176663A
A
E
H142302 [ 22 ]
#10 x 3/4"

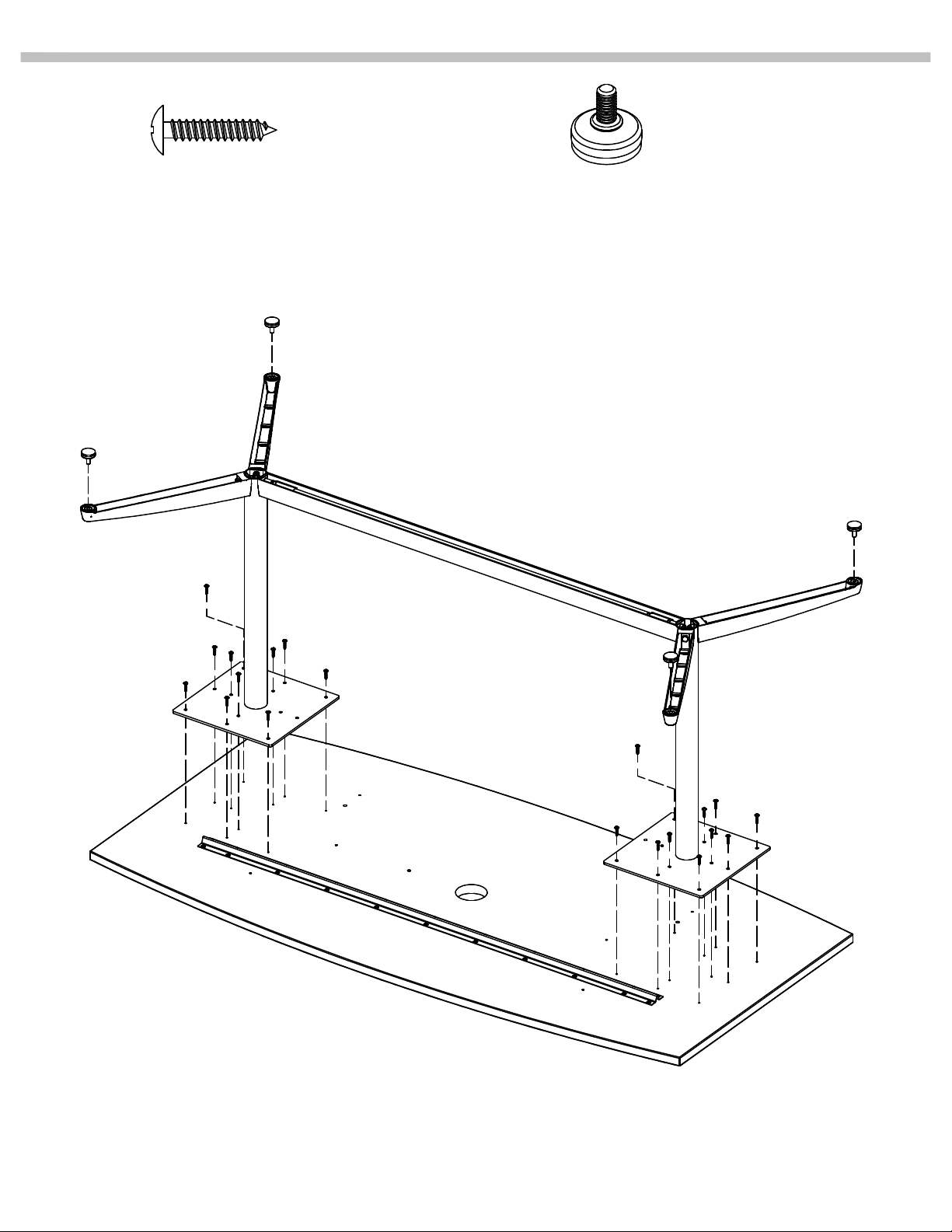

5
STEP A176663A
H172201 [ 4 ]
Leveler
H23682 [ 20 ]
#10 x 1"
Tighten all screw.
A riete todos los tornillos.
Serrez toutes les vis.
An assistant is required.
Es necesario un ayudante.
Un assistant est nécessaire.
