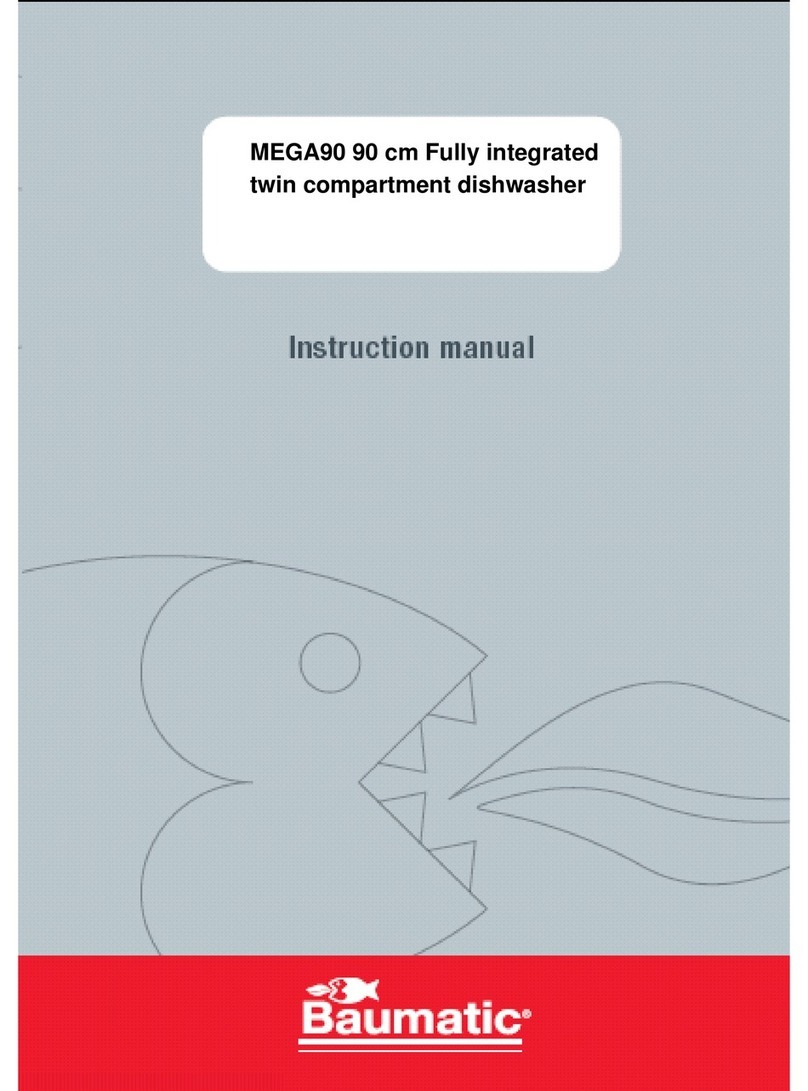

Baumatic MEGA90 User manual

MEGA90 90

cm Fully

integrated twin

compartment dishwasher

USER MANUAL FOR YOUR BAUMATIC

MEGA90 90 cm Fully

integrated twin compartment dishwasher

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 08/09/08

Contents

Environmental note 4

Important safety information 5 – 7

Specifications 8 - 9

Description of the appliance 9 - 10

Usingyourdishwasher 10 - 23

Before first use 10

Filling with dishwasher salt 11 – 12

Setting the water softener level 12

Fillingwithrinseaid 13

Setting the rinse aid level 13 - 14

Filling with dishwasher detergent 14

Loading the upper basket 15

Adjusting the upper basket 15 - 17

Loadingthelowerbasket 17

The cutlery basket 18 - 19

Loadingdishesandcutlery 19

Program table 20

Setting a wash program 20 – 21

Changingawashprogram 21

At the end of a wash program 22

Settingadelaystart 22

Rinse aid and salt indicator neons 23

Cleaning and maintenance 23 - 26

The filter system 23 - 24

Cleaning the filters 24

Cleaningthesprayarms 25

Cleaning the control panel 25

Cleaningthedoor 26

Error code failure system 26 – 28

General troubleshooting 28 – 30

Installation 30 - 39

Aperture requirements 30 - 31

Preparing and connecting the furniture door 31 – 32

Adjusting the tension of the door spring 33

Connecting to the mains water supply 34

Connecting to the water outlet 35

Connecting to the power supply 35 - 36

Applying the condensation strip 36 - 37

Positioningthedishwasher 37

Levelling the appliance 38

Securing the dishwasher 39

Before first use 39

Contact details 40

ENVIRONMENTAL NOTE

Note: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any plug

useless. Cut the cable off directly behind the appliance to prevent

misuse. This should be undertaken by a competent person. Disable

the door lock to make sure that children cannot get stuck inside

the appliance.

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Technical

Department.

General Safety

oRepairs to your appliance must only be carried out by a

Baumatic engineer or one of its authorised service agents. Any

attempt by an inexperienced person to repair the appliance,

could result in injury or damage to your dishwasher.

oIf you notice that the mains cable is damaged. The appliance

must not be used. The same applies if you notice that the

worktop, control panel or base area is damaged. As this could

allow access to the internal components of the machine.

oThe appliance should be turned off and isolated from the mains

supply, before either cleaning or maintenance work is attempted.

oThe mains cable must not be used to pull the plug out of the

electrical socket.

oThe machine should not be sprayed with water.

oThe external surface of the appliance may become hot whilst

your dishwasher is in use.

oIt is possible for small animals to chew either mains cables or

water hoses, which could cause an electric shock hazard.

Installation

oThe installation instructions contained within this user manual

should be followed.

oIt is obligatory for the completed installation to comply with all

relevant building regulations and local water authority

requirements.

oBefore the first use of the appliance, you should follow the

steps listed in the “Before first use” section on page 10

and page 39 of this manual.

oCare should be taken not to trap the power supply cable

underneath the appliance whilst installing it.

oNo attempt should be made to alter or modify the specifications

of this appliance.

In daily use

oThis appliance is only designed to wash normal domestic

washloads. If you use your dishwasher in any other way or it is

incorrectly used, then Baumatic accepts no liability for any

damage that might be caused and any guarantee will be void.

oIt is recommended that the appliance is unplugged and the

water supply is turned off after the machine is used.

oThe detergents, rinse aid and salt that you place in this appliance

should be suitable for automatic dishwashers. With regards to

dosage levels, the detergent manufacturer’s recommendations

should be followed.

oSharp knifes or ones with long blades are a potential safety

hazard when placed in an upright position in the cutlery basket.

We would recommend that these items are placed horizontally in

the upper basket.

oYou should not wash any items that have come into contact

with corrosive, acidic or alkaline chemicals, paint, petrol, iron or

steel debris.

oYou should not open the door whilst the appliance is set on a

wash program. Depending on which stage that the wash

program is at, hot water could escape the machine.

oYou should not leave the door of the appliance open, unless

you are loading or unloading the dishwasher.

oYou should not stand or sit on the door when it is open.

Child Safety

oYour dishwasher should only be used by adults. You should not

allow children in the area of the machine unsupervised. You

should not let them touch the controls or play with the appliance.

oIt could be possible for a child or pet to gain access to the

dishwasher if the door is left open. Therefore please check the

inside of the appliance before setting it on a wash cycle.

oAny packaging that is removed from the machine should be kept

away from children.

oAll detergents should be kept out of children’s reach in a safe

place.

oSome water will remain inside the dishwasher when it has

completed a wash cycle. This water is not suitable for drinking

and may contain residues from the detergents that are used in

the appliance.

Declaration of conformity

This appliance complies with the following European Directives:

-73/23 dated 19/02/1973 Low Voltage Directive and subsequent

modifications.

-89/336 dated 03/05/1989 Electromagnetic Compatibility Directive and

subsequent modifications.

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate of your dishwasher is

located on the right hand side of the drop down door.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

Specifications

Product dimensions

Height: 820 - 850 mm

Width: 900 mm

Depth: 570 mm

Aperture dimensions

Height: 820 mm (min)

Width: 920 mm

Depth: 570 mm (min)

Product specifications

o16 Place settings (8 place settings per compartment)

o7 functions: Normal

Intensive

Economy

Rinse

Rapid

Glass

Soak

o4 Wash temperatures: 40°C, 45°C, 50°C, 60°C

oDelay timer

oLED display

oSelf-cleaning stainless steel micro-filter

oAnti-leak device

oAnti-flood device

oHeight adjustable upper basket

oCollapsible plate racks

oAdjustable feet

oResidual drying

oConcealed heating element

Energy efficiency details

Energy efficiency class: B

Washing performance class: B

Drying performance class: B

Electrical details

Rated voltage: 230 Vac 50 Hz

Supply connection: 13 A (double pole switched fused outlet with

3mmcontactgap)

Optional extra

oDWD90SS- Set of two stainless steel doors with mark resistant

coating

Description of the appliance

1) Upper basket

2) Spray arms

3) Lower basket

4) Water softener

5) Main filter

6) Detergent dispenser

7) Cup shelf

8) Cutlery basket

9) Coarse filter

10) Rinse aid dispenser

11) Drain pipe connector

12) Inlet pipe connector

Control panel

1) Program indicator neons

2) Program selection button

3) Rinse aid and salt indicator neons

4) LED display

5) Delay start button

6) ON/OFF indicator neon

7) ON/OFF button

Using your dishwasher

Before first use

oInstall the appliance as per the installation instructions contained

within this booklet.

oFill the water softener in each compartment with 1 litre of tap

water and then fill with specialist dishwasher salt. After this you

should set the water softener level.

oFill the rinse aid dispenser in each compartment and then set the

rinse aid dosage.
