Baumatic BDWI660 User manual

BDWI66

0 60 cm Fully

integrated full height

dishwasher

USER MA UAL FOR YOUR BAUMATIC

BDWI660 60 cm Fully

integrated full height dishwasher

NOTE

This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance

GS 02/04/12

Contents

Environmental note 4

Important safety information 5 – 7

Specifications 8 – 11

Product and aperture dimensions 8

Product specifications 8 – 9

Electrical details 9

Baumatic consuma les 9

Description of the appliance 10

Control panel 11

Using your dishwasher 11 - 26

Before first use 11

Filling with dishwasher salt 11 – 12

Setting the water softener level 13

Filling with rinse aid 14

Setting the rinse aid level 15

Filling with dishwasher detergent 15 – 16

Concentrated detergent 16 – 17

Detergent ta lets 17

Loading the upper asket 17

Adjusting the upper asket 18

Folding ack the cup shelves 18

Loading the lower asket 19

Folding spikes of lower asket 20

The cutlery asket 20

Loading dishes and cutlery 21 - 22

Program table 22 - 23

Setting a wash program 23 – 24

Changing a wash program 24

Adding more dishes 24 - 25

At the end of a wash program 25

Delay start function 25 – 26

Alternative wash function 26

Saving energy using your dishwasher 27

Cleaning and maintenance 28 - 31

The filter system 28

Cleaning the filters 29

Cleaning the spray arms 30

Cleaning the control panel 30

Cleaning the door 31

Error code failure system 31 – 32

General trou leshooting 33 – 35

Installation 36 - 45

Aperture requirements 36 – 37

Installation stages 37

Preparing and connecting the furniture door 37 – 38

Adjusting the tension of the door spring 39

Connecting to the mains water supply 40

Connecting to the water outlet 40 - 41

Connecting to the power supply 41

Applying the condensation strip 42

Positioning the dishwasher 42 - 43

Levelling the appliance 43

Securing the dishwasher 44

Before first use 45

Baumatic consumables 46

Technical data 47

Contact details 48

E VIRO ME TAL OTE

Note

: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any plug

useless. Cut the cable off directly behind the appliance to prevent

misuse. This should be undertaken by a competent person. Disable

the door lock to make sure that children cannot get stuck inside

the appliance.

oThe packaging materials that Baumatic uses are environmentally

friendly and can e recycled.

oPlease discard all packaging material with due regard for the

environment.

IMPORTA T SAFETY I FORMATIO

Your safety is of the utmost inmportance to Baumatic.

Please make sure that you read this instruction ooklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

ooklet, please contact the Baumatic Advice Line.

General Safety

oRepairs to your appliance must only e carried out y a

Baumatic engineer or one of its authorised service agents. Any

attempt y an inexperienced person to repair the appliance,

could result in injury or damage to your dishwasher.

oIf you notice that the mains ca le is damaged. The appliance

must not be used. The same applies if you notice that the

worktop, control panel or ase area is damaged. As this could

allow access to the internal components of the machine.

oThe appliance should e turned off and isolated from the mains

supply, efore either cleaning or maintenance work is attempted.

oThe mains ca le must not e used to pull the plug out of the

electrical socket.

oThe machine should not e sprayed with water.

oThe external surface of the appliance may ecome hot whilst

your dishwasher is in use.

oIt is possi le for small animals to chew either mains ca les or

water hoses, which could cause an electric shock hazard.

Installation

oThe installation instructions contained within this user manual

should e followed.

oIt is o ligatory for the completed installation to comply with all

relevant uilding regulations and local water authority

requirements.

oBefore the first use of the appliance, you should follow the

steps listed in the “Before first use” section on page 11

and page 44 of this manual

oCare should e taken not to trap the power supply ca le

underneath the appliance whilst installing it.

oNo attempt should e made to alter or modify the specifications

of this appliance.

In daily use

oThis appliance is only designed to wash normal domestic

washloads. If you use your dishwasher in any other way or it is

incorrectly used, then Baumatic accepts no lia ility for any

damage that might e caused and any guarantee will e void.

oIt is recommended that the appliance is unplugged and the

water supply is turned off after the machine is used.

oThe detergents, rinse aid and salt that you place in this appliance

should e suita le for automatic dishwashers. With regards to

dosage levels, the detergent manufacturer’s recommendations

should e followed.

oSharp knives or ones with long lades are a potential safety

hazard when placed in an upright position in the cutlery asket.

We would recommend that these items are placed horizontally in

the upper asket.

oYou should not wash any items that have come into contact

with corrosive, acidic or alkaline chemicals, paint, petrol, iron or

steel de ris.

oYou should not open the door whilst the appliance is set on a

wash program. Depending on which stage that the wash

program is at, hot water could escape the machine.

oYou should not leave the door of the appliance open, unless

you are loading or unloading the dishwasher.

oYou should not stand or sit on the door when it is open.

Child Safety

oYour dishwasher should only e used y adults. You should not

allow children in the area of the machine unsupervised. You

should not let them touch the controls or play with the appliance.

oIt could e possi le for a child or pet to gain access to the

dishwasher if the door is left open. Therefore please check the

inside of the appliance efore setting it on a wash cycle.

oAny packaging that is removed from the machine should e kept

away from children.

oAll detergents should e kept out of children’s reach in a safe

place.

oSome water will remain inside the dishwasher when it has

completed a wash cycle. This water is not suita le for drinking

and may contain residues from the detergents that are used in

the appliance.

Declaration of conformity

This appliance complues with the following European Directives:

-73/23 dated 19/02/1973 Low Voltage Directive and su sequent

modifications.

-89/336 dated 03/05/1989 Electromagnetic Compati ility

Directive and su sequent modifications.

For future reference please record the following information which can

e found on the rating plate and the date of purchase which can e

found on your sales invoice. The rating plate of your dishwasher is

located on the right hand side of the drop down door.

Model umber …………………………………….

Serial umber …………………………………….

Date of Purchase …………………………………….

Specifications

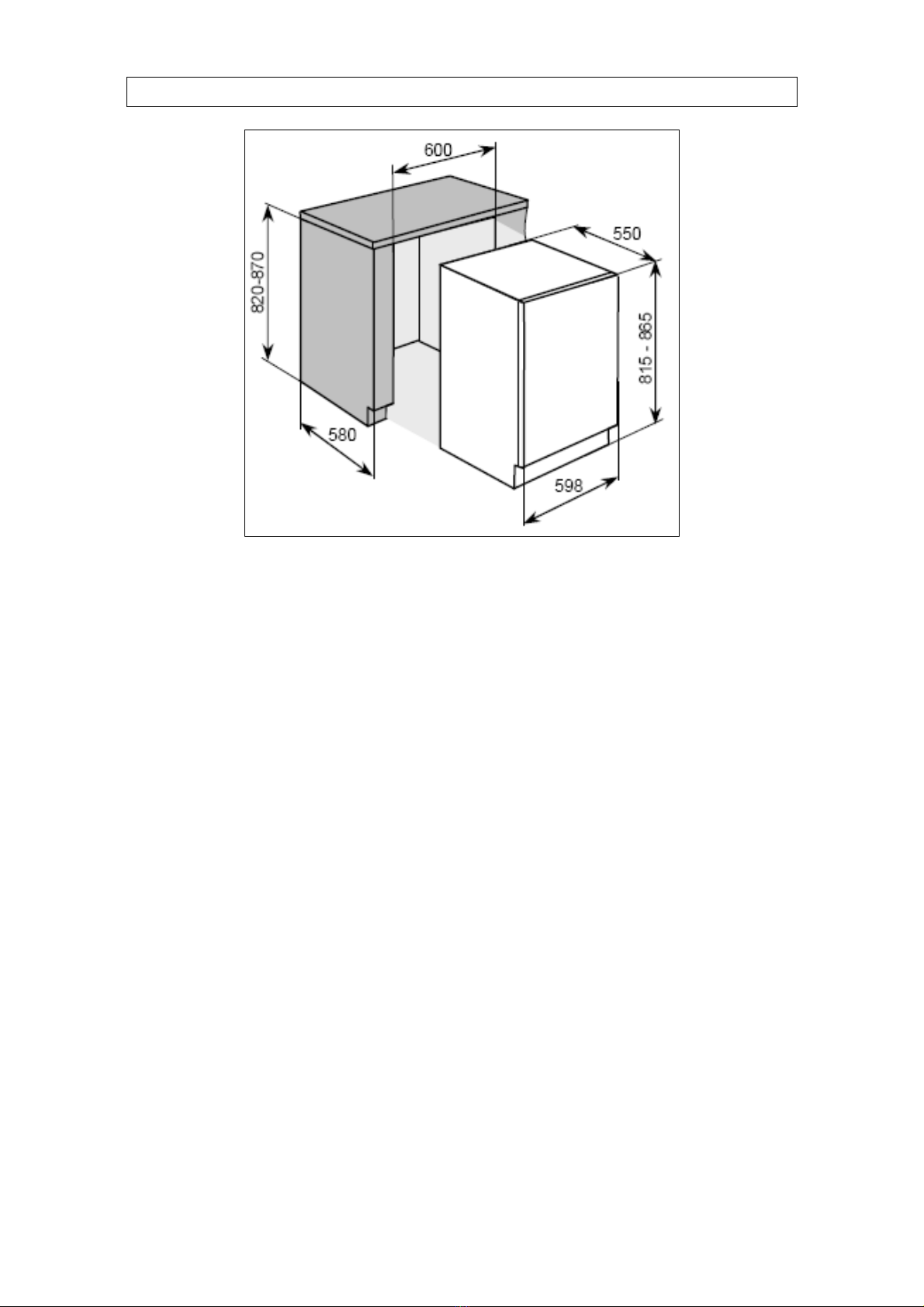

Product dimensions

Height: 815 – 865 mm

Width: 598 mm

Depth: 550 mm

Aperture dimensions

Height: 820 – 870 mm

Width: 600 mm

Depth: 580 mm (MIN)

Product specifications

o14 Place settings

o6 programs: Normal

Intensive

Economy

Glass

Rapid

1 hour

o5 temperatures: 40°C, 50°C, 55°C, 60°C, 65°C

oLED display

oWater consumption (Economy program): 11l/cycle

oNoise level: 49 dB

oElectronic aqua stop

oDelay start function

oResidual drying

oAlternative wash function

oConcealed heating element

oSelf-cleaning stainless steel micro-filter

oAnti-leak device

oAnti-flood device

oHeight adjusta le upper asket

oCollapsi le plate racks

oAdjusta le feet

Energy efficiency details

Energy efficiency class: A++

Washing performance class: A

Drying performance class: A

Power consumption

Off mode: 0.45 W

Left on mode: 0.55 W

Electrical details

Rated voltage: 230 Vac 50 Hz

Supply connection: 13 A (dou le pole switched fused outlet

with 3 mm contact gap)

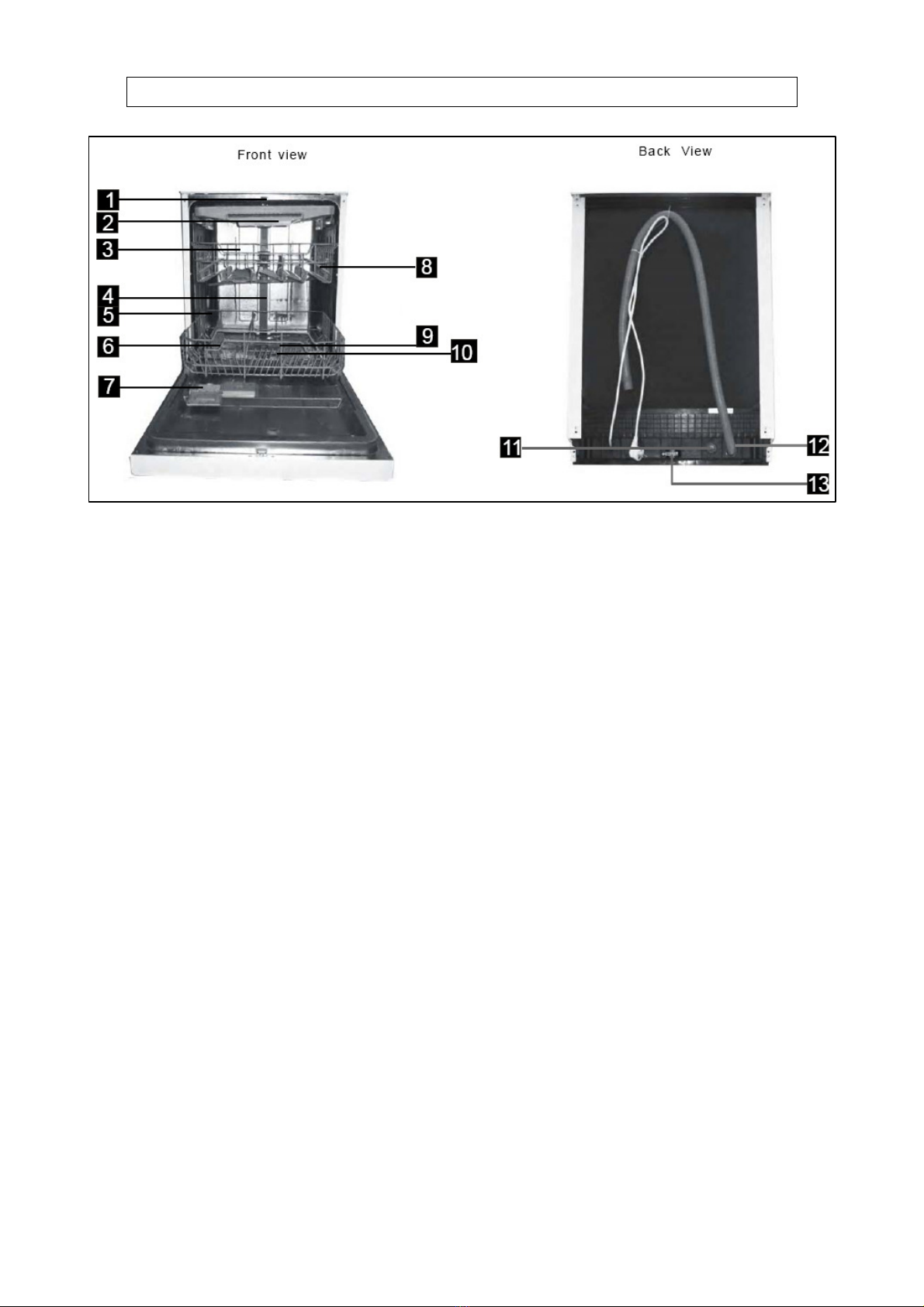

Description of the appliance

1) Top spray arm

2) Cutlery asket

3) Upper asket

4) Inner pipe

5) Lower asket

6) Salt container

7) Detergent dispenser

8) Cup shelf

9) Lower spray arm

10) Filter assem ly

11) Inlet pipe connector

12) Drain pipe

13) Adjuster
