Baumatic BDWS60SS User manual

iel

BDWS60SS 60 cm Semi-

integrated full height

electronic dishwasher

USER MANUAL FOR YOUR BAUMATIC

BDWS60SS 60 cm Semi-

integrated full height electronic

dishwasher

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

JW 06/12/12

Contents

Environmentalnote 4

Important safety information 5 – 7

Specifications 8 – 10

Product and aperture dimensions 8

Productspecifications 8–9

Electricaldetails 9

Description of the appliance 10

Controlpanel 10-10

Usingyourdishwasher 11 - 23

Beforefirstuse 11

Filling with dishwasher salt 11 – 12

Setting the water softener level 12 - 13

Fillingwithrinseaid 13

Setting the rinse aid level 14

Filling with dishwasher detergent 14 - 15

Loading the upper basket 15

Adjusting the upper basket 16 - 17

Loading the lower basket 17 - 18

Thecutlerybasket 18

Loading dishes and cutlery 19 - 20

Program table 20-21

Settingawashprogram 21-22

Changing a wash program 22

At the end of a wash program 22

Addinganitemtothewash 23

Settingadelaystart 23

Rinse aid and salt indicator neons 24

Saving energy using your dishwasher 24

Cleaning and maintenance 25 - 28

Thefiltersystem 25

Cleaningthefilters 26

Cleaningthesprayarms 27

Cleaningthecontrolpanel 27

Cleaningthedoor 27

Error code failure system 28 – 29

General troubleshooting 29 – 30

Installation 31 - 40

Aperturerequirements 31-32

Preparing and connecting the furniture door 33 - 34

Adjusting the tension of the door spring 35

Connecting to the mains water supply 36

Connectingtothewateroutlet 36

Connecting to the power supply 37

Applying the condensation strip 38

Positioning the dishwasher 39

Levelling the appliance 39

Securing the dishwasher 40

Beforefirstuse 40

Myapplianceisn’tworking 41

Baumatic consumables 42

Technicaldata 43

Contactdetails 47

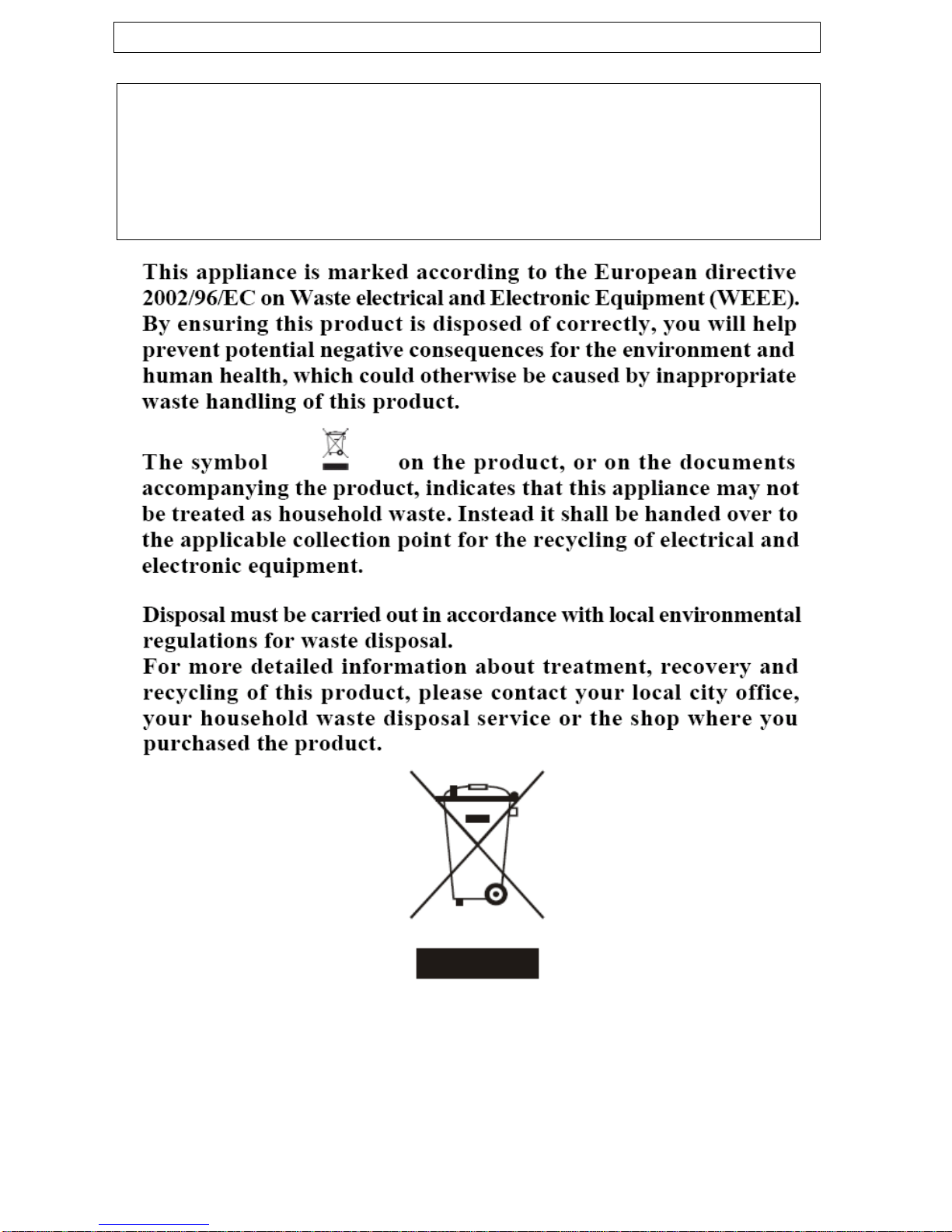

ENVIRONMENTAL NOTE

Note

: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any plug

useless. Cut the cable off directly behind the appliance to prevent

misuse. This should be undertaken by a competent person. Disable

the door lock to make sure that children cannot get stuck inside

the appliance.

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Advice Line.

General Safety

oRepairs to your appliance must only be carried out by a

Baumatic engineer or one of its authorised service agents. Any

attempt by an inexperienced person to repair the appliance,

could result in injury or damage to your dishwasher.

oIf you notice that the mains cable is damaged. The appliance

must not be used. The same applies if you notice that the

worktop, control panel or base area is damaged. As this could

allow access to the internal components of the machine.

oThe appliance should be turned off and isolated from the mains

supply, before either cleaning or maintenance work is attempted.

oThe mains cable must not be used to pull the plug out of the

electrical socket.

oThe machine should not be sprayed with water.

oThe external surface of the appliance may become hot whilst

your dishwasher is in use.

oIt is possible for small animals to chew either mains cables or

water hoses, which could cause an electric shock hazard.

Installation

oThe installation instructions contained within this user manual

should be followed.

oIt is obligatory for the completed installation to comply with all

relevant building regulations and local water authority

requirements.

oBefore the first use of the appliance, you should follow the

steps listed in the “Before first use” section on page 11

and page 41 of this manual.

oCare should be taken not to trap the power supply cable

underneath the appliance whilst installing it.

oNo attempt should be made to alter or modify the specifications

of this appliance.

In daily use

oThis appliance is only designed to wash normal domestic wash

loads. If you use your dishwasher in any other way or it is

incorrectly used, then Baumatic accepts no liability for any

damage that might be caused and any guarantee will be void.

oIt is recommended that the appliance is unplugged and the

water supply is turned off after the machine is used.

oThe detergents, rinse aid and salt that you place in this appliance

should be suitable for automatic dishwashers. With regards to

dosage levels, the detergent manufacturer’s recommendations

should be followed.

oSharp knifes or ones with long blades are a potential safety

hazard when placed in an upright position in the cutlery basket.

We would recommend that these items are placed horizontally in

the upper basket.

oYou should not wash any items that have come into contact

with corrosive, acidic or alkaline chemicals, paint, petrol, iron or

steel debris.

oYou should not open the door whilst the appliance is set on a

wash program. Depending on which stage that the wash

program is at, hot water could escape the machine.

oYou should not leave the door of the appliance open, unless

you are loading or unloading the dishwasher.

oYou should not stand or sit on the door when it is open.

Child Safety

oYour dishwasher should only be used by adults. You should not

allow children in the area of the machine unsupervised. You

should not let them touch the controls or play with the appliance.

oIt could be possible for a child or pet to gain access to the

dishwasher if the door is left open. Therefore please check the

inside of the appliance before setting it on a wash cycle.

oAny packaging that is removed from the machine should be kept

away from children.

oAll detergents should be kept out of children’s reach in a safe

place.

oSome water will remain inside the dishwasher when it has

completed a wash cycle. This water is not suitable for drinking

and may contain residues from the detergents that are used in

the appliance.

Declaration of conformity

This appliance complies with the following European Directives:

-73/23 dated 19/02/1973 Low Voltage Directive and subsequent

modifications.

-89/336 dated 03/05/1989 Electromagnetic Compatibility Directive and

subsequent modifications.

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate of your dishwasher is

located on the right hand side of the drop down door.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

Specifications

Product dimensions

Height: 815 - 865 mm

Width: 598 mm

Depth: 570 mm

Aperture dimensions

Height: 815 mm (min)

Width: 600 mm

Depth: 580 mm (min)

Product specifications

o14 Place settings

o7 functions: Normal

Intensive

Economy

Glass

Rapid

1 Hour

Soak

o6 temperatures: 40°C, 45°C, 50°C, 55°C, 60°C, 65°C

oDelay timer

oLED display

oSelf-cleaning stainless steel micro-filter

oAnti-leak device

oAnti-flood device

oHeight adjustable upper basket

oCollapsible plate racks

oPull out cutlery drawer

oAdjustable feet

oResidual drying

oConcealed heating element

oHalf load

oElectronic aqua stop

oLow water consumption (12 litres)

Energy efficiency details

Energy efficiency class: A+

Washing performance class: A

Drying performance class: A

Power consumption

Off mode: 0.45 W

Left on mode: 0.49 W

Electrical details

Rated voltage: 230 Vac 50 Hz

Supply connection: 13 A (double pole switched fused outlet with

3mmcontactgap)

Description of the appliance

1) Top spray arm

2) Cutlery drawer

3) Upper basket

4) Inner pipe

5) Lower basket

6) Salt dispenser / Water softener

7) Detergent dispenser

8) Cup shelf

9) Bottom spray arm

10) Main filter

11) Inlet pipe connector

12) Drain pipe connector

Control panel

1) ON/OFF button

2) Delay start button

3) Half-load button

4) Program selection button

5) Start / Pause button

6) LED display

7) Half-load indicator

8) Water inlet indicator

9) Program indicator neons

10) Other indicator lights:

Rinse aid indicator neon

salt indicator neon

(Child) lock indicator
