Batca LINK LD-1 User manual

www.batcafitness.com LD-1 Owner’s Manual

June 2011

Revision 1

Serial Number Here

Date of Purchase

Owner’s Manual

Chest Press/Pec Fly

LD-1

1207 New Hope Road, Raleigh, NC - 919.255.1233 - www.batcafitness.com

Batca Fitness Systems 2LD-1 Owner's Manual

__________ Page

Instructions 2

Parts Listing 3

Hardware Comparison 4-7

MainAssembly 8-20

Upholstery 18

Cable Routing 15-17

Congratulations on the purchase of your new Batca LD-1. This gym will provide you with a lifetime of

enjoyment to meet your strength training needs. Batca Fitness Systems strives to build the best quality gyms

and to package these gyms in such a way to avoid any damage during shipping.

In order to get started with your assembly you should first familiarize yourself with this manual. It is

recommended that you read through each step thoroughly before you begin. Begin by opening your boxes and

separating all of your parts. Verify that all parts are accounted for and have no damage. When all parts are

accounted for, you may begin your assembly. Some items may have been pre-assembled for your convenience.

Please note that hardware quantities shown reflect total quantities for your gym and may not reflect actual

quantities in each bag. Assemble your gym on a solid level surface. This will ensure the best possible perfor-

mance, function, and safety for the gym and your workout.

Assemble your gym according to the step by step instructions found in this manual. Failure to do so

will void your warranty and may result in personal injury. After assembly, you should check each station to

ensure correct operation. If a problem arises, recheck your assembly with these instructions to verify cor-

rect assembly. If you are unable to correct a problem or have questions with your assembly please contact

your authorized Batca dealer.

Batca Fitness Systems has built this gym to give you a safe, effective and enjoyable

workout. However, there is a risk assumed by individuals who use this type of equipment. It is

very important that all warnings and instructions are read and followed before beginning any

exercise program.

It is also very important to read and follow the preventative maintenance schedule

described in this manual. If any of the warning labels or stickers are worn, faded, torn,

scratched or missing they should be replaced immediately.

WARNING: There is a risk assumed by individuals who use this type of equipment. To minimize

risk always follow these rules.

1) It is essential that you consult with your physician before beginning any exercise program.

2) Inspect equipment before each use for loose, worn, or frayed parts (including cables, nuts

and bolts). Replace parts at first signs of wear (use only genuine BATCA replacement

parts). Use of equipment that is damaged, worn, frayed or not completely assembled on a

solid, level surface may result in injury.

3) Make sure all adjustment pins are fully engaged before using equipment.

4) Keep all parts of the body and clothing outside the path of any moving parts of the gym. Be

alert to the possibility of injury. Do not be careless.

5) Minors and children should not be allowed to play on or around this gym.

__________ Page

Final Assembly and Troubleshooting 21

Cable Tension and Adjustments 22

Maintenance 23

Warranty 24

Floor Plan Layout 25

Table of Contents

Instructions

Warning

www.batcafitness.com 3LD-1 Owner’s Manual

Frame Components Accessories

Upholstery

Hardware

Cables

Tools Required

 9/16” Wrench

 9/16” Ratchet

 Allen Wrench Set

 Tape Measure

ITEM

NO.

PART NUMBER DESCRIPTION QTY.

1 BFP-10824 LD-1 Cage 1

2 BFP-10823 Base Assembly 1

3 BFP-10828 Upright Support 1

4 BFP-10829 Pec Top Assembly 1

5 BFP-10839 Cable Lockout Plate 1

6 BFP-51745 Guide Rod 2

7 BFP-10827 Guide Rod Plate 1

8 BFP-51719 Anti-Deflection Plate 1

9 BFM-10413 Weight Stack Top Plate 1

10 BFM-50632 Weight Stack Plate 19

11 BFM-50529 Rubber Donut 2

12 BFP-10834 Pec Cam (Right) 1

13 BFP-10833 Pec Cam (Left) 1

14 BFP-10830 Upper Pec Arm (Right) 1

15 BFP-10831 Upper Pec Arm (Left) 1

16 BFP-10832R Right Lower Pec Arm 1

17 BFP-51736 Axle 2

18 BFP-10825 Foot Assist Assembly 1

19 BFP-51699 Axle 1

20 BFP-10826 Chest Press Arm 1

21 BFP-10837

Chest Press Pulley Holder 1

22 BFP-10836 Chrome Adjustment Tube 1

23 BFP-10838 Free Floater 2

24 BFM-50345 Pulley Cover 2

25 BFP-51711 Placard Plate 1

26 BFP-51740

Rear Weight Stack Shroud 1

27 BFP-51742

Front Weight Stack Shroud

(Right)

28 BFP-51741

Front Weight Stack Shroud

(Left)

16a BFP-10832L Left Lower Pec Arm 1

ITEM NO. PART NUMBER DESCRIPTION QTY

36 BFH-50173 3 1/2” Pulley 3

37 BFH-50174 4 1/2” Pulley 6

38 BFH-50530 5” Pulley 1

39 BFP-51746 1/2” Pulley Spacer 8

40 BFP-51696 Small Aluminum Cap 4

41 BFH-50210 Gas Spring 1

42 BFH-50254 HCS 3/8” x 3/4” 2

43 BFP-52373 BHSCS 3/8” x 3/4” 6

44 BFP-51653 SHCS 3/8” x 1 1/4” 2

45 BFH-50351 1 3/8” Shoulder Bolt 3

46 BFP-51759 SHCS 3/8” x 2” 1

47 BFP-51752 SHCS 3/8” x 2 1/4” 7

48 BFP-51750 SHCS 3/8” x 2 3/4” 13

49 BFP-51748 SHCS 3/8” x 3 1/4” 2

50 BFP-51760 SHCS 3/8” x 3 1/2” 2

51 BFP-51884 SHCS 3/8” x 4 1/4” 2

52 BFP-51799 SHCS 3/8” X 5” 4

53 BFP-51756 SHCS 3/8” x 5 1/4” 4

54 BFH-50267 5/16” Nylock 3

55 BFH-50147 3/8” Lock Washer 6

56 BFH-50146 3/8” Flat Washer 60

57 BFH-50157 3/8” Nylock 31

58 BFH-50204 3/8” Curved Washer 10

49 BFM-50620 BHSCS 3/8” x 1” 2

ITEM

NO.

PART NUMBER DESCRIPTION QTY.

33 BFP-52137 Head Pad 1

34 BFP-52136 Back Pad With Lumber 1

35 BFP-52141 Bottom Pad 1

ITEM PART NUMBER DESCRIPTION QTY.

29 CAB-15000 Weight Stack to Free Floater 1

30 CAB-15002 Pec Top to Free Floater 1

31 CAB-15001 Free Floater to Free Floater 1

ITEM NO. PART NUMBER DESCRIPTION QTY.

32 BFM-51173 Magnetic Weight Stack Pin 1

Batca Fitness Systems 4LD-1 Owner's Manual

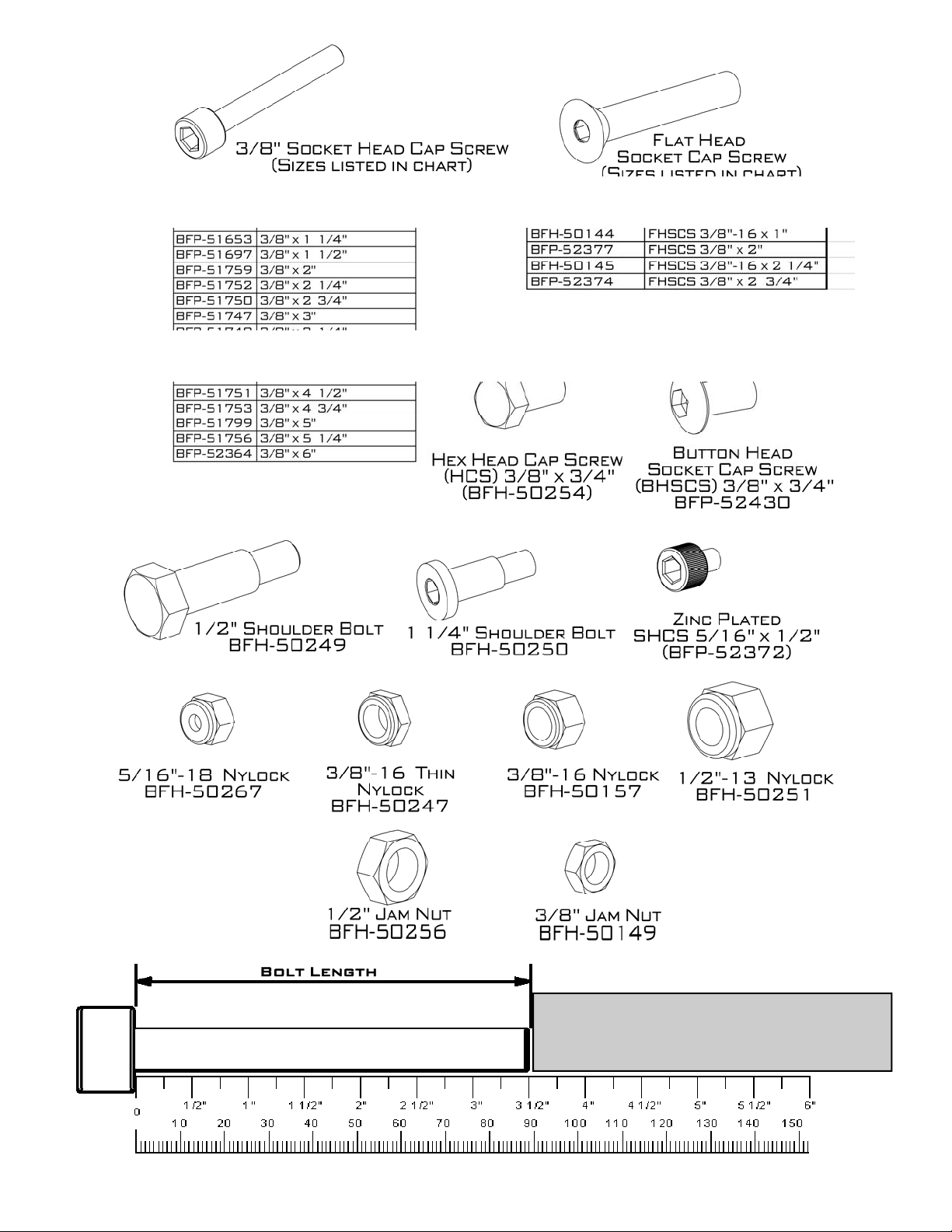

Bolt Length

Note: Bolt length is measured

from the underside of the head

of the bolt.

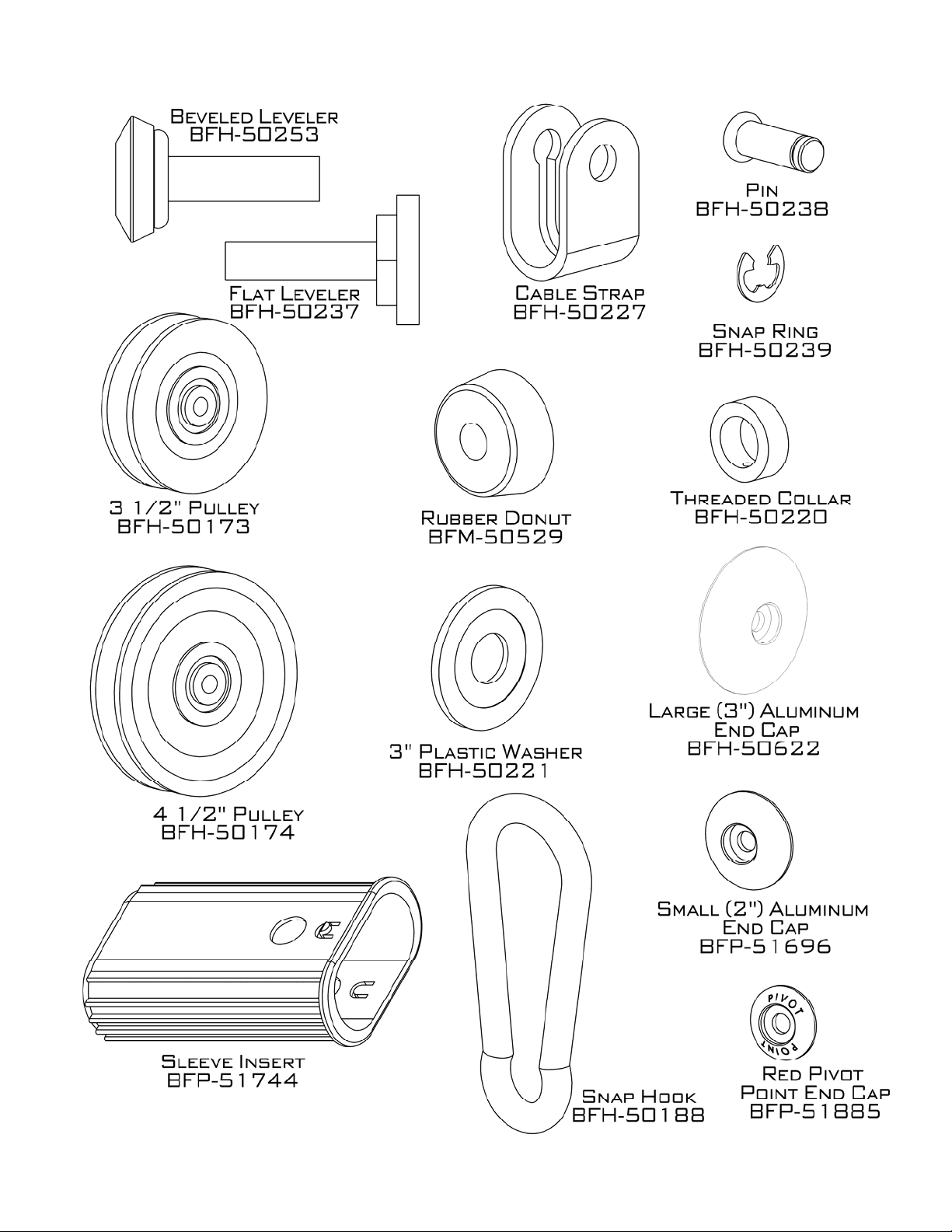

www.batcafitness.com 5LD-1 Owner’s Manual

Batca Fitness Systems 6LD-1 Owner's Manual

www.batcafitness.com 7LD-1 Owner’s Manual

Batca Fitness Systems 8LD-1 Owner's Manual

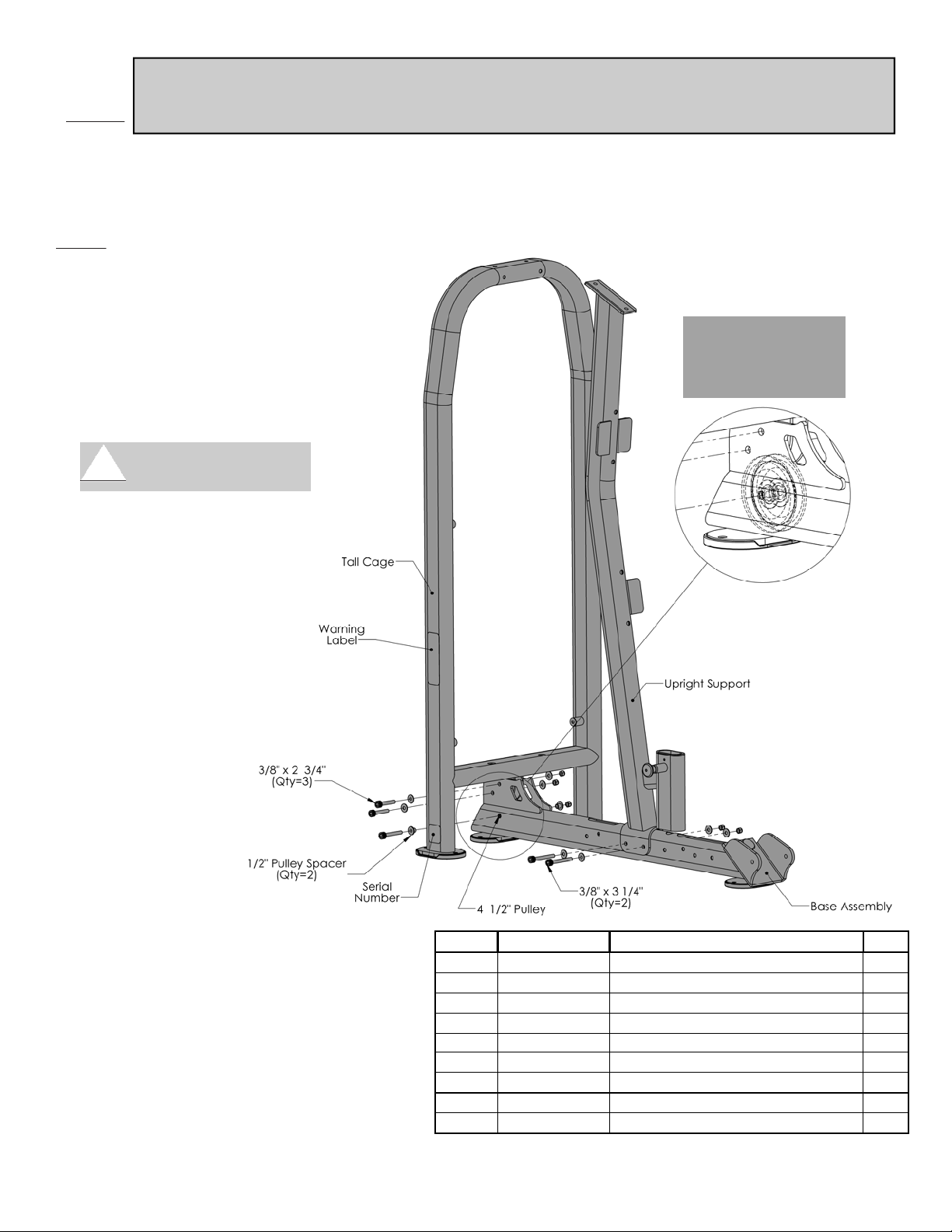

Step 1:

Note: For a more consistent appearance, position all bolts in the direction

shown in each figure

PLEASE FOLLOW ALL DIRECTIONS VERY

CAREFULLY FOR PROPER INSTALLATION.

Figure 1

Item # Part # Description Qty

1 BFP-10824 LD-1 Cage 1

2 BFP-10823 Base Assembly 1

3 BFP-10828 Upright Support 1

37 BFH-50174 4 1/2” Pulley 1

48 BFP-51750 SHCS 3/8” x 2 3/4” 3

49 BFP-51748 SHCS 3/8” x 3 1/4” 2

39 BFP-51746 1/2” Pulley Spacer 2

56 BFH-50146 3/8” Flat Washer 8

57 BFH-50157 3/8” Nylock 5

DO NOT TIGHTEN

BOLTS UNTIL STEP 2

The pulley in this

step is located

inside the Base

Assembly tube

All Flat Washers and Nylocks are 3/8”

unless otherwise noted. Anywhere a

washer is against the round side of a tube

there is to be a

3/8” CURVED WASHER

instead of a

3/8” FLAT WASHER.

www.batcafitness.com 9LD-1 Owner’s Manual

Figure 2

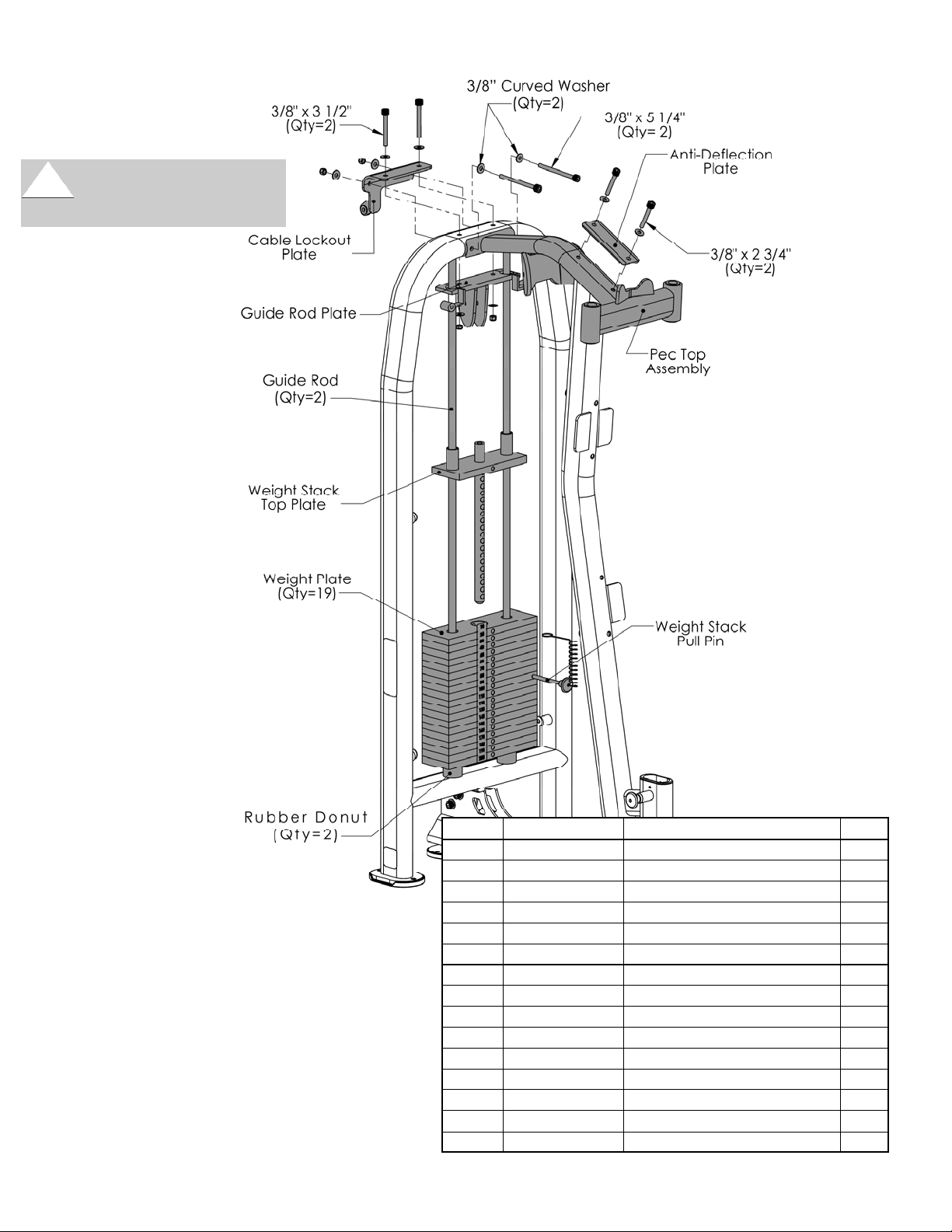

Step 2:

All Flat Washers and Nylocks are 3/8” unless

otherwise noted. Anywhere a washer is against

the round side of a tube there is to be a

3/8”

CURVED WASHER

instead of a

3/8” FLAT

WASHER.

Item # Part # Description Qty

4 BFP-10829 Pec Top Assembly 1

5 BFP-10839 Cable Lockout Plate 1

8 BFP-51719 Anti-Deflection Plate 1

9 BFM-10413 Weight Stack Top Plate 1

10 BFM-50632 Weight Stack Plate 19

32 BFM-51173 Weight Stack Pull Pin 1

48 BFP-51748 SHCS 3/8” x 2 3/4” 2

50 BFP-51760 SHCS 3/8” x 3 1/2” 2

53 BFP-51756 SHCS 3/8” x 5 1/4” 2

56 BFH-50146 3/8” Flat Washer 10

57 BFH-50157 3/8” Nylock 6

11 BFM-50529 Rubber Donut 2

6 BFP-10827 Guide Rod 2

7 BFP-51745 Guide Rod Plate 1

28 BFH-50204 3/8” Curved Washer 2

Make sure all bolts are

tightened before moving

Batca Fitness Systems 10 LD-1 Owner's Manual

Step 3:

Figure 3

All Flat Washers and Nylocks are 3/8”

unless otherwise noted.

Item # Part # Description Qty

12 BFP-10834 Pec Cam (Right) 1

13 BFP-10833 Pec Cam (Left) 1

14 BFP-10830 Upper Pec Arm (Right) 1

15 BFP-10831 Upper Pec Arm (Left) 1

40 BFP-51738 Small Aluminum Cap 2

43 BFP-52373 BHSCS 3/8” x 3/4” 2
