Batca B-1 User manual

Batca Fitness Systems B-1 Owner’s Manual

Owner’s Manual

April 2005

Revision 3

April 2005

Revision 3

Record Serial Number Here

Batca Fitness Systems

Tel. (919) 255-1233

www.batcafitness.com

Date of Purchase

(Flat, Incline, Decline Bench)

April 2005

B-1

www.batcafitness.com 2 B-1 Owner’s Manual

Table of contents

Page

Instructions 2

PartsListing 3

Hardware Comparison 4-6

MainFrameAssembly 7-8

Upholstery 9

Decline Holddown Attachment 10

Preacher Curl Attachment 11

Maintenance, Warnings 12

Warranty 13

Floor Plan Layout 14

Instructions

Congratulations on the purchase of your new Batca B-1 F.I.D. Bench. This bench will provide you with a

lifetime of enjoyment to meet your strength training needs. Batca Fitness Systems strives to build the best

quality benches and to package them in such a way to avoid any damage during shipping.

In order to get started with your assembly you should first familiarize yourself with this manual. It is

recommended that you read through each step thoroughly before you begin. Begin by opening your box

and separating all of your parts. Verify that all parts are accounted for and have no damage. When all

parts are accounted for, you may begin your assembly. Some items may have been pre-assembled for

your convenience. Please note that hardware quantities shown reflect total quantities for your gym and

may not reflect actual quantities in each bag. Assemble your bench on a solid level surface. This will

ensure the best possible performance, function, and safety for the bench and your workout.

Assemble your bench according to the step by step instructions found in this manual. Failure to do so will

void your warranty and may result in personal injury. After assembly you should check your bench for

correct operation. If a problem arises, recheck your assembly with these instructions to verify correct

assembly. If you are unable to correct a problem or have questions with your assembly please contact

your authorized Batca dealer.

Batca Fitness Systems 3 B-1 Owner’s Manual

Frame Components

Hardware Upholstery

Tools Required

• 9/16” Wrench

• 3/4” Wrench

• 9/16” Ratchet

• 3/4” Ratchet

• Allen Wrench

ITEM # PART # DESCRIPTION QTY.

1 BFM-10200 Frame 1

2 BFM-50328 Bent Tube 1

3 BFM-10203 Telspar Assembly 1

4 BFL-50131 Plate 1

5 BFL-50132 Plate 1

6 BFM-10201 Upper Seat Support 1

7 BFM-10202 Lower Seat Support 1

8 BFM-10204 Seat Bottom Adjustment 1

9 BFM-10205 Chrome Adjustment 1

29 BFM-50342 Axle 1

30 BFL-50134 Plate 1

ITEM # PART # DESCRIPTION QTY.

10 BFH-50110 Molded Grip 1

11 BFH-50121 HCS 3/8"-16 X 2" P5 2

12 BFH-50123 HCS 3/8"-16 X 2 1/2" P5 5

13 BFH-50125 HCS 3/8"-16 X 3" P5 2

14 BFH-50270 HCS 3/8"-16 X 5 1/4" P5 1

15 BFH-50137 HCS 1/2"-13 X 3 1/4" P5 1

16 BFH-50140 HCS 1/2-13 X 4 1/2” P5 1

17 BFH-50141 HCS 1/2-13 X 5 1/2” P5 2

18 BFH-50146 3/8" Flat Washer (Black) 17

19 BFH-50147 3/8" Lock Washer (Black) 5

20 BFH-50155 1/2"-13 Nylock (Black) 4

21 BFH-50157 3/8"-16 Nylock (Black) 7

22 BFH-50223 Wheel 2

23 BFH-50251 1/2" Flat Washer (Black) 8

24 BFH-50265 FHSCS 3/8"-16 X 4 1/4" 2

27 BFH-50257 Warning Label 1

28 BFH-50211 2" Square Plastic Cap 2

31 BFH-50212 2" x 3" Plastic Cap 4

32 BFH-50213 1 1/2" x 2" Plastic Cap 3

33 BFH-50215 1 1/2" Square Plastic Cap 2

34 BFH-50197 Small Logo 1

35 BFH-50175 Sleeve Insert 2

36 BFH-50277 1 1/2" x 3" Plastic Cap 2

37 BFM-50263 Pull Pin T-Handle N/A

38 BFM-50157 1/2" Short Pull Pin Assembly 2

39 BFH-50272 1/2" Short Twist Lock Pull Pin 1

40 BFH-50278 Silver Metallic Touch-Up Paint 1

41 BFH-50259 Black Wrinkle Touch-Up Paint 1

ITEM # PART # DESCRIPTION QTY.

25 BFU-10115 Back Pad 1

26 BFU-10116 Bottom Pad 1

www.batcafitness.com 4 B-1 Owner’s Manual

Bolt Length

Note: Bolt length is measured from

the underside of the head of the bolt.

Batca Fitness Systems 5 B-1 Owner’s Manual

www.batcafitness.com 6 B-1 Owner’s Manual

Batca Fitness Systems 7 B-1 Owner’s Manual

PLEASE FOLLOW ALL DIRECTIONS VERY CAREFULLY FOR

PROPER INSTALLATION.

Step 1:

Note: It is very important that the HCS 1/2”-13 x 4 1/2” bolt is not over tightened. This may affect the

operation of the bench seat’s hinge and could cause the movement to bind.

Note: For a more consistent appearance, position all bolts in the direction shown in each figure.

• Record your serial number on the front of this assembly instructions and keep for your records. The serial

number can be found on the inside face of the back left leg of the bench Frame (1) as seen in Figure 1A.

Figure 1

Figure 1A

Item # Part # Description Qty

1 BFM-10200 Frame 1

2 BFM-50328 Bent Tube 1

3 BFM-10203 Telspar Assembly 1

4 BFL-50131 Plate 1

5 BFL-50132 Plate 1

11 BFH-50121 HCS 3/8"-16 X 2" P5 2

13 BFH-50125 HCS 3/8"-16 X 3" P5 2

16 BFH-50140 HCS 1/2-13 X 4 1/2" P5 1

18 BFH-50146 3/8" Flat Washer (Black) 10

20 BFH-50155 1/2"-13 Nylock (Black) 1

21 BFH-50157 3/8"-16 Nylock (Black) 6

22 BFH-50223 Wheel 2

23 BFH-50251 1/2" Flat Washer (Black) 2

24 BFH-50265 FHSCS 3/8"-16 X 4 1/4" 2

27 BFH-50257 Warning Label 1

• All Flat Washers and Nylocks are 3/8” unless

otherwise noted.

www.batcafitness.com 8 B-1 Owner’s Manual

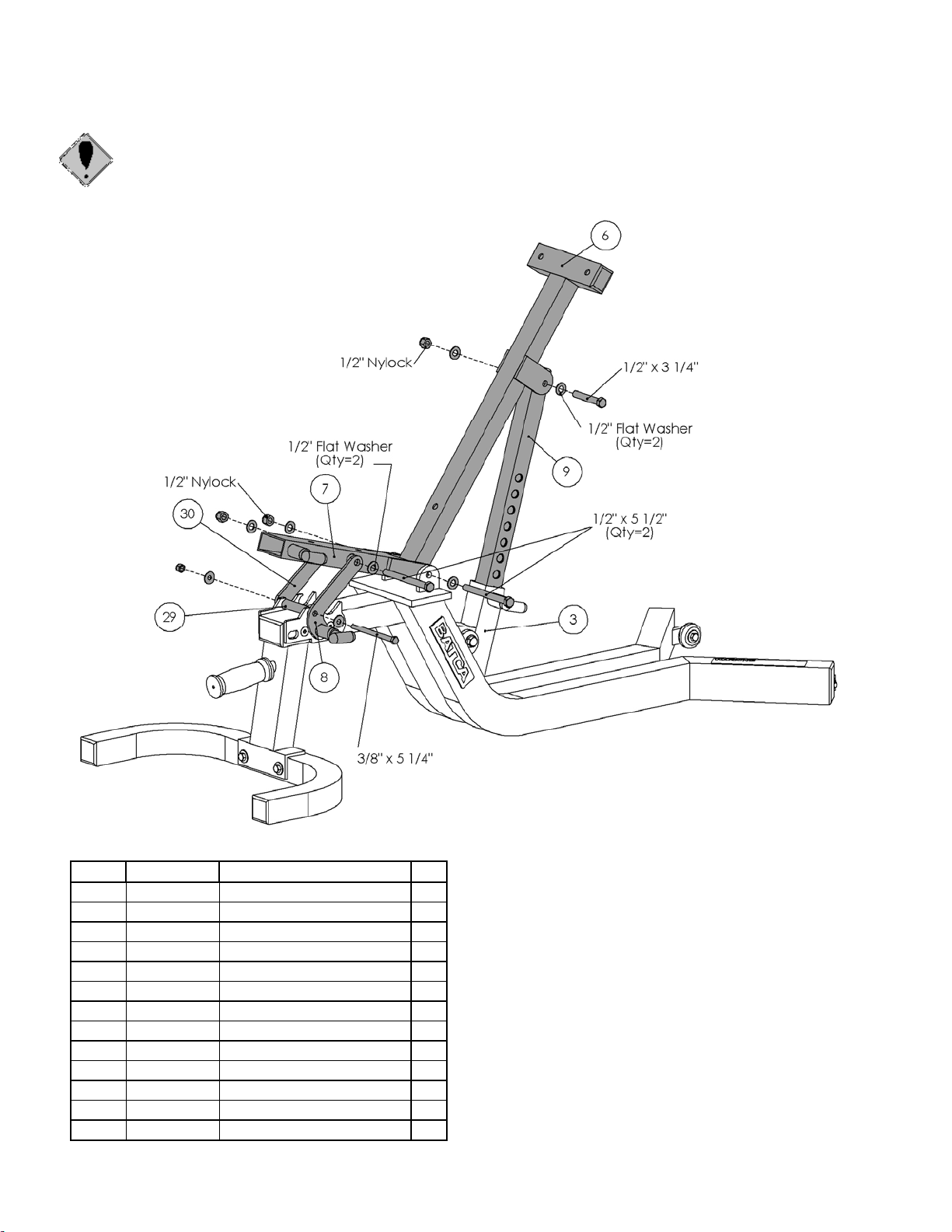

Step 2:

Note: It is very important that the HCS 1/2”-13 x 5 1/2” and HCS 1/2”-13 x 3 1/4” bolts are not over

tightened. This may affect the operation of the bench seat’s hinge and could cause the movement to

bind.

Figure 2

All Flat Washers and Nylocks are 3/8” unless otherwise noted.

Item # Part # Description Qty

6 BFM-10201 Upper Seat Support 1

7 BFM-10202 Lower Seat Support 1

8 BFM-10204 Seat Bottom Adjustment 1

9 BFM-10205 Chrome Adjustment 1

29 BFM-50342 Axle 1

30 BFL-50134 Plate 1

14 BFH-50270 HCS 3/8"-16 X 5 1/4" P5 1

15 BFH-50137 HCS 1/2"-13 X 3 1/4" P5 1

17 BFH-50141 HCS 1/2-13 X 5 1/2 P5 2

18 BFH-50146 3/8" Flat Washer (Black) 2

20 BFH-50155 1/2"-13 Nylock (Black) 3

21 BFH-50157 3/8"-16 Nylock (Black) 1

23 BFH-50251 1/2" Flat Washer 6

Batca Fitness Systems 9 B-1 Owner’s Manual

Step 3:

Figure 3

All Flat Washers and Nylocks are 3/8” unless otherwise noted.

Item # Part # Description Qty

12 BFH-50123 HCS 3/8"-16 X 2 1/2" P5 5

18 BFH-50146 3/8" Flat Washer (Black) 5

19 BFH-50147 3/8" Lock Washer (Black) 5

25 BFU-10115 Back Pad 1

26 BFU-10116 Bottom Pad 1

Note: All bolts in this step receive one 3/8” Flat

Washer and one 3/8” Lock Washer instead of

one 3/8” Nylock.

www.batcafitness.com 10 B-1 Owner’s Manual

Decline Holddown Attachment:

Item # Part # Description Qty

1 BFM-10433 Decline Holddown Attachment 1

2 BFU-10121 7" Upholstery Roller 4

3 BFH-50221 3" Plastic Washer 8

4 BFH-50252 Plastic Collar 4
