Barco R9841230 User manual
BARCOPROJECTIONSYSTEMS
Date :
09042002
INSTALLATION MANUAL
LENS QVD(7:1) FOR IQ SERIES
R9841230
Art. No. :
R5976393
Rev :
0
QVD(7:1)
Kit
Due to constant research, the information in this manual is subject to change without notice.
Produced by BARCO NV, April 2002.
All rights reserved.
Trademarks are the rights of their respective owners.
BARCOn.v./ProjectionSystems
Noordlaan5
B-8520Kuurne
Belgium
Tel:+32/56/368211
Fax:+32/56/351651
Visite Barco at the web : http://www.barco.com
PrintedinBelgium
BARCO 3 Projection Systems
Contents of the Kit
Lens Type The kit contains a QVD(7:1) lens.
B400591
R379058
R5976393
1
1
1
LENS QVD(7:1)
TorayseeTM cloth 24x24
MAN INS QVD(7:1)
Part Number Description Qty
Part Listing The following parts are included in the kit :
BARCO 4 Projection Systems
Removing the Lens (if necessary)
What has to be
done
Before installing the new lens , the old lens has to be removed from the projector.
Necessary Tools no tool necessary
Removing the
Lens
To remove the lens, follow the next procedure or look into the owners manual :
1
2
3
1
2
3
Slide the lensdoor to the left
Release the lens by pulling the unlock handle (located on
the right side of the projector) and at the same time
maintaining the lens with one hand to prevent it from
falling
Remove the lens out of its housing
Step Action Image
Warning ! Risk of personal injury. Instructions for lens installation must be followed thoroughly.
image 1 image 2
image 3
To be continued on next page
BARCO 5 Projection Systems
Installing the QVD(7:1) Lens
What has to be
done
The lens has to be installed on a IQ series projector
Necessary Tools no tools
Warning ! Risk of personal injury. Instructions for lens installation must be followed thoroughly.
Installing the
Lens
To install the lens, follow the next procedure or look into the owners manual :
1
2
3
4
5
page 4
page 4
page 4
Take the lens out of its packing material.
Slide the lensdoor of the projector to the left.
Fix the lens by placing it in the housing
Push carefully to lock (click sound) the lens in the housing
Slide the lensdoor back to the right
Step Action Image
BARCO 6 Projection Systems
Adjusting the QVD(7:1) Lens
What has to be
done
The lens has to be adjusted
Necessary Tools none

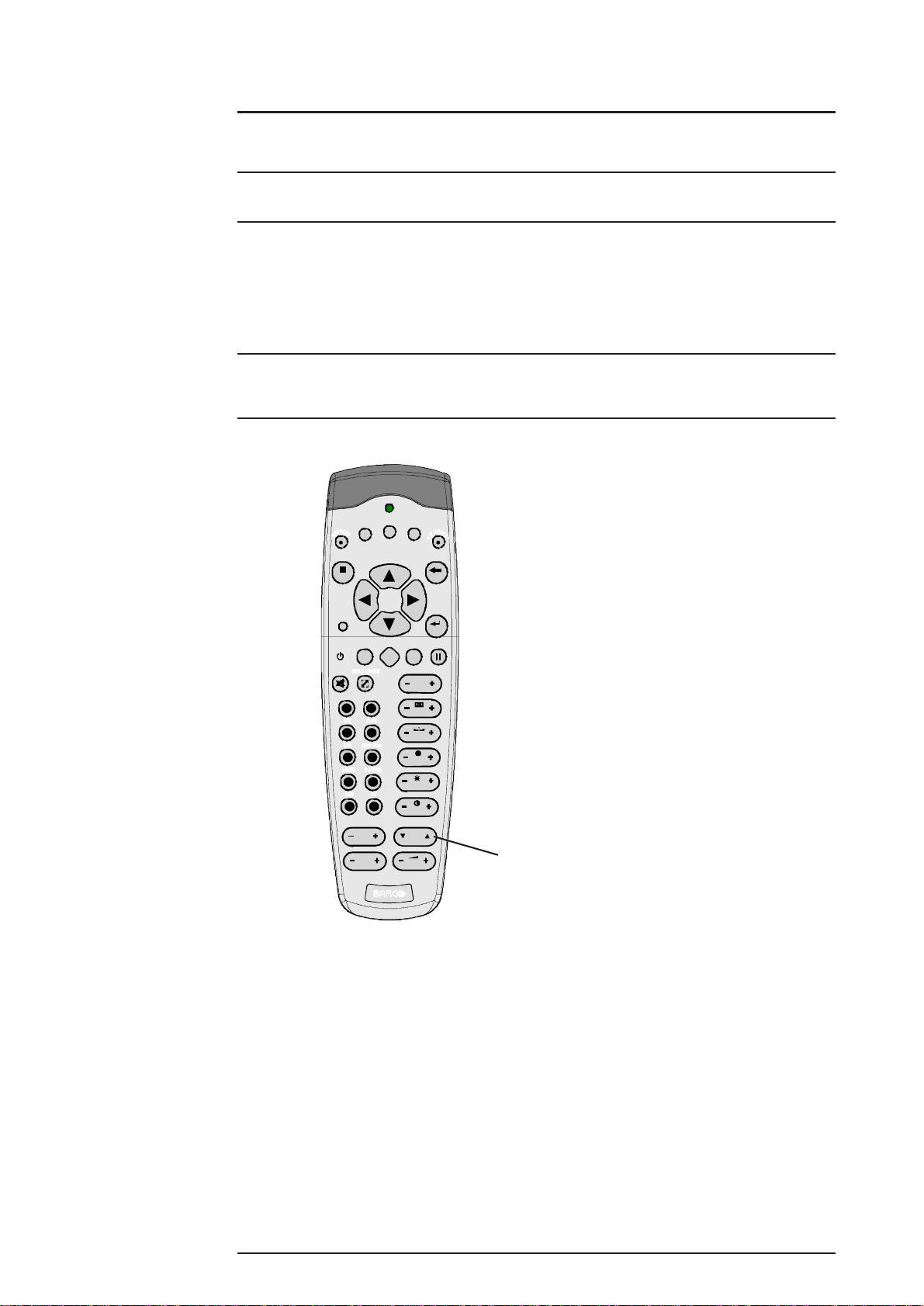

Use the dedicated keys on the RCU (image 1) to shift the lens.
To (verticaly) shift the image :
Push éor êon the key C to shift the image.
Vertical shift of
the Lens
To focus the image follow next procedure turn the lens front part.
Focusing
image 1
9
7
5
3
1
0
8
6
4
2
F1 F2 F3
ENTER
MENU BACK
LENS
ZOOM LENS
SHIFT
LENS
FOCUS VOL
CONTR
BRIGHTN
COLOR
TINT
DIGI
ZOOM
PHASE
PAUSE PIP
LOGO
C
Illustrations
BARCO 7 Projection Systems
Lens Formula To calculate the distance between the projector frontside and the screen (PD) for a
given screen width (SW), use the following formula:
Metric system (PD and SW in meter) :
PD = 0.013 + 6.842 x SW + 0.005/SW
Inch system (PD and SW in inch) :
PD = 0.51 + 6.842 x SW +7.75/SW
SWmin : 1m
SWmax: 6m
Lens Cleaning
Procedure
To minimize the possibility of damaging the optical coating or scratching exposed lens
surface, we have developed recommendations for cleaning the lens.
FIRST, we recommend you to try to remove any material from the lens by blowing it off
with clean, dry deionized air. DO NOT use any liquid to clean the lenses.
A TorayseeTM cloth is included with the lens kit.
Proceed as follows :
1
2
3
5
6
7
Always wipe lenses with a CLEAN TorayseeTM cloth.
Always wipe lenses in a single direction. Do not wipe back and for-
wards across the lens surface as this tends to grind dirt into the coating.
Do not leave cleaning cloth in either an open room or lab coat pocket,
as doing so can contaminate the cloth.
If smears occur when cleaning lenses, replace the cloth. Smears are
the first indication of a dirty cloth.
Do not use fabric softener when washing the cleaning cloth or softener
sheets when drying the cloth.
Do not use liquid cleaners on the cloth as doing so will contaminate the
cloth.
Step Action
Order number for a new TorayseeTM cloth : R379058.
Toraysee Cloth
Order Number
