Badger Basket 13711 Quick setup guide

Rustic Toy Box

Assembly and Use Instructions. Adult Assembly Required.

Read all instructions before use. This manual is part of the product

and must be saved for future reference.

VERSION CODE*:

2.0/1120/TG

* Model and Version numbers are needed

if replacement parts are requested

MODEL NUMBERS*:

13711 - Espresso

13712 - Gray

Badger Basket®, PO Box 227, Edgar, WI 54426-0227 USA • Web: www.badgerbasket.com

U.S. Based Customer Service Toll-Free (Mon-Thurs 7:00 AM-4:00 PM CST): 1-800-236-1310

Phone: 715-352-2311 • Fax: 715-352-3163

FOR REPLACEMENT PARTS:

http://www.badgerbasket.com/parts

•Assembly Videos available on YouTube

•

13713 - Distressed White

ASSEMBLY TIPS! Review the entire manual before beginning. Leave hardware slightly loose

during assembly and then go back and tighten fully at the end. If using a power screwdriver,

keep torque setting low and go slow to prevent damage to the product.

BEFORE YOU BEGIN ASSEMBLY:

Check all parts. If anything is missing or not

satisfactory, please DO NOT call the store

or return the product to them. Please go online to:

http://www.badgerbasket.com/parts

Most problems are resolved

without you needing to leave home.

When emailing or calling us, please have this

instruction manual, your product model number,

and your Version Code ready.

Your Model Number is: SEE COVER PAGE

Your Version Code is: 2.0/1120/TG

READ ALL INSTRUCTIONS before use of this product. Keep instructions for future use.

Use only the parts and hardware provided by Badger Basket®. Do not use the product if

it is damaged, broken, or missing parts. Hardware may include small parts.

Choking Hazard! Keep unassembled parts out of the reach of small children. DO NOT

allow anyone to climb, stand on, or play on or inside of this product. It is not a seat, step

stool, or ladder. Periodically check to make sure all the screws remain tight.

No product is a replacement for adult supervision.

SAFETY HINGE LID SUPPORT MUST BE INSTALLED PROPERLY.

If not installed or if installed improperly, the LID could free fall and slam

shut unexpectedly causing serious injury. The SAFETY HINGE LID SUPPORT

has been installed properly if the LID remains open when unattended.

No maintenance or lubrication of the SAFETY HINGE LID SUPPORT is required.

WARNING - CAUTION

ADULT ASSEMBLY REQUIRED. DUE TO THE PRESENCE

OF SMALL PARTS AND SHARP POINTS DURING

ASSEMBLY, KEEP OUT OF REACH OF CHILDREN UNTIL

ASSEMBLY IS COMPLETE.

CARE INSTRUCTIONS:

To clean, wipe with a damp cloth and mild detergent as needed.

Periodically check all of the hardware to make sure it remains tight.

A×1 B×2 C×1 D×1

E×1 F×1

G×1

I×12

J×12

K×14

H×2

TOOL REQUIRED

(NOT INCLUDED)

I×6J×6

BACK SIDE BOTTOM RAIL TOP

FRONT BOTTOM

SAFETY HINGE

SMALL HINGE BOLT

BARREL NUT

SMALL SCREW

Toybox lid may not fully close until Safety Hinge

adjusts to full range of motion after a short period

of normal use.

I×6

K×14

J×6

KKK

BOTTOM

NOTE:The pre-drilled holes must be used for attaching the hinges.

Do not attach in any other position or create your own holes.

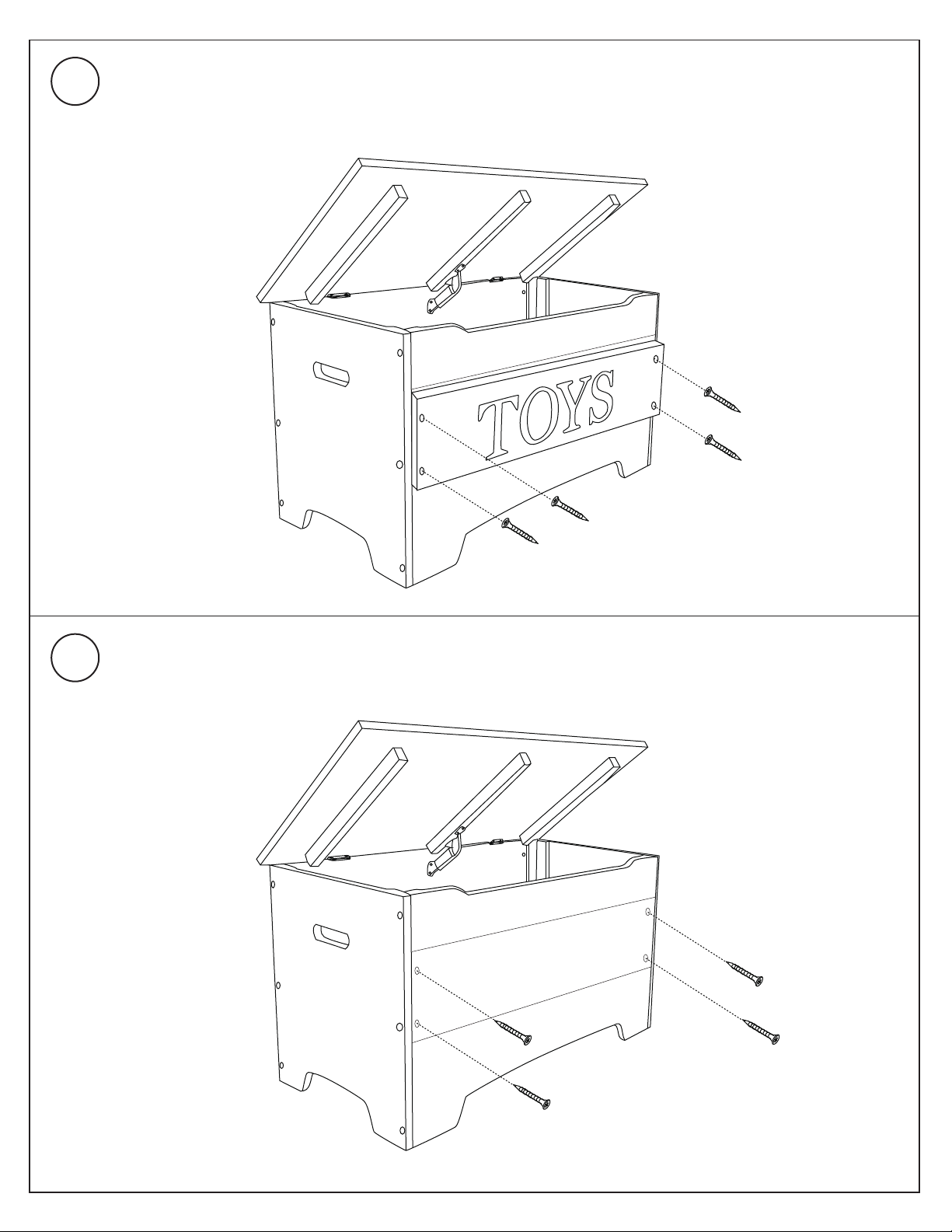

To change the front plate, remove the four screws. Reverse the piece and

replace the four screws.
