Axis P33-V Series User manual
ENGLISH
INSTALLATION GUIDE
ENGLISH DEUTSCH ITALIANO ESPAÑOL
FRAN
Ç
AIS
Pendant Kit for
AXIS P33-V Network Camera Series
About this Document
This document includes instructions for installing the
AXIS P33-V Series Pendant Kit. For information about
compatible products, go to www.axis.com
Equipment Modifications
This equipment must be installed and used in strict
accordance with the instructions given in the user
documentation.
Liability
Every care has been taken in the preparation of this
document. Please inform your local Axis office of any
inaccuracies or omissions. Axis Communications AB
cannot be held responsible for any technical or
typographical errors and reserves the right to make
changes to the product and manuals without prior
notice. Axis Communications AB makes no warranty of
any kind with regard to the material contained within
this document, including, but not limited to, the implied
warranties of merchantability and fitness for a
particular purpose. Axis Communications AB shall not
be liable nor responsible for incidental or consequential
damages in connection with the furnishing, erformance
or use of this material. This product is only to be used
for its intended purpose.
Support
Should you require any technical assistance, please
contact your Axis reseller. If your questions cannot be
answered immediately, your reseller will forward your
queries through the appropriate channels to ensure a
rapid response. If you are connected to the Internet, you
can:
• download user documentation and software updates
• find answers to resolved problems in the FAQ database.
Search by product, category, or phrase
• report problems to Axis support staff by logging in to
your private support area
• chat with Axis support staff (selected countries only)
• visit Axis Support at www.axis.com/techsup/
Contact Information
Axis Communications AB
Emdalavägen 14
223 69 Lund
Sweden
Tel: +46 46 272 18 00
Fax: +46 46 13 61 30
www.axis.com
Pendant Kit Installation Guide Page 3
ENGLISH

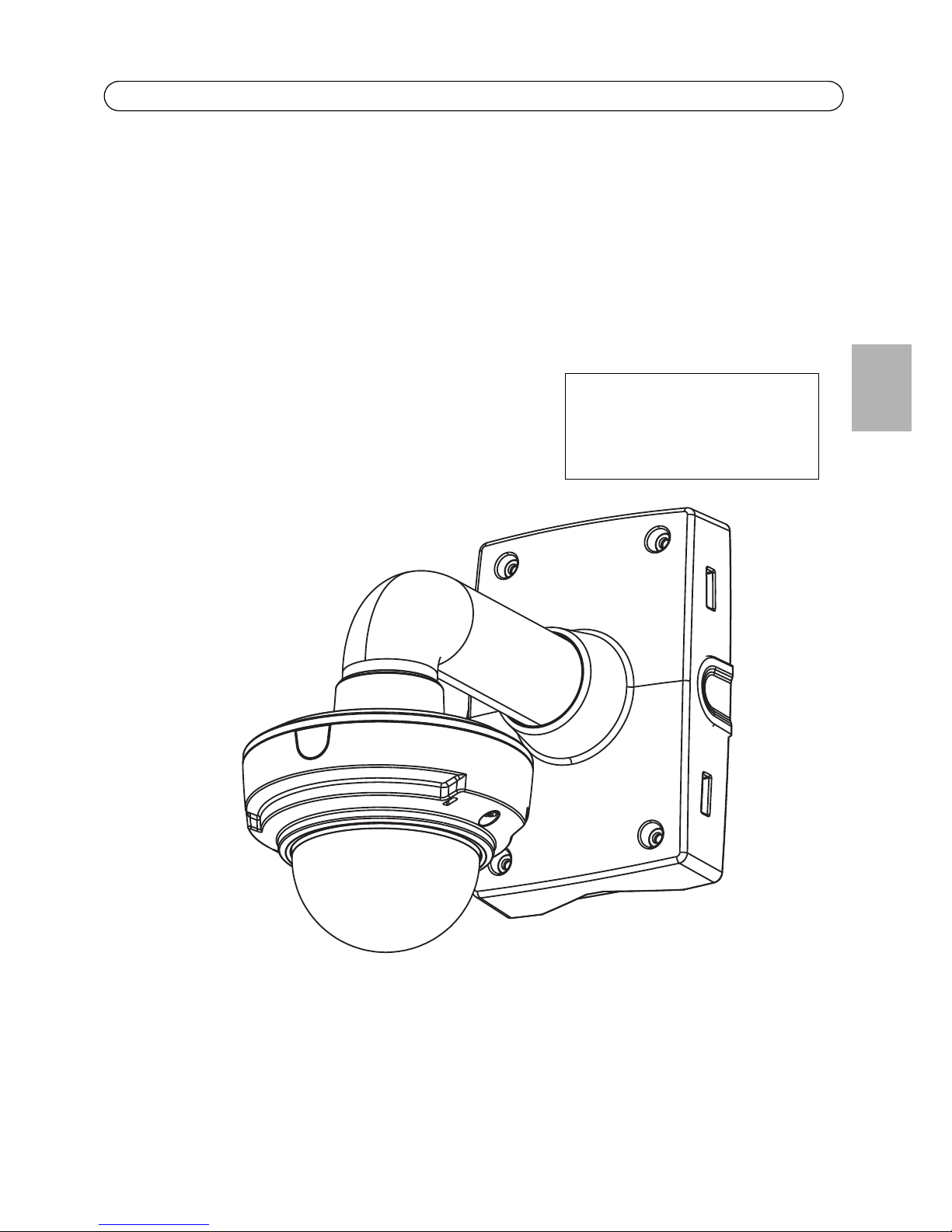

Pendant Kit Installation Guide
The Pendant Kit is designed to be installed with the mounting of your choice. For a list of mounts
available go to Accessories in www.axis.com
Please read through the entire guide before proceeding with the installation. For all other aspects
of using the Axis network camera, please see the Installation Guide and User’s Manual, available
from www.axis.com/techsup
Installation steps
• Check the package contents against
the list on page 4.
• Installation instructions. See page 5.
Important!
This product must be used in
compliance with local laws and
regulations.
Page 4 Pendant Kit Installation Guide

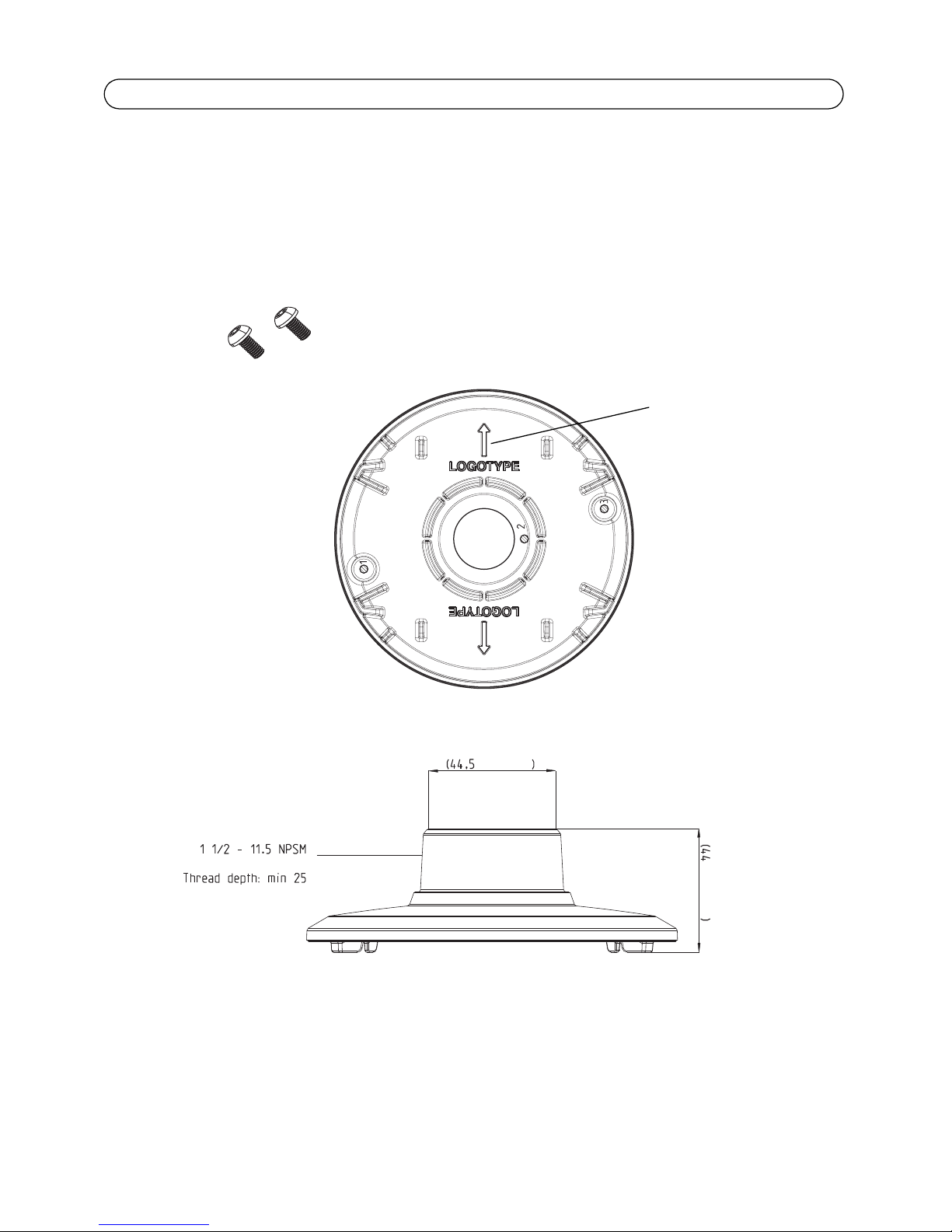

Package contents
• 1 Pendant adapter
•2M4x8screws
• 1 M4x12 screw
mm, 1.75 in
mm, 1.73 in
mm (.98 in.)
mm (.98 in.)
2 M4x8 screws
Pendant adapter
(bottom)
Pendant adapter
(side view)
Logotype arrow
points to where the
logo will appear
when the installation
is complete
Pendant Kit Installation Guide Page 5
ENGLISH
Install pendant kit
1. Install the mount of your choice with necessary cables threaded through it according the
instructions included with the mounting kit.
2. Attach the pendant adaptor to the mount and secure it using a stop screw.
Page 6 Pendant Kit Installation Guide
3. Attach the camera to the pendant chassis with 2 M4x8 screws.
4. Attach the necessary cables and follow the instructions in the camera’s Installation Guide for
adjusting the lens.
Pendant Kit Installation Guide Page 7
ENGLISH
5. Place the dome cover and attach it by tightening the captive screws.
Guide d’installation du kit de suspension Page 9
FRANÇAIS
Guide d’installation du kit de suspension
Le kit de suspension est conçu pour être installé avec le montage de votre choix. Pour obtenir la
liste de tous les montages disponibles, accédez à la section Accessoires du site www.axis.com
Veuillez lire l’intégralité de ce guide avant de procéder à l’installation. Pour plus d’informations sur
tous les autres aspects liés à l’utilisation de la caméra réseau Axis, reportez-vous au guide
d’installation et au manuel de l’utilisateur, disponible sur le site web www.axis.com/techsup
Procédure d’installation
• Vérifiez le contenu de l’emballage par rapport à
la liste de la page 10.
• Instructions d’installation. Cf. page 11.
Important !
Ce produit doit être utilisé
conformément aux lois et
dispositions locales en vigueur.
Page 10 Guide d’installation du kit de suspension
Contenu de l’emballage
• 1 adaptateur de suspension
•2visM4x8
•1visM4x12
mm, 1.75 in
mm, 1.73 in
mm (.98 in.)
mm (.98 in.)
2 vis M4x8
Adaptateur de suspension
(dessous)
Adaptateur de suspension
(Vue de profil)
La flèche de logo
pointe vers l’endroit
où le logo apparaîtra
lorsque l’installation
sera terminée
