AXIOMTEK IPC934-230-FL User manual

4 9416G934010E

©Copyright 2014 Axiomtek Co., Ltd.

Version A1 November 2014

Printed in Taiwan

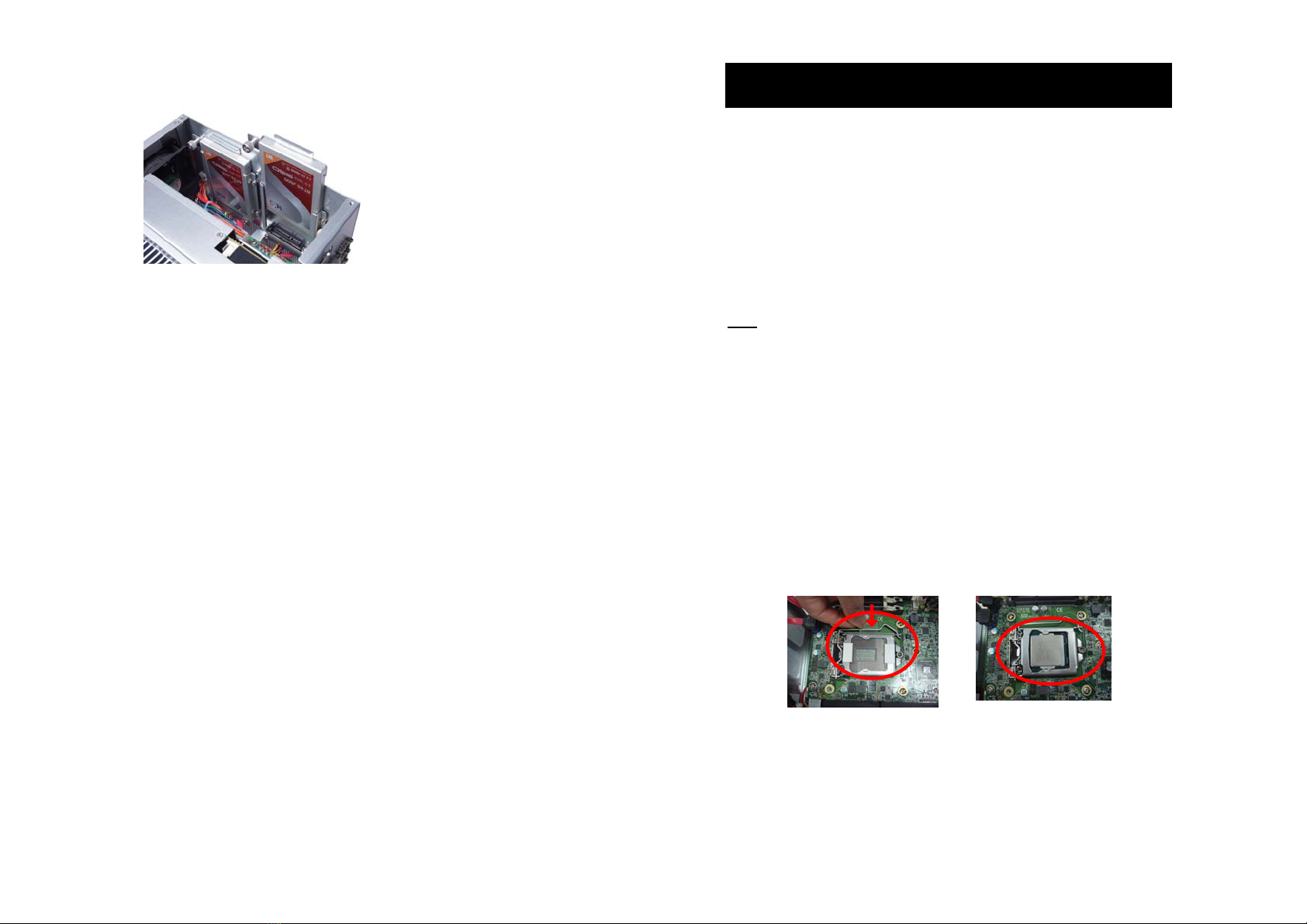

Step 5 Insert the HDD module into the HDD socket.

IPC934-230-FL Quick Installation Guide

9416G934010E 1

©Copyright 2014 Axiomtek Co., Ltd.

Version A1 November 2014

Printed in Taiwan

Checklist

IPC934-230-FL Series Fanless

System Unit x 1 HDD Bracket x 2

Screw Pack x 1 HDD Mylar x 2

Driver CD x1 Foot Pad x 4

Quick manual x 1 Wall mount bracket x 2

CPU Thermal Pad x 1 19V 150W Adapter (for AC

Version)

Remote switch cable x 1 Terminal block x 1 (for DC

version)

Note: Please do not try to apply power to the system if any damaged

components.

Installing the CPU

Step 1 Turn off the system, and disconnect the power connector.

Step 2 Loosen screws to remove the HS cover from the chassis.

Step 3 After opening the Heat sink cover, you can locate the CPU

socket as marked. Align pins of the CPU with pin holes of

the socket. Be careful of the CPU’s orientation that you

need to align the arrow mark on the CPU with the arrow key

on the socket. Please remove the Mylar before you install

the CPU into the socket.

IPC934-230-FL Industrial and Fanless Computers

2 9416G934010E

©Copyright 2014 Axiomtek Co., Ltd.

Version A1 November 2014

Printed in Taiwan

Installing the Memory Module

Step 1 Turn off the system, and disconnect the power connector.

Step 2 Loosen screws to remove the Heat sink cover from the chassis

Step 3 Install the memory module into the socket and push it firmly

down until it is fully seated. The socket latches are clipped

on to the edges of the SO-DIMM.

Installing the Hard Disk Drive

Step 1 Turn off the system, and disconnect the power connector.

Step 2 Loosen screws to remove the top cover from the chassis.

9416G934010E 3

©Copyright 2014 Axiomtek Co., Ltd.

Version A1 November 2014

Printed in Taiwan

Step 3 Open the top cover and locate the Hard Disk Drives as red

marked.

Step 4 There are 2 thermal pad and 2 HDD brackets in the

accessory box, please sticker the HDD Mylar before

assembly the HDD with the bracket.
