AXIOMTEK CAPA84R User manual

4 9418E84R000E

Version A1 ovember 2018

Printed in Taiwan

Quick Start

The basic procedures required to power on CAPA84R:

(1). Require power at minimum 12V/0.87A. Check to ensure that

power supply is OFF before connecting to CAPA84R and that

all necessary peripheral devices are plugged properly.

(2). Install suitable heat dissipation device, ex: heatsink…etc.

(3). Make sure all of the jumper and switch are at default settings;

especially SW2 (1-2 close).

(4). Install DDR3L memory module into connector SODIMM1 until

fully seated.

(5). Firmly insert power to CN5/ATX1.

(6). Install a momentary on/off button/switch onto CN3, pin 7 and 8.

(7). Turn on the power supply.

(8). Press the on/off button/switch to power on CAPA84R.

CAPA84R Series Quick Installation Guide

9418E84R000E 1

Version A1 ovember 2018

Printed in Taiwan

Checklist



CPU

oard x1



Product

nformation



Quick

nstallation

uide



Heatsink

eatspreader

(Optional)

Connectors

Connector Description

CN1

SMBus Connector

CN2

Digital I/O

Connector

CN3

Front Panel Connector

CN5/ATX1

DC +12V Power I

nput Connector

CN7

Fan Connector

CN8 DC +5V/15W Power Output Connector

CN9

M.2 2230 Key E Connector

CN10

SATA Power Connector

CN11

SIM Card Wafer Connector

CN12

SATA C

onnector

CN13

M.2 2242/3042 Key B Connector

CN14

USB 2.0 Port 1 and 2 Wafer Conne

ctor

CN15

Inverter Connector

CN16

Audio

Line

in/Line

out/Mic

Wafer

Connector

CN17

Ethernet Port 3 Wafer Connector

CN18

LVDS Connector

CN19 USB 3.0/2.0 Port 0 Type A Connector

CN20

DisplayPort Connector

CN21, CN23

Ethernet Port 1 and 2

CN22

Audio

Line

out Phone Jack

VGA1

VGA Connector

COM1, COM2

COM1 and COM2 Wafer Connector

BAT1

CMOS Battery Connector

SODIMM1 DDR3L SO-DIMM Connector

CAP

84R

Intel

Celeron

J1900/J1800

Processor

Capa

oard

2 9418E84R000E

Version A1 ovember 2018

Printed in Taiwan

Jumper and Switch Settings

Before applying power to the CAPA84R, please make sure all of the

jumper and switch are in factory default positions.

Jumper/Switc

h Description Setting

JP1 LVDS Voltage Selection

Default: +3.3V Level 1-2 Close

SW1 Restore BIOS Optimal Defaults

Default: Normal Operation Release

SW2 Auto Power On

Default: Disable 1-2 Close

Note: Please contact your local vendors if any damaged or missing items. DO

NOT apply power to the board if there is any damaged component.

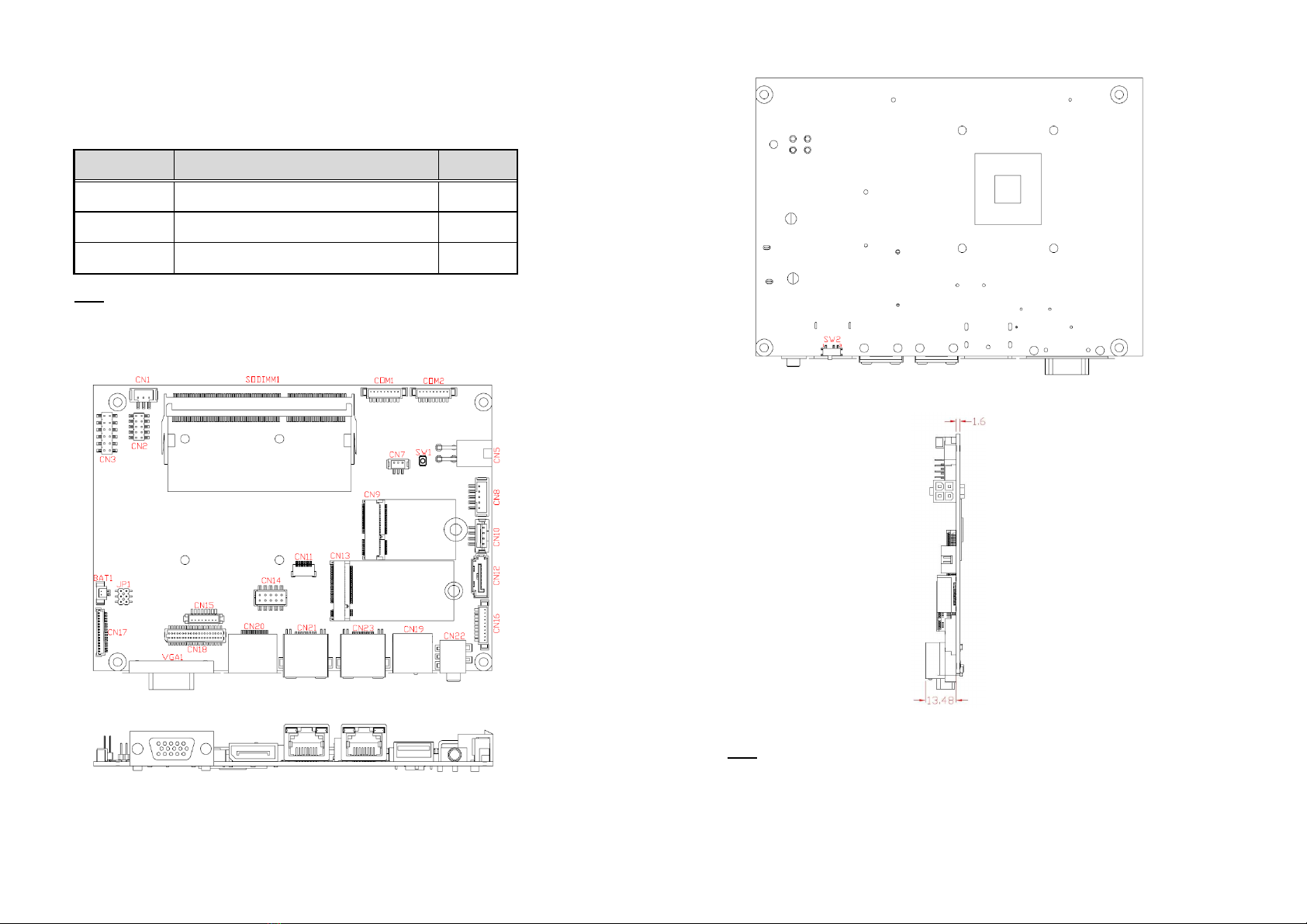

Board Layout

Top View

Rear I/O

9418E84R000E 3

Version A1 ovember 2018

Printed in Taiwan

Bottom View

Side View

Note: Please refer to the CAPA84R series product information CD for the

complete user’s manual, drivers and utilities. User’s manual and related

documents are in Acrobat PDF format.
