AXIOMTEK TBOX323-835-FL User manual

4 94161N323030E

Ver ion A4 Feb. 2017

Printed in Taiwan

Step 3 Slide CFast card into slot cautiously

Step 4 Fasten screws of HDD/CFast bracket

Installing HDMI bracket

Step 1 Fasten the bracket at the position as shown.

Step 2 Connect HDMI cable and tied on bracket by cable tie as

shown.

tBOX323-835-FL Quick Installation Guide

9416N323030E 1

Ver ion A4 Feb. 2017

Printed in Taiwan

Checklist



tBOX323

835

ystem

nit



HDD/SSD(Optional)



Quick Installation Guide x 1



CFast Card(Optional)



x 1

(for Driver &

Manual)



Mini Card Module

(Optional)



Wall mount Bracket x 1



M12 LAN cable(Optional)



Screws Pack



M12 power cable(Optiona



oot Pad x4



Remote switch

cable

(Optional)



Key x2



DIO

& Serial

terminal block

Note: Please contact your local vendors if any damaged or missing items. DO

NOT apply power to the board if there is any damaged component.

Dimensions

tBOX323-835-FL Embedded System

2 94161N323030E

Ver ion A4 Feb. 2017

Printed in Taiwan

I/O Outlets

The following figures show you I/O outlets on front and rear panels of

the tBOX323-835-FL Series.

Front View

Rear View

Installing the PCI Express Mini Card and SIM Card

Step 1 Turn off the system, and unplug the power cord.

Step 2 Turn the system upside down to locate screws at the

bottom, loosen screws to remove the bottom cover.

9416N323030E 3

Ver ion A4 Feb. 2017

Printed in Taiwan

Step 3 Slide Mini card into slot cautiously

Step 4 Slide SIM card into slot cautiously.

Step 5 Close the cover to the chassis, and fasten all screws.

Installing the swappable HDD/SSD and CFast Card

Step 1 Turn off the system, and unplug the power cord. Locate

thumb screw at the front side, unlock and loosen screws.

Step 2 Assemble the HDD/SSD bracket together with the SATA

HDD/SSD

Other AXIOMTEK Computer Hardware manuals

AXIOMTEK

AXIOMTEK SHB211 Series User manual

AXIOMTEK

AXIOMTEK FAB116-8B3P3 User manual

AXIOMTEK

AXIOMTEK eBOX638-840-FL User manual

AXIOMTEK

AXIOMTEK AX93291 User manual

AXIOMTEK

AXIOMTEK OPS520 Series User manual

AXIOMTEK

AXIOMTEK IPC934-230-FL User manual

AXIOMTEK

AXIOMTEK CEM520 User manual

AXIOMTEK

AXIOMTEK SBC82400 User manual

AXIOMTEK

AXIOMTEK TBOX313-835-FL Series User manual

AXIOMTEK

AXIOMTEK UST210-83K-FL Series User manual

AXIOMTEK

AXIOMTEK AIE800-904-FL-DC Series User manual

AXIOMTEK

AXIOMTEK FAB110-5B1P2 User manual

AXIOMTEK

AXIOMTEK PICO511 User manual

AXIOMTEK

AXIOMTEK ETM830 Series User manual

AXIOMTEK

AXIOMTEK CEM842 User manual

AXIOMTEK

AXIOMTEK UST100-504-FL Series User manual

AXIOMTEK

AXIOMTEK SHB105 Series User manual

AXIOMTEK

AXIOMTEK eBOX671A Series User manual

AXIOMTEK

AXIOMTEK SBC86840 Series User manual

AXIOMTEK

AXIOMTEK AX92320 User manual

AXIOMTEK

AXIOMTEK SBC82610 SERIES User manual

AXIOMTEK

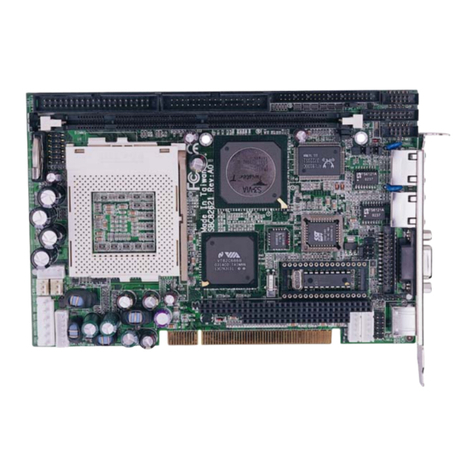

AXIOMTEK SBC82621 User manual
