Avalue Technology SID-10W9 User manual

Part No. E2017S190A0R

SID-10W9

Intel® Atom Z3735F 10.1" Semi Industrial Ultra Slim Panel PC

Quick Reference Guide

1st Ed –14 Sept 2016

SID-10W9

2 SID-10W9 Quick Reference Guide

FCC Statement

Federal Communication Commission Interference Statement

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE

FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT

MAY CAUSE UNDESIRED OPERATION.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with the instruction, may cause

harmful interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

 Consult the dealer or an experienced radio/TV technician for help.

Notice:

(1) A Unshielded-type power cord is required in order to meet FCC emission limits and also to prevent

interference to the nearby radio and television reception. It is essential that only the supplied

power cord by used.

(2) Use only shielded cables to connect I/O devices to this equipment.

(3) Changes or modifications not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

Quick Reference Guide

SID-10W9 Quick Reference Guide 3

SID-10W9

4 SID-10W9 Quick Reference Guide

FCC RF Radiation Exposure Statement

This Wireless LAN radio device has been evaluated under FCC Bulletin OET 65 and found compliant

to the requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247 (b) (4) addressing RF

Exposure from radio frequency devices. The radiated output power of this Wireless LAN device is far

below the FCC radio frequency exposure limits. Nevertheless, this device shall be used in such a

manner that the potential for human contact during normal operation is minimized. When nearby

persons has to be kept to ensure RF exposure compliance, in order to comply with RF exposure limits

established in the ANSI C95.1 standards, the distance between the antennas and the user should not

be less than 20 cm.

WARNING

“CAUTION – Use suitable mounting apparatus to avoid risk of injury.”

“CAUTION - Use a power cord that matches the voltage of the power outlet, which has been

approved and complies with the safety standard of your particular country.”

“WARNING – To avoid risk of electric shock, this equipment must only be connected to a supply

mains with protective earth.”

Notice

This guide is designed for experienced users to setup the system within the shortest time.

For detailed information, please always refer to the electronic user's manual.

No part of this document may be reproduced, copied, translated, or transmitted in any form

or by any means, electronic or mechanical, for any purpose, without the prior written

permission of the original manufacturer.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their respective

owners.

Disclaimer

Quick Reference Guide

SID-10W9 Quick Reference Guide 5

Avalue Technology Inc. reserves the right to make changes, without notice, to any product,

including circuits and/or software described or contained in this manual in order to improve

design and/or performance. Avalue Technology assumes no responsibility or liability for the

use of the described product(s), conveys no license or title under any patent, copyright, or

masks work rights to these products, and makes no representations or warranties that

these products are free from patent, copyright, or mask work right infringement, unless

otherwise specified. Applications that are described in this manual are for illustration

purposes only. Avalue Technology Inc. makes no representation or warranty that such

application will be suitable for the specified use without further testing or modification.

Life Support Policy

Avalue Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN

LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL

OF Avalue Technology Inc.

As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for

surgical implant into body, or (b) support or sustain life and whose failure to perform,

when properly used in accordance with instructions for use provided in the labeling, can

be reasonably expected to result in significant injury to the user.

2. A critical component is any component of a life support device or system whose

failure to perform can be reasonably expected to cause the failure of the life

support device or system, or to affect its safety or effectiveness.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the factory

floor, you can be assured that your product will provide the reliability and ease of operation

for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you can

easily find answers in your product documentation. These answers are normally a lot more

SID-10W9

6 SID-10W9 Quick Reference Guide

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

Content

1. Getting Started ............................................................................................................ 7

1.1 Safety Precautions ................................................................................................ 7

1.2 Packing List ........................................................................................................... 7

1.3 System Specifications ........................................................................................... 8

1.4 System Overview ................................................................................................. 10

1.4.1 Front View .............................................................................................................................10

1.4.2 Bottom View / Rear View ........................................................................................................10

1.4.3 Connector List ........................................................................................................................11

1.5 System Dimensions ............................................................................................. 12

1.5.1 Front and Rear side ...............................................................................................................12

1.5.2 Back side ...............................................................................................................................12

1.6 Android Rotate Setting ............................................................................................. 13

Quick Reference Guide

SID-10W9 Quick Reference Guide 7

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

 1 x SID-10W9 Panel PC

 1 x AC/DC Power adapter 19V/3.42A

 1 x Power cord

SID-10W9

8 SID-10W9 Quick Reference Guide

1.3 System Specifications

Component

Mother Board  BCX12

CPU  ATOM Baytrail-T CR Z3735F CPU

CPU Cooler (Type)  By mechanical design

Memory  Onboard 2GB DDR3L

Power Supply  DC in Power adapter Delta ADP-65JH (BCC-ADP-065N-01R)

I/O chip  ENE IO3737LU

Audio Chipset  Realtek ALC5645-CGT

Ethernet chipset  Microchip LAN9512

Operating System  Windows 8.1/ Windows 10/ Andriod 4.4/ Ubuntu 14.04 Kernel 3.16

WLAN

WLAN standard  IEEE 802.11b/g/n, Wi-Fi compliant

Major chipset  Realtek RTL8723BS

WIFI PID/ VID  B723 / 024C

Antenna Type  PIFA

Frequency Range  WLAN: 2.4 GHz Band 2.412-2.472 GHz

Number of Channels

 802.11b: USA, Canada and Taiwan : 1 ~ 11 Most European Countries :

1 ~ 13 Japan : 1 ~ 13

 802.11g: USA and Canada : 1 ~ 11 Most European Countries : 1 ~ 13

 802.11n: USA and Canada : 1 ~ 11 Most European Countries : 1 ~ 13

Modulation

 WLAN: DSSS, OFDM, BPSK(9/6Mbps), QPSK(18/12Mbps),

DBPSK(1Mbps), DQPSK(2Mbps), CCK(11/5.5Mbps),

16-QAM(36/24Mbps), 64-QAM (72.2/54/48Mbps)

Storage

Solid State Drive  Onboard 32GB eMMC

Panel

LCD Panel  10.1” TFT-LCD with PCAP Touch

Resolution  1280 x 800

Luminance  350 cd/m2

View angle  89 (U), 89 (D), 89 (L), 89 (R)

Others  Membrane for power/ volume/ brightness

External I/O

USB Port  2 x USB 2.0

Video Port  1 x HDMI

Audio Port  Line out

LAN Port  1 x RJ45 10/100M only

Quick Reference Guide

SID-10W9 Quick Reference Guide 9

Mechanical

Power Type  DC in +12V~+24V

Power Connector Type

 DC Jack

Dimension  255.2 x169.4 x 33.3mm

Weight  1.5kg

Color  Metal housing black

Fanless  Yes

Mounting  Wall/Stand/VESA 75mm x 75mm

Reliability

EMI Test  CE/ FCC class A

Dust and Rain Test  Front Panel IP65

Vibration Test  IEC 60068-2-64, Random, 5~500Hz, 1hr/axis

Mechanical Shock Test

 With CF/SSD: 10Grms, IEC 60068-2-27, Half Sine, 11ms

Drop Test  IEC-60068-2-32 Drop test standard

Operating Temperature

 0 ~ 40 degree

Operating Humidity  0 ~ 90% Relative Humidity, Non-condensing

Storage Temperature

 -20 ~ 60 degree

Note: Specifications are subject to change without notice.

SID-10W9

10 SID-10W9 Quick Reference Guide

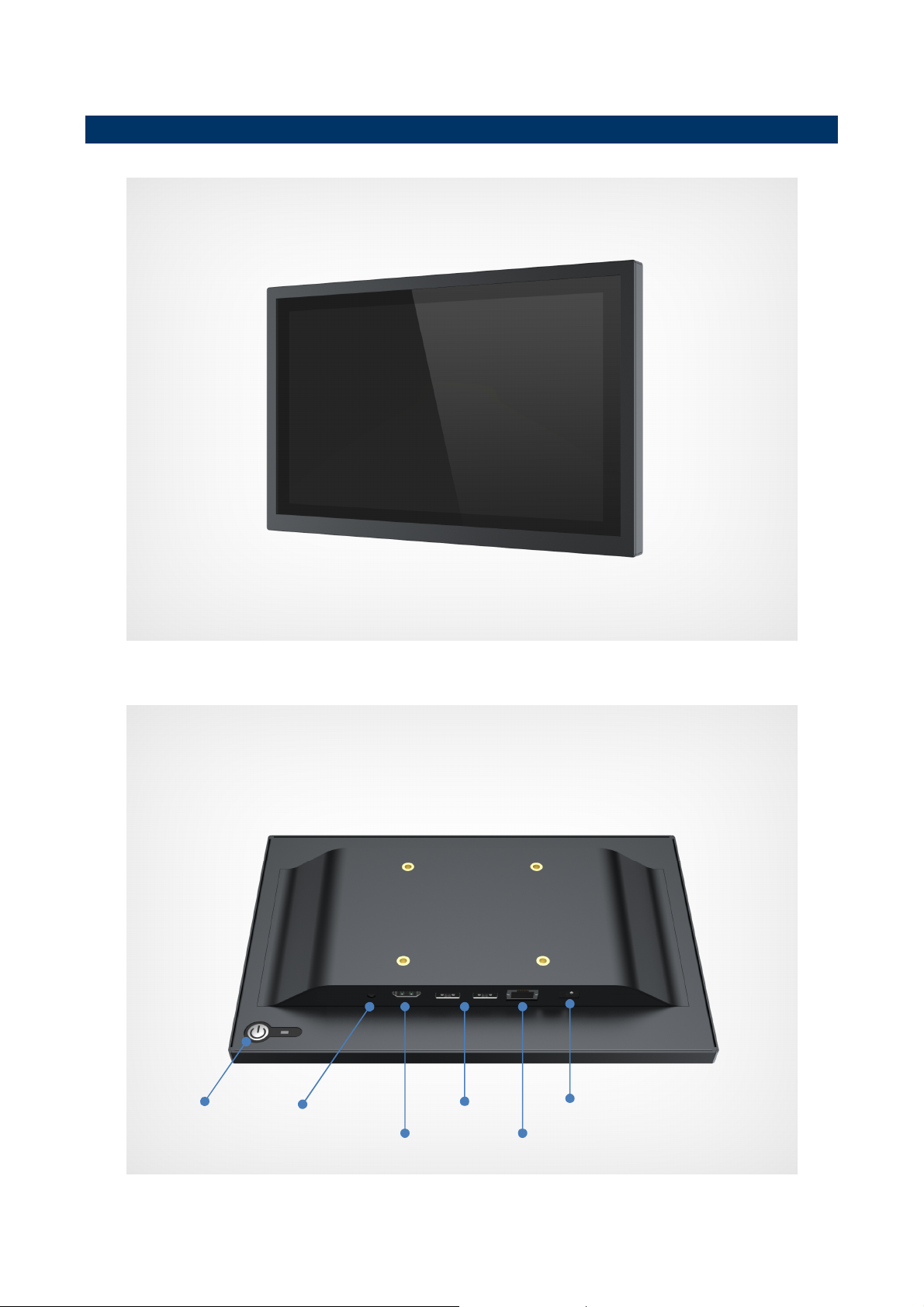

1.4 System Overview

1.4.1 Front View

1.4.2 Bottom View / Rear View

Power button

Audio Jack

HDMI out

USB2.0*2

LAN Port

DC Jack
