Atdec AWM-A46 User manual

AWM-A46 Page 1 of 4

Installation Guide

AWM-A46

460 Arm

COMPONENT CHECKLIST REQUIRED TOOLS

Monitor

arm

(x1)

VESA

head

(x1)

Screw

M4x12mm

(x4)

Screw

M4x10mm

(x4)

Screw

M4x8mm

(x4)

Spacer

10mm

(x4)

Security

screw

(x1)

4mm

allen key

(x1)

Channel

clamp

(x1)

WEIGHT RANGE

0 - 12kg

(0 - 26.5lbs)

• Phillips Head Screwdriver

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! The manufacturer accepts no responsibility for incorrect installation.

! This product is compatible with Atdec modular (AWM) products.

AWM-A46 Page 2 of 4

1. Optional 180� rotation limiter

3. Mounting arm assembly

3.1 Slide arm assembly into channel 3.2 Move to desired height

Note: Ensure

clamp lever is

vertical and

unlocked

Note: Squeeze and

hold clamp jaws

before inserting Post

3.3 Lock at preferred height

by pushing lever down

Wall Channel

‘Click’

Note that the arm is set to rotate 360� by default. To reduce the arm’s rotation to 180�, follow the steps below.

1.1 Remove plastic sleeve 1.2 Remove rotation ring 1.3 Place rotation ring in

desired orientation/position

Note: Place the rotation ring

depending on what post channel

the arm will be attached to. The tag

should always face towards the user.

1. Press

2. Lift

180°

360°

Default

Position

Flipped

Position

Tag

2. Fit arm onto channel clamp

2.1 Push arm onto clamp 2.2 Ensure arm is fully pushed onto clamp 2.3 Lightly tighten set screw

Tip: Check that

rotation of the

arm is smooth

Fit top cap on post

AWM-A46 Page 3 of 4

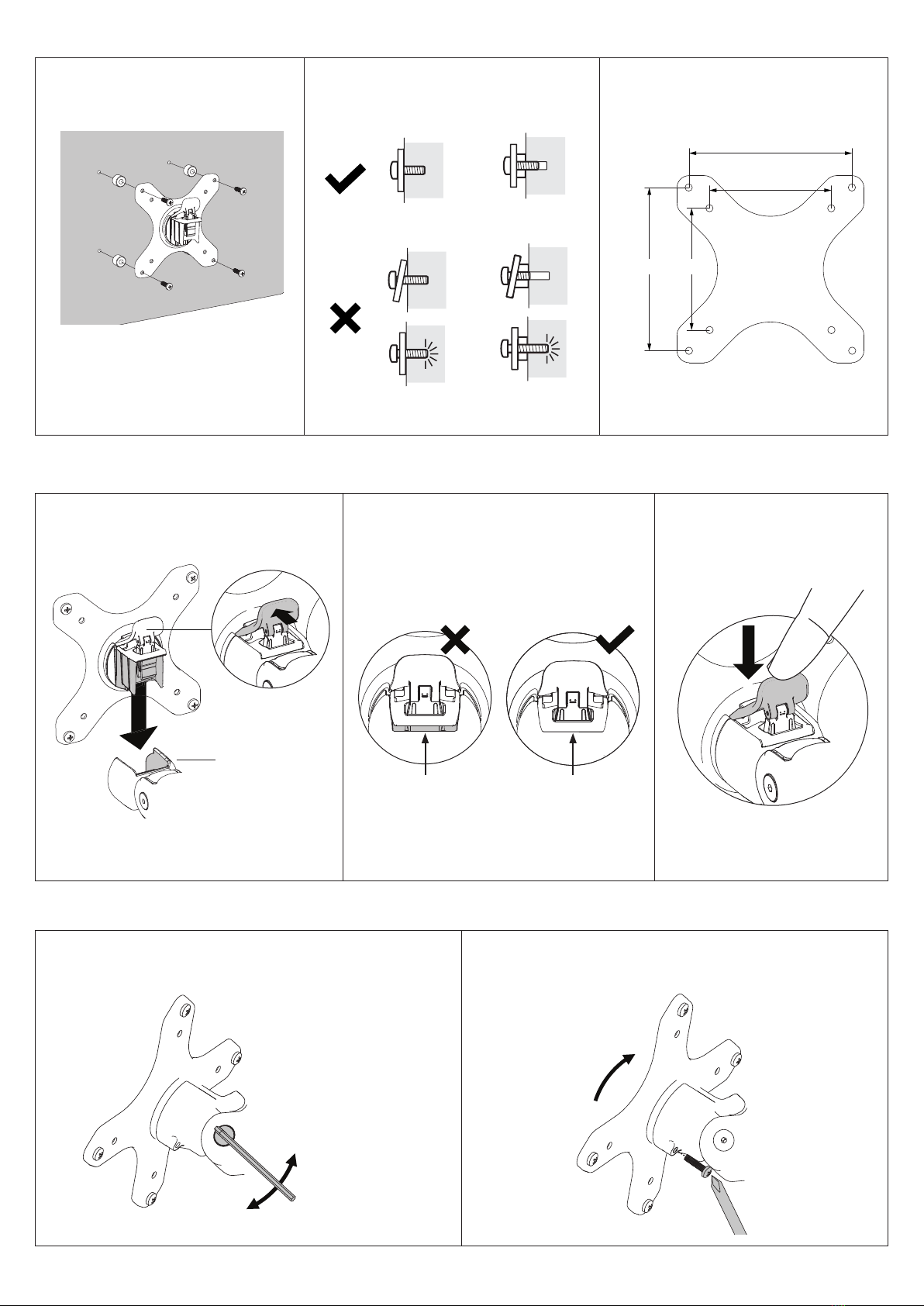

4. Attach VESA head to monitor

100mm

75mm

100mm 75mm

Flush Spacer

4.2 Ensure the monitor is attached correctly 4.3 VESA mounting compatibility

100mm

75mm

100mm 75mm

Flush Spacer

Note: For other sizes, use a suitable

adaptor plate

4.1 Screw the VESA head onto monitor

Note: spacers may be required for

curved, recessed or uneven monitor

surfaces.

Tighten

Loosen

Tighten

Loosen

5. Mount monitor

Monitor arm

5.1 Insert VESA head into the monitor arm 5.3 Push the lever down to secure

it to the arm assembly

5.2 Ensure that the VESA head sits flush within

the monitor arm. There should be no gap

Gap No gap

6. Adjust tilt tension & Install security screw

6.1 To make for easy tilt adjustment and to prevent the monitor

from falling forward, adjust the tension as show below

Note: Support

monitor while

adjusting.

6.2 OPTIONAL security screw

To install the optional security screw tilt the head upwards

AWM-A46 Page 4 of 4

atdec.com | atdec.co.uk | atdec.com.au

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

Note: The cable cover shown,

does not come with all posts

7.4 To reposition the cable cover, pull it

straight up and out of the post and insert

it into any of the available channels

Cable cover

Cable

Cover

Desk

Clamp

7.1 Push the cable down into the cable clip

Note: Cable clips do not

come with all posts

7.6 Feed remaining cable into cover

7.5 Loop cable and insert into cable cover

7.2 Push cable clip into post channel

7. Post cable management

7.3 Recommended post cable cover

position for double or triple arm set-ups

Note

Ensure enough cable

slack is given to allow for

movement of the monitor

Push

6. Monitor arm cable management

6.1 Plug cables into the monitor and route

the cables down the arm using the cable

hooks and clips

Alternative cable

cover positions
