Asus 4G-N12 B1 User manual
Quick Start Guide
APAC15478 / First Edition / June 2019
4G-N12_B1
Wireless-N300 LTE Modem Router
APAC15478_4G-N12_B1_105x105mm_QSG.indb 1 2019/7/4 11:11:44
APAC15478_4G-N12_B1_105x105mm_QSG.indb 2019/7/4 11:11:44
This QSG contains these languages:
English, 繁體中文, 簡體中文, Bahasa Melayu, ˫˶Tiếng Việt
Contents
Package contents .......................................................................................................3
A quick look at your 4G-N12_B1...........................................................................3
Installing your router ................................................................................................5
1.Prepare the setup requirements................................................................................ 5
2.Set up your LTE wireless router .................................................................................. 6
FAQ .................................................................................................................................9
Safety Notices............................................................................................................10
APAC15478_4G-N12_B1_105x105mm_QSG.indb 2 2019/7/4 11:11:44
APAC15478_4G-N12_B1_105x105mm_QSG.indb 2019/7/4 11:11:44
3
ENGLISH
NOTE: If any of the items is damaged or missing, contact your
retailer.
Package contents
4G-N12_B1 Wi-Fi LTE Router Power adapter
1 x Network cable (RJ-45) Quick Start Guide
2 x detachable LTE antennas Warranty card
A quick look at your 4G-N12_B1
English
APAC15478_4G-N12_B1_105x105mm_QSG.indb 3 2019/7/4 11:11:45
4
ENGLISH
1. Power LED 7. Ethernet LED
2. 2.4GHz LED 8. LAN port
3. 3G/4G signal LED 9. WPS button
4. Detachable LTE antennas 10. Reset button
5. Power (DC-IN) port 11. Micro SIM card slot
6. Power button
APAC15478_4G-N12_B1_105x105mm_QSG.indb 4 2019/7/4 11:11:46
5
ENGLISH
Installing your router
1. Prepare the setup requirements.
To set up your wireless network, you need to meet the following
requirements:
t ".JDSP4*.64*.DBSEXJUI8$%."BOE-5&TVCTDSJQUJPO
IMPORTANT&OTVSFUIBUZPVS.JDSP4*.64*.DBSEJTTVCTDSJCFE
to WCDMA and LTE services. Contact your mobile service provider
about these services.
CAUTION!
t 6TFPOMZBTUBOEBSE.JDSP4*.64*.DBSEPOZPVSSPVUFS
t Always insert the Micro SIM adapter with Nano SIM card. The
Micro SIM adapter might get stuck if it is inserted alone.
t "DPNQVUFSXJUI&UIFSOFU3+-"/QPSU#BTF5#BTF59
or a Wi-Fi-enabled device with a 2.4 GHz 802.11 b/g/n wireless
interface
t 8FCCSPXTFSTVDIBT*OUFSOFU&YQMPSFS'JSFGPY4BGBSJPS(PPHMF
Chrome
Mini SIM card
Micro SIM
card
Nano SIM
card
Nano SIM
adapter
Nano SIM card
with adapter
APAC15478_4G-N12_B1_105x105mm_QSG.indb 5 2019/7/4 11:11:46
6
ENGLISH
2. Set up your LTE wireless router.
1. Insert your Micro SIM card and install the LTE antennas before
powering on your router. Connect the network cable from your
computer to the yellow Ethernet port on your router.
Wall Power Outlet
Power 3
Laptop
LAN
2
1
APAC15478_4G-N12_B1_105x105mm_QSG.indb 6 2019/7/4 11:11:46
7
ENGLISH

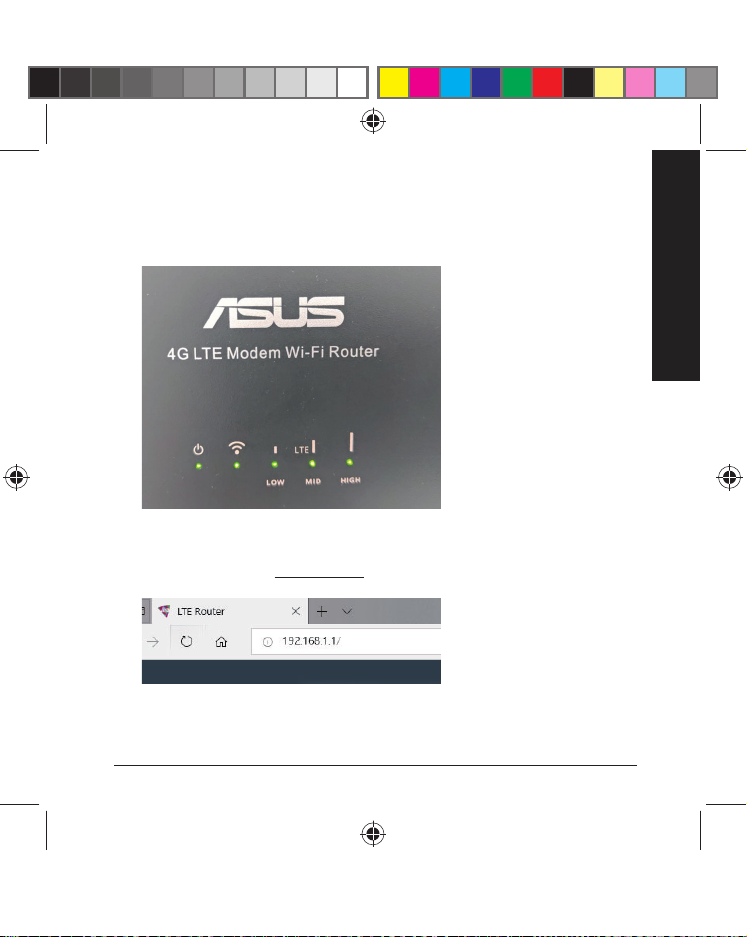

2. Your router will automatically detect your ISP’s settings and APN
prole. If the 3G/4G signal LEDs become solid green, you can start
surng the Internet.
3. The 3G/4G signal LEDs will not blink if your router fails to detect
your ISP’s settings successfully. Please key in the wireless router’s
default IP address 192.168.1.1/ on your web browser.
APAC15478_4G-N12_B1_105x105mm_QSG.indb 7 2019/7/4 11:11:47
8
ENGLISH

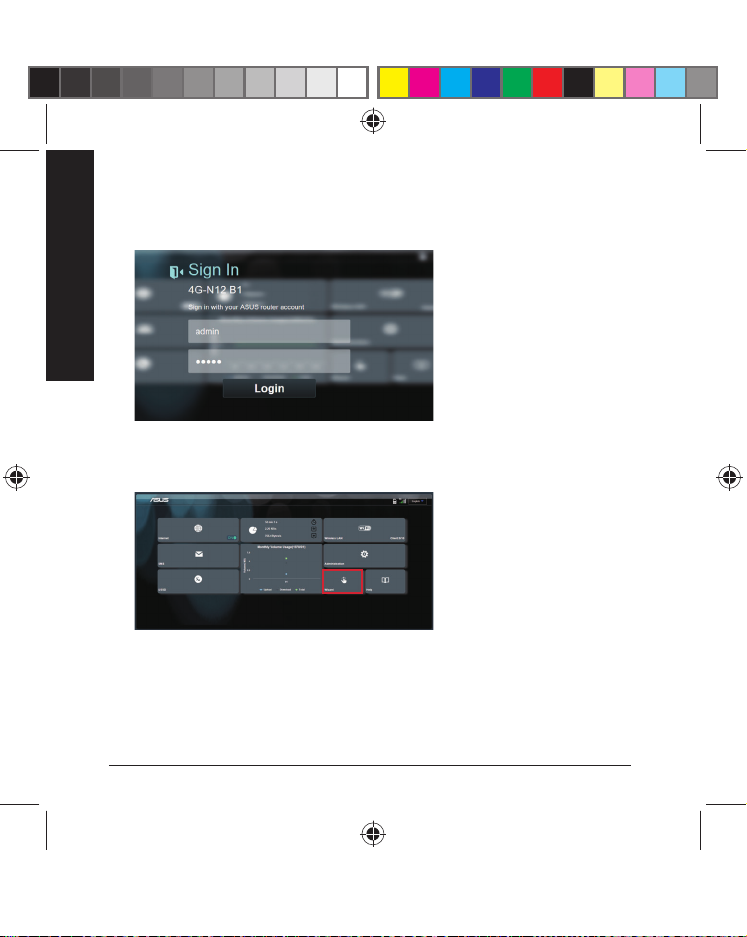

3. On the login page, key in the default user name (admin) and
password (admin).
4. From the main dashboard, click Wizard and follow the on-screen
instructions to nish the setup process.
APAC15478_4G-N12_B1_105x105mm_QSG.indb 8 2019/7/4 11:11:47
