English

Plug the adapter into the DCIN port, and press the power button.

The Power, 2.4GHz/5GHz LEDs will light up when your hardware is ready.

Hardware Explanations

Button Explanations

LED Explanations

RESET BUTTON

Reset the system to its factory defaults.

WAN PORT

Connect your modem to this port with a network cable.

LAN PORT 1-4

Connect your PC to a LAN port with a network cable.

WPS

button

Power

button

DCIN

port

USB 3.0/2.0 ports

WAN

port

LED On/Off

button

LAN port 1-4

Reset

button

Wi-Fi On/Off

button

LAN port 1-4 WAN USB 3.0 2.4GHz 5GHz Power

USB 2.0

English

Preparing to setup a standalone router

BEFORE SETTING

Go to ONE ROUTER SETUP STEPS.

ONE ROUTER SETUP

Preparing to setup an AiMesh

Wi-Fi system

Two (2) ASUS routers (models supporting AiMesh https://www.asus.com/

AiMesh/).

Assign one as AiMesh router, and another one as AiMesh node.

** If you have multiple AiMesh routers, we recommend using the router with the highest

speciﬁcations as your AiMesh router and the others as AiMesh nodes.

Go to AiMesh SETUP STEPS.

AiMesh SETUP STEPS

AiMesh routerAiMesh node

ONE ROUTER SETUP STEPS

Prepare your Modem

Unplug the power of cable / DSL modem. If it

has a battery backup, remove the battery.

Connect your modem to the router with the

network cable provided.

Power on the modem. Plug modem to the

power outlet and power on.

WE SUGGEST...

Modem back

English

Check the modem LED lights to ensure the

connection is active.

If you are using DSL for internet, you will need

your username / password from your Internet

service provider (ISP) to properly conﬁgure

your router.

Connect your Device

Power on the router.

Plug in and press the power button at the back of your router.

Check the WAN and 2.4GHz/5GHz LED lights to ensure the hardware connection

is ready.

Modem front

English

Connect your PC to the router using an additional network cable.

Open a web browser.

You will be redirected to the ASUS Setup Wizard. If not, navigate to http://router.

asus.com.

English

AiMesh SETUP STEPS

Prepare

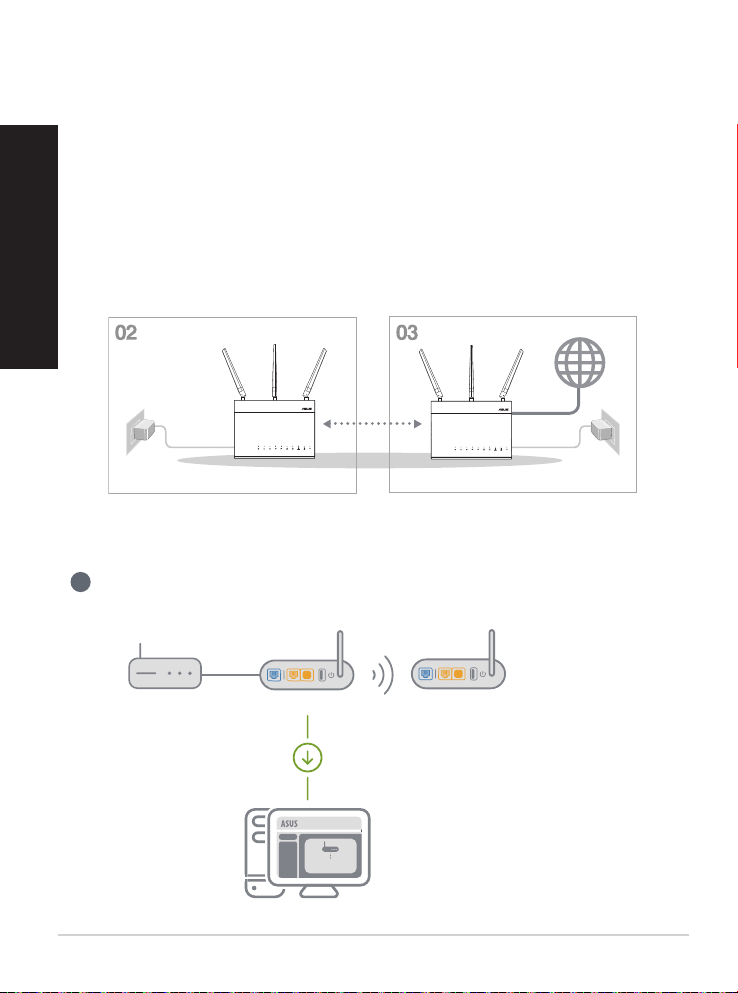

Place your AiMesh router and node within 1-3 meters of each other during the

setup process.

Refer to ONE ROUTER SETUP STEPS to connect your AiMesh router to your PC

and modem, and then log in into the web GUI.

AiMesh node

Factory default status. Keep power on and standby for AiMesh system settings.

AiMesh router

within

1-3 meters

AiMesh router

AiMesh node

AiMesh routerModem

AiMesh node

Logout/Reboot

AiMesh Router

English

Go to Network Map page, click AiMesh icon and then Search for your extending

AiMesh node.

** If you cannot ﬁnd the AiMesh icon here, click on ﬁrmware version and update the

ﬁrmware.

Click Search, it will automatically search for your AiMesh node. When the AiMesh

node shows on this page, click it to add it into the AiMesh system.

** If you cannot ﬁnd any AiMesh node, please go to TROUBLE SHOOTING.

English

A message is displayed when synchronization is completed.

Congratulations! You will ﬁnd the pages below show up when an AiMesh node

has been successfully added to the AiMesh network.

English

Successfully added RT-ABCDE to your AiMesh

system, it will take awhile to show up as connected

in the AiMesh router list.
