Assa Abloy Lockwood Optimum User manual

Installation Instructions

Application: Provides secure deadlocking for aluminium hinged

doors. Palladium Xtra furniture available with daylatch snib and

LockAlert features.

OptimumTM Mortice Lock

Pack Contents:

Cylinder Key & Turn Knob

Cylinder Double Key

Latch wear pad

Interior Furniture

(Aria Furniture shown)

Exterior Furniture

(Aria Furniture shown)

2-Point Lock

92mm Drive

Bar (Spindle)

Palladium and Verona Furniture, 2-Point

Tools Required: • Drill

• 3.2mm Drill Bit

• 10.0mm Drill Bit

• 20.0mm Drill Bit

• Phillips Screwdriver #2

• Square Screwdriver #1

8g x 7.5 Screws

M4 Furniture fixing screws

M5 Cylinder fixing screw

Screw Selection:

Screw Stile Width

M4 x 49mm 38 - 43mm

M4 x 55mm 43 - 49mm

M4 x 60mm 46 - 55mm

M4 x 65mm 55 - 58mm

2mm Latch Packer

1. Door Preparation

Route the door as shown in the routing diagram.

Note: For Palladium Xtra Furniture, see separate instructions.

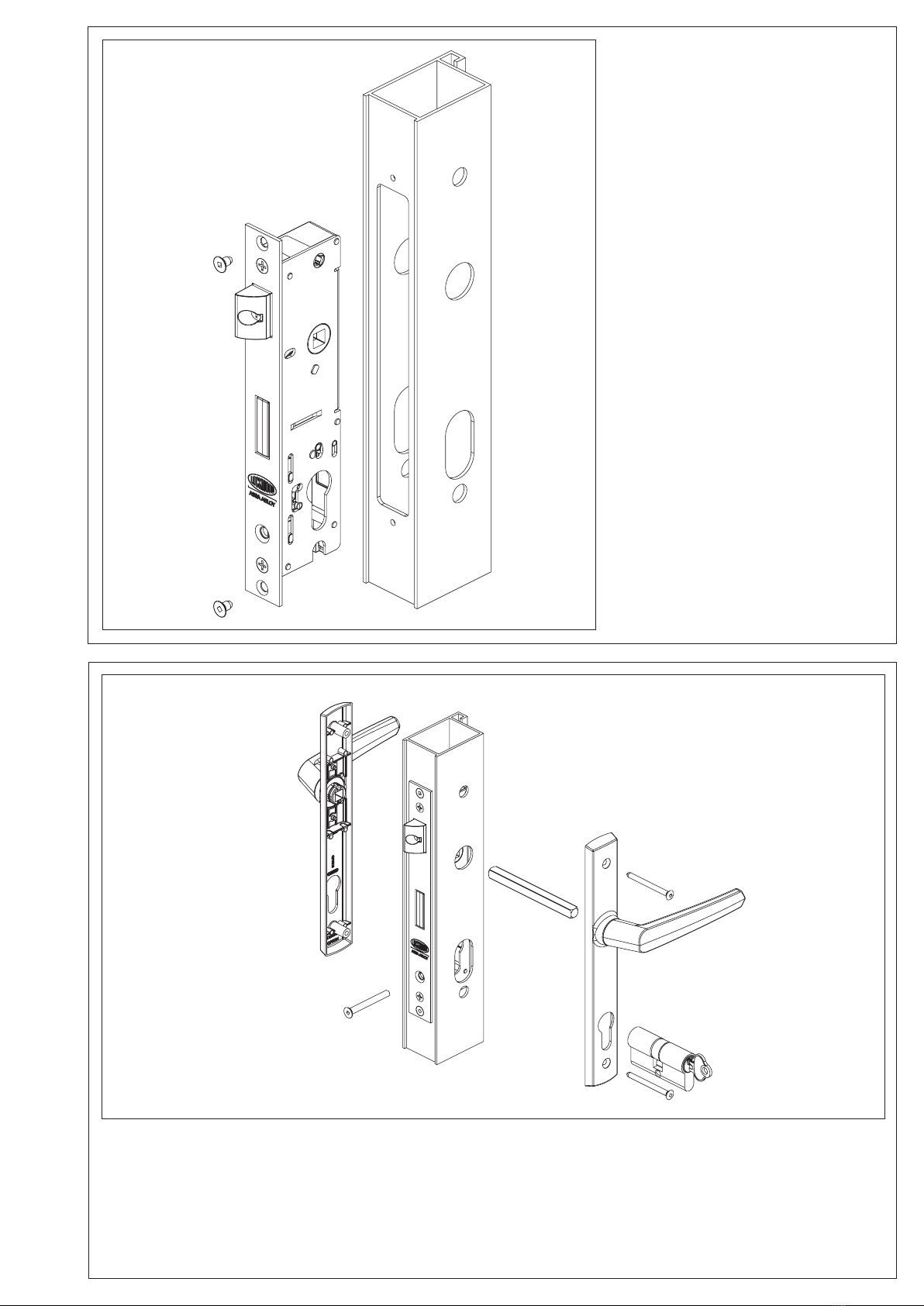

2.Fixing Lock

• Place the lock assembly into the stile

• Fix the lock onto the stile using the two 8g x 7.5

screws

3. Fixing Furniture and Cylinder

• Insert the drive bar (spindle) through the square drive hole in the lock

• Place the furniture onto the drive bar. For security, ensure the interior handle is on the inside of the house

• Place the cylinder through the cylinder hole

• Fix cylinder using the M5 cylinder fixing screw as supplied

• Fix together the furniture using the two M4 furniture fixing screws. See screw selection chart to determine correct screw length

Note: If fixing Palladium Xtra Furniture with daylatch snib and LockAlert, refer to separate Palladium Xtra Furniture instructions enclosed.

Patent: NZ 556113

077188 Sept12

6. Latch Reversal

• Turn key to lock latch

• Undo the M4 latch screw

• Reverse the latch as desired

• Refasten the M4 latch screw to secure the latch

• Insert the latch wear pad

Note: 2mm Latch Packer is provided to allow for latch

projection adjustment. An additional 2mm packer is

available for purchase.

LOCKWOOD GUARANTEE

M4 Latch Screw

Latch Wear Pad

Latch

2mm Latch

Packer

7. Lock operation

Deadlocking Operation

• Pull the door shut. The door will self-latch

• Turn the key towards the edge of the door to deadlock

• The door is now secure from exterior and interior

Opening Operation

• Turn the key away from the door edge to deactivate the deadlock

• Push the handle down to retract the latch

Deadbolt

Latch Handle

Troubleshooting

Do I need to tap holes? No. All screws are self tapping.

The furniture screws do not

tighten

Ensure the screws line up with the screw

boss on the exterior handle.

Do I have to use the supplied

screws?

For best performance, it is recommended

that only the supplied screws are used.

The key function does not

operate

Ensure the motion of the latch is not

restricted.

Turn key

to throw

deadbolt

ASSA ABLOY New Zealand Limited

6 Armstrong Road, Albany, Auckland 0632

info.nz@assaabloy.com

www.assaabloy.co.nz

ASSA ABLOY Australia Pty Limited

235 Huntingdale Road, Oakleigh, Vic 3166

info.au@assaabloy.com

www.assaabloy.com.au
