Instructions for safe operation

•Failure to observe the information in this manual may

result in personal injury or damage to equipment.

•To reduce the risk of injury to persons - use this oper-

ator with single or double pedestrian swinging or

folding doors only.

•Do not use the equipment if repair or adjustment is

necessary.

•Disconnect supply when cleaning or other mainten-

ance is to be carried out.

•The operator can be used by children over 8 years of

age if they have been instructed by a person in charge

of their safety.

•The operator can be used by children 8 years of age

or younger if they are supervised by a person respons-

ible for their safety.

•The operator can be used by persons with impaired

physical, sensory or mental capacity if they have been

instructed by a person in charge of their safety.

•Cleaning and user maintenance shall not be made by

children.

•Do not let anyone climb on or play with the door or

the fixed/remote controls.

•The doorset can be operated automatically by sensors

or manually by activators. It can also be used manually

as a door closer.

3Issue 2019-06-121005099-en-11.0

Congratulations on your new automatic door!

ASSA ABLOY Entrance Systems AB has developed automatic doors for more than 50 years. State-of-

the-art technology and carefully tested materials and components provide you with a superior

product.

As with all other technical products, your automatic door requires periodic maintenance and service.

It is essential that you know your automatic door (system) and that you recognize the importance

of maintaining it in compliance with applicable standards for safety.

Your local ASSA ABLOY Entrance Systems-authorized representative is familiar with these standards,

as well as all applicable local codes and ASSA ABLOY Entrance Systems recommendations for power-

operated pedestrian doors. Service and adjustments performed by your

ASSA ABLOY Entrance Systems-authorized representative, will ensure safe and proper operation of

your automatic door unit.

Electronic equipment reception interference

The equipment may generate and use radio frequency energy and if not installed and used properly,

it may cause interference to radio, television reception or other radio frequency type systems.

If other equipment does not fully comply with immunity requirements interference may occur.

There is no guarantee that interference will not occur in a particular installation. If this equipment

does cause interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of

the following measures:

•Re-orient the receiving antenna.

•Relocate the receiver with respect to the equipment.

•Move the receiver away from the equipment.

•Plug the receiver into a different outlet so that equipment and receiver are on different branch

circuits.

•Check that protective earth (PE) is connected.

If necessary, the user should consult the dealer or an experienced electronics technician for additional

suggestions.

Environmental requirements

ASSA ABLOY Entrance Systems products are equipped with electronics and may also be equipped

with batteries containing materials which are hazardous to the environment. Disconnect power

before removing electronics and battery and make sure it is disposed of properly according to local

regulations (how and where) as was done with the packaging material.

Product liability

According to regulations, the following are the responsibility of the owner or caretaker of the

equipment

•that the equipment operates correctly, so that it gives sufficient protection in regard to safety

and health

•that the equipment is operated and regularly maintained, inspected and serviced by someone

with documented competence in the equipment and in applicable regulations

•that the provided “Service Log Book”and “Site Acceptance Test and Risk Assessment”documents

(PRA-0007) are kept available for maintenance and service records

•that inspection covers the emergency opening function (when applicable)

•that the closing force is appropriate for the door size on fire-approved door systems (when ap-

plicable)

1005099-en-11.0Issue 2019-06-124

Warranty

ASSA ABLOY Entrance Systems warrants its products to be free from defects in material and work-

manship under intended use and service for a warranty time of 12 months, beginning at time of

delivery. This warranty extends only to the original buyer of the equipment.

ASSA ABLOY Entrance Systems warrants that the software will operate substantially in accordance

with its functional descriptions and that it has been recorded on non-defective media.

The ASSA ABLOY Entrance Systems warranty does not apply to

•That the software will be error-free or operate without interruption

•General wear and tear on the system

•Fuse, disposable batteries and glass damage

•System deviations caused by installer other than ASSA ABLOY Entrance Systems

•System that has been altered or damaged by vandalism or misuse

•System that has been additionally equipped with non-ASSA ABLOY Entrance Systems original

branded parts and/or spare parts

•Unrequired visits due to poor client communication (door working when our technician arrives,

reset, power discontinuation)

•Adjustments (closing and opening speed and also detection field radars) due to customer re-

quests (excludes operational adjustments thought to create a hazard)

•Water damage

•Adverse weather conditions

•Any damage caused, directly or indirectly, by a circumstance beyond the control of the applicable

company within ASSA ABLOY Entrance Systems, such as industrial dispute, fire, natural disaster,

war, extensive military mobilization, insurrection, requisition, seizure, embargo, restrictions in

the use of power and defects or delays in deliveries by sub-contractors caused by any such cir-

cumstances

Please note:

•Non-compliance with manufacturers care and maintenance recommendations may void the

warranty.

•ASSA ABLOY Entrance Systems-authorized resellers shall extend this warranty to end-users only,

but have no authority to extend a greater or different warranty on behalf of

ASSA ABLOY Entrance Systems.

•A service agreement with ASSA ABLOY Entrance Systems will help secure the availability of a

fully operational system and will give priority at call-out, thus minimizing the time that the

equipment is unusable.

Service

Inspections should be done regularly by a trained and qualified person. The frequency of these

inspections should be according to national regulations (or according to industry standard if

there are no national regulations). This is especially important when the installation concerns

a fire-approved door or a door with an emergency-opening function. To extend the life of your

investment and ensure safe and reliable operation of the door, we recommend a minimum

of 2 visits per year or more, depending on usage and operating conditions. Environmental as-

pects shall also be considered.

5Issue 2019-06-121005099-en-11.0

As your entrances are part of your business flow, there’s every reason to keep

them working well. ASSA ABLOY Entrance Systems offers you a maintenance and

modernization expertise to rely on. Our Maintenance Programs and Modernization

Services for entrance automation is backed by a extensive expertise for all types

of pedestrian- and industrial door and docking systems, independent of brand.

At your disposal is a team of dedicated expert technicians, proven through decades

of maintenance, service and satisfied customers.

Intended use

The ASSA ABLOY SW100 is an automatic swing door operator developed to make life easier for

everyone who can benefit from automatic doors. The ASSA ABLOY SW100 is a low-energy operator

using a DC motor and a gear-reduction system to drive an arm system, which opens the door. It is

to be installed indoors where it is suitable for almost all types of external and internal swing doors.

This widely-used operator can be found in applications in health care, residential, office and public

buildings.

The door is designed to offer continuous use, a high degree of safety and maximum lifetime. The

system is self-adjusting to the effects caused by normal variations in the weather conditions and to

minor friction changes caused by e.g. dust and dirt.

For escape in emergency situations the doorset is opened manually.

For installation and maintenance see Installation and Service manual 1005088.

Save these instructions for future reference.

Technical specification

ASSA ABLOY Entrance Systems ABManufacturer:

Lodjursgatan 10, SE-261 44 Landskrona, SwedenAddress:

ASSA ABLOY SW100Type:

100-240 V AC +10/-15%, 50/60 HzMains power supply:

Max. 75 WPower consumption:

IP20Class of protection:

Sound pressure:

Third party approvals from established certification organizations valid

for safety in use, see Declaration of Conformity.

Approvals:

1005099-en-11.0Issue 2019-06-126

How the ASSA ABLOY SW100 works

The swing door operator ASSA ABLOY SW100 uses a DC motor and a gear-reduction system to drive

an arm system which opens the door. Closing power is provided by a motor and a closing spring. A

highly sophisticated electronic control unit uses a motor encoder and a microprocessor to control

the door’s movement.

To activate the operator you can use a manual activator (elbow switch) or an automatic activator

(radar device). It is also possible –where local standards allow –to activate the operator by just

pushing the door, if Push & Go is selected.

After the door has been activated it will open and stay open for a specified Hold Open Time (HOT).

When the HOT has elapsed the door will close.

The ASSA ABLOY SW100 can be set in three or four different modes, depending on programme se-

lector type, see table below.

FunctionPosition

The door can be opened with the inner and outer manual and/or automatic ac-

tivators. The electric strike, if fitted, is open.

AUTO

Normal

position

The door is closed. The door cannot be opened with inner and outer activation

units. The door is locked if an electromechanical locking device has been fitted.

The door can be opened with a key switch (if fitted).

OFF

The door is held permanently open and the motor is inactivated.OPEN

Passage from inside only. The door is normally locked if an electromechanical

locking device has been fitted. The door can only be opened with the inner activ-

ation unit and with a key switch (if fitted).

EXIT

7Issue 2019-06-121005099-en-11.0

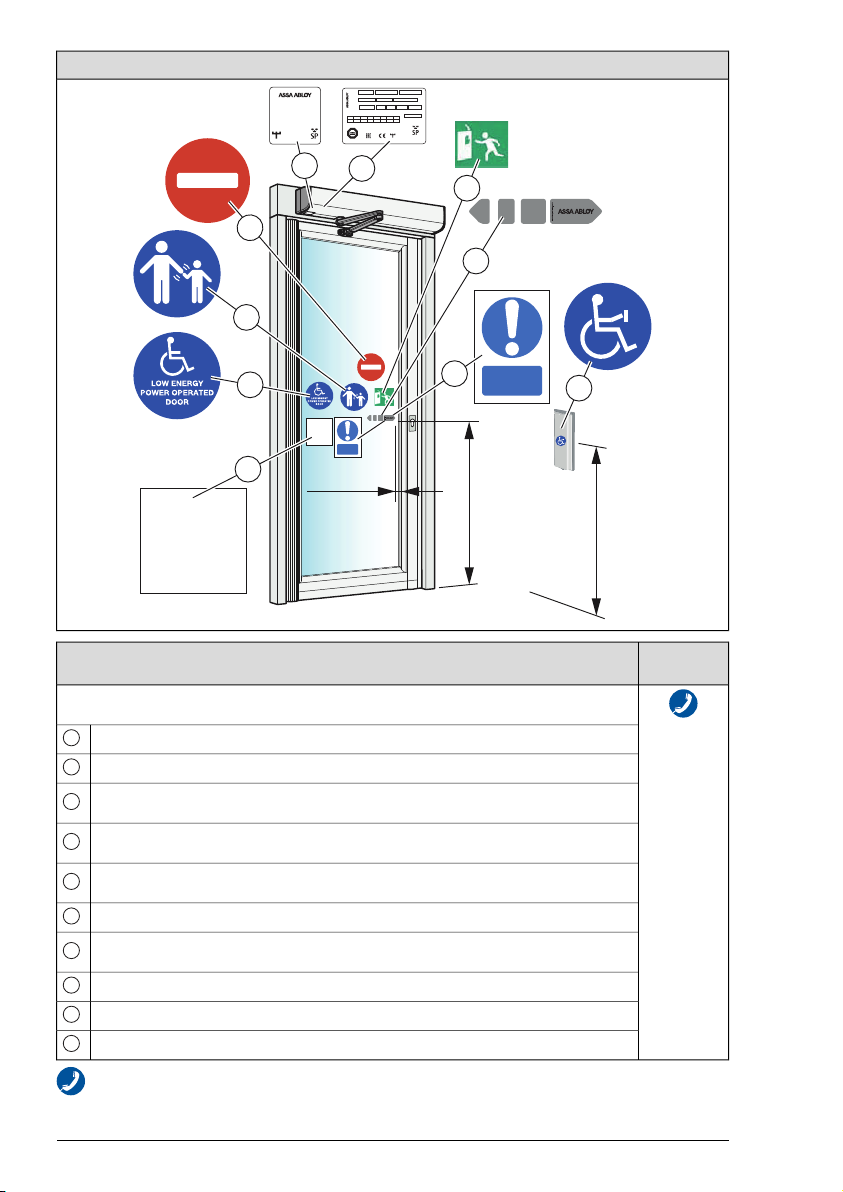

Regular safety checks

To help you fulfil the national/international requirements and to avoid malfunction and risk for in-

juries, we have provided the following checklist.

Do not use the operator if repair or adjustment is necessary.

Disconnect supply

when cleaning or other maintenance is to be carried out.

If problem

occurs

Daily Action

Activate your operator and check visually, fastening and any damage of

•operator

•arm system

•cables

•hinges

•door and glass

Also inspect your operator and check visually for

•sharp edges on the door leaf and door frame (if any)

•condition of door seals

•finger protection

•and finally that the complete door runs properly and closes slowly in a smooth way

Set the mode selector to OFF and check that the operator and electromechanical lock (if fitted)

work together. Also check that the lock

really secures the door.

Activate the manual activation units

, if any, and walk towards the door. Check that the door

has opened appropriately while you pass the entrance/exit.

Then proceed with the automatic activation units

in the same way.

Check the safety sensors

if any, by standing in the swing path and activate the operator. The

door must not hit you when opening nor when closing.

If you are unsure of which type of sensor you have, please contact your

ASSA ABLOY Entrance Systems representative.

Set the programme selector in AUTO mode. Push the door manually

in escape direction and make sure that no object or function will

prevent the door from opening. Also make sure the escape route is

free for use.

By law, these tests must be performed

regularly by trained personnel.

Escape

doors

Let the door close after an impulse ensuring nothing prevents the

door from closing and locking (if regulations require it).

Fire

doors

Take appropriate measures.=

Contact your ASSA ABLOY Entrance Systems representative. For contact information, see last page.=

1005099-en-11.0Issue 2019-06-128

FUNCTION AND VISUAL INSPECTION

2 4

CLEANING

The best way to remove dust and dirt from the ASSA ABLOY SW100 is to use water and a soft cloth or a sponge.

A gentle detergent may be used. To maintain the quality of the surface treatment, the surfaces should be cleaned

once/four months period. The cleaning should be documented. To avoid damages to the profiles the

brushes/weather stripping must be vacuum-cleaned weekly.

•Do not expose windows, doors or profiles to alkalis. Both aluminium and glass are sensitive to alkalis.

•Do not clean with high pressure water. Operator, mode selector and sensor may be damaged and water

may enter the profiles.

•Do not use polishing detergent.

•Do not scrub with materials like Scotch-brite, as this will cause mechanical damage.

9Issue 2019-06-121005099-en-11.0

SIGNAGE

Click!

800 mm

No entry

Keep clear

Keepclear

Automatic

door

Automatic

door

1100 mm

40 mm

ILL-01663

SITAC XXXX

TG XXXXXXX.

Ersätter lås med fallkolv till

typgodkända

slagdörrar enl. förteckning

Skydd mot olyckor vid

rörliga anordningar

DESIGNATIONART.NO.

YEAR+WEEK

1004083

XXXXXXX XXXXXXXXXXXXX

TYPE

XXXXXXXXXX

TEMPERATURE

XXXXXXXXXXXXXXX

LOAD

XXXXX

PROD.ORDER

XXXXXXX

XXXXXX

XX/XX

PROJECT/SERIALNO.

XXXXXXXXXX

XXXX

AVAC

ASSAABLOY Entrance Systems AB

LODJURSGATAN10

LANDSKRONASWEDEN

FACTORY NO. X

1 2 3 4 5 6 7 8

CLASSIFICATION DIN 18650-1:2010

xxxxxxx

xxxxxxx 1002

SÜD

Part of the Besam range

If problem

occurs

Action

Check that all required signage is applied and intact. Mandatory indicates that the signage is re-

quired by European directives and equivalent national legislation outside the European Union.

Product label: Mandatory

Emergency break-out: Mandatory, if approved for escape route.

ASSA ABLOY Entrance Systems door sticker: Mandatory, if applicable to highlight the

presence of the glass (applied to all glass sections that are moving).

Supervision of child (applied to both sides of the door): Mandatory according to national

regulations. Recommended, if the risk analysis shows use by children.

Operator designed for disabled people:

Recommended, if applicable (applied to both sides of the door).

Activation by disabled people: Recommended, if applicable.

No entry, identifying one-way traffic: Mandatory in GB and US, if applicable, not included

in the product.

Automatic door

Keep clear

SITAC label: Mandatory in SE

Contact your ASSA ABLOY Entrance Systems service representative. For contact information, see last

page.

1005099-en-11.0Issue 2019-06-1210

Other manuals for SW100

Table of contents

Other Assa Abloy Door Opening System manuals

Assa Abloy

Assa Abloy Corbin Russwin PED5400 FE User manual

Assa Abloy

Assa Abloy Yale 6000 Series User manual

Assa Abloy

Assa Abloy Norton UniTrol UNI-1600BC Series User manual

Assa Abloy

Assa Abloy Norton 7700ST User manual

Assa Abloy

Assa Abloy DC640 User manual

Assa Abloy

Assa Abloy Besam SW300 User manual

Assa Abloy

Assa Abloy Norton 6300 Pull Side Series Quick guide

Assa Abloy

Assa Abloy SARGENT 2900 FIREGUARD User manual

Assa Abloy

Assa Abloy Norton Narrow Profile Series User manual

Assa Abloy

Assa Abloy Yale 1105 User manual

Assa Abloy

Assa Abloy Adams Rite 3700 User manual

Assa Abloy

Assa Abloy Norton 6011 Series User manual

Assa Abloy

Assa Abloy Norton 1600H User manual

Assa Abloy

Assa Abloy Besam SL500 User manual

Assa Abloy

Assa Abloy CMD User manual

Assa Abloy

Assa Abloy DC3210 Series User manual

Assa Abloy

Assa Abloy Norton 6000 Series Installation manual

Assa Abloy

Assa Abloy Corbin Russwin DC6200 Series User manual

Assa Abloy

Assa Abloy Norton 6300 Series User manual

Assa Abloy

Assa Abloy Corbin Russwin PED5600 Series User manual

Assa Abloy

Assa Abloy DC340DA User manual

Assa Abloy

Assa Abloy SARGENT Powerglide 281 Series User manual

Assa Abloy

Assa Abloy G-CO-FMS User manual

Assa Abloy

Assa Abloy SARGENT 281 Series User manual

Popular Door Opening System manuals by other brands

Pamex

Pamex KT-INP35 Installation instruction

Label

Label NEPTIS/LE installation manual

Cal-Royal

Cal-Royal N-F77CVR Installation instruction

Scrigno

Scrigno OPEN1000 Assembly manual

TriMark

TriMark UM 34 instructions

BFT

BFT WIND RMB 130B 200 installation manual

Alecto

Alecto ADI-250 user manual

Besam

Besam Swingmaster MP Installation, adjustment and maintenance instructions

CRL

CRL SENIOR PRIMA manual

GAL

GAL MOVFR Quick setup

Olide

Olide 120B installation manual

Normstahl

Normstahl IDO7 installation manual

Häfele

Häfele Finetta T 70 VF manual

AGS

AGS D-PL Instructions for fitting, operating and maintenance

Stanley

Stanley MA900ñ Installation and owner's manual

WITTUR

WITTUR Hydra Plus UD300 Instruction handbook

Alutech

Alutech TR-3019-230E-ICU Assembly and operation manual

MPC

MPC ATD ACTUATOR 50 ATD-313186 Operating and OPERATING AND INSTALLATION Manual
