Congratulations on your new automatic door

ASSA ABLOY has developed automatic doors for more than 50 years. State-of-the-art

technology and carefully tested materials and components provide you with a superior

product.

As with all other technical products, your automatic door requires periodic maintenance and

service. It is essential that you know your automatic door (system) and that you recognize the

importance of maintaining it in compliance with applicable standards for safety.

Your local ASSA ABLOY-authorized representative is familiar with these standards, as well

as all applicablelocalcodesandASSA ABLOYrecommendationsforpower-operated

pedestriandoors.Service and adjustments performed by your ASSA ABLOY-authorized

representative, will ensure safe and proper operation of your automatic door unit.

WARNING!

Failure to observe the information in this manual may result in personal injury

or damage to equipment.

To reduce the risk of injury of persons - use this operator only with pedestrian

doors.

Save these instructions for future reference.

Electronic equipment reception interference

The equipment complies with the European EMC directive (US market FCC Part 15), provided

installed according to Installation and Service manual.

The equipment may generate and use radio frequency energy and if not installed and used

properly, it may cause interference to radio, television reception or other radio frequency type

systems.

If other equipment does not fully comply with immunity requirements interference may occur.

However, there is no guarantee that interference will not occur in a particular installation. If

thisequipmentdoescauseinterferencetoradioortelevisionreception,whichcanbedetermined

by turning the equipment off and on, the user is encouraged to try to correct the interference

by one or more of the following measures:

•

Re-orient the receiving antenna.

•

Relocate the receiver with respect to the equipment.

•

Move the receiver away from the equipment.

•

Plug the receiver into a different outlet so that equipment and receiver are on different

branch circuits.

•

Check that protective earth (PE) is connected.

If necessary, the user should consult the dealer or an experienced electronic technician for

additional suggestions.

Issue 2018-05-25

1018022-US-0.0

ASSA ABLOYproductsareequippedwithelectronicsandmayalsobeequippedwithbatteries

containing materialswhicharehazardoustothe environment.Disconnectpowerbeforeremoving

electronics and battery and make sure it is disposed of properly according to local regulations

(how and where) as was done with the packaging material.

Product liability

According to regulations, the following are the responsibility of the owner or caretaker of the

equipment

•

that the equipment operates correctly, so that it gives sufficient protection in regard to

safety and health

•

thattheequipmentisoperatedandregularlymaintained,inspectedandservicedbysomeone

with documented competence in the equipment and in applicable regulations

•

that a journal is kept of inspection, maintenance and service records including the provider

•

that inspection covers the emergency opening function (when applicable)

•

that the closing force is appropriate for the door size on fire-approved door systems (when

applicable)

Warranty

ASSA ABLOYwarrantsitsproductstobefree fromdefectsinmaterialandworkmanshipunder

intended use and service for a warranty time of 12 months, beginning at time of delivery. This

warranty extends only to the original buyer of the equipment.

ASSA ABLOY warrants that the software will operate substantially in accordance with its

functional descriptions and that it has been recorded on non-defective media.

The ASSA ABLOY warranty does not apply to

•

That the software will be error-free or operate without interruption

•

General wear and tear on the system

•

Fuse, disposable batteries and glass damage

•

System deviations caused by installer other than ASSA ABLOY

•

System that has been altered or damaged by vandalism or misuse

•

System that has been additionally equipped with non-ASSA ABLOY original branded

parts and/or spare parts

•

Unrequired visits due to poor client communication (door working when our technician

arrives, reset, power discontinuation)

•

Adjustments (closing and opening speed and also detection field radars) due to customer

requests (excludes operational adjustments thought to create a hazard)

•

Water damage

•

Adverse weather conditions

•

Any damage caused, directly or indirectly, by a circumstance beyond the control of the

applicablecompanywithinASSA ABLOYEntrance SystemsInc., suchas industrialdispute,

fire,naturaldisaster,war,extensivemilitarymobilization,insurrection,requisition,seizure,

embargo,restrictions intheuseofpoweranddefectsor delaysindeliveriesbysub-

contractors caused by any such circumstances

Please note:

•

Non-compliance with manufacturers care and maintenance recommendations may void

the warranty.

1018022-US-0.0

Issue 2018-05-25

•

ASSA ABLOY -authorized resellers shall extend this warranty to end-users only but

have no authority to extend a greater or different warranty on behalf of ASSA ABLOY.

•

A service agreement with ASSA ABLOY will help secure the availability of a fully

operational system and will give priority at call-out, thus minimizing the time that the

equipment is unusable.

Service

Regular inspections by a trained and qualified person, and the frequency of service occasions,

should at minimum be made according to national regulations or industry standard, in the

absence of a national regulation. Environmental aspects shall alsobe considered.Thisis

especiallyimportantwhentheinstallationconcernsafire-approved door or a door with an

emergency-opening function. To extend the life of your investment and ensure safe and

reliable operation of the door, we recommend a minimum of 2 visits per year or more,

depending on usage and operating conditions. Talk to your ASSA ABLOY representative for

the best solution for your installation and to learn more about ASSA ABLOY Pro-Active Care!

For contact information, see last page of this manual.

Intended use

The ASSA ABLOY SL500 Resilience is designed for an overhead-concealed installation

between two vertical jambs. The header holds the drive and control units and supports the

sliding doors and Sidelites.

An ASSA ABLOY SL500 Resilience operator ensures all-around safety. It can be combined

with the full range of ASSA ABLOY safety units, such as presence and motion sensors.

It is easy to install for both new construction and retrofit application and can be adapted to a

wide range of overhead concealed or surface applied installations.

Theoperatoritselfisnotintendedforusebypersons(includingchildren)withreducedphysical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the operator by a person responsible for

their safety.

This does not however prevent those persons to use the door where the operator is installed.

The door is designed to offer continuous use, a high degree of safety and maximum lifetime.

Thesystemisself-adjusting totheeffectscausedbynormalvariationsin theweatherconditions

and to minor friction changes caused by e.g. dust and dirt.

For installation and maintenance see Installation and Service manual 1018021.

Issue 2018-05-25

1018022-US-0.0

How the ASSA ABLOY SL500 Resilience works

The ASSA ABLOY sliding door operator ASSA ABLOY SL500 Resilience works

electromechanically. The motor, control unit, transmission –and optional emergency unit and

electromechanical locking device –are all assembled in a support beam with an integrated

cover. The motor and gear box transmit movement to the door leaves by means of a tooth

belt. The door leaf is fitted to a door adapter/carriage wheel fittingand hangs on a sliding

track. The guiding at the bottom is carried out by means of floor guides.

When an OPENING IMPULSE is received by the control unit the motor starts and transmits

movement to the door leaves, which move to the open position.

The closing starts when no OPENING IMPULSE is received and the HOLD OPEN TIME

has expired, and no PRESENCE IMPULSE is activated.

The ASSA ABLOY SL500 Resilience user can select five different modes of operation if an

operator mode selector is installed. See Operation mode selectors on page 8.

Technical specification

Manufacturer:

ASSA ABLOY Entrance Systems Inc.

Address:

1900 Airport Road, Monroe, NC 28110, US

Type:

ASSA ABLOY SL500 Resilience

Mains power supply:

100 V AC -10% to 240 V AC +10%, 50/60 Hz

fuse 10 AT

Power consumption:

Max. 250 W

Standards:

The ASSA ABLOY SL500 Resilience complies with ANSI/BHMA.

Locking

Doors used for emergency escape in buildings such as hospitals and homes for elderly people

may not be locked or put in operate mode selection OFF mode. In other buildings emergency

escapedoors maybelockedorputinoperatemodeselection OFFmodeafterithasbeensecured

and all people have left the building.

Unlocking

Unlock all the mechanical locks before activating the operator.

1018022-US-0.0

Issue 2018-05-25

Program selectors and functions

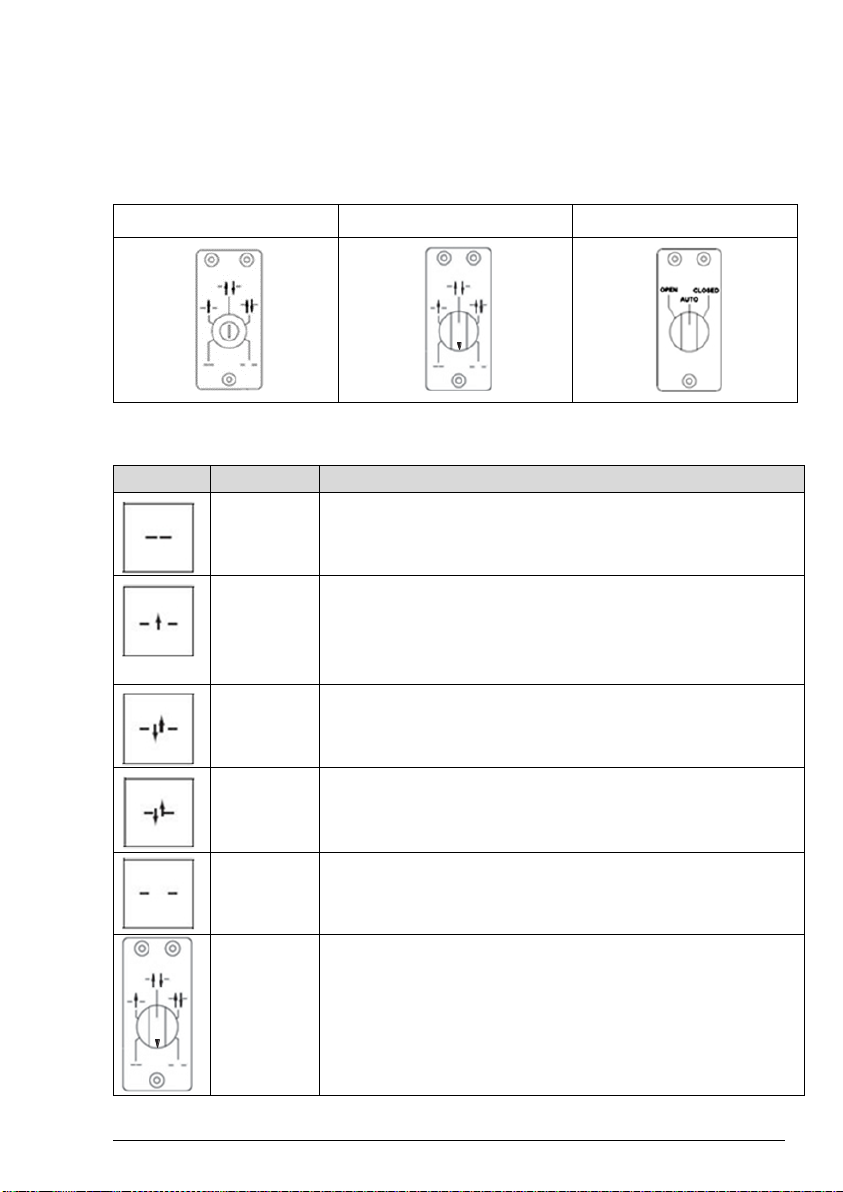

The functions of the door are selected with mechanical or key Program Selectors:

5 Position with Key uses 1/2" spacer or can be surface mounted

5 Position Mechanical Switch, flush or surface mounted.

3 Position Mechanical Switch, flush or surface mounted.

5 Pos Switch (Key)

5 Pos Knob Switch

3 Pos Knob Switch

Program selector functions

Symbol

Text

Function

OFF

(CLOSED)

The inner and outer activation units are disconnected. The door is locked if an

electro-mechanical locking device has been installed. The door can be opened

with an emergency push-button/key switch (if installed).

EXIT (ONE

WAY

TRAFFIC)

Two-way traffic, AUTO PARTIAL is obtained. The door can be opened

partially with the inner and outer activation units and with a key switch (if

fitted). With an emergency push-button the door opens fully

Passage through

doorway from one side only. The door is locked if an electro-mechanical

locking device has been attached. The door can be opened with an activation to

INNER IMPULSE 2 or KEY IMPULSE 6.

AUTO

Two-way traffic, normal operation of the door. The door can be opened with the

inner and outer activation units and with an emergency push- button/key switch

(if installed).

AUTO

(PARTIAL)

Two-way traffic. The door can be opened partially with the inner and outer

activation units and with an emergency push-button/key switch (if installed).

OPEN

The door is permanently held open.

RESET

Momentarily (5 seconds), set the Program Selector as shown and then place at

"AUTO" or "OFF" position.

Keep the area clear while the door completes a

system test and resets. After closing, the operator is reset and ready for normal

operation again

*3 pos switch is selectable between AUTO and EXIT functionality at the AUTO position by

removing the jumper on the back side of the switch.

Issue 2018-05-25

1018022-US-0.0

Integrated safety

Topermitasafepassagebetweenclosingdoors,thedoorsreverseimmediatelyifanobstruction

is detected. They then resume their interrupted movement at low speed to check whether the

obstruction has disappeared or not.

If an obstruction is detected between opening doors and surrounding walls or interior fittings,

the doors stop immediately, and then close after a time delay.

Safety system with presence sensors

Usually the safety system incorporates presence sensors installed above the door opening. A

presence sensor detects an object in the doorway, while the doors are closing, the doors reverse

immediately. They then resume their interrupted movement as soon as the object is removed.

1018022-US-0.0

Issue 2018-05-25

Technologically advanced sensors

The ASSA ABLOY sensors have been tested and approved by the ASSA ABLOY test

laboratory for use on ASSA ABLOY's automatic sliding doors. These presence sensors

further improve the already high obstruction detection obtained with the built in self-

monitored reverse upon obstruction force limitation.

Monitored sensors have built-in monitoring for error detection. However, all sensors, inner

and outer as well as side presence (if fitted), shall be checked at least once a week by the

owner of the building, see below. These tests shall be documented, signed and traceable (e.g.

in the service book).

Note: If you have a problem you cannot correct, turn off the automatic door immediately and

call your ASSA ABLOY service representative for assistance.

How to check your inner and outer combined motion and presence

detection sensors

Combined sensors are used when you want both a motion sensor and a presence sensor

integrated into the same unit.

Whenwalkingtowardsthedooropeningat moderatespeed,thedoorshouldstartopeningwhen

you are about 5 ft (1.5 meter) from the door. It shall slide open smoothly and stop in the fully

open position. Repeat the same procedure from the other side of the door opening. Move

slowly through the door (about 6"/s (15cm/s)). The door shall remain open.

Ifyour doorisset upfor one-waytraffic,the sensoron thesidenot intendedfor useshall reopen

the closing door if an object is detected at a minimum of 8" (20 cm) from the door at floor

level.

Step out of the detection field. After a short time delay the door shall slide closed smoothly.

Walk parallel to the inner door face (about 31.5" (80 cm) from the door face) to check that

your motion is detected during at least the complete door opening width. Repeat the same

procedure on the outer door face.

Issue 2018-05-25

1018022-US-0.0

Open the door and move your hand from one side (right/left) into the inner door face presence

field. Keep it motionless for several seconds at about 11.75" (30 cm) over the floor level.The

doorshouldremainopen aslongas youarewithinthe detectionarea.Repeatthesameprocedure

on the outer door face.

Safety system with photocells

Alternatively, the safety system can incorporate presence photocells in the door opening. If

an object is breaking the infrared (invisible) beam between the photocell units, while the

doors areclosing, thedoors reverseimmediately. Theythen resumetheir interrupted movement

as soon as the object is removed.

11.75”

(30 cm)

Other manuals for Besam SL500

Table of contents

Other Assa Abloy Door Opening System manuals

Assa Abloy

Assa Abloy Norton 7540STH Series User manual

Assa Abloy

Assa Abloy Pando Mini Go User manual

Assa Abloy

Assa Abloy Sargent 281 Series User manual

Assa Abloy

Assa Abloy effeff ePED 1386Z1LB7 04S0 Series Reference guide

Assa Abloy

Assa Abloy NORTON RIXSON 1600H Series User manual

Assa Abloy

Assa Abloy Corbin Russwin DC3200 Series User manual

Assa Abloy

Assa Abloy Corbin Russwin ED4000 Series User manual

Assa Abloy

Assa Abloy Corbin Russwin PED5800 Series User manual

Assa Abloy

Assa Abloy Norton 9300BCH User manual

Assa Abloy

Assa Abloy Besam SW200i User manual

Assa Abloy

Assa Abloy effeff 828 User manual

Assa Abloy

Assa Abloy King 70 Series User manual

Assa Abloy

Assa Abloy Corbin Russwin PED5000 DB Series User manual

Assa Abloy

Assa Abloy Norton PR1601BF User manual

Assa Abloy

Assa Abloy Norton 7500H Series User manual

Assa Abloy

Assa Abloy DC700G-E User manual

Assa Abloy

Assa Abloy NORTON RIXSON 6300 Series User manual

Assa Abloy

Assa Abloy Corbin Russwin PED5400 FE User manual

Assa Abloy

Assa Abloy SARGENT Powerglide 281 Series User manual

Assa Abloy

Assa Abloy Norton 7700ST User manual

Assa Abloy

Assa Abloy DC200 User manual

Assa Abloy

Assa Abloy DC700 User manual

Assa Abloy

Assa Abloy Norton 6300 Series User manual

Assa Abloy

Assa Abloy Corbin Russwin DC8200 Series User manual

Popular Door Opening System manuals by other brands

Pamex

Pamex KT-INP35 Installation instruction

Label

Label NEPTIS/LE installation manual

Cal-Royal

Cal-Royal N-F77CVR Installation instruction

Scrigno

Scrigno OPEN1000 Assembly manual

TriMark

TriMark UM 34 instructions

BFT

BFT WIND RMB 130B 200 installation manual

Alecto

Alecto ADI-250 user manual

Besam

Besam Swingmaster MP Installation, adjustment and maintenance instructions

CRL

CRL SENIOR PRIMA manual

GAL

GAL MOVFR Quick setup

Olide

Olide 120B installation manual

Normstahl

Normstahl IDO7 installation manual

Häfele

Häfele Finetta T 70 VF manual

AGS

AGS D-PL Instructions for fitting, operating and maintenance

Stanley

Stanley MA900ñ Installation and owner's manual

WITTUR

WITTUR Hydra Plus UD300 Instruction handbook

Alutech

Alutech TR-3019-230E-ICU Assembly and operation manual

MPC

MPC ATD ACTUATOR 50 ATD-313186 Operating and OPERATING AND INSTALLATION Manual
