Assa Abloy Rixson Smok-Chek VI Quick guide

Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9372-0100-015 (02-14)

ASSA ABLOY

RIXSON®

Requirements:

Units are handed. Hand of unit and hand of door must be the same.

All dimensions shown in inches (mm).

Door must be hung on ball bearing butt hinges or 3/4" (19) offset pivots.

Door thickness must be 1-3/4" (44) to 2-1/4" (64).

Door must swing freely through the entire opening and closing cycle before beginning the installation procedure.

Frame face must be a minimum of 2" (51).

Ceiling clearance must be a minimum of 3 -1/2" (89) for push side application or 4" (102) for pull side application. See pages

2 and 7 for templates.

Power input to unit must be of the same voltage as that stated on the unit.

Unit to be mounted on interior of building in dry environment, maximum humidity of 95%.

See NFPA70 for wiring requirements and NFPA72 for alarm system requirements.

Pull Side Applications with Slide Track

(4 Pull, 6 Pull)

(see page 7 for template)

Push Side Applications with Double Lever Arms

(4 Push, 6 Push)

(see page 2 for template)

Item No. Description

1 Track (Pull Side)

2 Cover

3 Track Arm (Pull Side)

4 Double Lever Arm (Push Side)

• Allen wrench set (inch)

• Flat blade screwdriver (potentiometer &

terminal size)

• Screwdriver (Phillips size 2)

• Tape ruler

• Power drill

• Center punch

• Wire stripper

Tools required:

Use screw pack and hardware provided to mount operator.

312

Table of Contents:

Push Side Template....................2

Push Side Installation..............2-4

Closer Adjustments.....................5

Hold Open Position Adj...............6

Pull Side Template......................7

Pull Side Installation.................7-9

Closer Adjustments...................10

Hold Open Position Adj.............11

Non-Detectored Electrical.........12

Detectored Electrical.................13

RF Unit Electrical.................14-15

Troubleshooting.........................15

General Information..................16

ASSA ABLOY

RIXSON®Smok-Chek® VI

Installation and Instruction Manual

ASS

A ABL

RIXSON®

ASSA ABL

RIXSON®

Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9372-0100-015 (02-14)

ASSA ABLOY

RIXSON®

Double Lever Arm (Push Side)

Closer Mounting

Prepare Frame

Ceiling Line

(51)

3-1/2

(89)

Min

Use of an auxiliary door stop, by

others, is required for these applications.

Hinge

Edge

Door

DOOR OPENING

ANGLE

Dim “A”

Inches (mm)

To 100°

100° to 180°

5-7/8

3-1/8

149.2

79.4

Hinge or Pivot

Drill #7; Tap 1/4-20 UNC 19-3/4

1-3/4

(44.5)

(101.6)

11-1/4

(285.8)

(501.7)

For Concealed

Wiring Only

7/8

(22.2) DIA THRU

Left hand door shown, right hand opposite.

All dimensions shown in inches (mm).

Install two screws in

the key slot locations

leaving 1/8" gap

between screw head

and frame face as

shown (a).

1/8"

Dim “B”

Inches (mm)

13-3/8

10-5/8

339.7

269.9

Top of

Door

Frame

Soffit

1-3/4

(44.5)

7/8

(22.2)

Frame Rabbet

11/16

(17.5)

5/16

(7.9)

1-5/8

(41.3)

RH - Right Hand

LHR - Left Hand Reverse

LH - Left Hand

RHR - Right Hand Reverse

Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9372-0100-015 (02-14)

ASSA ABLOY

RIXSON®

Operator Mounting

Hang closer body

by key hole slots (b)

and slide closer

toward hinge to

capture screw

heads (c).

Warning: Do not

allow pedestrian

traffic through

opening until all

mounting screws

are tightened.

Closer Mounting

Install remaining

mounting screws

through back plate and

tighten all four screws

(d). Pull wiring through

holes (if concealed

wired).

Arm Shoe Mounting

Mount closer arm shoe to

door face as shown.

For Concealed Wired Only

(If surface wired, see page 13-15)

Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9372-0100-015 (02-14)

ASSA ABLOY

RIXSON®

Attach Arm

Preload Closer Spring

Arm Screw

(7/16” Drive)

Main

Arm F

Closer Spring Adjustment

11/16"

Wrench

Closing Force

Weaker

Stronger

Slowly increase closer power

until door closes consistently. A

closer set to the ADA required 5

lbs opening force may not be

strong enough to close the door

due to latching hardware, air

pressure, or frame issues.

Pinion

Flat

Arm

Mark

Align the pinion flat with

the letter "S".

90°

With the door closed and

latched, rotate main arm until

secondary arm is perpendicular

to the door frame, then tighten

adjustment screw as shown with

7/16” wrench.

Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9372-0100-015 (02-14)

ASSA ABLOY

RIXSON®

Closer Adjustments

1/8"

Hex

Key

"B"

Backcheck

75°

"L"

Latch

0°

5°

1/8"

Hex

Key

"P"

Backcheck

Position

75°

90°

"S"

Sweep

5°

Never Close

backcheck valve

completely

Do not remove valves

from closer. Hydraulic

oil will escape.

1/8"

Hex

Key

1/8"

Hex

Key

Weaker

Stronger

Closing Speed Controls

• Valve "S" Controls Sweep Range from

full open to 5°.

• Valve "L" Controls Latch Range from 5°

to closed.

Opening Cycle

• Valve "B" controls the strength of

cushioning in Backcheck Range.

NEVER close this valve completely – it

is not to provide a positive stop.

• Valve "P" adjusts the angle that back-

check is felt in the open cycle.

Electrical Connections

See Page 13 for Non-Detectored Units

See Page 14 for Detectored Units

See Page 15 for RF Units

Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9372-0100-015 (02-14)

ASSA ABLOY

RIXSON®

Attach Cover

312

Attach cover using screws provided.

Selective Hold Open Cam Adjustment

Setting Hold Open Angle

• Make all required electrical connections

and turn power switch to on for non-

detectored units (detectored units

cannot be turned off at the closer). (See

previous step)

• Open door to desired hold open angle.

• Loosen cam screw and rotate cam until

switch closes and door holds open.

• Rotate cam until it touches the switch.

• Tighten cam screw but do not over

torque as this will cause damage to

cam.

• Force door out of hold open by closing

the door, then test hold open by

opening to hold open angle again.

5/32” hex

wrench

5/32” hex

wrench

Right hand pull-side shown.

Switch shown in hold open position (closed).

Backplate

SHO switch in

open position.

Closer not in

hold open.

SHO switch in

closed position.

Closer in hold

open.

Un-used pin

Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9372-0100-015 (02-14)

ASSA ABLOY

RIXSON®

Track Mount (Pull Side)

Closer Mounting

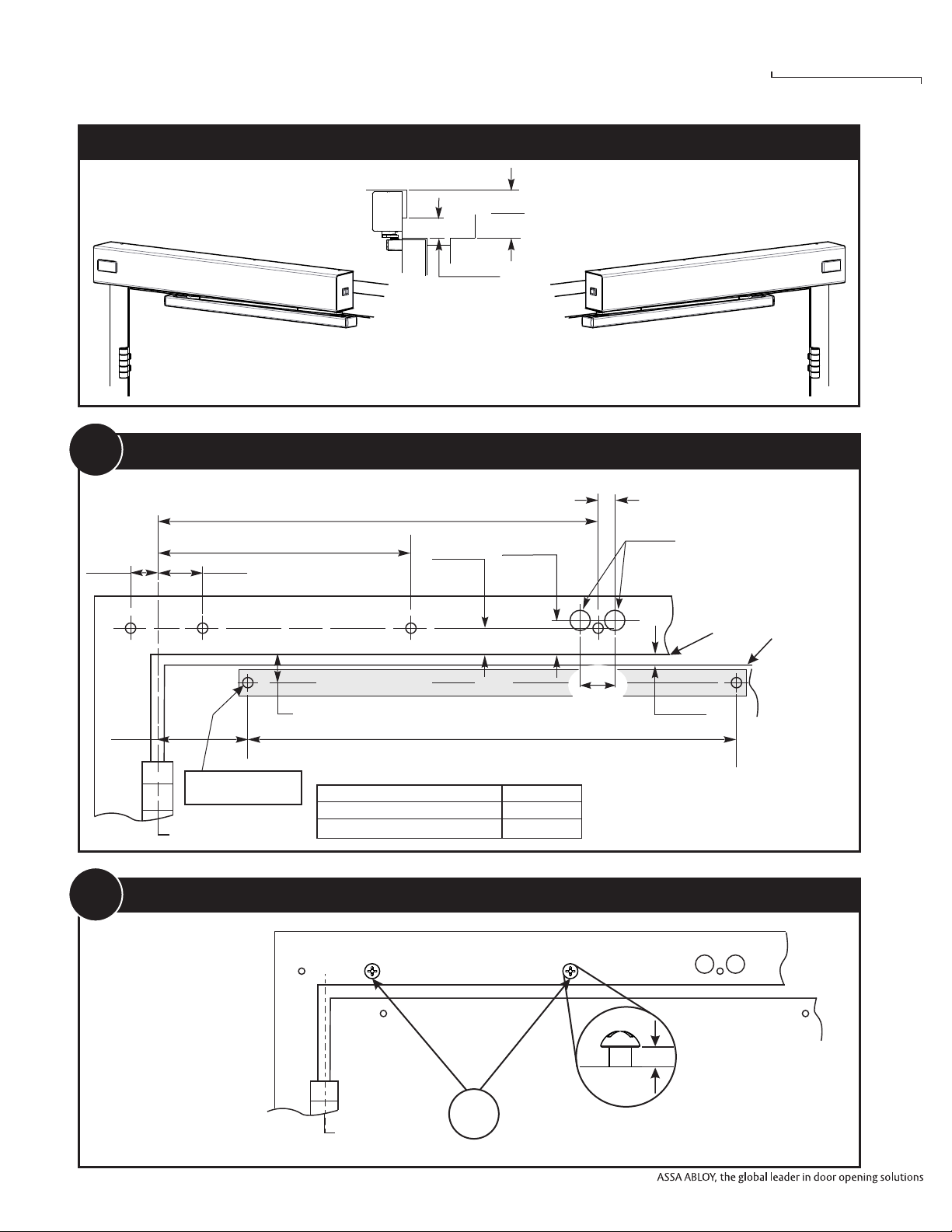

Prepare Frame

Left Hand Door - LH

Right Hand Reverse - RHR

RH - Right Hand Door

LHR - Left Hand Reverse

Ceiling Line

(51)

(102)

Min

Right hand door shown, left

hand opposite.

All dimensions shown in

inches (mm).

Install two screws in

the key slot locations

leaving 1/8" gap

between screw head

and frame as shown

(a).

1/8"

Track Mount Unit

(152.4)

19-1/8

(485.8)

CHinge or Pivot

3-1/4

(82.6)

3/4

(19)

For Concealed

Wiring Only

7/8

(22.2) DIA THRU

1-3/8

(34.9)

1-1/16

(27)

14-1/2

(368.3)

(584.2)

Prepare holes for mounting per instructions on page 2. *Track screws are

self tapping and are smaller than closer mounting screws*

1-1/4 (31.8)

Standard Arm

Double Egress Arm

Series Dim "A"

5/8 (15.9)

1/8 gap

(3.2)

Top of

Door

Frame

Soffit

(44.5)

1-3/4

7/8

(22.2)

*9/64 (3.6) Holes

for track screws*

Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9372-0100-015 (02-14)

ASSA ABLOY

RIXSON®

Closer Mounting

Arm Mounting

Install remaining

mounting screws

through back plate

and tighten all four

screws (d). Pull

wiring through holes

(if concealed wired). d

Fully close Latch & Sweep

Valves with 1/8" wrench

provided.

Mount closer arm to pinion square as shown.

Use main arm to rotate pinion

until flat is visible.

RE-INSTALL

HERE

LEFT

HAND

RIGHT

HAND

Attach with provided

screw and washer.

Tighten arm screw with

5/32" hex wrench.

Attach Arm

PINION

FLAT

LEFT

HAND

RIGHT

HAND

Align the pinion flat as

shown.

*All views from floor looking upward*

Hang closer body

by key hole slots (b)

and slide closer toward

hinge to capture screw

heads (c).

Warning: Do not allow

pedestrian traffic

through opening until

all mounting screws

are tightened.

*For Connected Free Swing Arm

see Instructions 80-9372-0101-000*

For Concealed Wired Only

(If surface wired, see page 13-15)

Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9372-0100-015 (02-14)

ASSA ABLOY

RIXSON®

A) Insert slider into track.

B) For openings 125°or less, insert spring

cushion stop on hinge side of track .

For openings greater than 125°, omit

spring stop.

C) Insert end caps (both ends).

D) Secure track to door using screws

provided.

E) Snap on cover.

Set Screws

toward hinge

If opening angle greater than 125°, spring cushion stop cannot be used and an auxiliary stop

by others is required.

Mount Track

Connect Arm to Track

Open door to maximum desired swing

minus 5° and hold. Slide spring

cushion stop assembly against slider

assembly and secure to track using

5/64" or 2mm wrench.

HINGE

Secure arm to slider

assembly using 3/16"

wrench. Turn wrench

counter clock wise to

tighten.

Open Latch & Sweep Valves

with 1/8" wrench provided.

Closer Spring Adjustment

11/16"

Wrench

Closing Force

Weaker

Stronger

Slowly increase closer power

until door closes consistently. A

closer set to the ADA required 5

lbs opening force may not be

strong enough to close the door

due to latching hardware, air

pressure, or frame issues.

Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9372-0100-015 (02-14)

ASSA ABLOY

RIXSON®

Closer Adjustments

1/8"

Hex

Key

"B"

Backcheck

75°

1/8"

Hex

Key

"P"

Backcheck

Position

75°

90°

"S"

Sweep

5°

Never Close

backcheck valve

completely

Do not remove valves

from closer. Hydraulic

oil will escape.

1/8"

Hex

Key

Weaker

Stronger

Closing Speed Controls

• Valve "S" Controls Sweep Range from

full open to 5°.

• Valve "L" Controls Latch Range from 5°

to closed.

Opening Cycle

• Valve "B" controls the strength of

cushioning in Backcheck Range.

NEVER close this valve completely – it

is not to provide a positive stop.

• Valve "P" adjusts the angle that back-

check is felt in the open cycle.

"L"

Latch

0°

5°

1/8"

Hex

Key

Electrical Connections

See Page 13 for Non-Detectored Units

See Page 14 for Detectored Units

See Page 15 for RF Units

Table of contents

Other Assa Abloy Door Opening System manuals

Assa Abloy

Assa Abloy Adams Rite EX76W Operating instructions

Assa Abloy

Assa Abloy Norton PR1601BF User manual

Assa Abloy

Assa Abloy Corbin Russwin PED4800 Series User manual

Assa Abloy

Assa Abloy Norton 7500 Series User manual

Assa Abloy

Assa Abloy Norton UniTrol UNI-1600BC Series User manual

Assa Abloy

Assa Abloy RIXSON 185 Quick Spotter User manual

Assa Abloy

Assa Abloy Norton 5500 Series User manual

Assa Abloy

Assa Abloy Norton CloserPlus CLP8101 User manual

Assa Abloy

Assa Abloy Norton 9500 Series User manual

Assa Abloy

Assa Abloy NORTON RIXSON 1600 Series User manual

Assa Abloy

Assa Abloy CloserPlus Ramp Norton XF460 User manual

Assa Abloy

Assa Abloy Norton 9540 Series User manual

Assa Abloy

Assa Abloy Corbin Russwin DC8210 Series User manual

Assa Abloy

Assa Abloy Corbin Russwin PED5400 FE User manual

Assa Abloy

Assa Abloy G-CO-CS User manual

Assa Abloy

Assa Abloy SARGENT 1431 Series User manual

Assa Abloy

Assa Abloy Lockwood L7714SDSIL User manual

Assa Abloy

Assa Abloy effeff ePED 1386Z1LB7 04S0 Series Reference guide

Assa Abloy

Assa Abloy Besam SL500 User manual

Assa Abloy

Assa Abloy Norton 78-B/FHA Hold Open Series User manual

Assa Abloy

Assa Abloy Norton LEO 5700 Series User manual

Assa Abloy

Assa Abloy Corbin Russwin DC8200 Series User manual

Assa Abloy

Assa Abloy DC3210 User manual

Assa Abloy

Assa Abloy Norton LEO 5700 Series Quick guide

Popular Door Opening System manuals by other brands

Pamex

Pamex KT-INP35 Installation instruction

Label

Label NEPTIS/LE installation manual

Cal-Royal

Cal-Royal N-F77CVR Installation instruction

Scrigno

Scrigno OPEN1000 Assembly manual

TriMark

TriMark UM 34 instructions

BFT

BFT WIND RMB 130B 200 installation manual

Alecto

Alecto ADI-250 user manual

Besam

Besam Swingmaster MP Installation, adjustment and maintenance instructions

CRL

CRL SENIOR PRIMA manual

GAL

GAL MOVFR Quick setup

Olide

Olide 120B installation manual

Normstahl

Normstahl IDO7 installation manual

Häfele

Häfele Finetta T 70 VF manual

AGS

AGS D-PL Instructions for fitting, operating and maintenance

Stanley

Stanley MA900ñ Installation and owner's manual

WITTUR

WITTUR Hydra Plus UD300 Instruction handbook

Alutech

Alutech TR-3019-230E-ICU Assembly and operation manual

MPC

MPC ATD ACTUATOR 50 ATD-313186 Operating and OPERATING AND INSTALLATION Manual
