Assa Abloy DC3210 User manual

IMPORTANT:

BEFORE

INSTALLING:

TO DETERMINE

HAND OF

YOUR DOOR:

An improperly installed or incorrectly adjusted door closer may cause property

damage or personal injury; and will void product warranty.

To avoid personal injury, DO NOT DISASSEMBLE THIS DOOR CLOSER BODY.

Door closers must be securely fastened to a properly reinforced door and frame

with fasteners provided.

Door closers with the “A1” HOLD OPEN ARM option are not permitted to be

installed in fire door assemblies.

LEFT

HAND

DOOR

RIGHT

HAND

DOOR

Size of Door & Door Closer

Type

Installation Interior Exterior

In-swinging

Exterior

Out-swinging

Recommended

Closer Size

**Max.

Opening

Force

lbs/f

2 4

3 0

3 6

4 0

4 6

5 0

' "

2 4

2 6

3 0

3 6

4 0

4 6

' "

2 6

3 0

3 6

*4 0

' "

2 6

3 0

*3 6

*4 0

' "

3 0

3 6

4 0

*4 6

' "

Regular &

Top Jamb

Parallel

Arm

Universal Door Closers

RHR LHR

The door closer's power size adjustment feature may require adjustment to its

lowest setting to comply with ADA opening force guidelines.

Regular Arm Parallel Arm Jamb Mount

80-9330-3000-152 Rev. 05/12

Installation Instructions

For Non-Hold Open or “A1”

Hold Open Arm Options

See pages

2 & 3

See pages

4 & 5

See pages

6 & 7

ASSA ABLOY

DC3200 Series

Multi-Sized 1 thru 6

DC3200 DC3210 DC3220

ADA compliant closers are: DC3200, DC3210, DC3220

The Americans with Disabilities Act (ADA) requires that doors having door closers

have an opening force not to exceed 5 lbf. for interior doors, 8.5 lbf exterior doors.

Use standard templating for regular arm and parallel arm applications. Jamb

mounted applications use the template for 140° door opening to achieve the

required opening force.

**NOTE: These forces are for standard templating with bearing type hinges and do not account for pressure differentials and draft.

Installation Instructions

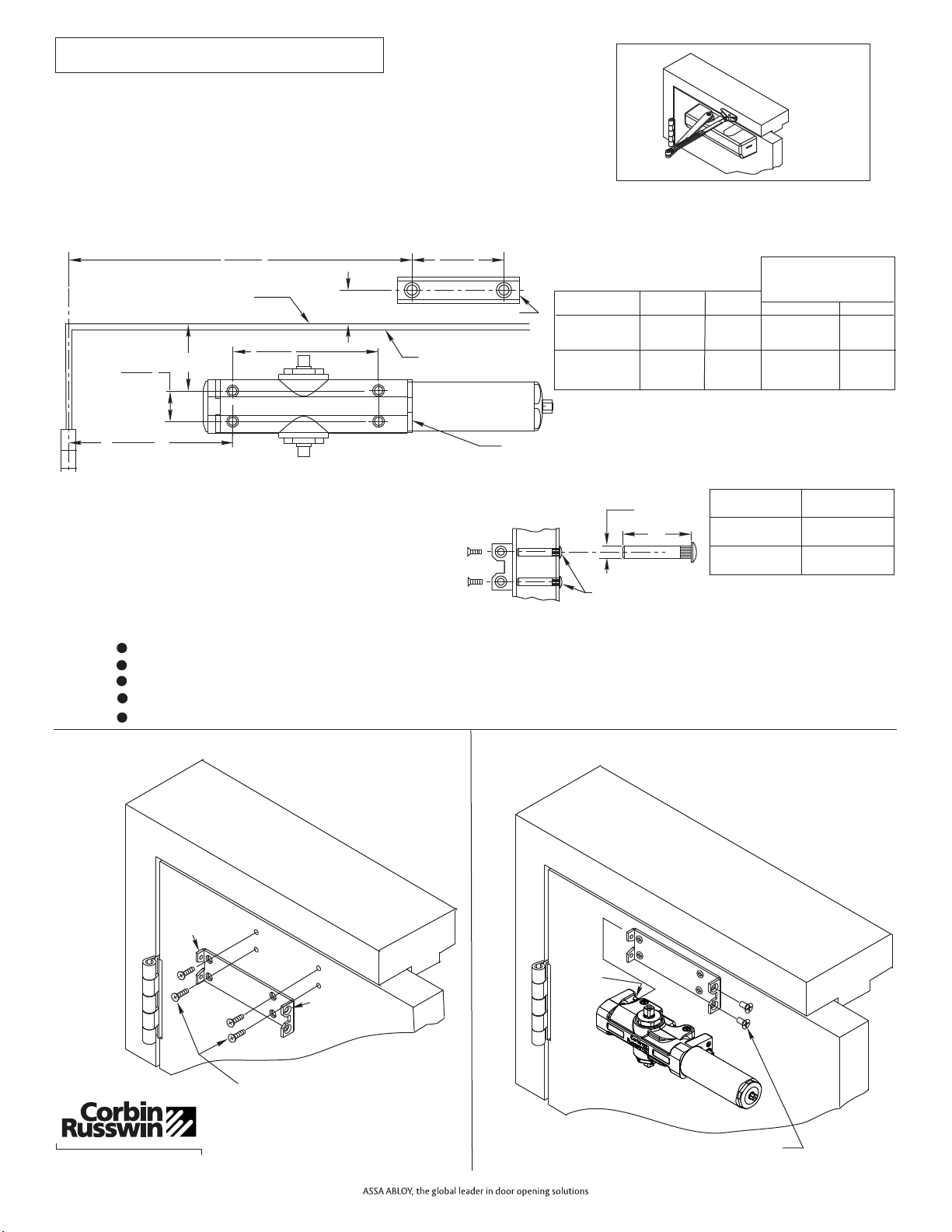

Regular Arm Application

CLOSER BRACKET

Mark Door and Jamb (for closer bracket and arm bracket)

If top rail is 2-1/2 (64mm) or greater, use template FM131C provided.

If top rail is 1-3/4 (44mm) to 2-7/16 (62mm), see MOUNTING DIMENSIONS chart.

MOUNTING DIMENSIONS

TOP RAIL AB

MIN. CLEARANCE

REQUIRED OVER

DOOR

NHO

2-1/2 & OVER

(64mm)

(25.4mm)

"7/8

(23mm)

1-3/4 MIN.

(44mm)

" 5/8

(16mm)

"1-1/4

(32mm)

1-1/2

(39mm)

1-7/8

(48mm)

1-11/16

(43mm)

2-1/16

(53mm)

1. Template

Regular Arm

NOTES:

Check hand of door, see page 1.

Right Hand Application Shown. Left Hand Opposite.

Dimensions given in inches (mm). Do Not Scale Drawing.

Closer must be installed in a true horizontal plane to ensure proper closer performance.

Door opening (up to 180°) is dependent upon door, frame, wall and hinge/pivot conditions permitting.

2. Install Closer Bracket

3. Mount Closer Body to Closer Bracket

Pin Hole

End

Countersunk

Hole End

Pins

(2)

Page 2

To obtain extra closing force add 3 (77mm) to dimensions marked.

This will limit degree of door opening to 110°.

2-1/4

(57.2)

*10-5/8

(270)

*7-1/2

(191)

FRAME LINE

TOP OF DOOR

LHINGE OR PIVOT

ARM BRACKET

4-5/16

(109.5)

(25.4)

3/8

(10)

1/4-20 THREAD

Drill thru 9/32 (7.1) Enlarge to

3/8 (9.5) Dia. This Side Only

(4 Places)

DOOR

THICKNESS

SEX NUT

LENGTH “L”

1-3/8 (35mm)"

1-3/4 (44mm)

& OVER

1-9/32 (33mm)"

1-21/32 (42mm)"

MOUNTING SCREW SPECIFICATIONS

ARM AND CLOSER BRACKET

}

or{Option M54:

Sex nuts, furnished

when ordered

1/4-20 oval head machine screw

or 1/4-14 self-drilling screw.

3/16 (4.8) diameter pilot hole

required for Wood Applications.

1/4-20 x 1/2 OHMS (2)

1/4-14 x 1-1/2 OH Self-Drilling (4)

1/4-20 x 3/4 OHMS w/ Sex Nuts (4)

(M54 Option)

ASSA ABLOY

80-9330-3000-152 Rev. 05/12

DC3200 Series

NON-HOLD OPEN ARM ONLY:

Normal mounting position.

Position with pivot point

away from hinge.

Away from

hinge

4a. Attach Arm Bracket to Frame

For Additional 15% Closing Force

Reposition arm mounting bracket so that

pivot point is toward hinge.

FOR MAXIMUM

POWER

FOR REGULAR

POWER

Hinge

Standard Position

HOLD OPEN ARM (A1 OPTION ONLY):

4b. Attach Arm Bracket to Frame

HOLD OPEN ARM:

Position so that dial

screw is on

UNDERSIDE of bracket

For Adjustments See Page 8

Page 3

Regular Arm Application (Continued)

5a. Position Arm on Closer

Main arm projects straight out at 90° angle to door.

5b. Position Arm on Closer

Main arm projects straight out at 90° angle to door. Remove main

arm screw from elbow joint and disassemble arm. Thread the rod

into the Arm Bracket as shown below.

NON-HOLD OPEN ARM ONLY: HOLD OPEN ARM ONLY:

MAIN ARM MAIN ARM

THREADED

ROD

ARM

BRACKET

6a. Preload and Adjust Arm

Open door and slide arm rod into arm loop. Close door, swing arms

so adjusting arm is 90° to frame. With 7/16 wrench INSTALL and

TIGHTEN SCREW SECURELY.

Extended Maintenance

Lubricate Arm periodically

shaded points with a drop or

two of appropriate lubricant.

NOTE: When lubricating a

Hold Open Arm, DO NOT

use any lubricant on the

Holding Surface components.

ARM

LOOP

ARM ROD

SCREW

90°

NON-HOLD OPEN ARM ONLY: 6b. Preload and Adjust Arm

While door is closed, adjust the Threaded Arm in the Arm Bracket

until the bearing fits back onto the elbow joint on the Main Arm at 90°

as shown below. RE-INSTALL AND TIGHTEN SCREW SECURELY.

HOLD OPEN ARM ONLY:

ARM

BRACKET

THREADED

ARM

SCREW

90°

DIAL

SCREW

MAIN ARM

1/4-14 x 1-1/2 OH Self-Drilling (4)

Pivot (away from hinge)

1/4-14 x 1-1/2 OH Self-Drilling (4)

ASSA ABLOY

80-9330-3000-152 Rev. 05/12

Installation Instructions

Parallel Arm Application

Parallel Arm

5/8

(16)

2-3/4

(70)

FRAME STOP

TOP OF DOOR

HINGE

PIVOT

6-1/8

(156)

DOOR

FRAME STOP

5/8

(16)

REF.

DOOR

FRAME

ADAPTER

PLATE

3/8

(10)

1/4-20 THREAD

Drill thru 9/32 (7.1) Enlarge to

3/8 (9.5) Dia. This Side Only

(4 Places)

DOOR

THICKNESS

SEX NUT

LENGTH “L”

1-3/8 (35mm)"

1-3/4 (44mm)

& OVER

1-9/32 (33mm)"

1-21/32 (42mm)"

Mark Door and Jamb (for closer bracket and adapter plate)

Use template FM131C provided or use dimensions in this template.

1. Template

To obtain extra closing force add 3 (77mm) to dimensions marked.

This will limit degree of door opening to 110°.

MOUNTING SCREW SPECIFICATIONS

ARM AND CLOSER BRACKET

}

or{Option M54:

Sex nuts, furnished

when ordered

NOTES:

Check hand of door, see page 1.

Right Hand Application Shown. Left Hand

Opposite.

Dimensions given in inches (mm). Do Not

Scale Drawing.

Closer must be installed in a true horizontal

plane to ensure proper closer performance.

Door opening (up to 180°) is dependent

upon door, frame, wall and hinge/pivot

conditions permitting.

2-3/4

(70) 5/8

(16)

1-1/2

(38.1)

1/4

(6.35)

2. Install Closer Bracket

3. Mount Closer Body to Closer Bracket

Page 4

7-1/2

(191)

CLOSER

BRACKET *

Pin Hole End

Countersunk Holes

Holding Pins

1/4-20 oval head machine

screw or 1/4-14 self-drilling

screw. 3/16 (4.8) diameter

pilot hole required for Wood

Applications.

SPACER BLOCK

(When required)

(25.4)

4-5/16

(109.5)

1/4-20 x 1/2 OHMS (2)

1/4-14 x 1-1/2 OH Self-Drilling (4)

1/4-20 x 3/4 OHMS w/ Sex Nuts (4)

(M54 Option)

ASSA ABLOY

80-9330-3000-152 Rev. 05/12

DC3210 Series

4. Mount Adapter Plate

Bracket on Jamb

Using holes spotted on

soffit or stop in Step 1

mount adapter plate

bracket.

5. Mount Arm Bracket

NON-HOLD OPEN ARM:

Pivot point must

be AWAY from hinge

edge of door.

HOLD OPEN ARM ONLY (A1 Option)

7. Connect and Position Arms

Open door and slide arm rod into arm loop.

door, swing arms so that they form a “V” position,

as in Step 8. With 7/16 wrench, INSTALL AND

TIGHTEN SCREW SECURELY.

1-1/2

(38) MIN.

3-0

(76) MAX.

HOLD OPEN ONLY

Remove main arm screw from elbow joint and disassemble

arm. Thread the rod into the Arm Bracket as shown below.

While door is closed, adjust the Threaded Arm in the Arm

Bracket until the bearing fits back onto the elbow joint on

the Main Arm and forms a "V" as shown below.

RE-INSTALL AND TIGHTEN SCREW SECURELY.

ARM LOOP

ARM ROD

SCREW

8. Power Adjustment

To increase the power of the closer, re-adjust the arm so it is nearer the door.

To decrease power, re-adjust the arm so it is farther away from the door and

then secure screw in arm loop (non-hold open) or elbow joint (hold open).

MINIMUM POWER MAXIMUM POWER

For Adjustments See Page 8

Page 5

Parallel Arm Application (Continued)

LATCHING

SPEED VALVE

CLOSING

SPEED

VALVE

6. Position Arm onto Closer

Using hex wrench provided, turn closing speed and latching speed

valves clockwise until completely closed. DO NOT OVER TIGHTEN.

Using wrench, turn under side of spindle 45° toward the closer

tube until it reaches the diamond position (fig. 2). Immediately

place arm on spindle so that it is parallel to the closer body.

Install and tighten arm screw and washer assembly.

Reopen valves.

CLOSER TUBE

Fig. 1 Fig. 2

Square position

At rest

Diamond position

Rotated 45°

Rotate 45°

5/16 Hex Head

Screw & Washer Assembly

Extended Maintenance

Lubricate Arm periodically with a drop

or two of appropriate lubricant.

NOTE: When lubricating a Hold Open Arm, DO NOT use

any lubricant on the Holding Surface components.

at shaded points

Install with dial

screw facing down.

DIAL SCREW

THREADED

ARM ARM

BRACKET

MAIN ARM

1/4-20 x 1-1/2 OHMS (2)

ASSA ABLOY

80-9330-3000-152 Rev. 05/12

Installation Instructions

Jamb Mount Application

Jamb Mount

CEILING LINE

(76)

1-3/4

(44) MIN.

MIN.

MOUNTING SCREW SPECIFICATIONS

Sex nuts, Option

M54, furnished

when ordered

3/8”

(10)

1/4-20 THREAD

Drill thru 9/32 (7.1) Enlarge to

3/8 (9.5) Dia. This Side Only

(4 Places)

DOOR

THICKNESS

SEX NUT

LENGTH “L”

1-3/8 (35mm)"

1-3/4 (44mm)

& OVER

1-9/32 (33mm)"

1-21/32 (42mm)"

}

{

Mark Door and Jamb (for closer bracket and arm bracket)

use dimensions in template below.

1. Template

OPENING

MAXIMUM AB

8-7/8

(225)

13-3/8

(340)

HINGE

CONDITION

7-3/8

(187)

11-7/8

(302)

7-3/8

(187)

11-7/8

(302)

5-7/8

(149)

10-3/8

(264)

Butts, Offset

Pivots, and

Swing Clear

Hinges

110°

140°

180°

140° CENTER

HUNG

Dimensions “A” and “B” are taken from

centerline of hinge as shown and apply to

pivot point of swing clear hinges. Offset

and centerhung pivots.

*Must be single acting door.

2. Install Closer Bracket to Jamb

Pin Hole End

Countersunk

Hole End

Page 6

Holding Pins

3. Mount Closer Body to Closer Bracket

NOTES:

Check hand of door, see page 1.

Right Hand Application Shown. Left Hand Opposite.

Dimensions given in inches (mm). Do Not Scale Drawing.

Closer must be installed in a true horizontal plane to ensure proper closer performance.

All degrees of door opening are dependent upon door, frame, wall and hinge/pivot conditions permitting.

1-9/16

(40)

FRAME

STOP

TOP OF

DOOR

CLOSER

BRACKET

2-1/4

(57.2)

ARM BRACKET

FRAME

LINE

FRAME TOP OF FRAME

ARM AND CLOSER BRACKET

1/4-20 oval head machine

screw or 1/4-14 self-drilling

screw. 3/16 (4.8) diameter

pilot hole required for Wood

Applications.

1/2

(12.7)

4-5/16

(109.5)

(25.4)

1/4-20 x 1/2 OHMS (2)

1/4-14 x 1-1/2 OH Self-Drilling (4)

ASSA ABLOY

80-9330-3000-152 Rev. 05/12

DC3220 Series

Normal mounting position.

Position with pivot point

away from hinge.

Away from hinge

For Additional 15% Closing Force

Reposition arm mounting bracket so that

pivot point is toward hinge.

Standard Position

NON-HOLD OPEN ARM ONLY:

4a. Attach Arm Bracket to Door HOLD OPEN ARM (A1 Option):

4b. Attach Arm Bracket to Door

5a. Position Arm on Closer

6a. Preload and Adjust Arm

Open door and slide arm rod into arm loop. Close door,

swing arms so adjusting arm is 90° to frame. With 7/16

wrench, INSTALL and TIGHTEN SCREW SECURELY.

Main arm projects

straight out at 90°

angle to door.

For Adjustments See Page 8

Page 7

Jamb Mount Application (continued)

MAIN ARM

ARM ROD

SCREW

ARM

LOOP

90°

Extended Maintenance

Lubricate Arm periodically

shaded points with a drop or

two of appropriate lubricant.

NOTE: When lubricating a

Hold Open Arm, DO NOT

use any lubricant on the

Holding Surface components.

FOR MAXIMUM

POWER

FOR REGULAR

POWER

Hinge

Install with dial screw

facing down

DIAL

SCREW

FRAME STOP

5b. Position Arm on Closer

Main arm projects straight

out at 90° angle to door.

Remove main arm screw

from elbow joint and

disassemble arm. Thread

the rod into the Arm Bracket

as shown below.

6b. Preload and Adjust Arm

While door is closed, adjust the Threaded Arm in

the Arm Bracket until the bearing fits back onto the

elbow joint on the Main Arm at 90° as shown below.

RE-INSTALL and TIGHTEN SCREW SECURELY.

90°

NON-HOLD OPEN ARM ONLY: HOLD OPEN ARM ONLY (A1 Option):

MAIN ARM

THREADED

ROD

ARM

BRACKET

ARM

BRACKET

THREADED

ARM

SCREW

MAIN ARM

NON-HOLD OPEN ARM ONLY: HOLD OPEN ARM ONLY (A1 Option):

1/4-14 x 1-1/2 OH Self-Drilling (2)

1/4-20 x 3/4 OHMS w/ Sex Nuts (2)

(M54 Option)

Pivot

(away from Hinge)

1/4-14 x 1-1/2 OH Self-Drilling (2)

1/4-20 x 3/4 OHMS w/ Sex Nuts (2)

(M54 Option)

ASSA ABLOY

80-9330-3000-152 Rev. 05/12

Interior Exterior

Swing

Exterior

Out

Swing

LATCHING

SPEED

VALVE

BACKCHECK

INTENSITY VALVE

BACKCHECK

LOCATION VALVE

OPTION M71

DELAYED

ACTION VALVE

CLOSING

SPEED VALVE

SPRING POWER ADJUSTER

(5/16 WRENCH or SOCKET)"

Size of Door No. of Full

(360°) Turns

Clockwise

of Power

Adjuster

Equivalent

Closer Size

(Approx.)

DC6200 SPRING POWER ADJUSTMENT CHART

2 4 (712)

2 6 (764)

3 0 (915)

3 6 (1067)

' "

2 6 (764)

3 0 (915)

' "

2 6 (764)

3 0 (915)

3 6 (1067)

4 0 (1219)

' "

Spring Power Adjustment

All DC6200 closers are factory set at an approximate Size 3.

Adjust closer as necessary for door size using this chart.

Readjustment may be required to suit prevailing conditions.

Locate spring power adjuster from Illustration below

Backcheck Intensity Valve

Turn valve COUNTER-CLOCKWISE to reduce backcheck

or CLOCKWISE to increase backcheck. (Backcheck should

be set to give a soft cushioning action, not a sudden stop.)

Page 8

To Adjust Hold Open (A1 Option)

Open the door to desired position and tighten the hold open

screw firmly (For RH application, turn screw on underside

CLOCKWISE. For LH application, turn screw COUNTER-

CLOCKWISE.) Place the hold open dial over the hex head

of the bracket screw so that one of the slots in the dial is

directly over small screw hole tapped in bracket. Seat the

dial tightly over the bracket. INSERT DIAL SCREW AND

TIGHTEN SECURELY.

(FLAT TIP SCREWDRIVER

W/ 5 (127mm) Min. Shaft Length)"

Latching Speed Valve

After closing speed has been obtained, turn latching speed valve

CLOCKWISE to SLOW latching or COUNTER-CLOCKWISE to

SPEED latching for last 2 to 5 of door travel.

NOTE: Set combination of CLOSING and LATCHING speeds to

between 3 and 7 seconds Use of door by handicapped,

elderly or small children may require even greater

closing time.

" "

Closing Speed Valve

To adjust speed of door closing from fully open to a position

2 to 5 from closed, turn Closing Speed Valve CLOCKWISE

to SLOW closing, COUNTER-CLOCKWISE to SPEED

closing.

" "

Delayed Action Valve

Turn valve CLOCKWISE to SLOW closing, COUNTER-

CLOCKWISE to SPEED closing. Delayed action may be

adjusted from 20 seconds to 90 seconds, depending on

degree of door swing. Delay occurs at the beginning of the

door closing cycle from fully open down to 70°, where the

closing speed valve then begins its control.

Option

M-71

Full Cover

(Standard)

Slip cover over closer. Hold tightly

against closer mounting surface.

Secure on each side with 6-32 x

1/4 PBHMS screws."

(3/32 Allen Wrench Provided)

Installing Cover

Power

Size

Stamp

Date Stamp

HOLD OPEN

SCREW

DIAL

SCREW

ASSA ABLOY

Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.

80-9330-3000-152 Rev. 05/12

DC3200 Size 1 thru 6 Adjustment See Chart

This manual suits for next models

Table of contents

Other Assa Abloy Door Opening System manuals

Assa Abloy

Assa Abloy Adams Rite EX76W Operating instructions

Assa Abloy

Assa Abloy SARGENT 281 Series User manual

Assa Abloy

Assa Abloy Besam SL500 User manual

Assa Abloy

Assa Abloy Norton LEO 5700 Series Quick guide

Assa Abloy

Assa Abloy King 70 Series User manual

Assa Abloy

Assa Abloy DC340DA User manual

Assa Abloy

Assa Abloy Corbin Russwin DC8210 Series User manual

Assa Abloy

Assa Abloy Corbin Russwin PED5000 DB Series User manual

Assa Abloy

Assa Abloy DC640 User manual

Assa Abloy

Assa Abloy Securitron EEB3N User manual

Assa Abloy

Assa Abloy UNION DoorSense 8755A User manual

Assa Abloy

Assa Abloy Corbin Russwin ED4000 Series User manual

Assa Abloy

Assa Abloy CloserPlus Ramp Norton XF460 User manual

Assa Abloy

Assa Abloy Yale 2500 Series User manual

Assa Abloy

Assa Abloy Yale 1105 User manual

Assa Abloy

Assa Abloy King 640 User manual

Assa Abloy

Assa Abloy NORTON RIXSON 1600 Series User manual

Assa Abloy

Assa Abloy RD150-3 User manual

Assa Abloy

Assa Abloy DC700G-FT User manual

Assa Abloy

Assa Abloy NORTON RIXSON 5200 Series User manual

Assa Abloy

Assa Abloy Norton LEO 5700 Series User manual

Assa Abloy

Assa Abloy Lockwood 5831 Series User manual

Assa Abloy

Assa Abloy h.e.s. 9100 Series Manual

Assa Abloy

Assa Abloy Corbin Russwin DC8200 Series User manual

Popular Door Opening System manuals by other brands

Pamex

Pamex KT-INP35 Installation instruction

Label

Label NEPTIS/LE installation manual

Cal-Royal

Cal-Royal N-F77CVR Installation instruction

Scrigno

Scrigno OPEN1000 Assembly manual

TriMark

TriMark UM 34 instructions

BFT

BFT WIND RMB 130B 200 installation manual

Alecto

Alecto ADI-250 user manual

Besam

Besam Swingmaster MP Installation, adjustment and maintenance instructions

CRL

CRL SENIOR PRIMA manual

GAL

GAL MOVFR Quick setup

Olide

Olide 120B installation manual

Normstahl

Normstahl IDO7 installation manual

Häfele

Häfele Finetta T 70 VF manual

AGS

AGS D-PL Instructions for fitting, operating and maintenance

Stanley

Stanley MA900ñ Installation and owner's manual

WITTUR

WITTUR Hydra Plus UD300 Instruction handbook

Alutech

Alutech TR-3019-230E-ICU Assembly and operation manual

MPC

MPC ATD ACTUATOR 50 ATD-313186 Operating and OPERATING AND INSTALLATION Manual
