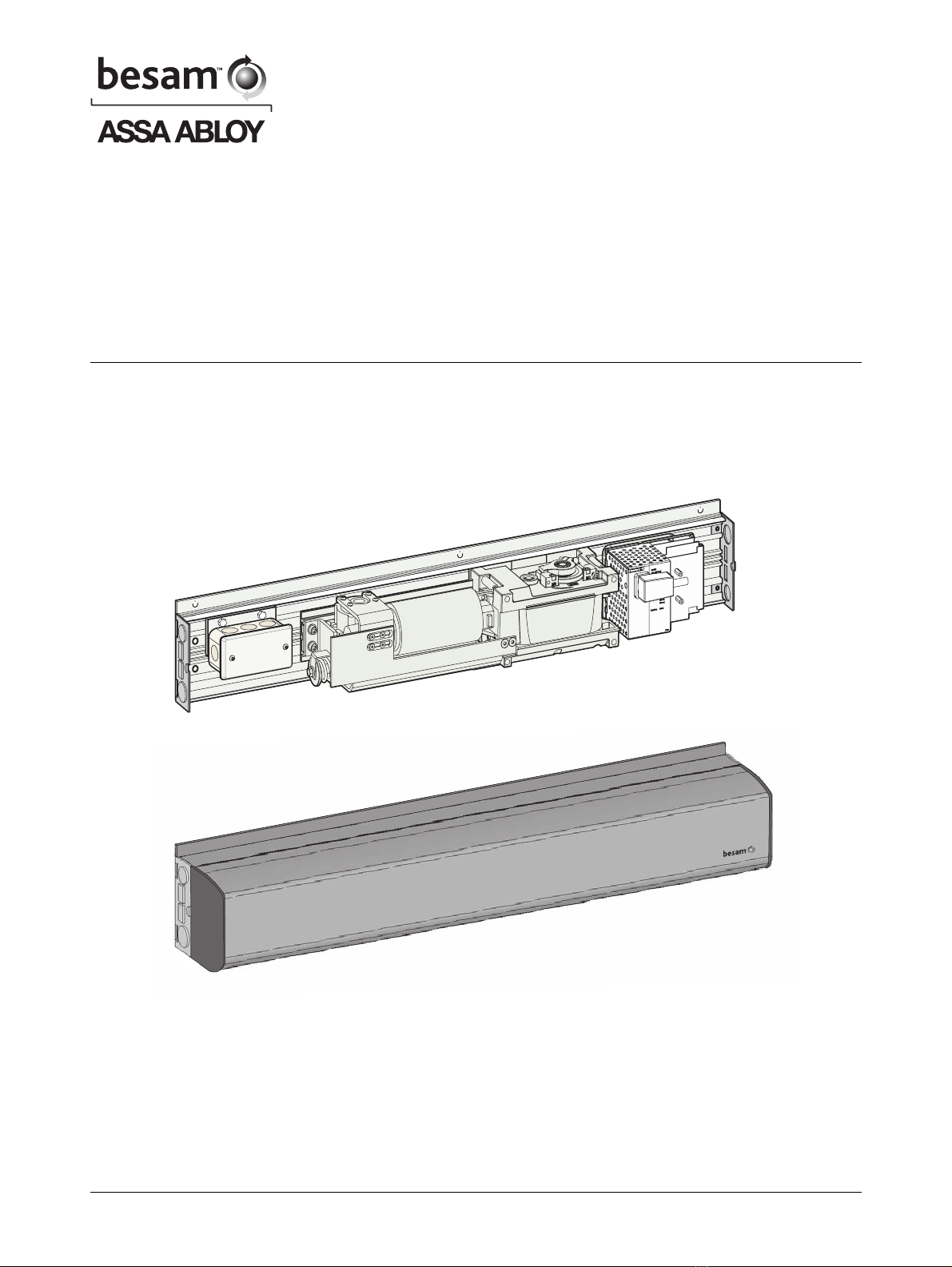

Besam Low Energy Swing Door Operator

SW100

Owners Manual

Complies with ANSI/BHMA A156.19 standard for Power Assist and Low Energy Power Operated Doors.

UL 325 Listed.

2 Issue 2007-08-24 1003826-US-3.0

ations or modifications are expressly forbidden without the prior written consent of the applicable company within ASSA

ABLOY Entrance Systems AB. Rights reserved for changes without prior notice.

1003826-US-3.0 Issue 2007-08-24 3

1. Caution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

2. To our customers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

3. How the SW100 works. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

4. Daily safety checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

5. Service schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

6. Doors and locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

7. Control switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

8. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

9. Part identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Table of content

Caution

4 Issue 2007-08-24 1003826-US-3.0

1 Caution

• Improperly adjusted doors can cause injury and equipment damage

• Inspect door operation daily using safety checklist on page 7.

• Have door adjusted by a qualified Besam service technician as described on

page 5.

• To avoid bodily injury, material damage and malfunction of the product, the

instructions contained in this manual must be strictly observed.

Your low energy swing door operator SW100, when correctly installed and main-

tained, is safe and fully ANSI/BHMA A156.19 compliant. Perform the daily

safety checks as described in this manual, and always call a qualified Besam serv-

ice technician when maintenance is required.

AAE407

CAUTION

To our customers

1003826-US-3.0 Issue 2007-08-24 5

2 To our customers

The purpose of this manual is to familiarize you with your low energy automatic door

system. It is essential that you know the system and that you recognize the impor-

tance of maintaining your door system in compliance with the industry standards for

safety. It is your responsibility, as owner and caretaker of the equipment, to

inspect the operation of your door system on a daily basis to ensure that it is safe

for use by visitors, customers, and employees. This manual will provide you with a

description of the operation and maintenance requirements of your door. It also pro-

vides instructions for the Daily Safety Check.

Should the door fail to operate as described in the Daily Safety Check, or at any other

time for any other reason, do not attempt to repair or adjust the door. Discontinue

door operation immediately and secure door in a safe manner. Then call a quali-

fied Besam service technician. Besam technicians are trained to service your door in

accordance with applicable industry safety standards.

2.1 Service availability

Besam products are distributed through a nationwide network of Besam authorized dis-

tributors for sales, installation and service. Should you need service on your door system,

visit www.besam.com and select “contact us” to search for a local authorized Besam tech-

nician. You can also contact Besam at 1-866-Besam-US.

2.2 Compliance with safety standards

Your door was designed to meet the latest operating and safety standards. In order to

ensure the continued safe operation of your door, it is important that:

• Your door system is maintained in compliance with the standards of the industry.

• Proper decals and labels are applied and maintained on your doors. If decals are

removed or cannot be read, request replacement decals when calling for service.

2.3 What you should know

Be sure that a Besam office or distributor has provided the following for each door:

1. Instruction on how to conduct the Daily Safety Check (by walk-through example).

2. Location of switches and instruction in their use.

3. Circuit breaker or power disconnect location for each door system.

4. Discussion of problems that could result from door being allowed to operate after

a malfunction is observed.

5. Number to call for service or questions about your system if you are uncertain of

any condition or situation.

6. Warranty information for each door.

How the SW100 works

6 Issue 2007-08-24 1003826-US-3.0

3 How the SW100 works

The low energy swing door operator SW100 uses a DC motor and a gear-reduction

system to drive an arm system which opens the door. Closing power is provided by a

motor and a clock spring. An electronic control unit uses a motor encoder and a

microprocessor to control the door’s movement.

3.1 Operation

Your SW100 operator can be configured in two variations to meet low energy stand-

ards:

1. Push plates are provided to activate the operator. The door also can be used as a

manual door.

2. Push to activate can be enabled. In this mode, your door is pushed (or pulled) 5°

manually, and then automatically opens to full open position.

If desired, overhead presence devices can be provided for an extra level of protection.

These are not required by current ANSI A156.19 codes.

3.2 Opening

When an opening signal is received by the control unit, the door is opened at the

operator-adjusted opening speed. Before the door is fully open at back check, it slows

automatically to low speed. The motor stops when the selected door opening angle

has been reached. The open position is held by the motor.

If the door is obstructed while opening, it will either stall or stop which can be

selected with a DIP switch.

• When stalling - the door will continue to try to open during the hold open time.

• When stopping - the door will, even if hold open time has not expired, close after

2 seconds.

3.3 Closing

When the hold open time has elapsed, the operator will close the door automatically,

using spring force and motor. The door will slow to low speed at latch check before it

reaches the fully closed position. The door is kept closed by spring power or

extended closing force by the motor.

Daily safety checklist

1003826-US-3.0 Issue 2007-08-24 7

4 Daily safety checklist

These minimum safety checks should be made each day and after any loss of electri-

cal power:

1. Activate the door. Door should open at a slow smooth pace (4 or more seconds),

and stop without impact.

2. Door must remain fully open for a minimum of 5 seconds before beginning to

close.

3. Door should close at a slow smooth pace (4 or more seconds), and stop without

impact.

4. Inspect the floor area. It should be clean with no loose parts that might cause user

to trip or fall. Keep traffic path clear.

5. Inspect the door's overall condition. The appropriate signage should be present

and the hardware should be in good condition.

6. Have door inspected by an AAADM certified inspector at least annually.

DO NOT USE DOOR if it fails any of these safety checks or if it malfunctions in

any way. Call a qualified automatic door service company to have door repaired

or serviced.

50±12"

34-48"

50±12"

Apply to both sides of the door.

When using a wall switch,

apply to both sides of the door.

Apply the push decal to the push

side and the pull decal to the pull

side of the door.

Push plate

PRESS

TO OPEN

Service schedule

8 Issue 2007-08-24 1003826-US-3.0

5 Service schedule

Although Besam’s automatic door equipment has earned a reputation of world-class

quality and reliability, all mechanical devices need service...just like your automobile.

Your authorized Besam distributor can offer you a Planned Maintenance Agreement

on the equipment you have just purchased. This agreement means the distributor will

make planned maintenance calls to inspect, clean lubricate, adjust, repair or replace

worn components.

Frequency of maintenance visits will depend on factors such as traffic, climate, etc.

Please ask your local Besam office or distributor how often they recommend the fol-

lowing services:

1. Gaskets and Seals

2. Glass Protection Bars

3. Moldings and Thresholds

4. Pivots (Top and Bottom)

5. Door Control Operations

6. Condition of Door Frames

7. Opening and Closing Speeds

8. Function of Sensor

9. Guide Rails

Periodic maintenance will increase the life and performance of your Besam auto-

matic door. We suggest you contact your authorized Besam distributor to discuss a

Planned Maintenance Agreement. Planned Maintenance Agreements differ between

Besam offices and distributers, and Besam has no control over the Agreement each

distributor may offer.

Limited warranty

Besam US Inc. hereby warrants, subject to the provisions hereof, that the products and

parts manufactured by Besam and its affiliates shall be free from defects in material and

workmanship for a period of 1 year from the date of shipment from Besam’s factory.

Doors and locks

1003826-US-3.0 Issue 2007-08-24 9

6 Doors and locks

• Normally the doors and mechanical locks are manufactured by other suppliers.

• Unlock all the mechanical locks before switching on the operator. Note that more

than one lock may be fitted.

7 Control switches

The SW100 can be equipped with control switches to control the door operation.

The control switches are flush mounted in the operator end plates.

POWER

OFF

FUNCTION

OFF HOLD

Power On/Off switch

(standard)

P/N: 1003581

On/Off/Hold open switch

(optional)

P/N: 1003582

Troubleshooting

10 Issue 2007-08-24 1003826-US-3.0

8 Troubleshooting

Fault Possible reasons why Remedies/Explanations

The door does not open

- The motor does not start

Control switch is set to OFF Change the setting of both control switches (ON)

Main power is missing Check the main power switch

Presence detection is activated Check that there are no objects in the detection

zone

Kill activated Deactivate Kill

- The motor starts Mechanical lock is locked Unlock the lock

Something jammed beneath the door Remove object

Electric strike is binding Adjust strike

The door does not close Control switch is set to HOLD Change the setting of the control switch

Presence impulse is activated Remove objects in the detection zone

Something jammed beneath the door Remove object
