Assa Abloy RIXSON W0700 Series User manual

Installation Instructions

IS-W0700 (06-09)

W0700 Series Overhead Concealed Closer (Wood Door & Frame)

W0700 Series, Offset Hung Single Acting, Handed

PAGE 4

Rixson 866-474-9766 Technical Department

www.rixson.com

Rixson 866-474-9766 Technical Department

www.rixson.com

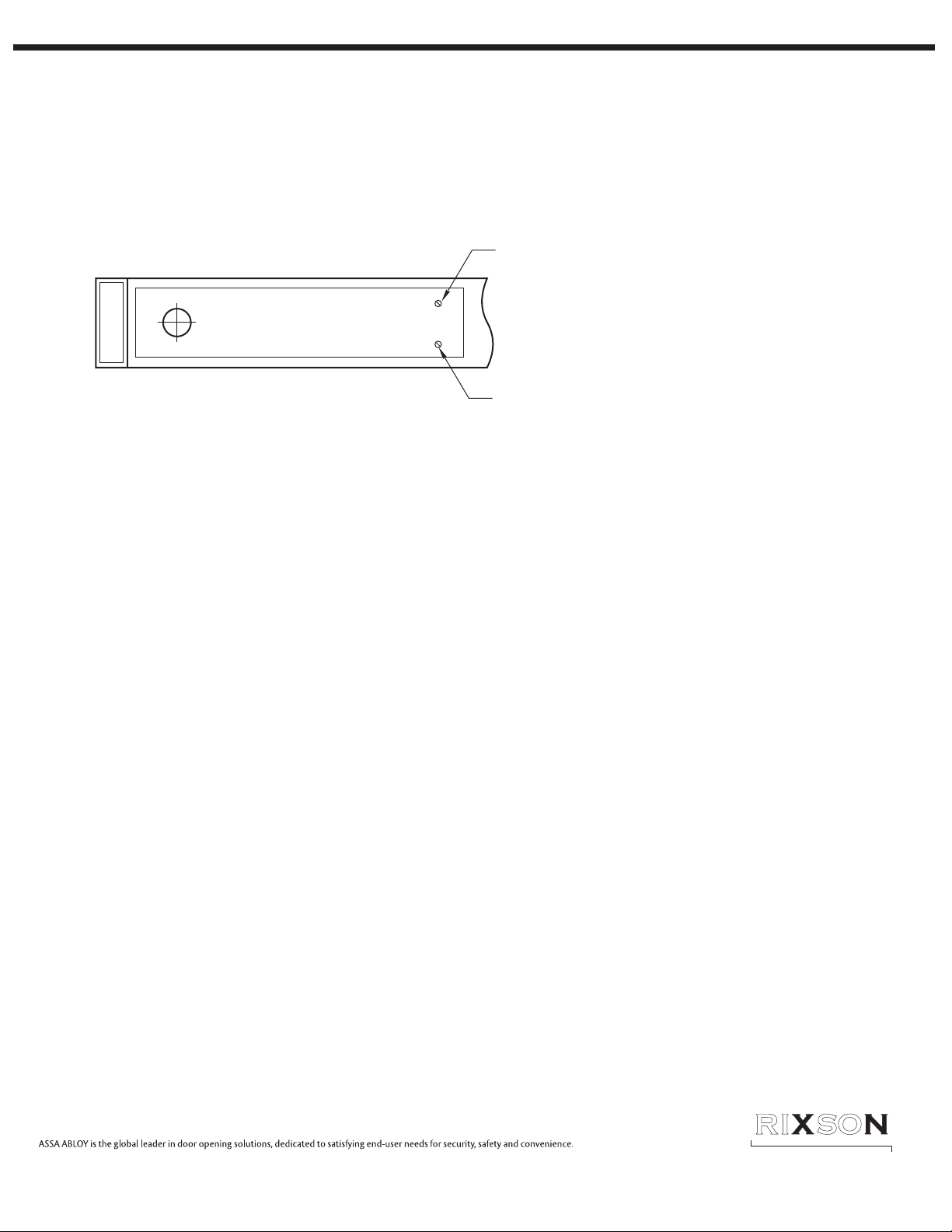

7. Adjust closing speed of door

To decrease speed turn valve clockwise. To increase

speed turn valve counter clockwise

To increase backcheck, turn valve clockwise, to decrease

backcheck turn valve counter clockwise

Notes:

1. Do not scale drawing.

2. Right hand shown.

3. For use on doors with a minimum 7/8" deep top mortise.

DO NOT use this template for head frames less than 2"x4-

1/2" wide. For 1-3/4" thick doors only.

4. .

5. All dimensions are in inches. Metric = 25.4 x inch.

No. 0198 mounting plate included. See template OC60210

TOP VIEW OF HEAD FRAME

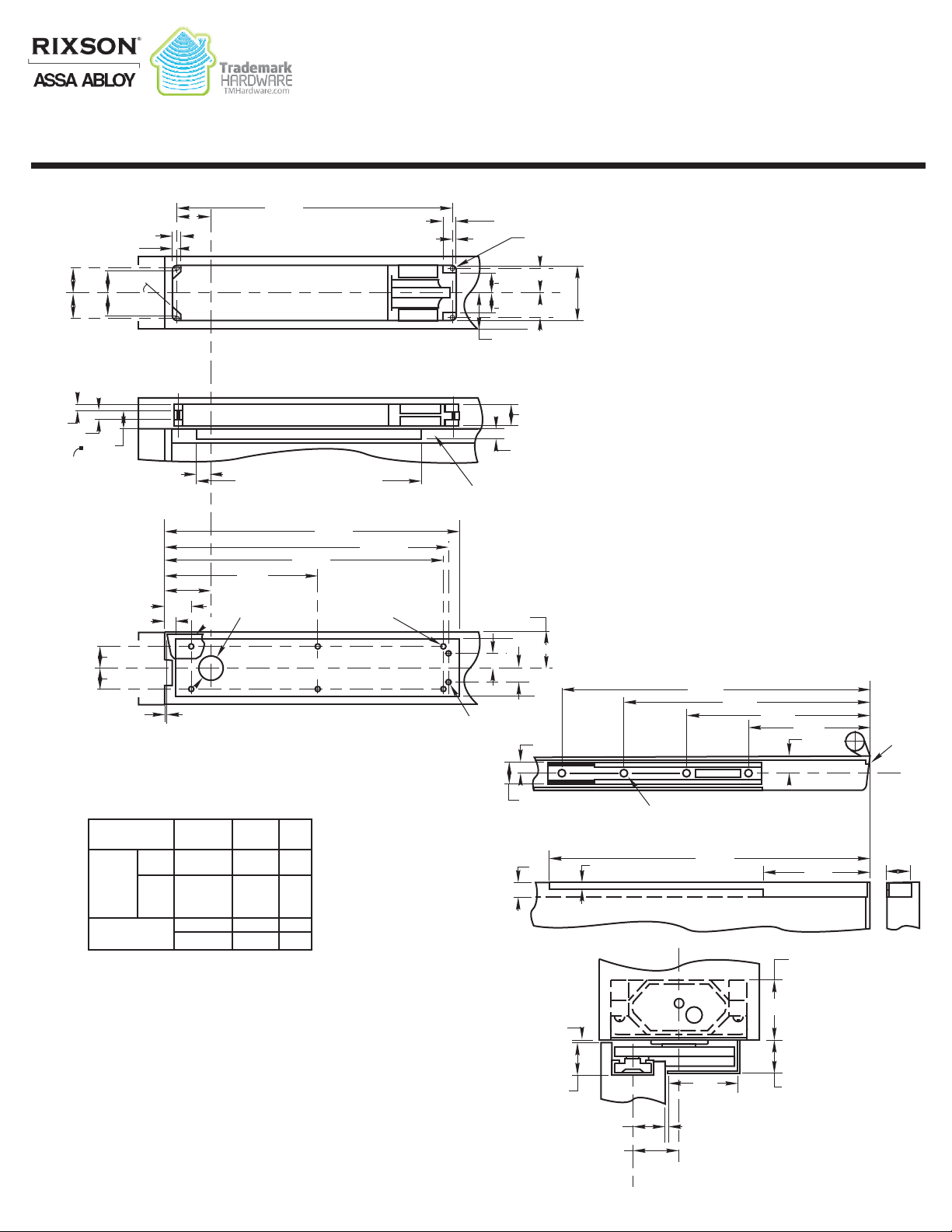

HEAD FRAME INSTALLATION

1/4

1/2

1-9/16

1-9/16 1-3/8

1-3/8 45°

1/2

1/4

9/32 Dia. Mounting Holes

#14 x 2" Wood Screw

(4 Places)

3-23/32

Max Width

of Closer

1-23/641-39/64

1-39/64

17-1/2

SIDE VIEW OF HEAD FRAME

Spindle

31/64

1/2

1-7/64

From Bottom of

Head Jamb to Top

of Mounting Tabs

(Critical Dim.)

1-15/32 Max. Height

of Closer

UNDERSIDE OF HEAD FRAME

18-3/4

17-1/2

9-1/2

2-3/4

1-1/2

17-27/32

5/16 Dia. Holes for

10-24x5/16 FHMS

Cover Plate Screws

(6 Places)

1-7/16 Dia. Hole

In Cover Plate

1/2

Cover Plate Cutout

18-1/4 x 3-3/4

1-3/8

31/32

9/32 Dia. Holes for

Adjusting Valves

(2 Places)

2-1/4

1-23/64

2-1/4

From Pull Side

Of Head Frame

1-1/4

7/8 Min. Stop

Cutout

14-3/4 Length of Stop Cutout Removable stop by others.

Length to be width of head

frame between side jambs.

From Pull Side

of Head Frame

Critical Dim.

Door

Closer

1/16

Clearance

Door Hanging

Method

Closer

No.

Butt

Hinge

3/4 Offset Side

Jamb Pivot

4 x 4

4-1/2

W070090

W0700105

W070090

W0700105

W070090

W0700105

Max.

Degree

Dim.

"A"

86°

106°

88°

108°

93°

113°

7/8

1-5/8

DOOR INSTALLATION

#12 x 1-1/2" FHWS

(4 Places)

TOP VIEW OF DOOR

PUSH SIDE OF DOOR

4-1/2" OR WIDER

HEAD FRAME

1-1/8

9/16

17-1/8

13-5/8

6-5/8

10-1/8

7/8

7/8 9/16 17-7/8

5-7/8

1/16

Clearance

7/8

1/8 Clearance

7/8

1-5/16

1-1/16

Inside Dim.

Critical

1-7/8

Min. Inside

Dim.

Closer & Frame

LDoor & Rail

1-5/8

From Top of

Closer to Face

of Head Frame

Hinge

Edge of

Door

Cutout

In Hinge

Edge of

Door

ASSA ABLOY

RIXSON®

Adjust this valve to

increase or decrease

backcheck

Adjust this valve to

increase or decrease

speed of door

ASSA ABLOY

RIXSON®

PAGE 3

PAGE 2

Rixson 866-474-9766 Technical Department

www.rixson.com

Rixson 866-474-9766 Technical Department

www.rixson.com

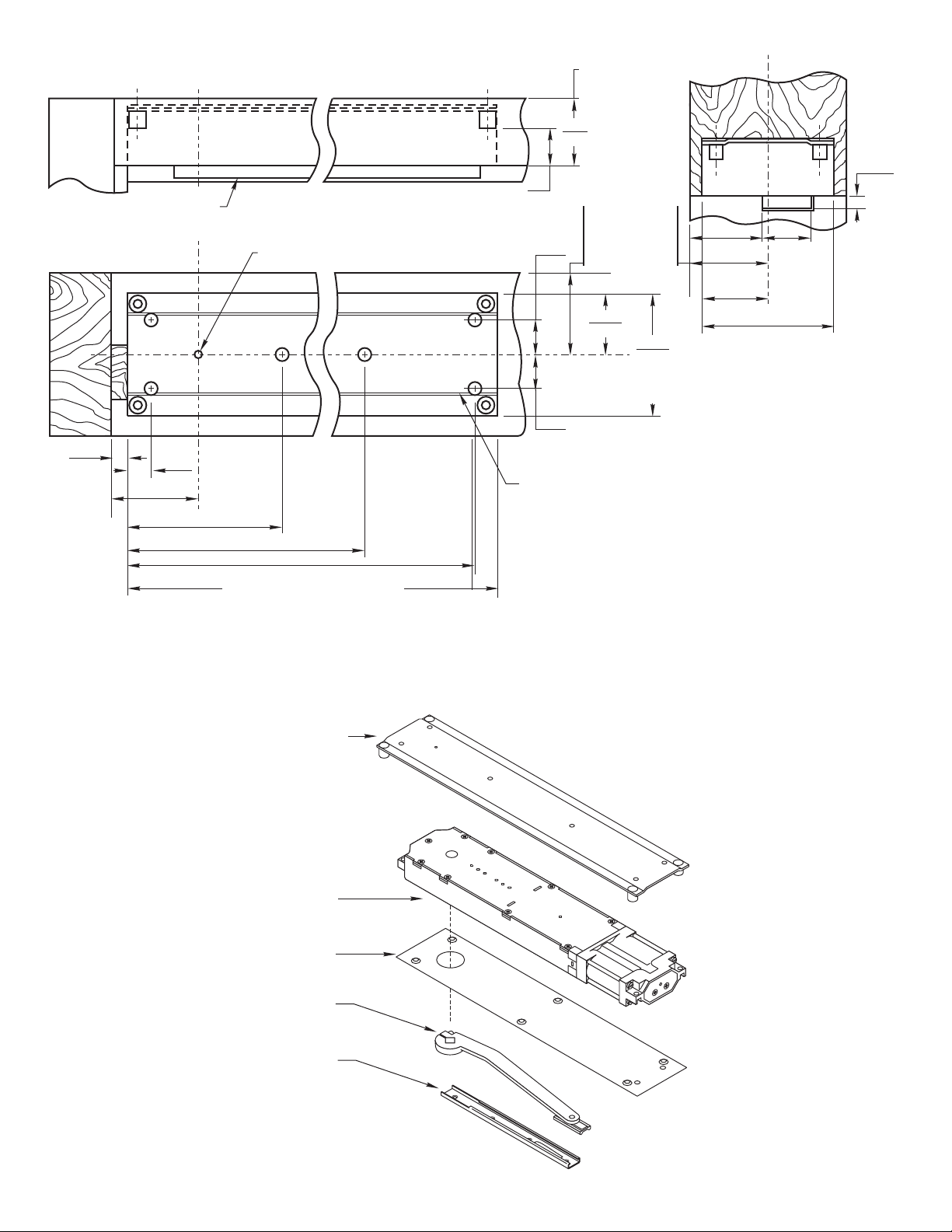

1. Prepare head frame for 0198 Mounting Plate.

See 0198 Wood Mounting Plate template on

page 2.

Installation Instructions

2. Check 2-3/4" dimension from hinge jamb to 1/8"

dia. reference hole in Mounting Plate.

Check 1-1/8" dimension from under side of head

frame to the bottom of the mounting post.

3. Install Mounting Plate to head jamb using six (6)

12x1-1/2 FHWS.

Caution: End of Mounting Plate stamped "hinge"

to face hinge jamb of frame.

Closer Mounting Plate

Closer Body

Offset Arm

Included in package:

4. Install closer in head jamb by attaching closer

with (4) 1/4"-20 x 3/4" RHMS. Install cover plate.

5. Door Preparation

a. Prepare door for Arm Rail. See template

for necessary door prep.)

b. Install Arm Rail in door using (4) 12 x 1-

1/2 FHWS. Spring clip in rail must be

toward hinge edge of door.

c. Hang door. Pivots or butts not furnished

with overhead closer package.

Cover Plate

0198 Wood Mounting Plate

Rail

Side View of Head Frame

LCloser Spindle

1-1/8 (28.6) From Face

of Head Frame to Bottom

of Mounting Posts

Critical Dim.

2-3/4

(69.8)

1/8" (3.2) Dia. Ref.

Over Closer Spindle

18-1/4 (463.6) Cutout for Cover Plate

1/2

(12.7)

Underside View of Head Frame

3-3/4

(95.2)

Cutout

for Mounting

Plate

(25.4)

Mounting

Plate

NOTES:

1. Do not scale drawing.

2. Right hand shown.

3. All dimensions given in inches (mm).

1-7/8

(47.6)

3-3/4

(95 )

Cutout for

Mounting Plate

LDoor &

Mounting Plate

End View of Head Frame

Cutout for

Mounting

Plate

1-7/8

(47.6)

5/8

(15.9)

6-1/8

(155.6)

11-7/8

(301.6) 17-3/8

( )441.3

(25.4)

#12 x 1-1/2 FHWS

(6 Places)

See Proper Closer

Template For Cutout

Length of Applied

Stop (by others)

Hinge

1-1/16

(27)

Critical

Inside Dim.

1-7/8

(47.6)

2-1/4 (57.2)

From Face of Head

Frame to Bottom of

Mounting Post

Critical Dim.

1-15/16

(49.2)

1-7/8

(47.6)

Min. Inside

Dim. of Stop

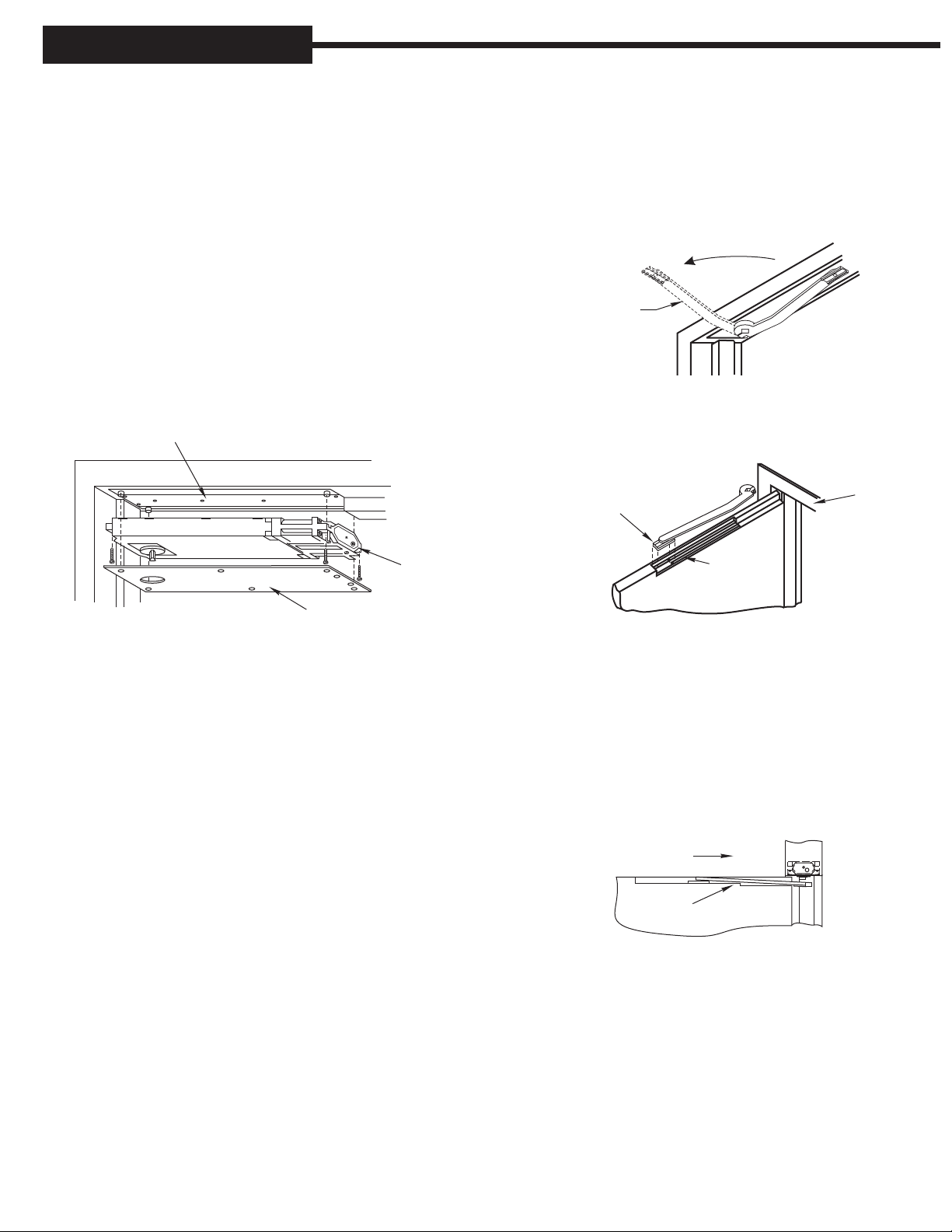

6. Installation of Arm

(Note: Close operating adjusting valve

controlling correct door swing. Leave backcheck

valve open.)

a. Using arm as wrench, it is IMPORTANT

that spindle of closer be turned to 90° or

into hold-open position.

b. Remove arm from spindle.

c. Open door to 90° and insert Slide Bar of

arm into Door Rail.

d. IMPORTANT: Slide arm directly back

toward hinge edge of door so that arm

can be attached to spindle. Slight

pressure will be required to override leaf

spring in rail. Do NOT remove Slide Bar

from rail.

e. Pull arm down and under closer spindle.

CAUTION: Care should be taken to avoid

distorting corner of door cutout.

f. Align arm hole and closer spindle. When

properly aligned, arm should readily slide

over closer spindle. DO NOT FORCE.

Door may require a slight movement back

and forth to aid in alignment of arm and

closer spindle. After arm is assembled

onto closer spindle tighten arm socket

head cap screw (5/16" - 18 x 1-1/4")

securely.

Arm in Open

Position

Head

Frame

Door

Slide Bar

Door Rail

Slide Arm

See Note

Mounting Plate

Closer

Cover Plate

PAGE 3

PAGE 2

Rixson 866-474-9766 Technical Department

www.rixson.com

Rixson 866-474-9766 Technical Department

www.rixson.com

1. Prepare head frame for 0198 Mounting Plate.

See 0198 Wood Mounting Plate template on

page 2.

Installation Instructions

2. Check 2-3/4" dimension from hinge jamb to 1/8"

dia. reference hole in Mounting Plate.

Check 1-1/8" dimension from under side of head

frame to the bottom of the mounting post.

3. Install Mounting Plate to head jamb using six (6)

12x1-1/2 FHWS.

Caution: End of Mounting Plate stamped "hinge"

to face hinge jamb of frame.

Closer Mounting Plate

Closer Body

Offset Arm

Included in package:

4. Install closer in head jamb by attaching closer

with (4) 1/4"-20 x 3/4" RHMS. Install cover plate.

5. Door Preparation

a. Prepare door for Arm Rail. See template

for necessary door prep.)

b. Install Arm Rail in door using (4) 12 x 1-

1/2 FHWS. Spring clip in rail must be

toward hinge edge of door.

c. Hang door. Pivots or butts not furnished

with overhead closer package.

Cover Plate

0198 Wood Mounting Plate

Rail

Side View of Head Frame

LCloser Spindle

1-1/8 (28.6) From Face

of Head Frame to Bottom

of Mounting Posts

Critical Dim.

2-3/4

(69.8)

1/8" (3.2) Dia. Ref.

Over Closer Spindle

18-1/4 (463.6) Cutout for Cover Plate

1/2

(12.7)

Underside View of Head Frame

3-3/4

(95.2)

Cutout

for Mounting

Plate

(25.4)

Mounting

Plate

NOTES:

1. Do not scale drawing.

2. Right hand shown.

3. All dimensions given in inches (mm).

1-7/8

(47.6)

3-3/4

(95 )

Cutout for

Mounting Plate

LDoor &

Mounting Plate

End View of Head Frame

Cutout for

Mounting

Plate

1-7/8

(47.6)

5/8

(15.9)

6-1/8

(155.6)

11-7/8

(301.6) 17-3/8

( )441.3

(25.4)

#12 x 1-1/2 FHWS

(6 Places)

See Proper Closer

Template For Cutout

Length of Applied

Stop (by others)

Hinge

1-1/16

(27)

Critical

Inside Dim.

1-7/8

(47.6)

2-1/4 (57.2)

From Face of Head

Frame to Bottom of

Mounting Post

Critical Dim.

1-15/16

(49.2)

1-7/8

(47.6)

Min. Inside

Dim. of Stop

6. Installation of Arm

(Note: Close operating adjusting valve

controlling correct door swing. Leave backcheck

valve open.)

a. Using arm as wrench, it is IMPORTANT

that spindle of closer be turned to 90° or

into hold-open position.

b. Remove arm from spindle.

c. Open door to 90° and insert Slide Bar of

arm into Door Rail.

d. IMPORTANT: Slide arm directly back

toward hinge edge of door so that arm

can be attached to spindle. Slight

pressure will be required to override leaf

spring in rail. Do NOT remove Slide Bar

from rail.

e. Pull arm down and under closer spindle.

CAUTION: Care should be taken to avoid

distorting corner of door cutout.

f. Align arm hole and closer spindle. When

properly aligned, arm should readily slide

over closer spindle. DO NOT FORCE.

Door may require a slight movement back

and forth to aid in alignment of arm and

closer spindle. After arm is assembled

onto closer spindle tighten arm socket

head cap screw (5/16" - 18 x 1-1/4")

securely.

Arm in Open

Position

Head

Frame

Door

Slide Bar

Door Rail

Slide Arm

See Note

Mounting Plate

Closer

Cover Plate

Installation Instructions

IS-W0700 (06-09)

W0700 Series Overhead Concealed Closer (Wood Door & Frame)

W0700 Series, Offset Hung Single Acting, Handed

PAGE 4

Rixson 866-474-9766 Technical Department

www.rixson.com

Rixson 866-474-9766 Technical Department

www.rixson.com

7. Adjust closing speed of door

To decrease speed turn valve clockwise. To increase

speed turn valve counter clockwise

To increase backcheck, turn valve clockwise, to decrease

backcheck turn valve counter clockwise

Notes:

1. Do not scale drawing.

2. Right hand shown.

3. For use on doors with a minimum 7/8" deep top mortise.

DO NOT use this template for head frames less than 2"x4-

1/2" wide. For 1-3/4" thick doors only.

4. .

5. All dimensions are in inches. Metric = 25.4 x inch.

No. 0198 mounting plate included. See template OC60210

TOP VIEW OF HEAD FRAME

HEAD FRAME INSTALLATION

1/4

1/2

1-9/16

1-9/16 1-3/8

1-3/8 45°

1/2

1/4

9/32 Dia. Mounting Holes

#14 x 2" Wood Screw

(4 Places)

3-23/32

Max Width

of Closer

1-23/641-39/64

1-39/64

17-1/2

SIDE VIEW OF HEAD FRAME

Spindle

31/64

1/2

1-7/64

From Bottom of

Head Jamb to Top

of Mounting Tabs

(Critical Dim.)

1-15/32 Max. Height

of Closer

UNDERSIDE OF HEAD FRAME

18-3/4

17-1/2

9-1/2

2-3/4

1-1/2

17-27/32

5/16 Dia. Holes for

10-24x5/16 FHMS

Cover Plate Screws

(6 Places)

1-7/16 Dia. Hole

In Cover Plate

1/2

Cover Plate Cutout

18-1/4 x 3-3/4

1-3/8

31/32

9/32 Dia. Holes for

Adjusting Valves

(2 Places)

2-1/4

1-23/64

2-1/4

From Pull Side

Of Head Frame

1-1/4

7/8 Min. Stop

Cutout

14-3/4 Length of Stop Cutout Removable stop by others.

Length to be width of head

frame between side jambs.

From Pull Side

of Head Frame

Critical Dim.

Door

Closer

1/16

Clearance

Door Hanging

Method

Closer

No.

Butt

Hinge

3/4 Offset Side

Jamb Pivot

4 x 4

4-1/2

W070090

W0700105

W070090

W0700105

W070090

W0700105

Max.

Degree

Dim.

"A"

86°

106°

88°

108°

93°

113°

7/8

1-5/8

DOOR INSTALLATION

#12 x 1-1/2" FHWS

(4 Places)

TOP VIEW OF DOOR

PUSH SIDE OF DOOR

4-1/2" OR WIDER

HEAD FRAME

1-1/8

9/16

17-1/8

13-5/8

6-5/8

10-1/8

7/8

7/8 9/16 17-7/8

5-7/8

1/16

Clearance

7/8

1/8 Clearance

7/8

1-5/16

1-1/16

Inside Dim.

Critical

1-7/8

Min. Inside

Dim.

Closer & Frame

LDoor & Rail

1-5/8

From Top of

Closer to Face

of Head Frame

Hinge

Edge of

Door

Cutout

In Hinge

Edge of

Door

ASSA ABLOY

RIXSON®

Adjust this valve to

increase or decrease

backcheck

Adjust this valve to

increase or decrease

speed of door

ASSA ABLOY

RIXSON®

This manual suits for next models

Other Assa Abloy Door Lock manuals

Assa Abloy

Assa Abloy multi-t-lock Code Handle Window User manual

Assa Abloy

Assa Abloy R10 User manual

Assa Abloy

Assa Abloy Aptus Yale Doorman User manual

Assa Abloy

Assa Abloy SARGENT 5300 Series User manual

Assa Abloy

Assa Abloy ML22HPH User manual

Assa Abloy

Assa Abloy Aperio C100 V3 User manual

Assa Abloy

Assa Abloy UNILOCK LOXURY IX User manual

Assa Abloy

Assa Abloy SARGENT FM7100 Series User manual

Assa Abloy

Assa Abloy Corbin Russwin ED2400 Series User manual

Assa Abloy

Assa Abloy effeff MAG-600SM User manual

Assa Abloy

Assa Abloy 1264 User manual

Assa Abloy

Assa Abloy Sargent PR100 User manual

Assa Abloy

Assa Abloy Sargent 11 Line User manual

Assa Abloy

Assa Abloy Yale Real Living YRD210-ZW Technical specifications

Assa Abloy

Assa Abloy Valencia Filip User manual

Assa Abloy

Assa Abloy IKON VERSO CLIQ User manual

Assa Abloy

Assa Abloy Norton 6000 Series Quick guide

Assa Abloy

Assa Abloy effeff 843ZY User manual

Assa Abloy

Assa Abloy Effeff 809M User manual

Assa Abloy

Assa Abloy Yale Real Living YRDZW Technical specifications

Assa Abloy

Assa Abloy ES100 Series User manual

Assa Abloy

Assa Abloy ABLOY EL654 User manual

Assa Abloy

Assa Abloy Sargent PE8800 Series User manual

Assa Abloy

Assa Abloy Securitron TSH Series User manual

Popular Door Lock manuals by other brands

We.lock

We.lock SECBNEBL51 instructions

Iseo

Iseo MA1A installation guide

ID Lock

ID Lock 150 user manual

Lockly

Lockly ACCESS TOUCH PRO user manual

iLoq

iLoq G50S user guide

SDC

SDC Z7835 installation instructions

ilco

ilco 452 Installation

Samsung

Samsung shs-h705 user guide

TRU-BOLT

TRU-BOLT 08102017 user manual

CDVI

CDVI 500-LADJ quick start guide

Igloohome

Igloohome Deadbolt 2S Metal Grey Installer/user guide

eSSL

eSSL FL-300 user manual

JAKO

JAKO JKBTNX4 installation guide

Dorma

Dorma MUNDUS PREMIUM GK 50 Mounting instruction

SCOOP

SCOOP Pullbloc 4.1 FS Panik Assembly instruction

Yale

Yale MORTISE 8800 SERIES installation instructions

Siegenia

Siegenia KFV AS3500 Assembly instructions

Saflok

Saflok Quantum ädesē RFID installation instructions
