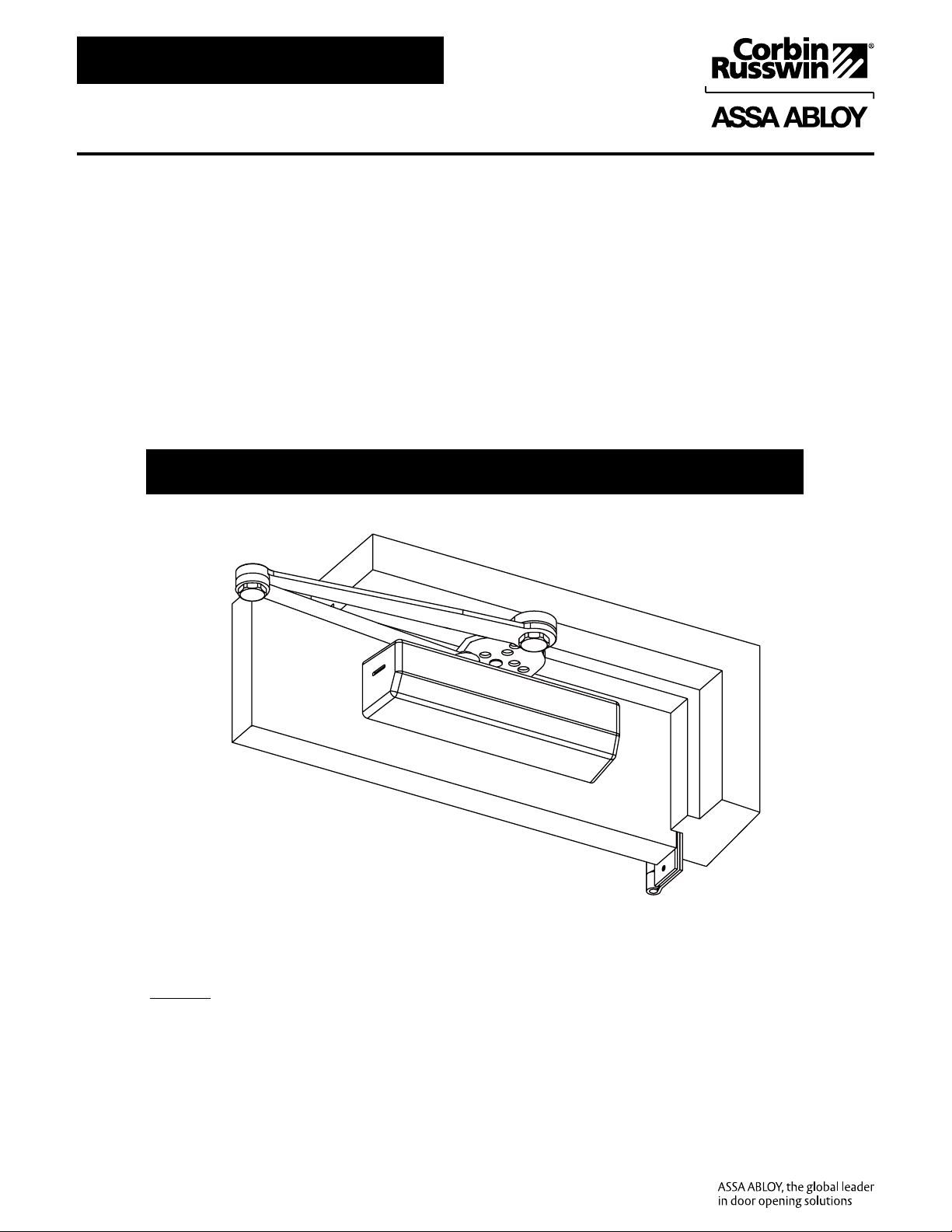

Assa Abloy DC6210 Series User manual

80-9360-6007-152 04/18

Installation Instructions

permission of Corbin Russwin, Inc. is prohibited.

Important

• An improperly installed or incorrectly adjusted door closer may cause property damage or personal injury; and will void

product warranty.

• To avoid personal injury, DO NOT DISASSEMBLE THIS DOOR CLOSER BODY.

• Door closers must be securely fastened to a properly reinforced door and frame with fasteners provided.

• An auxiliary door stop, BY OTHERS, is required for this Installation.

• Arm is handed and must match hand of door.

DC6210 Series

DC6410 Series

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

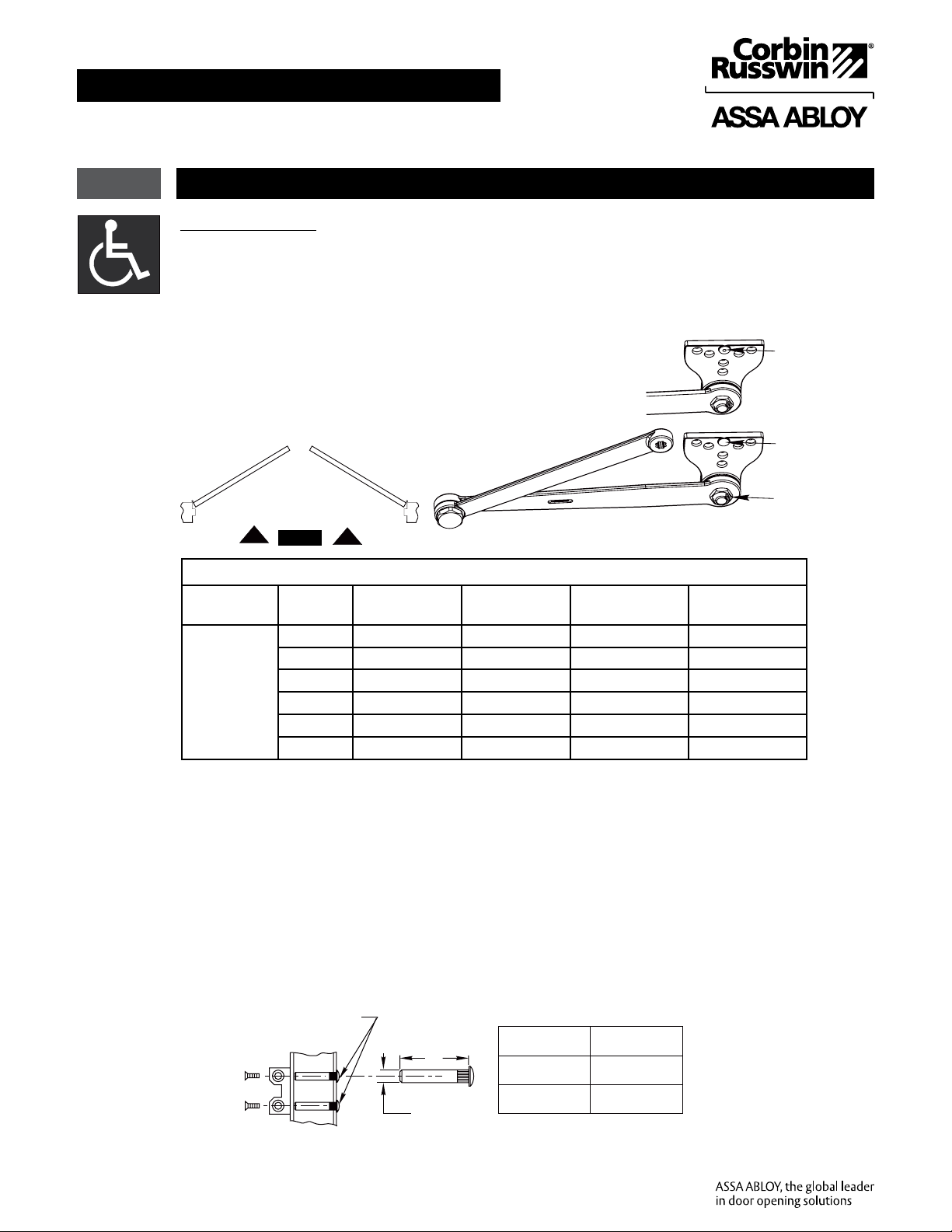

A14 Heavy Duty Friction Hold Open Parallel Arm

80-9360-6007-152 04/18

DC6210 and DC6410 Series Closers

Installation Instructions

A14 Heavy Duty Friction Hold Open Parallel Arm

permission of Corbin Russwin, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

*DC6410 Series recommended.

**NOTE: These forces are for standard templating with bearing type hinges and do not account

for pressure differentials and draft. Half size closers DC6410 are capable of being adjusted to

next higher setting.

Size of Door & Door Closer

Type of

Installation Interior Exterior

In-swinging

Exterior

Out-swinging

Recommended

Closer Size

**Max. Opening

Force lbs/f

Parallel Arm

2' 4" - - 1 8

2' 6" - - 2 14

3' 0" - 2' 6" 3 16

3' 6" - 3' 0" 4 22

4' 0" - *3' 6" 5 24

4' 6" - *4' 0" 6 26

TO DETERMINE

HAND OF

YOUR DOOR:

LEFT

HAND

DOOR

RIGHT

HAND

DOOR

RHR LHR

1 Introduction

3/8

(10)

1/4-20 THREAD

Drill thru 9/32 (7.1) Enlarge to

3/8

(9.5) Dia. This Side Only

(4 Places)

DOOR

THICKNESS

SEX NUT

LENGTH “L”

1-3/8" (35mm)

1--3/4" (44mm)

&OVER

1-9/32" (33mm)

1-21/32" (42mm)

MOUNTINGSCREW SPECIFICATIONS

ARM AND CLOSER BRACKET

}

or{Option M54:

Sex nuts, furnished

when ordered

1/4-20 oval head machine

screw or 1/4-14 self-drilling

screw Type BSD. 3/16 (4.8)

diameter pilot hole required

forWood Applications.

3/8

(10)

1/4-20 THREAD

Drill thru 9/32 (7.1) Enlarge to

3/8 (9.5) Dia. This Side Only

(4 Places)

DOOR

THICKNESS

SEX NUT

LENGTH “L”

1-3/8" (35mm)

1--3/4" (44mm)

&OVER

1-9/32" (33mm)

1-21/32" (42mm)

MOUNTINGSCREW SPECIFICATIONS

ARM AND CLOSER BRACKET

}

or{Option M54:

Sex nuts,

furnished

when ordered

1/4-20 oval head machine

screw or 1/4-14 self-drilling

screw Type BSD. 3/16 (4.8)

diameter pilot hole required

forWood Applications.

Figure 1

BEFORE INSTALLING:

• The Americans with Disabilities Act (ADA) requires that doors having door closers have an opening force not to

exceed 5 lbf.

• The door closer’s power size adjustment feature may require adjustment to its lowest setting to comply with ADA

opening force guidelines.

• ADA compliant closers: DC6210 and DC6411.

Heavy Duty Friction Hold Open

Friction Hold

Open

Adjustment

Nut

No Drill Mark

Right Hand Arm

Drill Mark

Left Hand Arm

80-9360-6007-152 04/18

DC6210 and DC6410 Series Closers

A14 Heavy Duty Friction Hold Open Parallel Arm

Installation Instructions

permission of Corbin Russwin, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

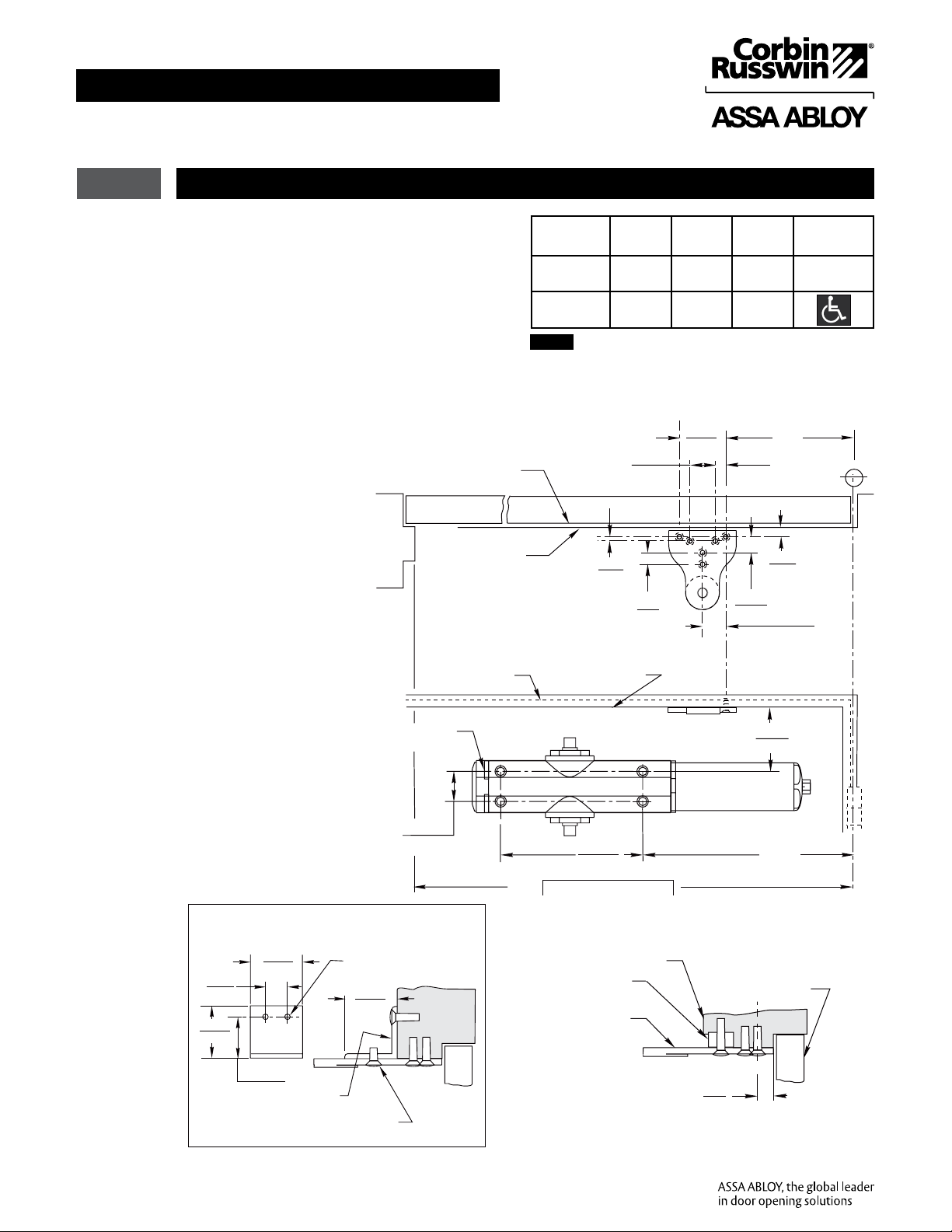

2 Installation

1. Template

Mark and prepare door and jamb (for closer

bracket and arm bracket). Use template and

dimensions charted. (Figure 2)

NOTES:

• Check hand of door. (Figure 1)

• Right Hand Application Shown,

Left Hand Opposite

• Dimensions given in inches (mm). Do Not Scale Drawing.

• Closer must be installed in a true horizontal plane to

ensure proper closer performance.

• Friction Hold Open arms are handed and not reversible.

See handing marks on sofﬁt plate.

Figure 2

Opening

Maximum DIM. A DIM. B DIM. C Application

90° 12-3/4"

(324mm)

11-5/8"

(295mm)

27-3/4"

(705mm) NON A.D.A.

180° 8-11/16"

(221mm)

7-9/16"

(192mm)

23-5/8"

(600mm)

(50.8)

(25.4)

1-1/2

(38.1)

SEE MOUNTING SCREW

SPECIFICATIONS

NOTE: ANGLE SUPPORT MUST BE

DRILLED AND TAPPED IN THE FIELD

447F14 DOOR

FRAME

M85OPTION 447F14

ANGLE SUPPORT BRACKET

5/8

(16)

REF.

DOOR

FRAME

ARM

BRACKET

ACER BLOCK

(When

required)

5/8

(16)

2-3/8

(60)

FRAME STOP

TOPOF DOOR

HINGE

PIVOT

DOOR

FRAME STOP

2-3/4

(70) 5/8

(16)

1-1/2

(38.1)

1/4

(6.35)

CLOSER

BRACKET

(25.4) 4-5/16

(109.5)

TYP.

15/16

(23.8)

3/4

(19) 1-3/8

(35)

Minimum Clearance

80-9360-6007-152 04/18

DC6210 and DC6410 Series Closers

Installation Instructions

A14 Heavy Duty Friction Hold Open Parallel Arm

permission of Corbin Russwin, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

Pin Hole End

Countersunk Holes

Holding Pins

1/4-20 x 1/2 OHMS (2)

2 Installation

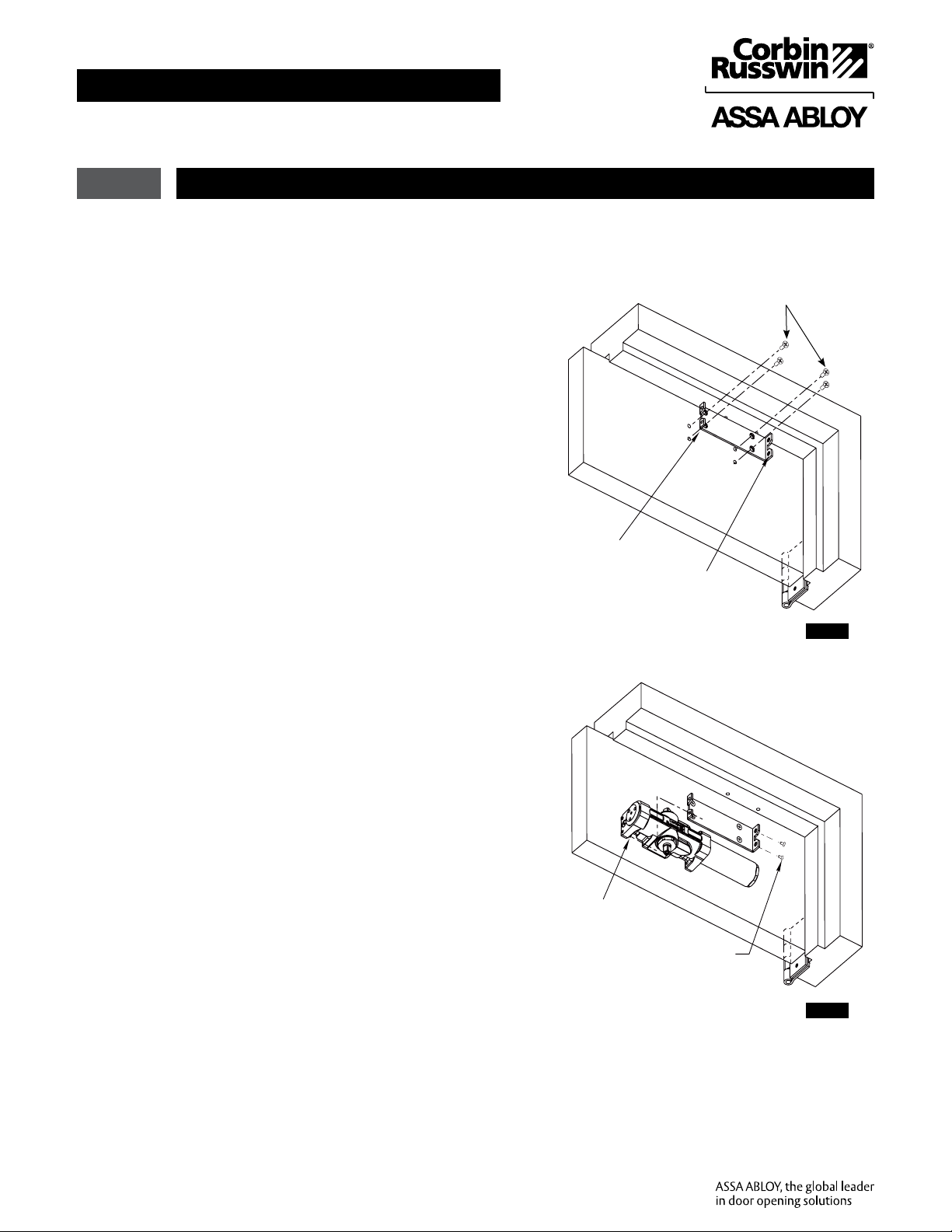

2. Install Closer Bracket. (Figure 3)

Figure 3

3. Mount Closer Body to Closer Bracket.

(Figure 4)

Figure 4

Pin Hole End

Countersunk Holes

Holding Pins

1/4-20 x 1/2 OHMS (2)

1/4-14 x 1-1/2

OH Self-Drilling (4)

1/4-20 x 3/4 OHMS w/Sex

Nuts (4) (M54 Option)

80-9360-6007-152 04/18

DC6210 and DC6410 Series Closers

A14 Heavy Duty Friction Hold Open Parallel Arm

Installation Instructions

permission of Corbin Russwin, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

Figure 5

4. Fasten Sofﬁt Plate to Frame Sofﬁt (under

side of frame).

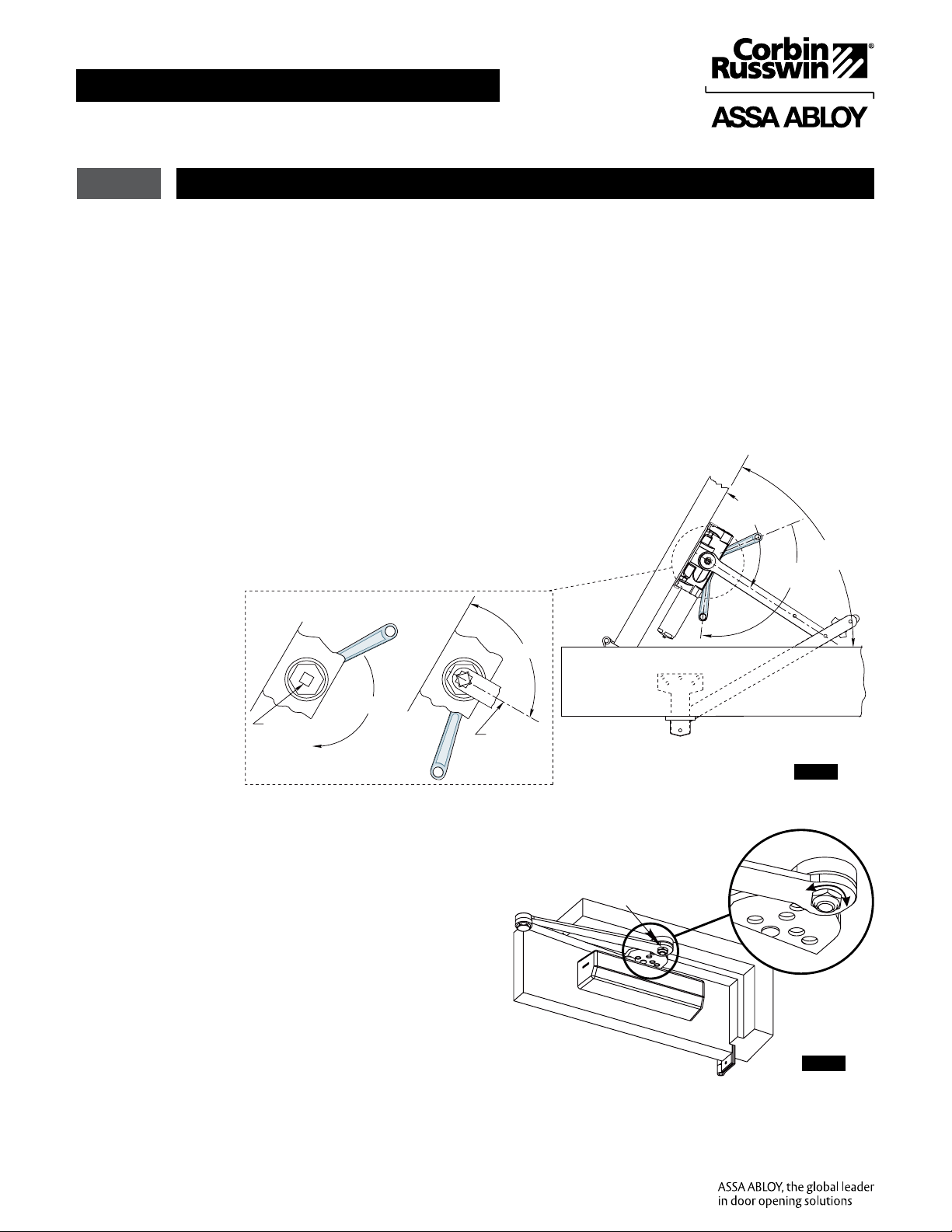

5. Connect Arm To Closer. (Figure 5)

Using hex wrench provided, close (turn

clockwise) CLOSING SPEED VALVE (see

page 5 for location on closer). DO NOT

OVER TIGHTEN.

• Open door to approximately 60°.

• Using wrench on underside of spindle,

rotate spindle approximately 135° toward

hinge edge of door.

• Install arm on spindle at an approximate 90°

angle to door.

• Reopen CLOSING SPEED VALVE.

• Install and tighten arm washer and screw.

DOOR

SPINDLE

ARM

CENTERLINE

ALL ANGLES SHOWN ARE APPROXIMATE

DOOR

90°

SPINDLE

ROTATED 135°

Rotate 135°

SPINDLE AT REST

60°

DOOR

135°

WRENCH

90°

ARM

2 Installation

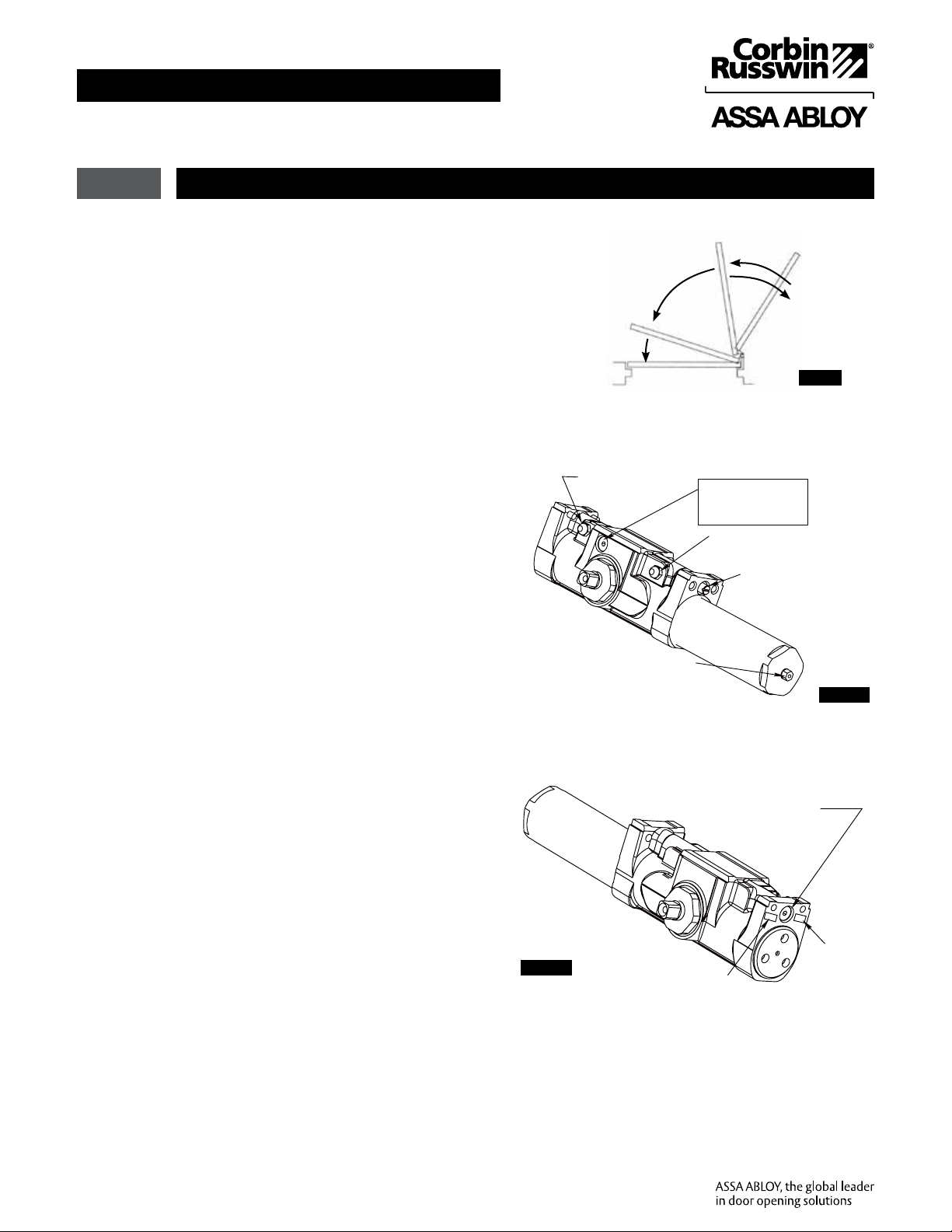

6. Adjust Hold Open Position. (Figure 6)

Open door to desired degree of hold open. (If

door does not open far enough, loosen Hold

Open Adjustment Nut.) Place door at desired

degree for hold open and tighten Hold Open

Adjustment Nut.

Rotation:

Counter-clockwise will increase (+) angle.

Clockwise will decrease (-) angle.

NOTE: Pushing door beyond set hold

open point may cause damage to product.

Friction Hold Open

Adjustment Nut

Figure 6

80-9360-6007-152 04/18

DC6210 and DC6410 Series Closers

Installation Instructions

A14 Heavy Duty Friction Hold Open Parallel Arm

permission of Corbin Russwin, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

3 Adjustments

Adjustments (Figure 7)

(3/32 Allen Wrench Provided)

Closing Speed Valve (Figure 8)

To adjust speed of door closing from fully

open to a position 2 to 5" from closed, turn

Closing Speed Valve CLOCKWISE to SLOW

closing, COUNTER-CLOCKWISE to SPEED

closing.

Latching Speed Valve (Figure 9)

After closing speed has been obtained, turn

latching speed valve CLOCKWISE to SLOW

latching or COUNTER-CLOCKWISE to SPEED

latching for last 2" to 5" of door travel.

NOTE: Set combination of CLOSING and

LATCHING speeds to between 3 and 7

seconds. Use of door by handicapped,

elderly or small children, may require

even greater closing time.

Backcheck Location Valve (Figure 8)

Valve is closed, as shipped, from factory.

To increase degree of door opening where

backcheck takes effect, turn valve counter-

clockwise. When valve is closed, backcheck

occurs at approximately 65°-70°. When valve

is open, backcheck occurs at approximately

95°-100°.

Backcheck Intensity Valve (Figure 8)

Turn valve COUNTER- CLOCKWISE to reduce

backcheck or CLOCKWISE to increase

backcheck. (Backcheck should be set to give

a soft cushioning action, not a sudden stop).

Delayed Action Valve (Figure 8)

Turn valve CLOCKWISE to SLOW closing,

COUNTER-CLOCKWISE to SPEED closing.

Delayed action may be adjusted from 20

seconds to 90 seconds, depending on degree

of door swing. Delay occurs at the beginning

of the door closing cycle from fully open down

to 70°, where the closing speed valve then

begins its control.

Delayed Action

Option

M-71

Backcheck

Latch

Sweep

LATCHING

SPEED

VA LV E

Power

Size

Stamp

Date Stamp

BACKCHECK

INTENSITY VALVE

BACKCHECK

LOCATION VALVE

CLOSING

SPEED VALVE

SPRING

POWER ADJUSTER

(5/16" WRENCH or SOCKET)

(FLATTIP SCREWDRIVER

)

OPTION M71

DELAYED

ACTION VALVE

Figure 7

Figure 8

Figure 9

80-9360-6007-152 04/18

DC6210 and DC6410 Series Closers

A14 Heavy Duty Friction Hold Open Parallel Arm

Installation Instructions

permission of Corbin Russwin, Inc. is prohibited.

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

3 Adjustments

Adjust Spring Power According to Chart

DC6200 Size 1-6 Adjustment (Figure 10)

DC6400 Half Size Adjustment as Desired

• All DC6200 closers are factory set at an

approximate Size 3.

Full Cover(Standard)

Slim Cover (Option M76)

Figure 10

Figure 11

Figure 12

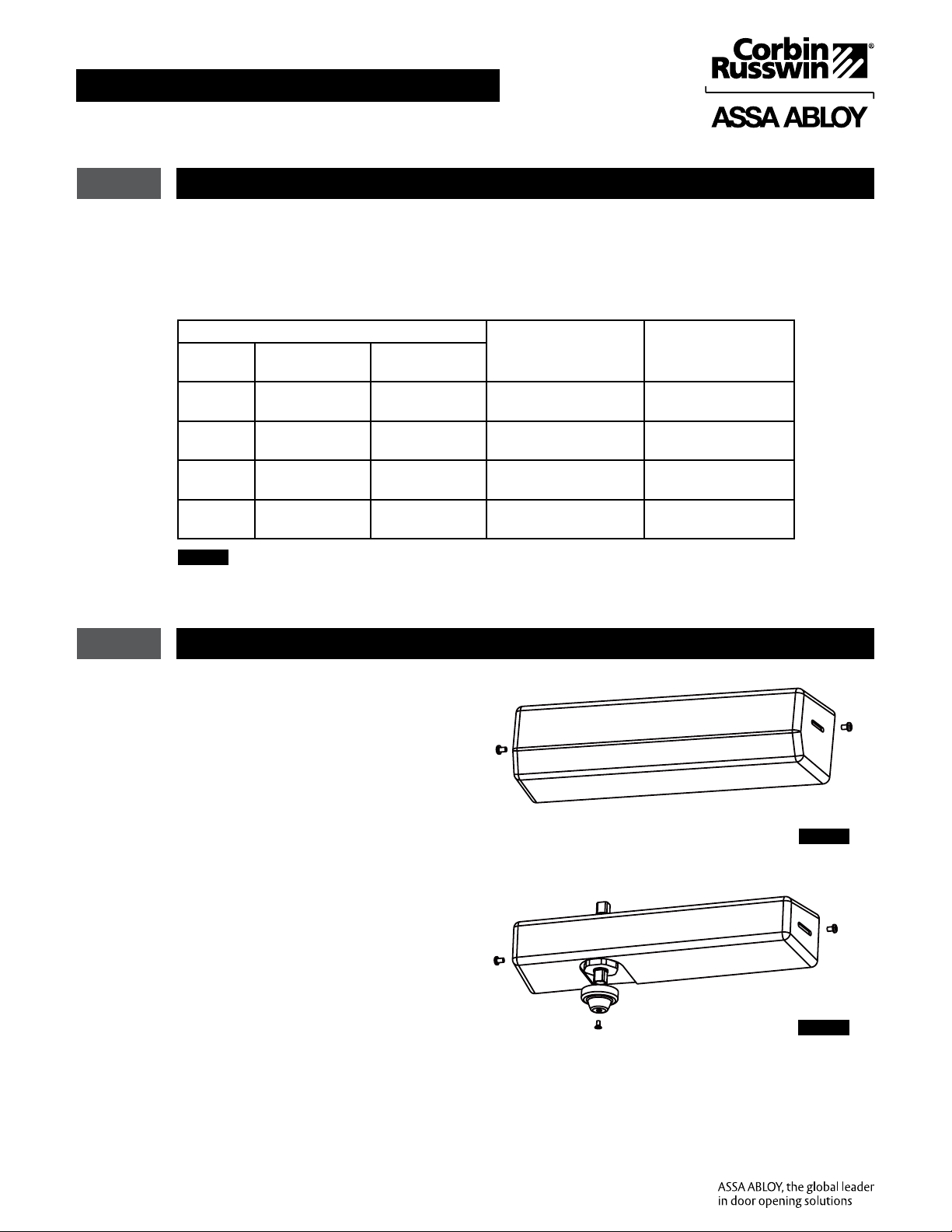

4 Cover Installation

Full Cover(Standard)

Slim Cover (Option M76)

Install Cover (Figure 11)

Slip cover over closer. Hold tightly against

closer mounting surface. Secure on each

side with 6-32 x 1/4 PBHMS screws.

Slim Cover Option M76 only (Figure 12)

Position spindle cap over unused spindle

and secure with truss head screw.

• Adjust closer as necessary for door size

using this chart.

• Readjustment may be required to suit

prevailing conditions.

Size of Door No. of Full (360°)

Turns Clockwise of

Power Adjuster

Equivalent Closer

Size (Approx.)

Interior Exterior

In-Swinging

Exterior

Out-Swinging

2' 4"

(712)

2' 6"

(764) - 4 2

2' 6"

(764)

3' 0"

(915) - 8 3

3' 0"

(915)

3' 6"

(1067)

2' 6"

(764) 12 4

3' 6"

(1067)

4' 0"

(1219)

3' 0"

(915) 16 5

80-9360-6007-152 04/18

permission of Corbin Russwin, Inc. is prohibited.

Patent pending and/or patent: www.assaabloydss.com/patents

Corbin Russwin

225 Episcopal Road

Berlin, CT 06037

Phone: 800-543-3658

Fax: 800-447-6714

corbinrusswin.com

For installation assistance contact Corbin Russwin

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

This manual suits for next models

Table of contents

Other Assa Abloy Door Lock manuals

Assa Abloy

Assa Abloy HES 9400 Operating instructions

Assa Abloy

Assa Abloy Sargent 6-Line User manual

Assa Abloy

Assa Abloy effeff MAGG1200SM User manual

Assa Abloy

Assa Abloy ES8100 Assembly instructions

Assa Abloy

Assa Abloy Yale Assure Technical specifications

Assa Abloy

Assa Abloy SECURITRON DPA-12 User manual

Assa Abloy

Assa Abloy effeff 827A-IP User manual

Assa Abloy

Assa Abloy Yale Essential YDME 70 User manual

Assa Abloy

Assa Abloy Yale Keyfree Connected Smart Lock User manual

Assa Abloy

Assa Abloy Sargent AL-PE80 Series User manual

Assa Abloy

Assa Abloy SARGENT7800 Series User manual

Assa Abloy

Assa Abloy Corbin Russwin Access 800 9800 TCWI1 Series User manual

Assa Abloy

Assa Abloy Sargent 10G13 User manual

Assa Abloy

Assa Abloy effeff Mini Shear Magnet User manual

Assa Abloy

Assa Abloy Corbin Russwin CLX3300 Series User manual

Assa Abloy

Assa Abloy Lockwood Cavity Lock User manual

Assa Abloy

Assa Abloy ENTR User manual

Assa Abloy

Assa Abloy PEMKO 3495 User manual

Assa Abloy

Assa Abloy ESA500 Installation manual

Assa Abloy

Assa Abloy 179B S4 User guide

Assa Abloy

Assa Abloy MSL mFlipLock standard User manual

Assa Abloy

Assa Abloy SARGENT 10X Series User manual

Assa Abloy

Assa Abloy CYE345 User manual

Assa Abloy

Assa Abloy Sargent 52-4424 Guide

Popular Door Lock manuals by other brands

We.lock

We.lock SECBNEBL51 instructions

Iseo

Iseo MA1A installation guide

ID Lock

ID Lock 150 user manual

Lockly

Lockly ACCESS TOUCH PRO user manual

iLoq

iLoq G50S user guide

SDC

SDC Z7835 installation instructions

ilco

ilco 452 Installation

Samsung

Samsung shs-h705 user guide

TRU-BOLT

TRU-BOLT 08102017 user manual

CDVI

CDVI 500-LADJ quick start guide

Igloohome

Igloohome Deadbolt 2S Metal Grey Installer/user guide

eSSL

eSSL FL-300 user manual

JAKO

JAKO JKBTNX4 installation guide

Dorma

Dorma MUNDUS PREMIUM GK 50 Mounting instruction

SCOOP

SCOOP Pullbloc 4.1 FS Panik Assembly instruction

Yale

Yale MORTISE 8800 SERIES installation instructions

Siegenia

Siegenia KFV AS3500 Assembly instructions

Saflok

Saflok Quantum ädesē RFID installation instructions
