Asoni CAM414 User manual

Network Vandal Dome

CAM414 / CAM415

User’s Manual

Version: 3.1

Date: 5/22/2008

Content

1. Preface .................................................................................................................................2

2. Product Specifications...........................................................................................................2

3. Product Installation ...............................................................................................................4

A. Hardware Installation.........................................................................................................4

B. Monitor Setting..................................................................................................................6

C. IPAssignment ...................................................................................................................7

D. Install ActiveX Control .......................................................................................................9

4. Live Video...........................................................................................................................11

5. Configuration ......................................................................................................................14

A. System............................................................................................................................14

B. A/V Setting......................................................................................................................20

C. Network...........................................................................................................................25

D. Event Handling................................................................................................................29

6. Network Configuration ........................................................................................................37

Appendix....................................................................................................................................39

1. Preface

CAM414/415 Network Vandal Dome is a professional CCD Network Vandal Dome. It

builds in web server. User views real-time video via IE browser.

Network Vandal Dome supports MPEG-4 & M-JPEG video compression which provides

smooth and high quality video. The video can be stored in the SD card, and can be

playback remotely.

The PoE model built-in support for Power over Ethernet allows the camera to receive both

data and power over a single Ethernet cable.

2. Product Specifications

zMPEG-4 / MJPEG compression formats. Supports resolution up to 30/25 fps @ Full

D1 (720x480 / 720x576)

zMPEG-4 / MJPEG dual streaming.

zSelf-Contained HTTP Web Server providing Internet capability for remote access

zBuilt-in IR LED for day/night usage (CAM415)

zSupports SD card for local recording

z2-way audio

zUnbreakable housing

zSupport IP66 water proof standard

zBuilt-in support for Power over Ethernet (available for PoE models)

zReal-time video recording

zRecorded files compatible with Microsoft Windows Media Player

Hardware

Model CAM414 CAM415

Picture Elements H×V NTSC:510×492, PAL: 500×582 NTSC:768×494, PAL: 752×582

Horizontal Resolution More than 420 TV Lines More than 540 TV Lines

Image Sensor 1/3” CCD

Lens CAM414/415: 3.7~12mm vari-focal auto iris, F1.6, 3.6mm

CAM414F/415F: Fixed lens 3.6mm

IR LED - IR LED Built-in

IR Cut Filter - Removable IR Cut Filter (optional)

Sensitivity 0.05 lux 0.1 lux, 0 lux (IR On)

CPU ARM 9 ,32 bit RISC

RAM 64MB

ROM 8MB

Video Out 1 Vp-p, 75 Ohms

Digital I/O 1 In/ 1 Relay out (COM. & N.O.)

Audio In / Out 1 In / 1 Out

Power Consumption DC12V, 490mA PoE model: Built-In PoE (IEEE 802.3af)

Network

Ethernet 10/ 100 Base-T

Network Protocol HTTP, TCP/IP, RTP/RTSP, 3GPP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP

System

Video Resolution NTSC: 720x480, 704x480, 352x240, 176x120

PAL: 720x576, 704x576, 352x288, 176x144

VideoAdjustment Brightness, Contrast, Saturation, Hue

Image Snapshot Yes

Full Screen Monitoring Yes

Compression Format MPEG-4, MJPEG

Dual Streaming Yes, MPEG-4 / MJPEG

Video BitrateAdjustment CBR, VBR

Motion Detection Yes, 3 different areas

Triggered Action Mail, FTP, Digital out, Save to SD card

Pre/ Post Alarm Yes, configurable

Security Password protection

Firmware Upgrade HTTP mode, can be upgraded remotely

Simultaneous Connection Up to 10

Audio Yes, 2-way

SD card management

Recording Trigger Motion detection, Digital input, IP check, Network break down

Video Format AVI, JPEG

Video Playback Yes

File Management Yes, can be deleted or overwrite

Web browsing requirement

OS Windows 2000, XP, 2003, Microsoft IE 6.0 or above

Hardware Suggested Intel-C 2.0G, RAM: 512MB, Graphic card: 64MB

Minimum Intel-C 1.6G, RAM: 256MB, Graphic card: 32MB

3. Product Installation

A. Hardware Installation

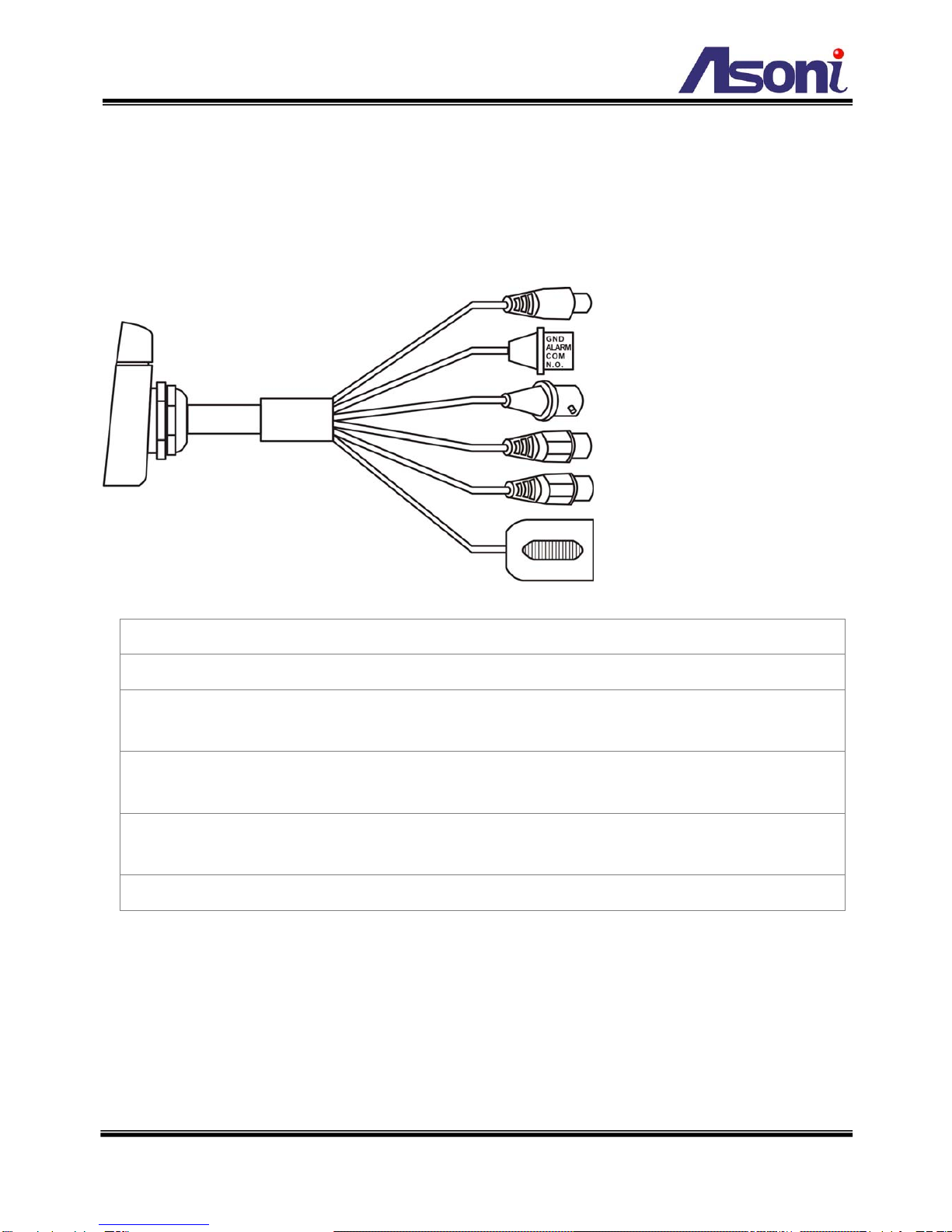

nPower Jack: To connect the included power adapter.

oDigital I/O: Digital In and Digital Out.

pVideo Output: The BNC connector allows connect to the analog display to

output analog video for locally monitoring.

qAudio Input (Pink): The RCA connector allows connect to a microphone or audio

source, the connected audio will be heard at the remote site.

rAudio Output (Green): The RCA connector allows connect to an amplified speaker,

you can hear the voice of the remote site from the speaker.

sNetwork Connector: The RJ-45 connector allows connect the Ethernet cable.

1. Connect the cable of Digital I/O, Video output, Audio output and Audio input if you want

to use these functionalities.

2. Connect Ethernet cable for network connection.

3. Connect power adapter to turn on the camera.

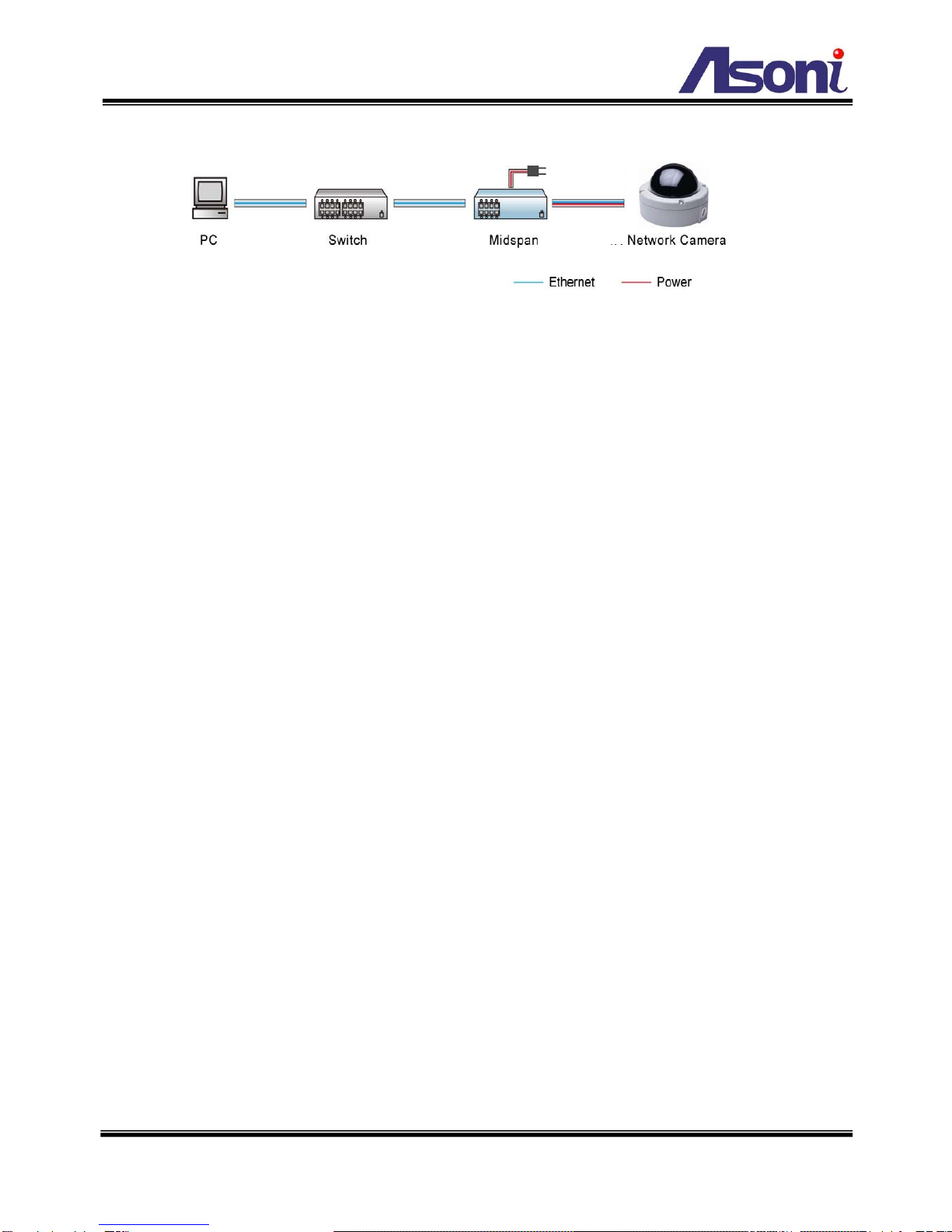

4. If the camera is PoE model, the power adapter is not necessary. The camera will get

the power from the Ethernet cable. Please follow the below figure for the connection.

Power Jack (DC 12V)

Digital I/O

Analog Video Output

(Pink) Audio Input

(Green) Audio Output

Network Connector

5. Set up the network configurations according to the network environment. For further

explanation, please refer to chapter 6.

B. Monitor Setting

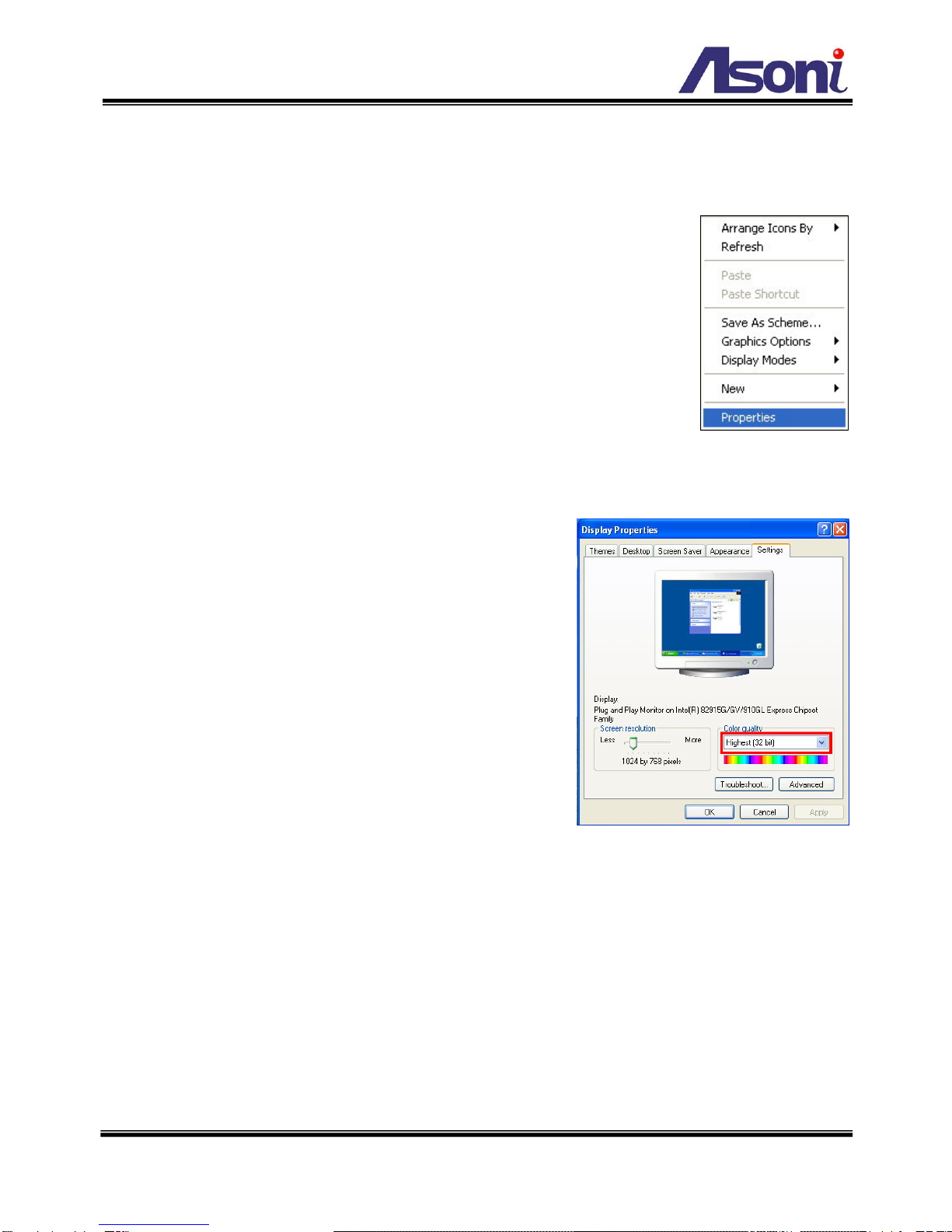

1. Right-Click on the desktop. Select [Properties]

2. Change color quality to “Highest (32bit)”.

C. IP Assignment

¾Always consult your network administrator before assigning an IP address to your

camera in order to avoid using a previously assigned IP address.

¾MAC Address: Each network camera has a unique Ethernet address (MAC address)

shown on the sticker of the camera.

¾One final note, although the IP Search is able to find and configure any network

camera on the LAN except those that are behind a router, it is a good idea to set the

host PC to the same subnet. In order to connect to the Web-based user interface of

the network camera, the host PC must be in the same subnet. For more information

about subnets, please consult your network administrator.

There are 3 kinds of IP configuration:

zFixed IP (Public IP or Virtual IP)

zDHCP (Dynamic IP)

zDial-up (PPPoE)

IP Search is a utility that provides an easier, more efficient way to configure the IP

address and network settings of the network camera. It even provides a convenient way

to set the network settings for multiple devices simultaneously. Moreover, IP Search can

save the network settings for all devices as a backup and restore them when necessary.

The software can be installed from the attached software CD.

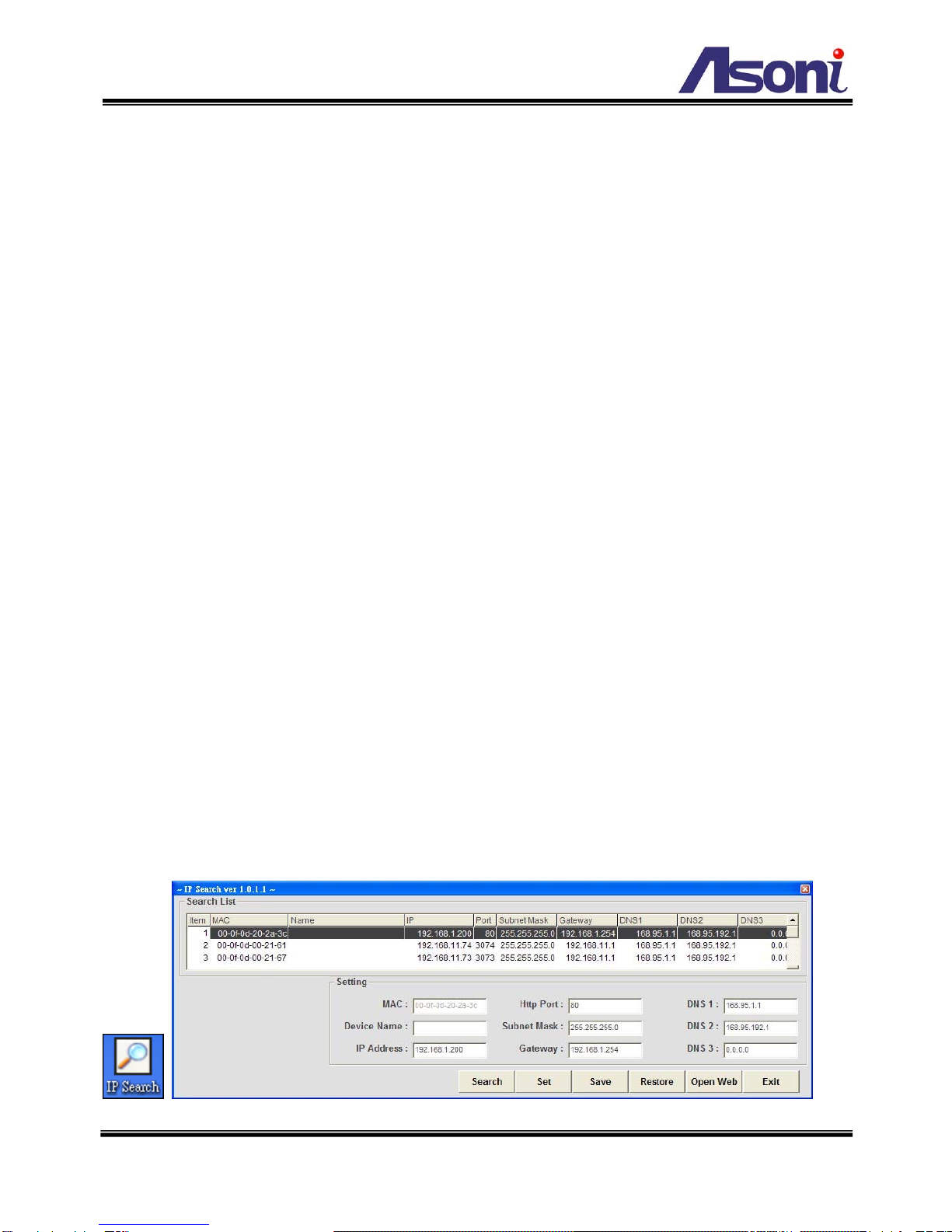

1. Once IP Search has been successfully installed on the computer, double click the

IP Search icon on the desktop.

2. IP Search searches all the network devices which connect to the intranet and lists

on the window. Click [Search] button to search again.

3. From the list, select the device with the MAC Address that corresponds to the

device that is to be configured.

4. Click one of the network devices, the network configuration of this device will show

on the bottom.

5. After filling in the IPAddress, Subnet Mask, Gateway and the others, click [Set]

button to complete the configuration settings and save into the remote device.

6. You can assign a name to identify the camera. Type the name in “Device Name”

field, click [Save] and then click [Search] button, the name will be displayed in the

list.

7. Wait for 1 minute to let camera update the settings, and then click [Search] button

again to re-search the network devices. Click the network device listed on the

window and click [Open Web] button. It will open an IE browser and connect to this

device directly.

D. Install ActiveX Control

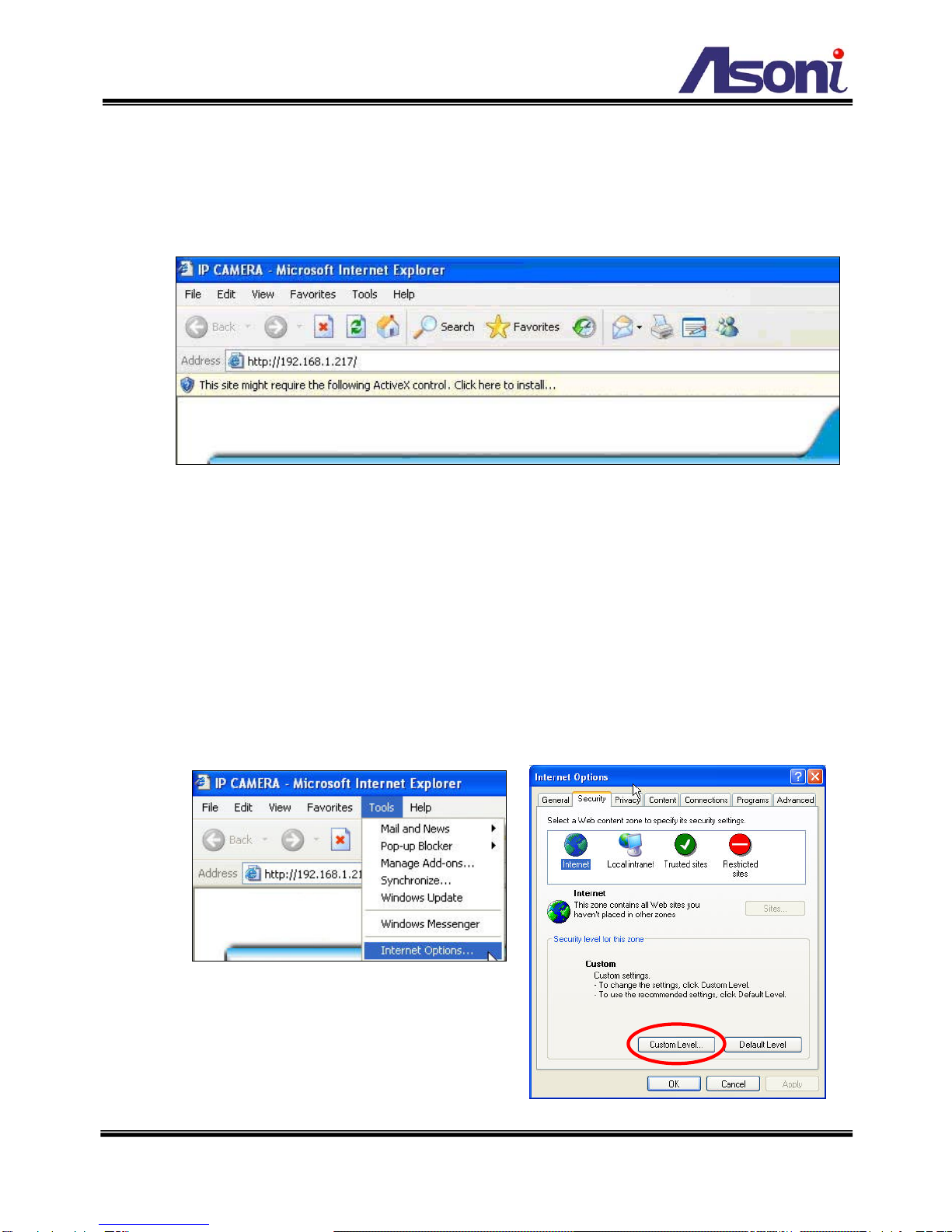

For the first time to view the camera video via IE, it will ask you to install the ActiveX

component.

If the installation failed, please check the security setting for the IE browser.

1. In IE, click on [Tools] Æ[Internet Options…]

2. Click on [Security] Tab Æ[Custom Level…]

3. In Security Settings, under [Download unsigned ActiveX controls], select “Enable”

or “Prompt”.

4. In Security Settings, under [Initialize and script ActiveX controls not marked as safe],

select “Enable” or “Prompt”.

5. When pop-up window with warning message, click [Yes] to save the settings.

1 2
